Align T-rex 150X Super Combo 3d Helycopter RH15E04X

RH15E04X T-REX 150X Super Combo

Align's smallest and most petite 3D helicopter T-Rex 150X, carries the same superior pedigree and design concept that originated from the successful T-Rex line of helicopters. Featuring strong power, superior flight control stability, and equipped with high end components, far exceeding any other helicopters currently on the market.
Integrate 6-aix gyro, receiver, ESC and Bluetooth controlling system. Set up and update the flight parameter settings via APP Interface. Support for mobile devices, iOS & Android allows easy set up and adjustment to flight parameter settings. The APP makes firmware updates easier to install. Download the FREE APP to get the latest firmware update with additional improved functions. Main motor KV value is increased to 9000KV to deliver outstanding power, torque, and high efficiency with low power consumption delivering outstanding performance. The tail motor provides superior tail authority out performing all other micro heli's on the market.
T-Rex 150X features built in Futaba S-FHSS 2.4Ghz system, and support the use of Spektrum DSM2/DSMX / JR DSM2/DMSS satellite receivers.

Miniature size, control precision that resembles the larger helicopters, enables you to enjoy flying inside a confined space. Beginners can even enjoy this with ease by just turning down the speed. The innovative breakthrough T-Rex 150X will bring you a new dimension of flying enjoyment.

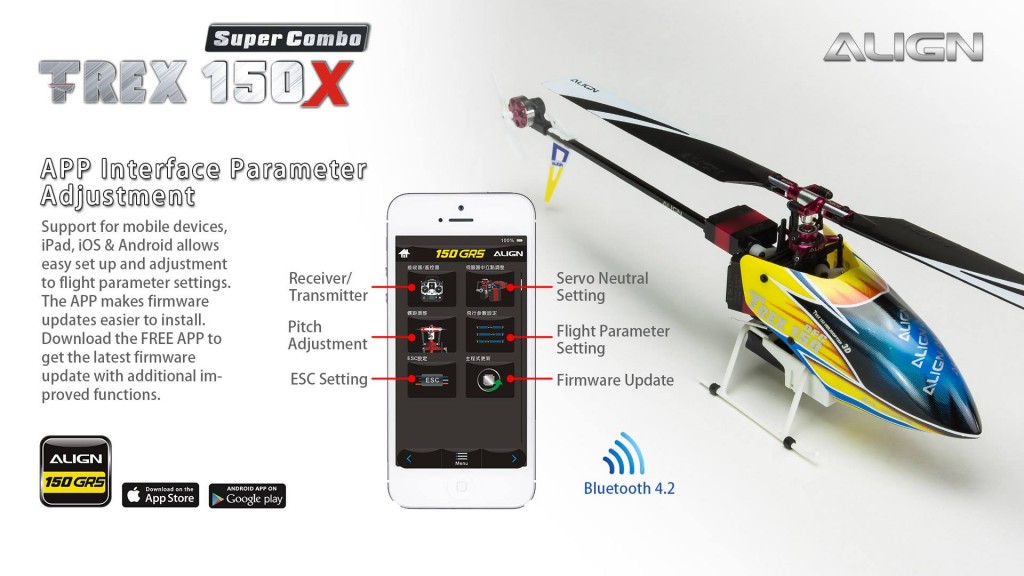

Integrate 6-aix gyro, receiver, ESC and Bluetooth controlling system. Set up and update the flight parameter settings via APP Interface.

Support for mobile devices, iOS & Android allows easy set up and adjustment to flight parameter settings. The APP makes firmware updates easier to install. Download the FREE APP to get the latest firmware update with additional improved functions.
It adopts high precision CNC metal assemble with high end aesthetics and superior flight performance.

Adopt industrial rich-fiber PA material improves the strength and hardness by three times over the original. The new material increases the thickness of the frame structure, reduces warpage, and abrasion while improving impact resistance.

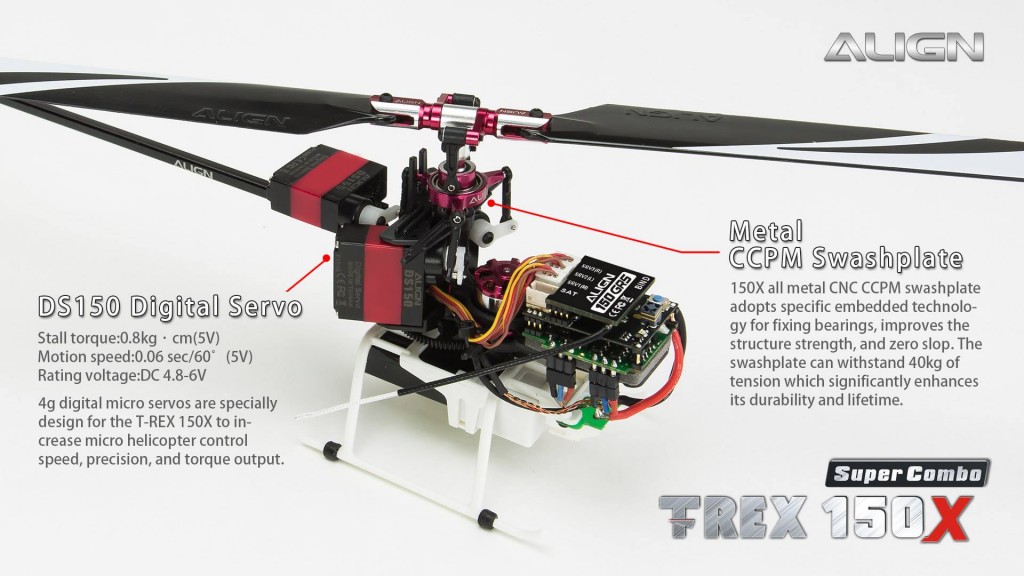

4G digital micro servos are specially design for the T-REX 150X to increase micro helicopter control speed, precision, and torque output.
150X all metal CNC CCPM swashplate adopts specific embedded technology for fixing bearings, improves the structure strength, and zero slop. The swashplate can withstand 40kg of tension which significantly enhances its durability and lifetime.

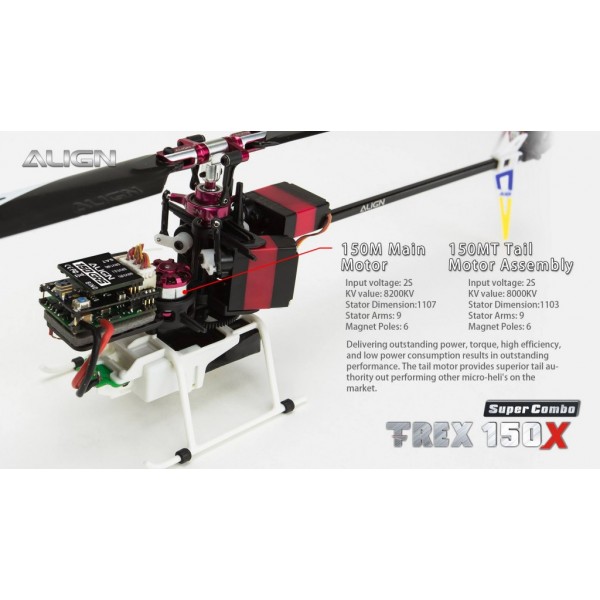

Main motor KV value is increased to 9000KV to deliver outstanding power, torque, and high efficiency with low power consumption delivering outstanding performance. The tail motor provides superior tail authority out performing all other micro heli's on the market.

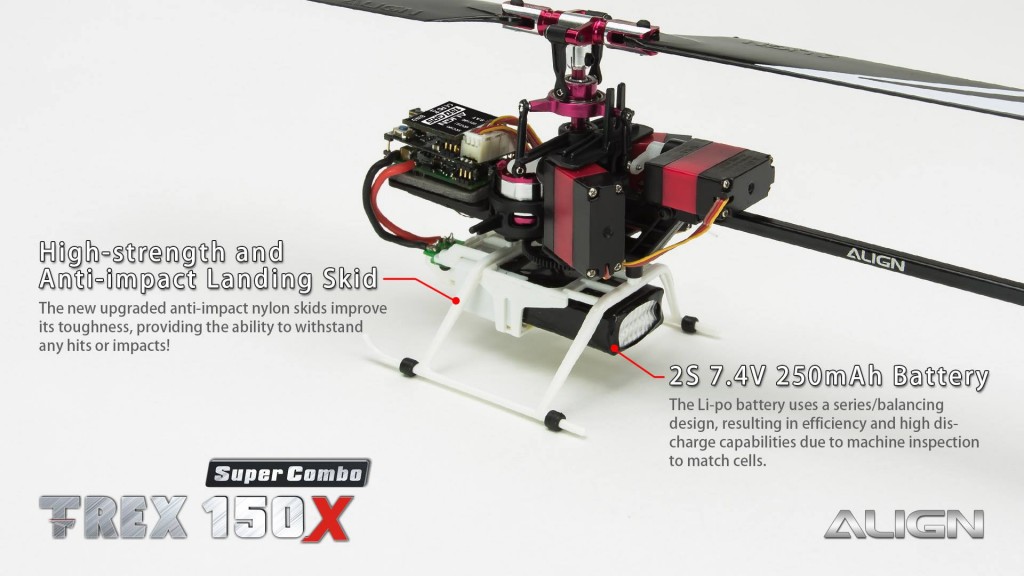

The new upgraded anti-impact nylon skids improve its toughness, providing the ability to withstand any hits or impacts!

The Li-po battery uses a series/balancing design, resulting in efficiency and high discharge capabilities due to machine inspection to match cells.
To deliver outstanding flight performance the main blades are manufactured with high-strength industrial fiber composite material with an added aluminum sleeve to decrease torsional stress, and improving durability.

New tail motor plug mount makes maintenance easy.
For ease of control the T-REX 150 is equipped with Attitude Mode. Enable Attitude Mode to avoid flip overs during flight. Flip a switch takes over to keep the heli at a level position. These new features make learning to fly more enjoyable, allowing you to practice more flight maneuvers, speeds your ability to learn, and boost flying skills. Fly with Confidence!
Equipped dual output function, it allows two batteries charging with 1A current in the same time. Balance charging is good to prevent the situation of over-charging or under-charging for a single cell. Auto-detected charge status display. The auto-detected function of low voltage for power storage. Reverse polarity protection and short circuit protection.
Brand new 150 carry box is special design for T-REX 150 helicopter, features easy to carry and storage, this attractive small box can be storage a helicopter and its necessary flying parts which included 6 batteries, 3 hexagon screw drivers, 2 pair main blades, charger and a small parts box, you can easy and clear to know inside situation just need a glance at its transparence cove.


Standard equipment
● 150 Main Blades x 2 Set
● 150M Main Motor(9000KV/1107) x 1
● 150M Tail Motor(8000KV/1103) x 1
● DS155 Digital Servo x 1
● DS150 Digital Servo x 2
● 150 Tail Blades x 1
● 150 Remote Extension x 1
● 7.4V 250mAh/30C x 2

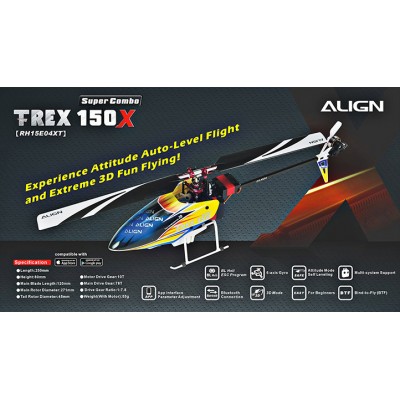

Specification
● Length: 255mm
● Height: 80mm
● Main Blade Length: 120mm
● Main Rotor Diameter: 271mm
● Tail Rotor Diameter: 45mm
● Motor Pinion Gear: 10T
● Main Drive Gear: 78T
● Drive Gear Ratio: 7.8:1
● Weight(Without Battery): 55g

Accessories
● T-REX 150 DFC set x 1
● Main Blades x 2 set
● Tail Blades x 1 set
● 150M Main Motor(9000KV/1107) x 1
● 150M Tail Motor(8000KV/1103) x 1
● DS155 Digital Servo x 1
● DS150 Digital Servo x 2
● Remote Extension x 1
● 7.4V Li-Po 250mAh Li-Polymer Battery x 2
● 150 Carry Box-Black x 1(292x160x69mm)
● 1.3mm Hexagon screw driver(Blue/8.2g) x 2
● 0.9mm Hexagon screw driver(Red/8g) x 1
● Parts box E x 1(78.5x60.9x21mm)
● Parts box A x 1(52x40x12mm)
● CH150X Li-Po Charger x 1

Radio transmitter and electronic equipment required for assembly:

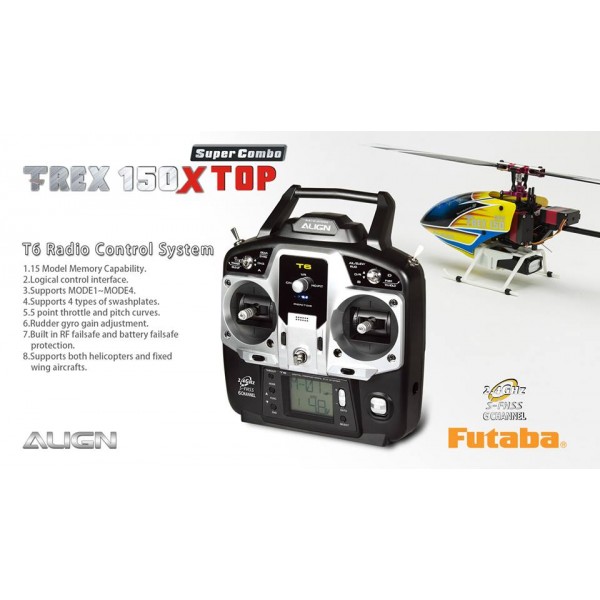

1.ALIGN T6 or Futaba S-FHSS 2.4G Transmitter. For the use of JR and Spektrum system, require JR DSM2/DMSS, Spektrum DSM2/DSMX 2.4GHz Transmitter and Satellite.
