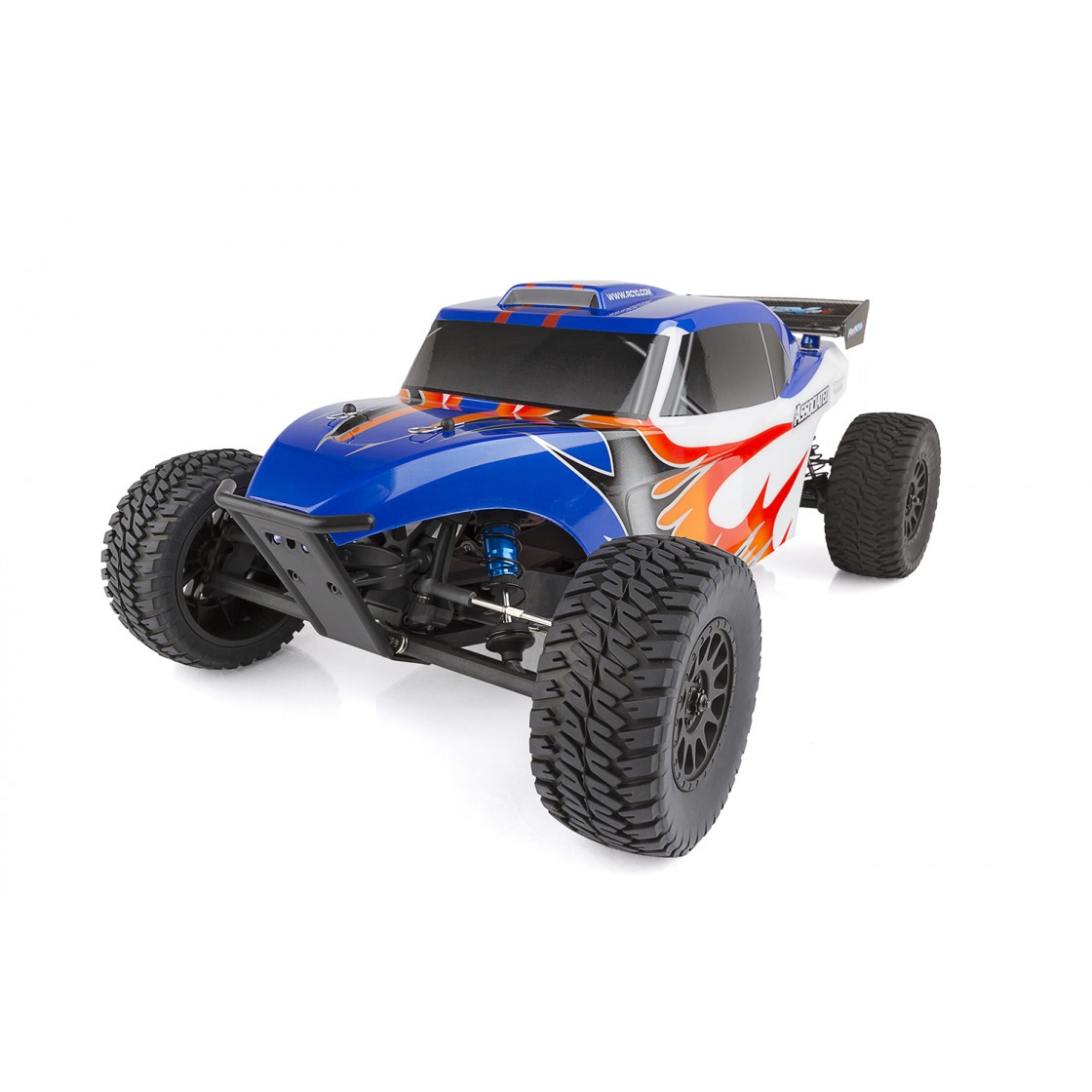

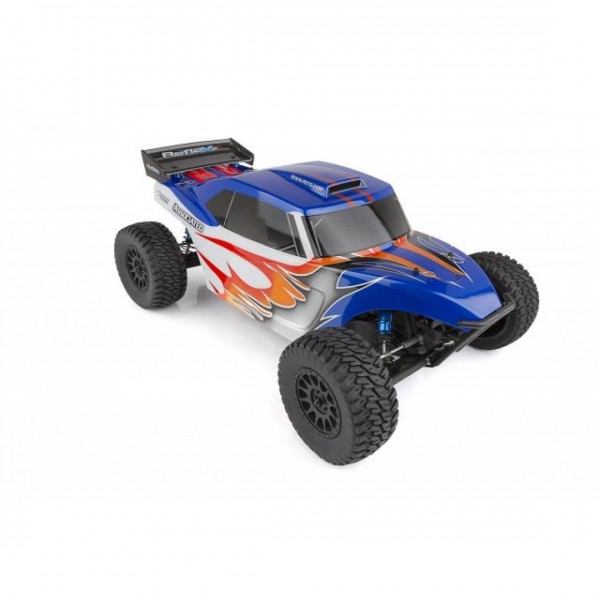

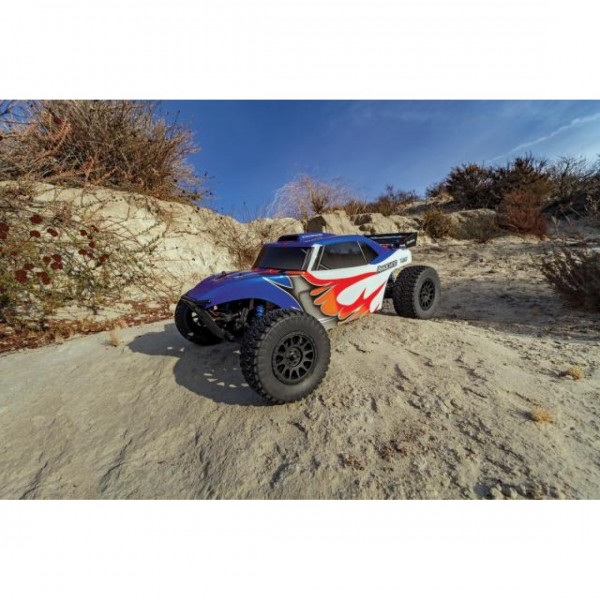

Team Associated Reflex DB10 Brushless 2WD RTR

The Associateds Reflex DB10 Team is based on the winner of the ROAR Short Course National 9 times!


view
Team Associateds Reflex DB10 is based on the winner of the ROAR Short Course National 9 times. So the Trophy Rat is ready for anything: show and racing. The stroller is assembled ready for driving and comes standard with a high-power Reedy brushless controller protected from water, a 3300 kV brushless motor and a 2.4 GHz remote control system with the brand new DVC receiver (Dynamic Vehicle Control) with built-in and adjustable gyroscope system for perfect vehicle control even in difficult terrain guarantees. A Reedy digital steering servo and LED lights on the front and rear complete the Trophy Rat package.

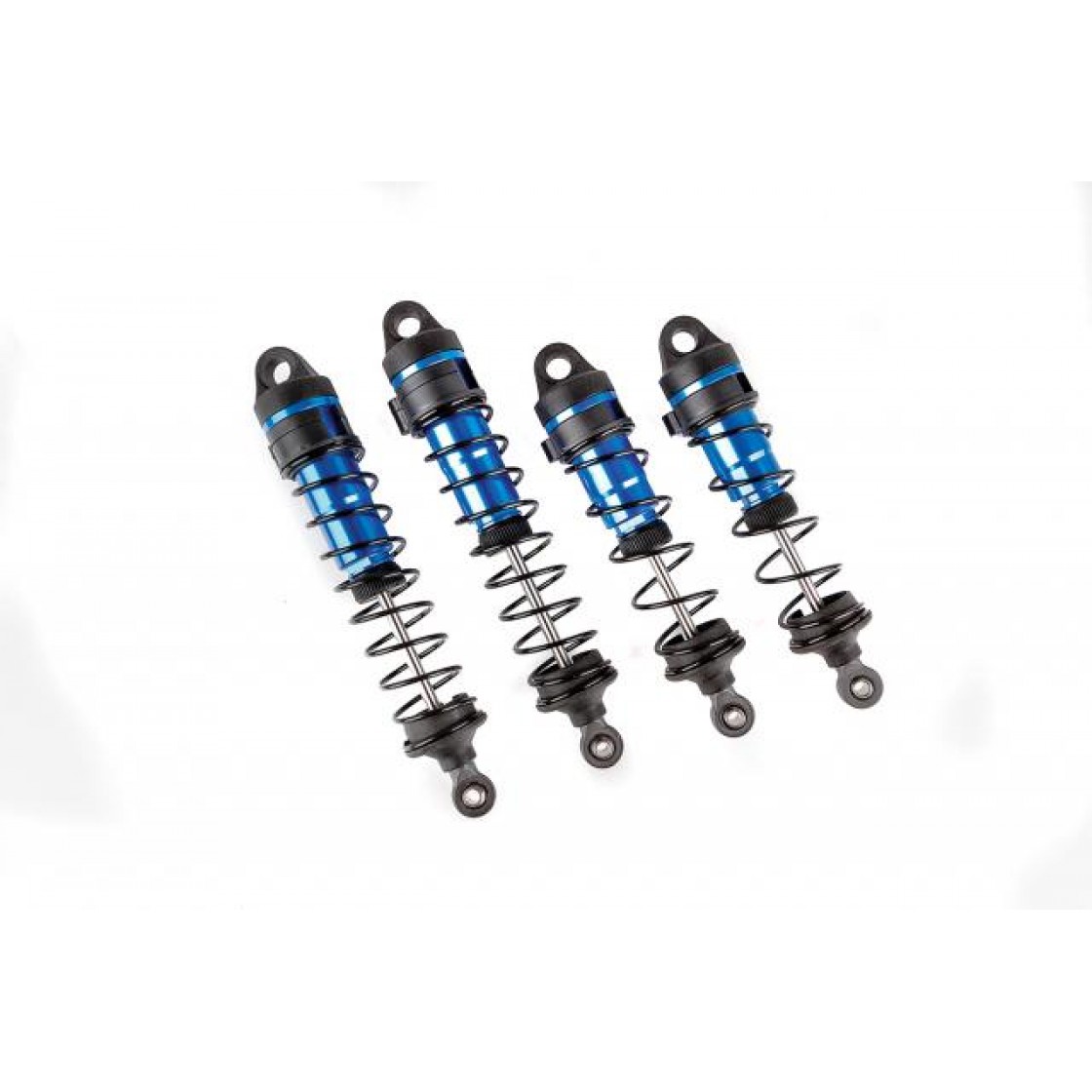

The chassis received an update in the form of 12mm V2 aluminum adjustable shocks with larger hole. The transmission features a sealed heavy-duty bevel gear differential and 81mm CVA drive shafts ensure excellent traction. Drivers of hexagonal and pneumatic rims and realistic off-road rims keep the truck safe on the ground.


MODEL VERSION: # 90040
NAME: REFLEX DB10 RTR
MOTOR: brushless

electronics included:

•     transmitter
•     servant
•     controller
•     receiver

Technical specifications:

•     Based on the 9x ROAR National Champion Truck Short Course platform

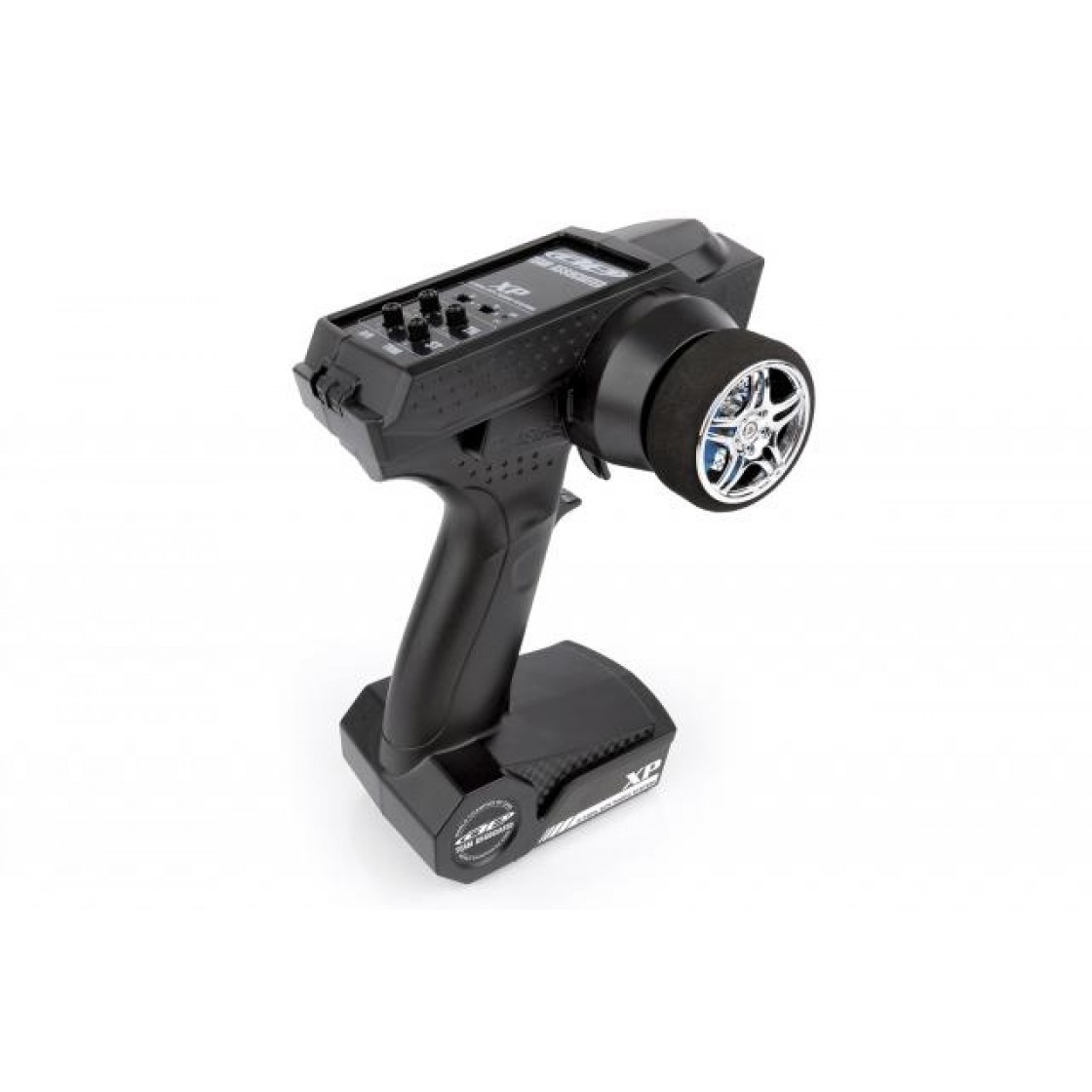

•     2.4 GHz 2-channel radio control system with new DVC (Dynamic Vehicle Control) receiver, with built-in adjustable gyroscopic system
•     High torque metal gear servo with servo acid

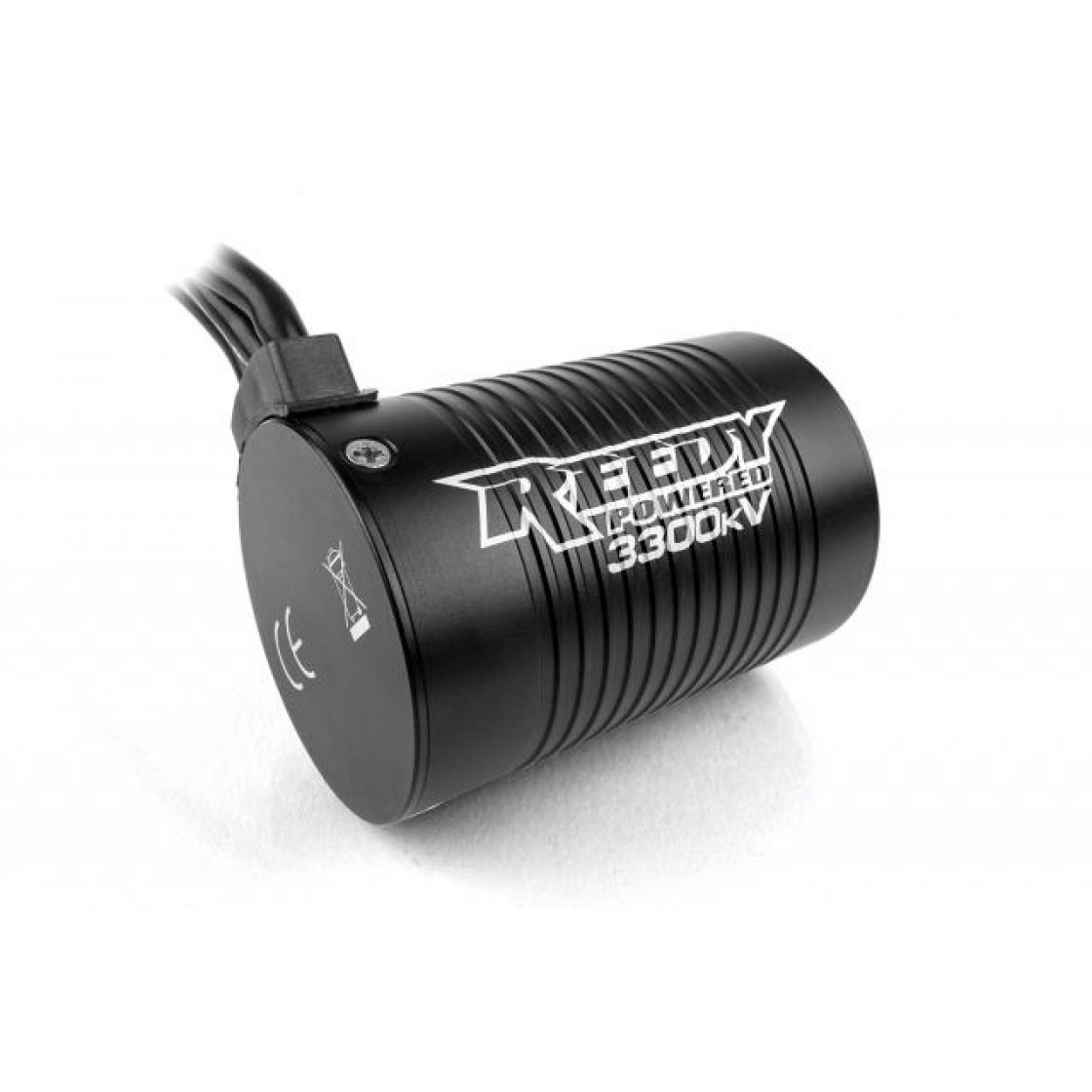

•     Powerful 3000kV Reedy brushless motor
•     High power brushless reedy speed regulator protected by water with T connector and LiPo undervoltage protection
•     Factory painted desert buggy body

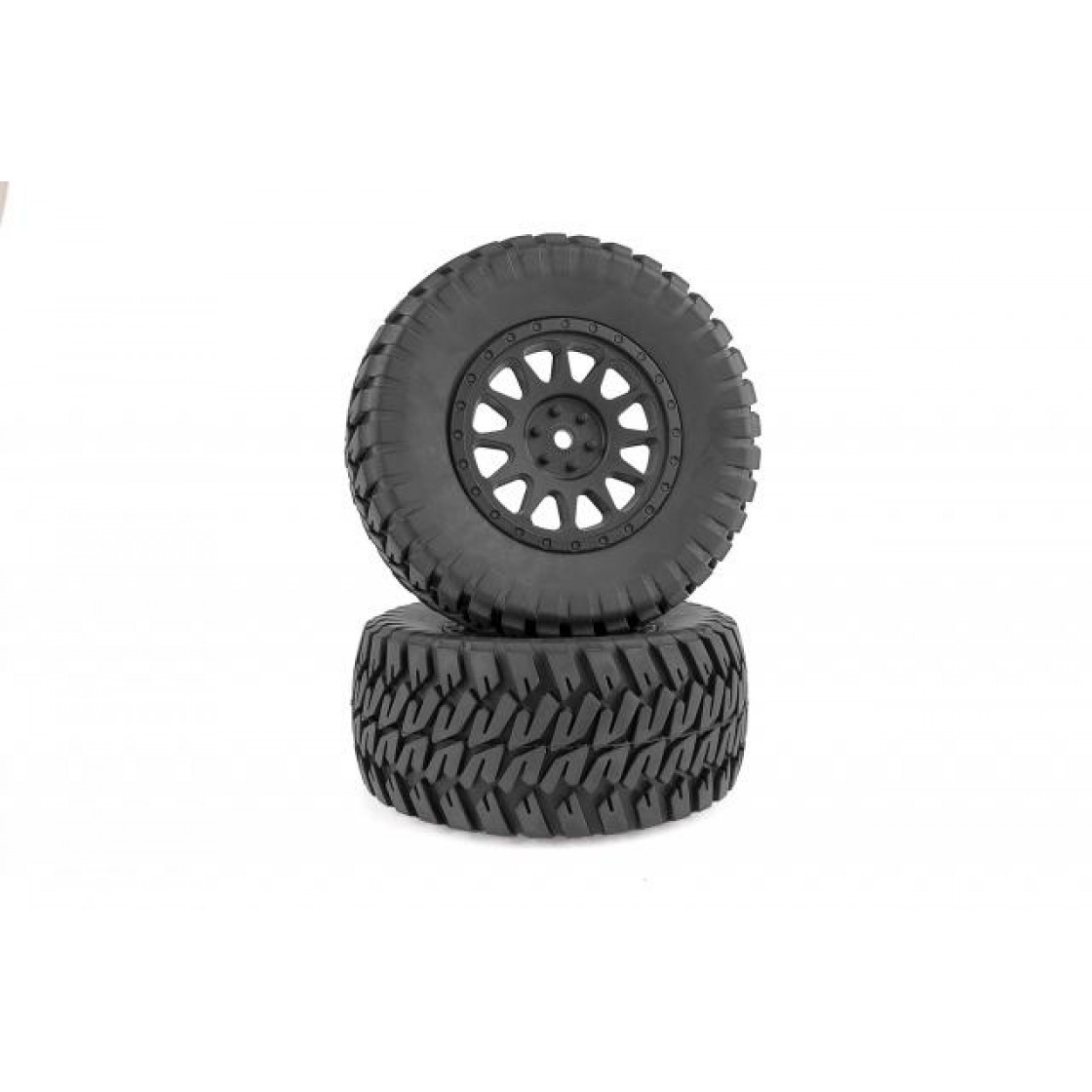

•     Rims with realistic method with 12m wheels

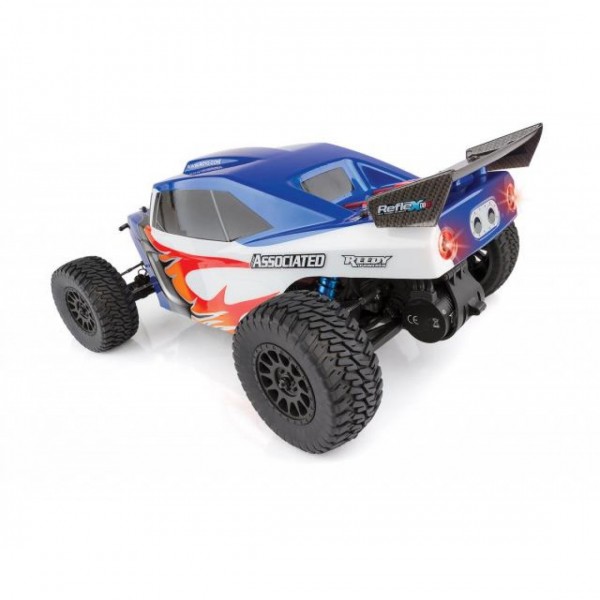

•     Four integrated LEDs, two in the front, two in the back
•     Receiver box protected from water
•     Upper shaft in light and resistant aluminum

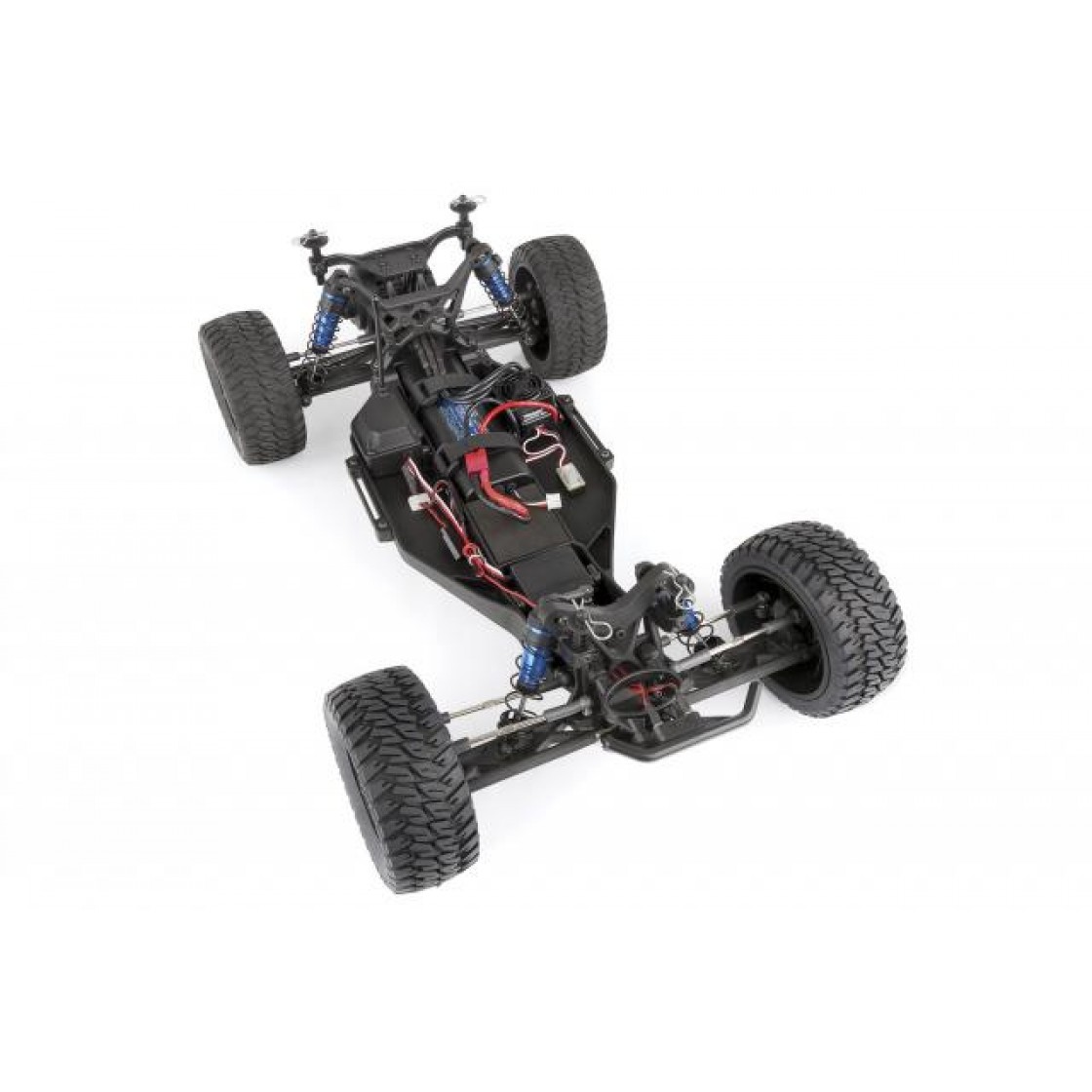

•     Injected center of gravity frame with velcro battery holder for NiMH and LiPo 2S / 3S batteries
•     Metric screws
•     14 precision sealed rubber ball bearings
•     Heavy duty body bracket
•     Rear CVA drive shafts for high reliability
•     Big shock absorber diameter 12 mm in aluminum

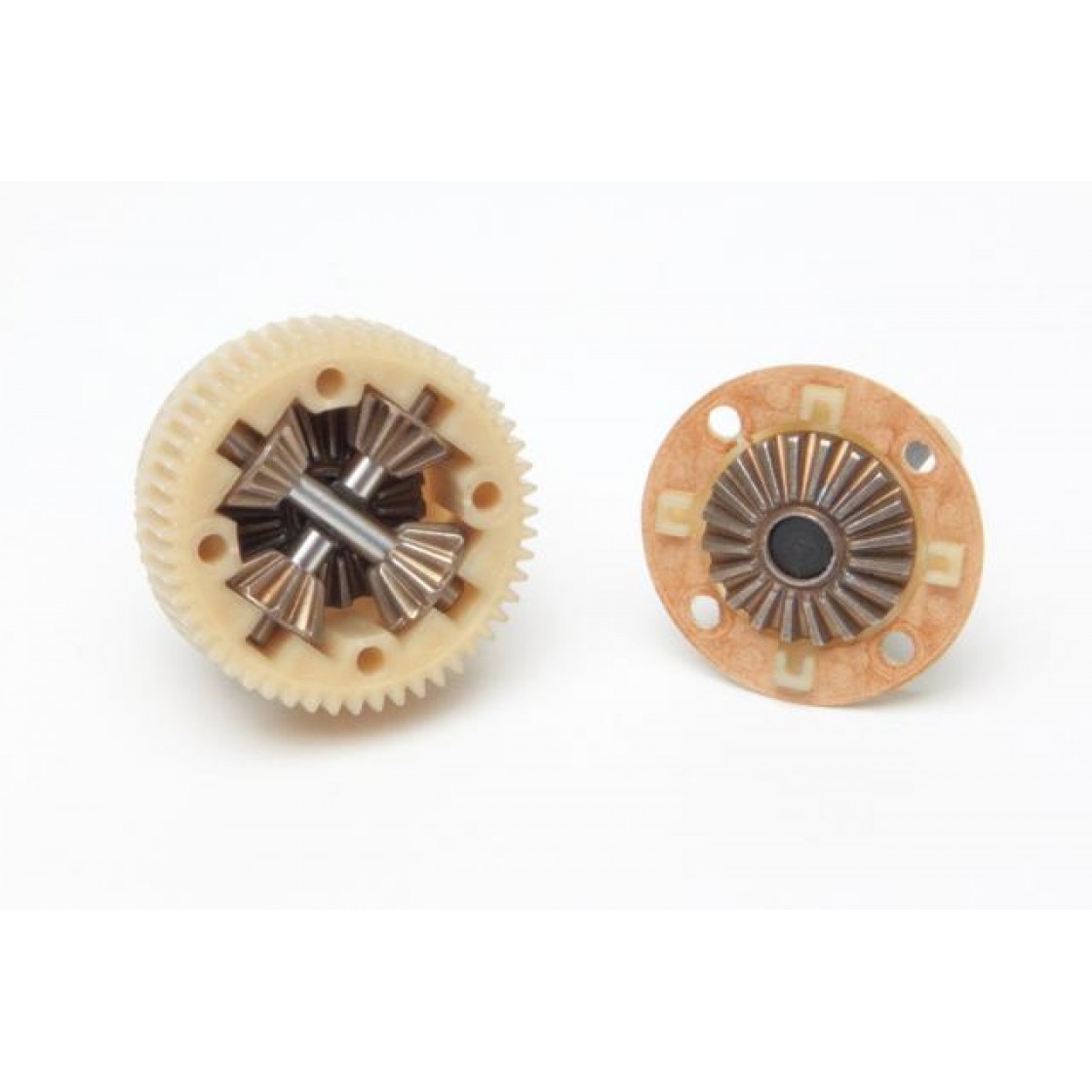

•     2.6: 1 gearbox with sealed bevel gear differential and V2 adjustable anti-slip clutch
•     Resistant steel tie rods for adjustable front and rear camber
•     Adjustable frame geometry
•     Vertical ball heads for quick adjustment of the roll center
•     Many factory team tuning parts are available

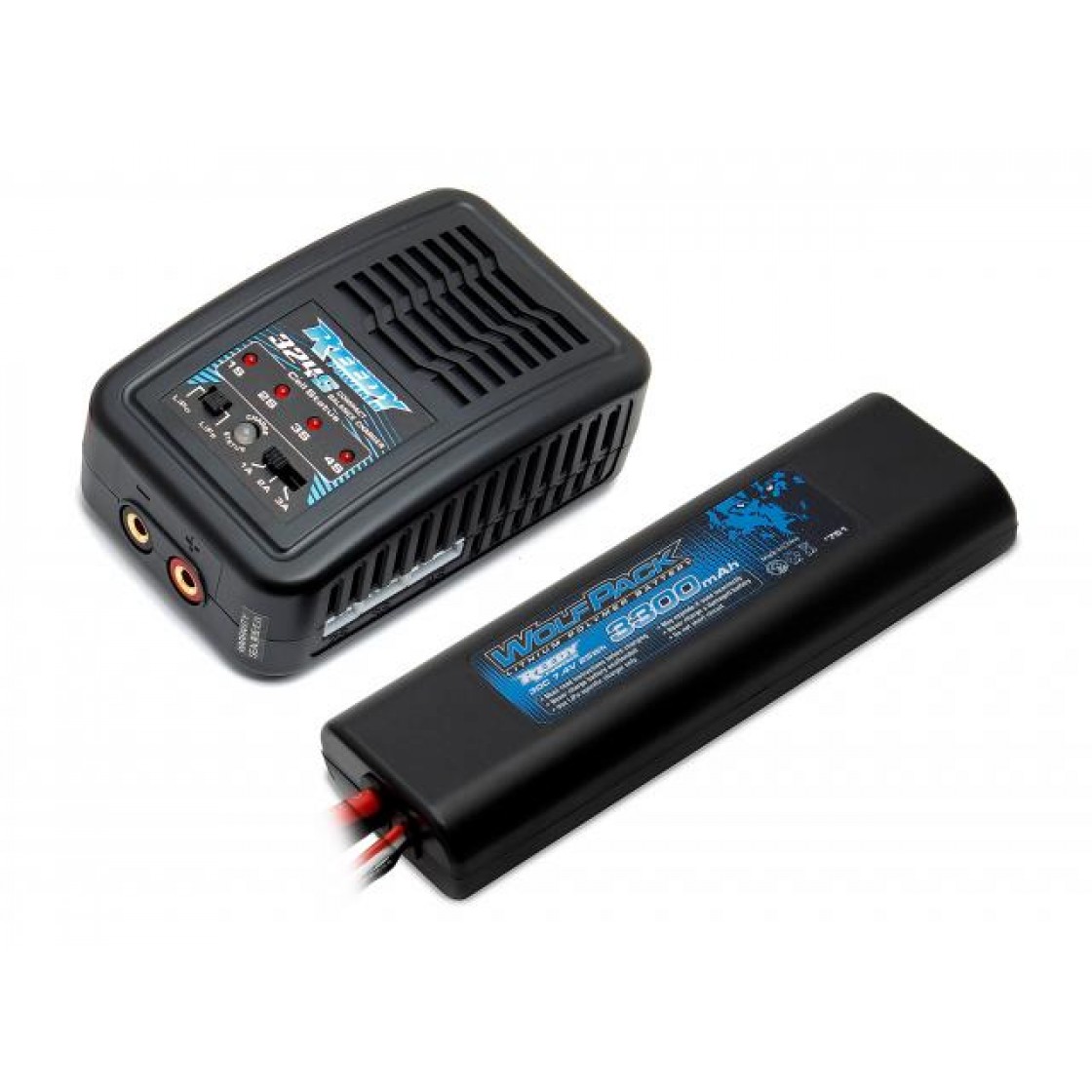

70040C Reflex DB10 RTR ComP LiPo brushless contains a Reedy Compact Balance charger and a Reedy 7.4V LiPo battery with T connector.

Vehicle specifications

•     electric motor
•     surface: grounds
•     body: off-road buggies
•     scale: 1: 10
•     prefabrication: pre-assembled *
•     length: 481mm
•     width: 282mm
•     wheelbase: 322 mm
•     Weight: 1855g
•     POWERTRAIN: 2WD

* This vehicle is fully assembled and ready to use. Some models may require a suitable battery and / or charger.

Required for completion
# 90040 and 90040C: Four AA batteries (# 302 Reedy AA alkaline) for the transmitter
# 90040: NiMH or LiPo battery with T connector (recommended # 724 7-cell Reedy WolfPack or # 751 Reedy WolfPack LiPo)
# 90040: Charger suitable for the selected battery (Reedy charger # 27201 - perfect for LiPo / LiFe - recommended)
