Maximize BIG Scale RC Buggy now in kit to build up from zero!
You can purchase this product in installments with Consel. Click here for more information.

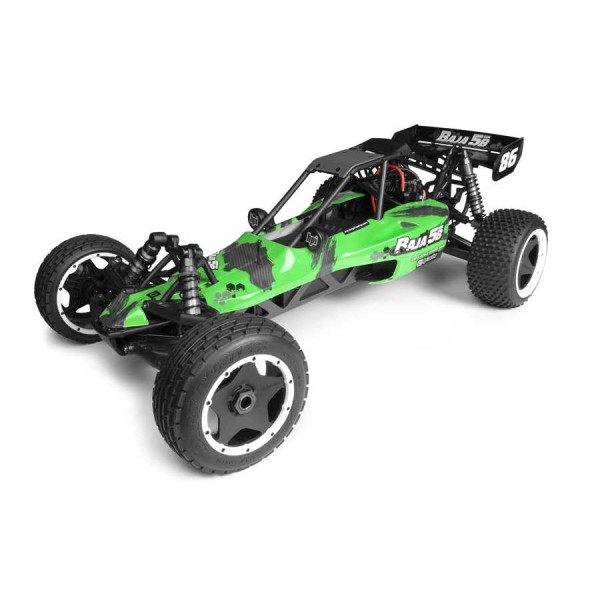

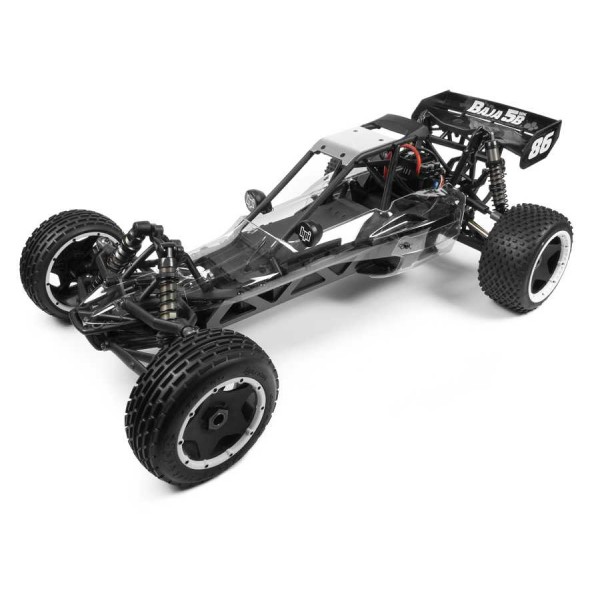

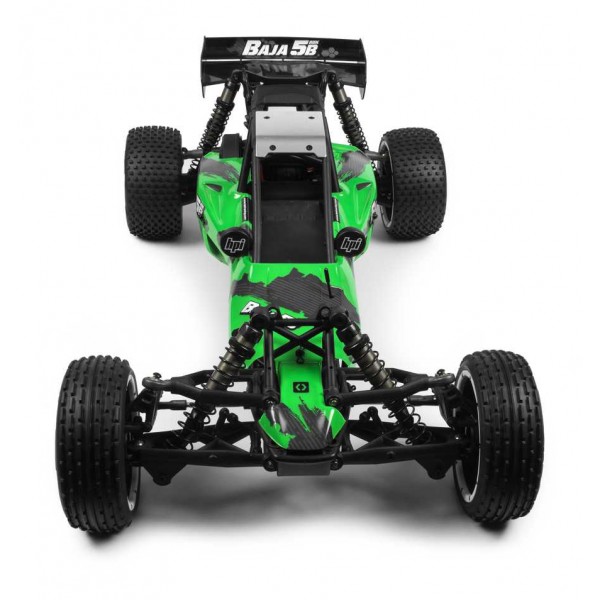

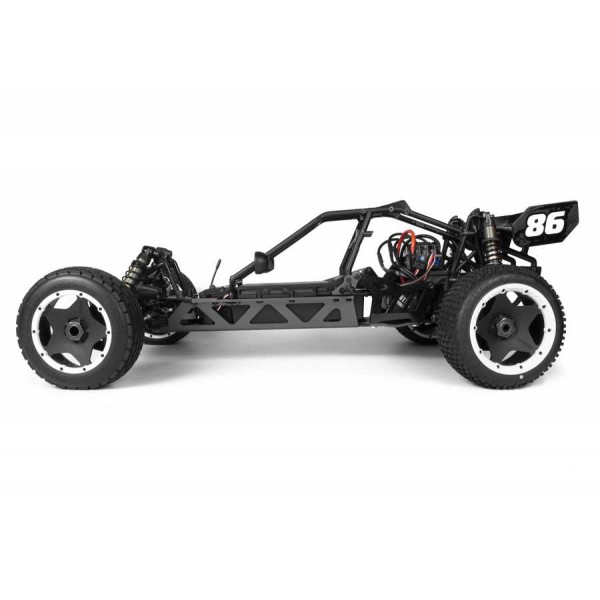

The Baja 5B is back and today it's in assembly kit! The Original, Authentic HPI Baja 5B is back and ready to be built from the ground up! The HPI SBK kit collection grows with the addition of not just one, but two HPI 1/5th scale kits! Large-scale off-road RC enthusiasts will be super excited to build their own Baja 5B. Build and own the legend! Experience the thrill and excitement of building a car that ends up being over 80cm (almost 32 inches) long and weighing nearly 10kg (over 21lbs)! Just install your electronics (and motor for the gas version) as you build, and you'll be ready for any adventure that comes your way! When the HPI Baja 5B buggy was first introduced, large scale RC was very expensive and quite difficult for the average RC hobbyist to experience. Using highly durable parts and innovative design features, HPI has brought large-scale off-roading to new enthusiasts and ushered in a new BIGGER era of RC! HPI Baja 5B and 5B FLUX are both equipped with efficient and very resistant suspensions that guarantee extraordinary durability. Expertly engineered molded composite suspension, extra-long adjustable HD shocks, large 3-piece high-impact nylon beadlock wheels, the Baja 5B is ready for full-speed racing on any off-road circuit!
FEATURES
• Unassembled 1/5 scale off-road buggy
• Ready for your 23-32cc RC motor or 6S / 8S LiPo electronics
• Ready for your radio equipment
• Hermetic radio box
• Baja Desert racing body design specific to gas or Flux version
• Adjustable HD shock absorbers
• Monocoque frame
• Low CG for superior handling
• Long travel suspension
• Oil filled viscous gear differential
• Off-road tires and Beadlock wheels
• Aluminum rear shock tower
• Hard plastic skid plates
• Adjustable rear wing
• Quick access to all critical maintenance points
• Double bell steering
• Cam type servo saver
• Hardware socket (screws) hexadecimal
• Gunmetal anodizing
• Full set of rubber sealed ball bearings
• Receiver box included
Chassis specifications
• Total length 817mm
• Height: 255mm
• Width: Front - 460mm; Rear - 480mm
• Tire tread (middle of tyres): Front - 395mm; Rear - 400mm
• Wheelbase: 570mm
• Driving height: 76mm
• Suspension travel: front - 95mm; Rear - 100mm
• Weight: 9.6kg (21.3lb)
• Adjustable camber: front - shims; rear - screw
• Front wheel: adjustable thickness 22 / 25.5 * / 29 degrees (* stock)
• Toe: Front adjustable with tie rod; Adjustable rear with 0-4 degree inserts (stock 3 degree set-up)
• 6061 T6 aircraft grade aluminum monocoque chassis

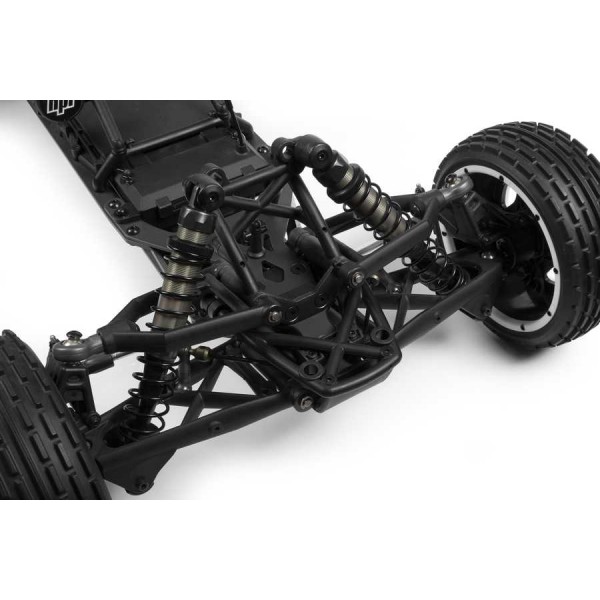

• Double wishbone suspension with F/R adjustable roll center
• Drive system: HD metal gears with sealed gearbox (gear ratio 8.382: 1)
• Differential: viscous torque control with 4 pinion gears; differential case sealed with silicone oil
• Shock Absorber: HD construction and fully adjustable threaded coil springs
• Wheel Type: 3-piece high impact nylon material with heavy duty metal hex hub
