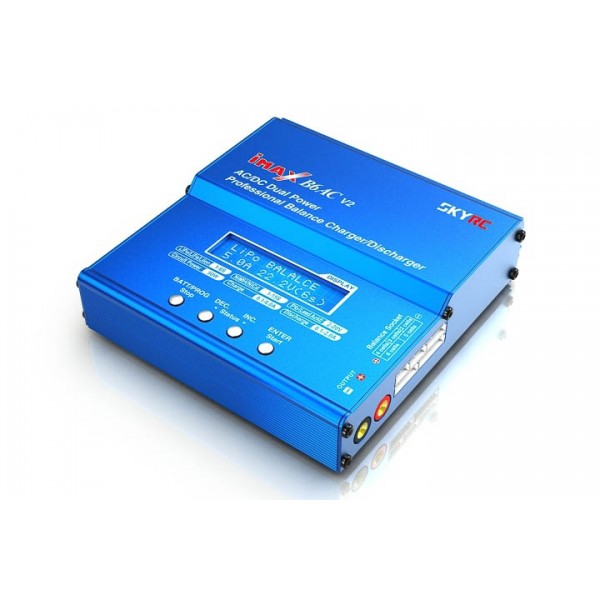

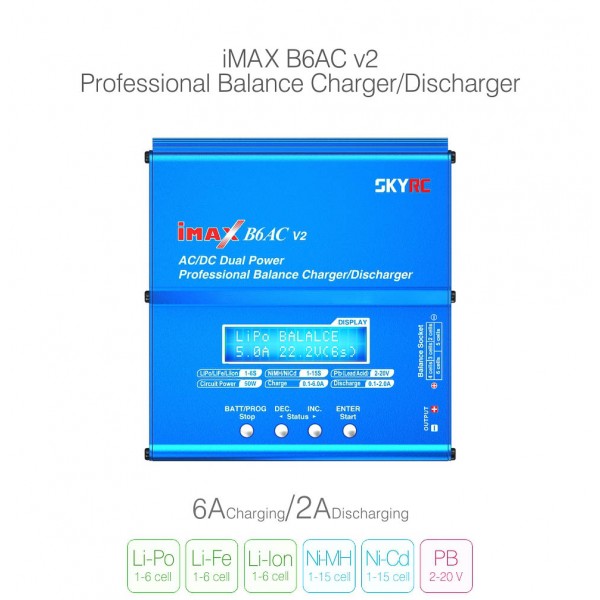

Product information "SkyRC B6AC V2 LiPo 1-6s 5A 50W Charger"

SKYRC B6AC V2 is the revised version of the popular IMAX B6AC charger. Compared to the B6AC v1, the B6AC v2 is more precise, more reliable and has a number of new features and functions. So the user can manually set the final battery voltage, connect the B6AC v2 to a PC, for example to update the firmware or control the device. Furthermore, the charger has a lithium battery measuring device and can measure the internal resistance of a battery. The SKYRC B6AC v2 is a high-performance, microprocessor-controlled charging and discharging device which can be used for most common battery types. It also has a built-in balancer for up to 6 cells to optimally charge lithium polymer (LiPo), lithium ferrum (LiFe) and lithium ion (LiIon) batteries. It has a charging power of up to 50 watts and can charge batteries with up to 6 amps.

features:

•     LIHV Mode Available
•     The additional LIHV mode is able to charge the latest generation of LiPo batteries with a final charge voltage of 4.35 volts

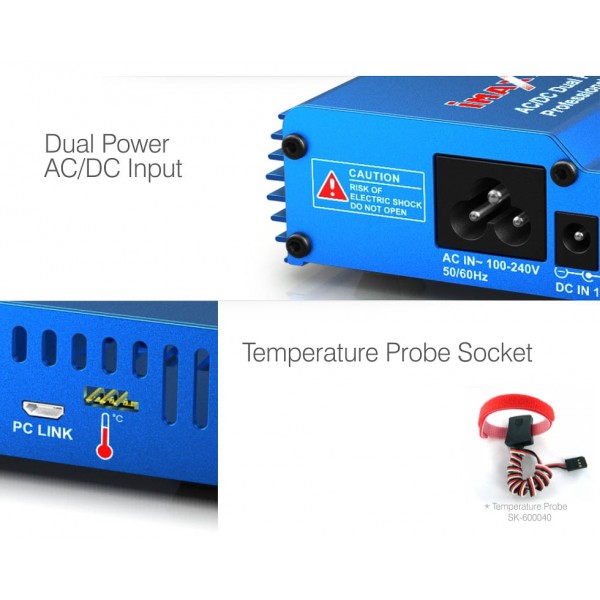

•     Dual power AC / DC input voltage
•     The charger can be operated with AC input voltage (socket) from 100-240V as well as with DC voltage (power supply or car battery) from 11-18V
•     Temperature monitoring
•     When the temperature limit is reached, the charging process is automatically. completed.
•     (This function is only available in conjunction with the optional temperature sensor)

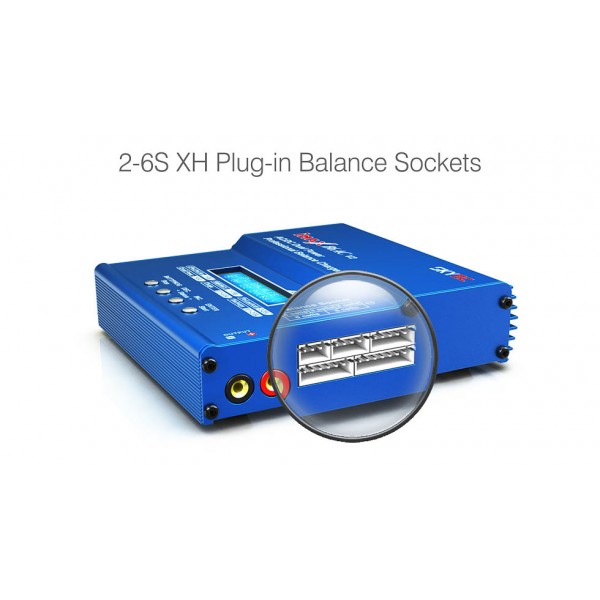

•     Balancer connections
•     The B6AC v2 has a built-in 2-6S XH balancer board
•     Built-in fan
•     The temperature is optimally derived with the built-in fan.
•     Various loading / unloading programs
•     Different programs are available depending on the different battery types.
•         LiPo / LiFe / LiIon batteries
•             Normal store
•             Balance loading
•             LiHV store
•             Fast loading
•             unloaded
•             Storage
•         NiCd / NiMH batteries
•             Normal charging
•             Car loading
•             unloaded
•             Cycle
•             Re-Peak
•         PB Battery
•             Normal charging
•             unloaded
•     Lithium battery balancer
•     SKYRC B6AC v2 has a single cell voltage balancer. This means that there is no longer any need to connect an external balancer to monitor and optimally charge the individual cells of a battery pack
•     Data Store / Load program
•     The charger can save up to 10 different charging / discharging programs. The user can read out this data at any time without a special program.
•     Cordless measuring device
•     The user can read out the total voltage, highest voltage, lowest voltage and the voltage of each individual cell.
•     Battery internal resistance measuring device
•     The user can check the total resistance, the highest and lowest resistance and that of each individual cell.
•     Maximum security
•     Even safer than the B6AC v1
•         Automatic charging with current limit
•         capacity limit
•         temperature shutdown
•         Processing time limit
•     Terminal voltage monitoring
•     The charger allows the user to set the end of charge and discharge voltage.

PC control

• The user can monitor and check the battery pack voltage, cell voltage and many other information via the PC. In addition, the charger can be controlled via the PC or the firmware can be updated. The required software "Charge Master" is available free of charge.

Smart phone control & display via Wi-Fi module

• This charger can also be controlled and monitored via a smart phone in conjunction with the optional Wi-Fi module (available for iOS and Android).

Technical data:

•     Dimensions (HxWxL): 36 x 135 x 144mm
•     Weight: 632g
•     Input voltage:
•         AC: 100-240V
•         DC: 11-18V
•     Main circuit:
•         Max charging: 50W
•         Max discharge: 5W
•     Charging current: 0.1-6.0A
•     Discharge current: 0.1-2.0A
•     LiPo / LiFe / LiIon cells: 1-6S
•     NiMH / NiCd cells: 1-15 Z.
•     Pb battery voltage: 2-20V
