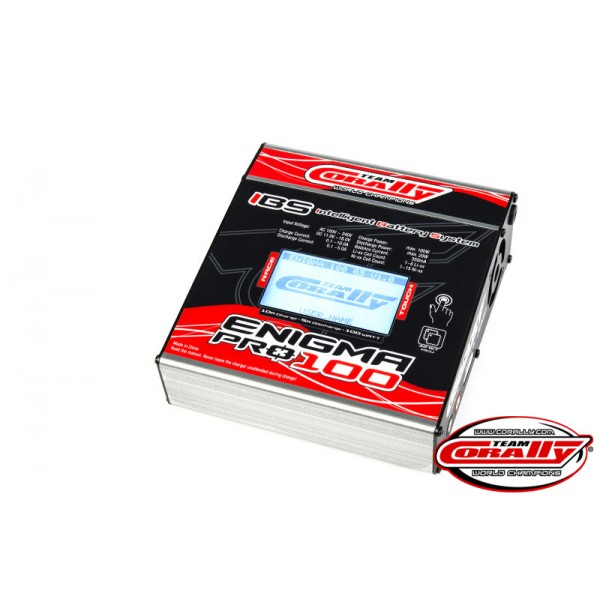

Enigma Pro 100 LiPo Battery Charger 100W AC DC Touch Screen

IBS (Intelligent Battery System) high power AC/DC fast charger with backlit illuminated touch screen The ENIGMA PRO 100 Charger is a touch screen micro-processor charging unit with which all common modelsport batteries can be professionally charged. The ENIGMA PRO 100 software contains programs for charging NiCd, NiMH, LiPo/LiFe/LiIo and Pb batteries, and with the large clear touch display and intuitve menus, even the inexperienced will quickly learn to use the ENIGMA PRO 100 with confidence. The ENIGMA PRO 100 has a lithium battery balancer function, which ensures that each and every pack cell is charged to the exact same capacity, as well as being equipped with a USB interface and a terminal for a temperature sensor. The ENIGMA PRO 100 has a robust aluminium housing with internal cooling fan. Programming and entering of parameters is achieved via the graphic touch screen. The right side of the housing carries charging output (4 mm jacks) and balancer board connection, whilst on the left, the mini-USB, temperature sensor, 220 V mains input, car battery/12 V DC and mains adaptor connections are to be found. With all this, the ENIGMA PRO 100 Charger is the perfect choice for at home or in the field. With the ENIGMA PRO 100 you have the choice of a high-performance, user-friendly charger with professional features, which will fulfil all the normal requirements of modelsport. Comprehensive software functions and high performance make the ENIGMA PRO 100 a very good choice.

Features:

- Microprocessor charging unit for NiCd,NiMH, LiPo/LiFe/LiIo, Pb batteries

- Charging, discharging, balancing + storage (Lithium batteries)

- Innovative, convenient operation via easily read touch screen display

- High quality aluminium housing

- Special charge/discharge programs for every battery type

- Integrated balancer for LiPo, LiFe, LiIo, battery packs

- Charging current 0.1-10.0A

- Discharge current 0.1-5.0A

- Mini USB receptacle for connection to PC (Firmware Update)

- Connection for temperature sensor (Sensor separately available)

- Special cycle programs for battery breaking-in and maintenance

- Automatic charge-end recognition with adjustable delta peak cut-off

- Adjustable trickle charge current for NiMH, NiCd, Pb batteries

- Adjustable delta peak sensitivity

- Current battery status (total voltage, individual cell voltages, internal resistance)

- Graphic rendering of the charging cycle

- Integrated cooling fan

- DC power mode (can simultaneously function as 90W mains adaptor with variable voltage (3.0 - 24V)

- Safety cut-off of charging cycle when the pre-set max. permissible capacity is reached

- Safety cut-off of charging cycle when the pre-set max. permissible charging time has elapsed

- Monitoring of input voltage, cut-off of charging cycle when supply falls below min. input voltage

- Comprehensive operating instructions

- Easy to use

Tech. Specs:

• NiCd, NiMH batteries: 1-16 cells
• LiPo, LiFe, LiIo: 1-6 cells
• PB batteries: 2-20V
• MCU: 32-bit MCU
• Charging power: max. 90W
• Discharge power: max. 20W
• Supply voltage: AC 100-240V / DC 11-18V
• Charging current: 0.1-10.0A
• Discharge current: 0.1-5.0A
• Balancing current: <300mA
• Balancer tolerance: ±0.01V
• Weight.: 710g
• Dimensions: 42x155x55mm
