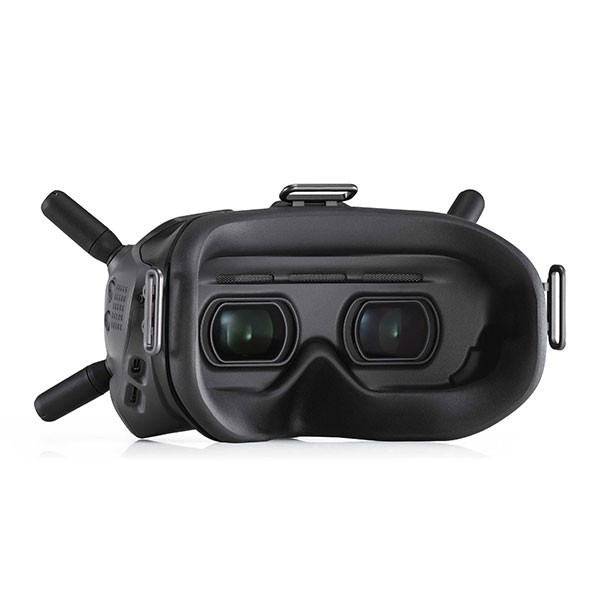

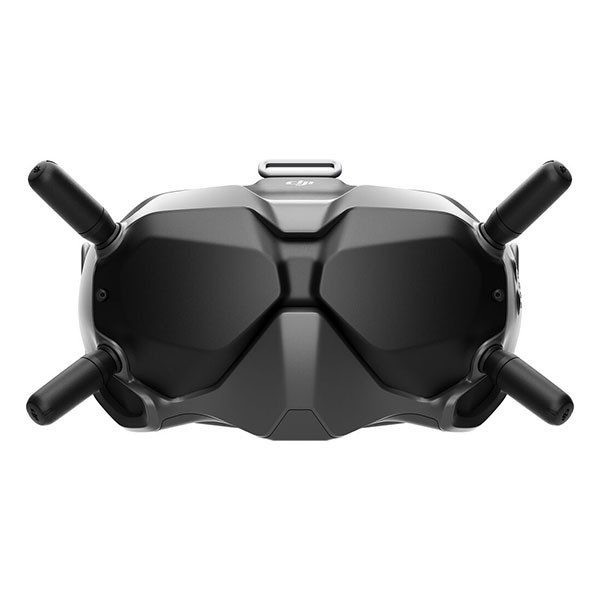

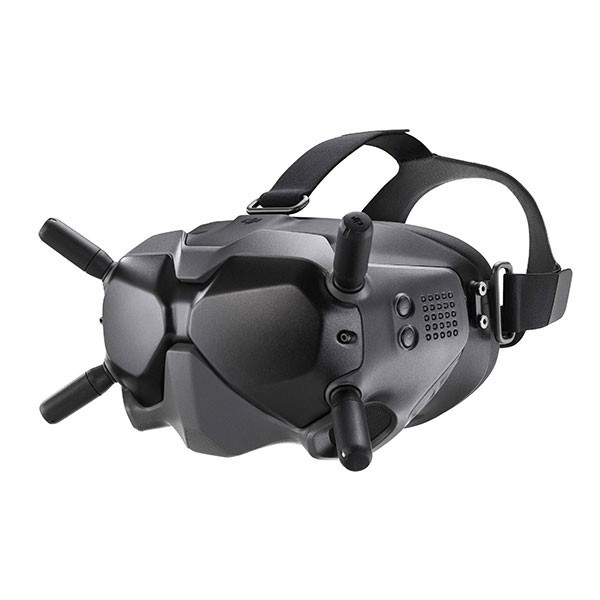

Dji FPV V2 Goggles

DJI FPV Goggle V2

The DJI FPV V2 headset, thanks to the DJI O3 image transmission, offers high definition, low latency, long distance transmission and powerful anti-interference capabilities. The DJI FPV headset battery in the box supports up to 110 minutes of flight time when fully charged.

Main features
High definition, low latency, unique immersion, long distance transmission and strong anti-interference capabilities.
The battery in the box supports up to 110 minutes of flight time when fully charged.

Advice
Avoid exposing the inside of the headset to direct sunlight.
Dual frequency is only available when used with DJI FPV drone. When used with the DJI FPV Air Unit, only the 5.8 GHz frequency is supported. In accordance with local restrictions and regulations, use on the 5.8 GHz frequency band is currently prohibited in some countries, including but not limited to to Japan, Russia, Israel, Ukraine and Kazakhstan. Use the 2.4 GHz frequency band when operating in these locations and always check local rules and regulations before use, as they may change over time.
Always follow local laws and regulations when using the headset. VLOS is legally required in some regions and countries, and the presence of an observer is always recommended when VLOS cannot be maintained.

• Package Contents

•     DJI FPV V2 Visor (including foam padding) × 1
•     DJI FPV headset battery × 1
•     DJI FPV headset power cable (USB-C) × 1
•     DJI FPV (Dual Band) viewer antenna × 4
•     Headband × 1
•     USB-C cable × 1
•     Bag × 1

Technical features

•     Bag × 1
•     Weight: approx. 420 g (headband and antennas included)
•     Dimensions: 184 × 122 × 110 mm (excluding antennas)
•     202 × 126 × 110 mm (including antennas)
•     Screen size 2 inches (× 2)
•     144 Hz screen refresh rate
•     Communication frequency: 2.400-2.4835 GHz
•     5.725-5.850 GHz
•     Transmitter Power (EIRP) 2.400-2.4835 GHz
•     FCC: ≤ 28.5 dBm
•     CE: ≤ 20 dBm
•     SRRC: ≤ 20 dBm
•     MIC: ≤ 20 dBm
•     5.725-5.850 GHz
•     FCC: ≤ 31.5 dBm
•     CE: ≤ 14 dBm
•     SRRC: ≤ 19 dBm
•     Frequency band 40 MHz (Max.)
•     Live View Mode: Low Latency Mode: 810p / 120fps <28ms *
•     High-Quality Mode: 810p / 60fps ≤ 40ms *
•     * 150 ° FOV is available when recording at 50 or 100 fps. For other frame rates, the FOV will be 142 °. "
•     Max video bit-rate 50 Mbps
•     Transmission range: 10km (FCC), 6km (CE), 6km (SRRC), 6km (MIC)
•     Video format: MP4 (video format: H.264)
•     Support Audio and Video Playback formats: MP4, MOV, MKV (Video format: H.264; audio format: AAC-LC, AAC-HE, AC-3, MP3)
•     Operating temperature 0 ° C. - 40 ° C.
•     Betterie input power for DJI headset or other 11.1-25.2V batteries.
•     FOV: from 30 ° to 54 °; image size: 50-100%
•     Interpupillary distance range: 58-70mm
•     MicroSD Supported: microSD (up to 256GB)
•     DJI FPV viewer battery
•     Capacity: 1800mAh
•     Voltage: 9V (max)
•     Type: LiPo 2S
•     Energy 18 Wh
•     Charging temperature: 5 - 40 ° C
•     Charging power (max.) 10 W
•     Battery life: 110 min. (measured in an environment with a temperature of 25 ° C at a brightness level)

Compatibility

•     DJI FPV Drone
•     DJI FPV Remote Controller 2
•     DJI FPV Air Unit
•     DJI FPV Remote Controller
