Tamiya Mazda 3 TT-02 Chassis 4WD Kit Maximize

Tamiya Mazda 3 TT-02 Chassis 4WD Kit

Tamiya Mazda 3 TT-02 Chassis 4WD Kit

More details

151,00€

p TA58671

Availability: Preorder

You can purchase this product in installments with Consel. Click here for more information.


Mazda 3 4WD Telaio TT-02 Kit 01

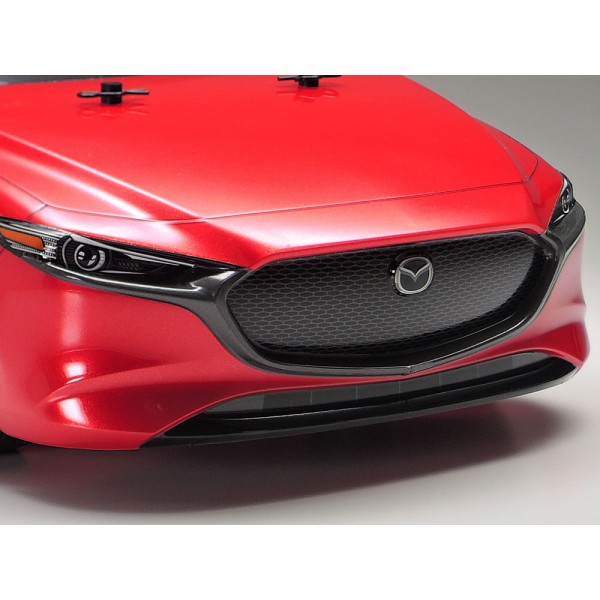

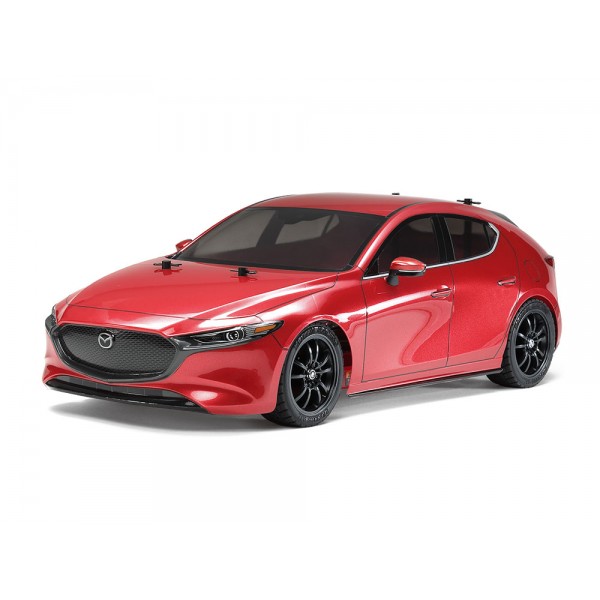

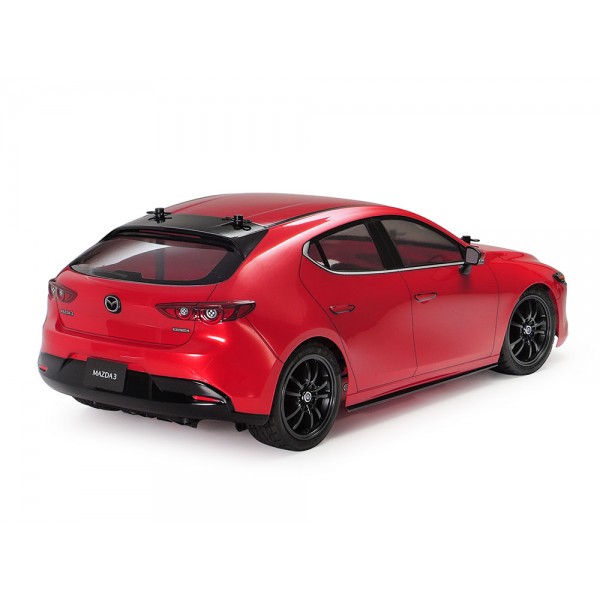

The beautiful shape composed of shiny curved surfaces is also alive in RC cars] Los Angeles Auto in 2018 wears a fluid shape that looks like the serial production of the concept car "Mazda Kai Concept" announced at the 2017 Tokyo Motor Show This is a kit of assembly of electric radio-controlled cars that reproduces the Mazda3 which attracted the attention of the show. A solid 5-door fastback body made of flowing curved surfaces that don't use many character lines is reproduced with polycarbonate. The front grill, the headlights and the characteristic wing (in the shape of a wing that connects to the projector from the bottom of the front grill) are prepared with stickers to reinforce the unique expression. It also comes with a masking adhesive for easy body spray painting. In addition, the lower deck comes standard with a red hard type and comes with a set of Tamiya brand stickers.

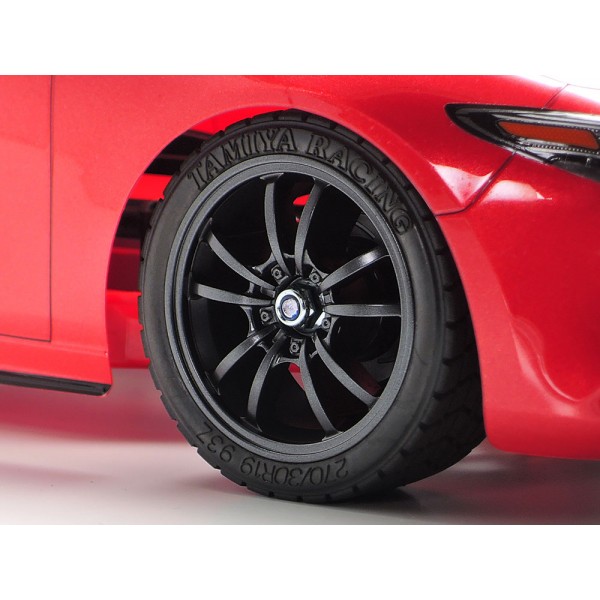

4WD, TT-02 frame of the mast with excellent maneuverability and nice settings] The frame is a 4WD TT-02 shaft. With a well balanced design that exposes the battery running on the left and the engine on the right vertically, the steering stability is excellent, the suspension arm and the mast are shared on the left and right, easy to assemble and maintainability is high with the upper and lower divided gearbox etc. It has become. In addition, you can enjoy two types of wheelbase, vehicle height and tread by changing parts, etc. And enjoy settings like the engine mount which can select 10 wide gear ratios. The wheel hubs have a design similar to a brake disc and are equipped with a front bumper support that resembles the bumpers of a real racing trolley. A shy 10-spoke gunmetal-colored wheel features a racing radial carved with a tread pattern.

Basic specifications

  •     Length 436 mm
  •     width 187 mm
  •     height 137 mm
  •     Wheelbase 257 mm
  •     Tire width / diameter: 26/66 mm for both the front and the rear
  •     Frame: type of tank
  •     Transmission system: Vertical motor / 4WD shaft
  •     Differential: front and rear Type with 4 bevels
  •     Steering: 3 split tie rods
  •     Suspension: 4-wheel transverse arm
  •     Shock absorber: front and rear
  •     Transmission ratio: standard kit 8.27: 1 (11.38: 1 to 7.28: 1 in combination with optional pinion) (10 types of transmission ratios can be selected)
  •     Engine: type 540
  •     Speed controller: ESC specification (sold separately)

Mazda 3 4WD Telaio TT-02 Kit 02

Mazda 3 4WD Telaio TT-02 Kit 03

Mazda 3 4WD Telaio TT-02 Kit 04Mazda 3 4WD Telaio TT-02 Kit 05
