Tamiya Ford Capri Whurt 1 /10 4WD TT-02 Chassis Kit

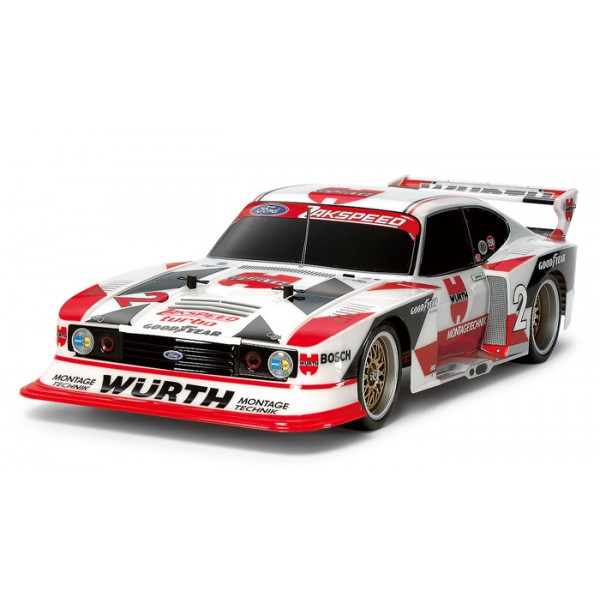

German champion 1981] Ford Zakspeed Capri Gr.5, equipped with a 1427 cc four-cylinder DOHC turbo engine in a low and wide body in a wind tunnel test, a 1978 K. German sports car championship. Ludwig won the championship in 1981 by driving a car that was sponsored by the German auto parts maker "WURTH" Ult. The assembly of radio-controlled electric cars that reproduced this machine It is a kit: the special two-door car Ford, Capri reproduces the finished form so low that one cannot think of a polycarbonate base, full of realism. Pneumatic dam spoiler that protrudes very forward and square front and rear mudguards Powerful light case and rear wing The detail is strengthened by reproducing with another part in polycarbonate, also the two-piece mesh wheel has a large rear type: the graphics white, red and black and the Ult logo are made with stickers.

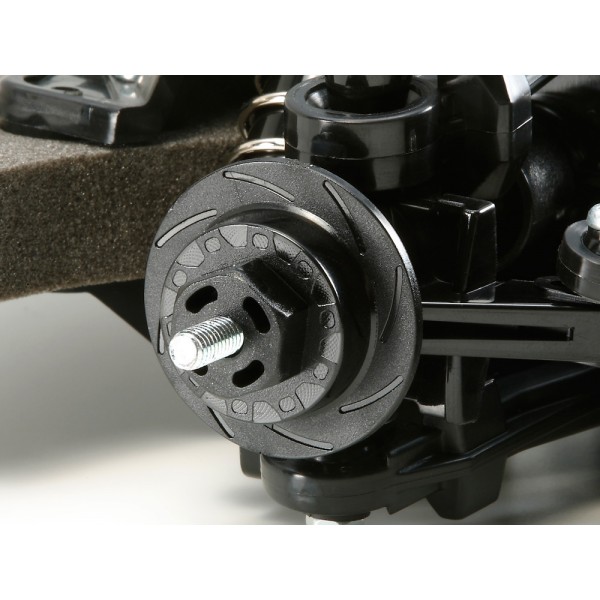

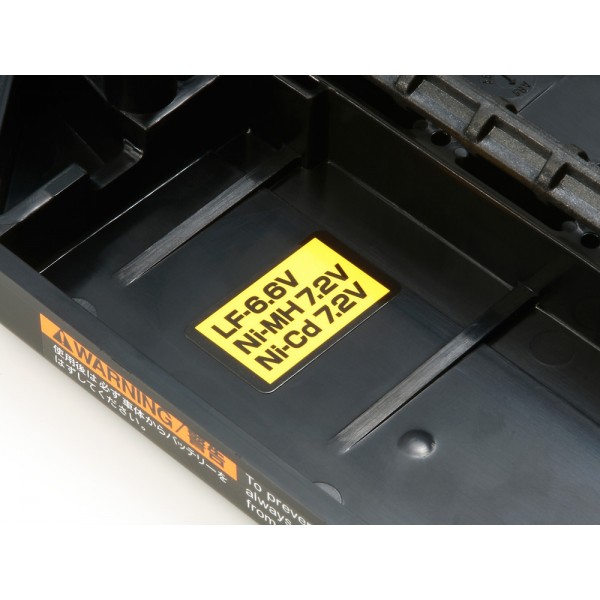

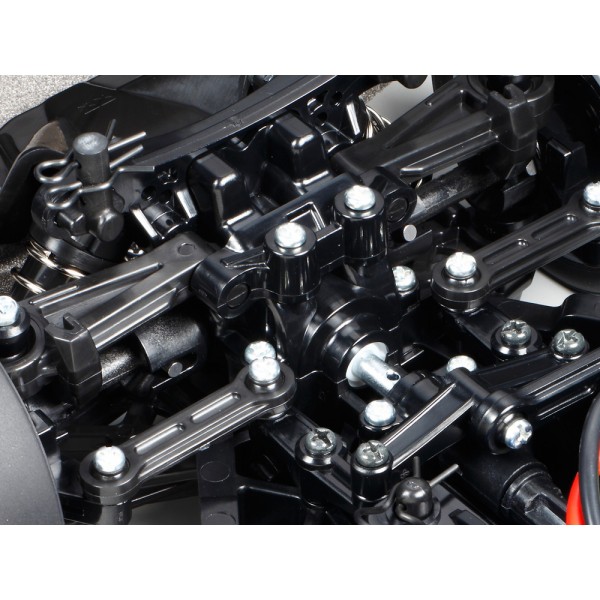

4WD chassis with shaft transmission, TT-02 with excellent maneuverability and pleasant settings. The TT-02 chassis of the 4WD with shaft transmission has a well balanced design in which the driving battery is placed on the left and the engine is positioned vertically to the right. It is easy to assemble with the suspension arms and the right and left uprights, it is easy to assemble and has a high maintainability thanks to the upper and lower divided gearbox etc. In addition, the wheelbase, vehicle height and tread are improved by replacing parts etc. You can select two types and select 10 types of ratios: engine mounts can be selected from a wide range of ratios, moreover the wheel hub has a design similar to a brake disc and is equipped with a front bumper support that resembles the bumper of a real racing cart for cars. It is also included.


Basic specifications

•     Length 488 mm
•     total width 205 mm
•     overall height 124 mm
•     Wheelbase 251 mm
•     Tire width / diameter = front 27/67 mm Rear 33/67 mm
•     Frame = type of lower-shaped bathtub
•     Driving method = Vertical motor / 4WD shaft
•     Differential = 4 conical resin pieces for front and rear steering = 3-piece tie rod
•     Suspension type = double 4-wheel swing arm
•     Shock absorber = front and rear
•     Transmission ratio = standard kit 8.27: 1 (11.38: 1-in combination with optional pinion) (10 types of       transmission ratios selectable up to 7.28: 1)
•     Motor = 540 speed regulator type = ESC specifications (sold separately)

Items required separately

•     Set of 2.4G electric RC engines for specific purposes
•     Four AA batteries per transmitter
