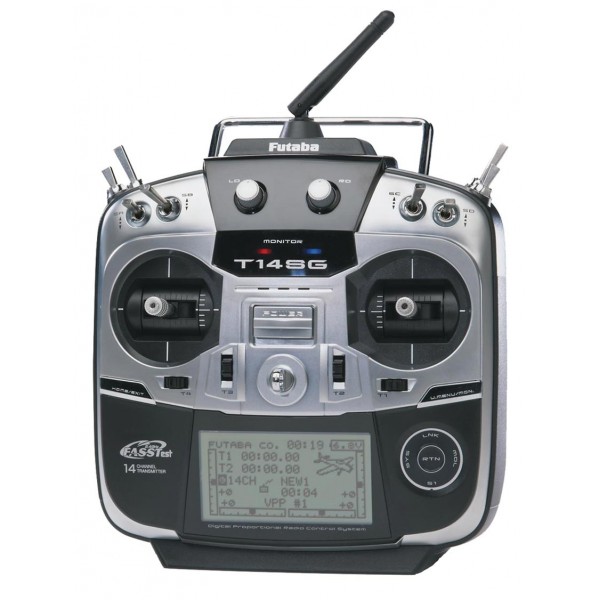

Futaba TX 14SG R7008SB 2,4G HX M1 Radio Trasmitter

FASSTEST Technology Flybarless Gyro. Programmable S.Bus Telemetry

The 14 SG has all this and much more

Futaba proudly announces the 14SG, provided with the revolutionary FASSTEST protocol, it is also compatible with the FASST and S-FHSS protocols thus making it possible to use each Futaba receiver

The 14SG can transmit and receive telemetry data. Install sensors (sold separately) to monitor flight data and receive alarms in flight.

The innovations do not end here. The incredibly solid construction in the Futaba style is combined with an ergonomic design and the addition of rubber grips that maximize comfort.

Specifications:

•         Channels: 12 proportional, 2 switched
•         Compatible with FASSTest, FASST and S-FHSS protocols
•         FASSTest telemetry compatible with Futaba telemetry sensors (sold separately)
•         Free software updatable by the user
•         30 memory models
•         10-character user name
•         10-character model designation
•         Programming of airplanes, helicopters and gliders
•         Large 1.75 x 3 backlit LCD screen with 128 x 64 resolution
•         SensorTouch programming

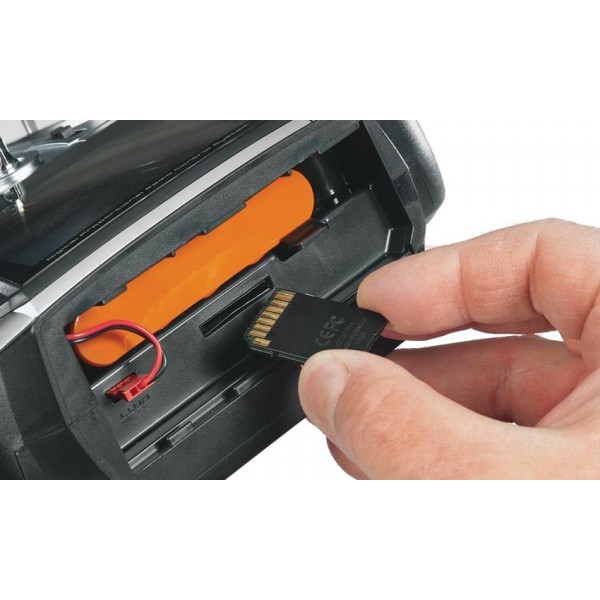

•         Compatible with secure digital memory cards for external storage of model configurations and software updates (32 MB-2 GB or HC (high capacity) 4 GB-32 GB)
•         Assignable slide switches left and right
•         Two assignable knobs

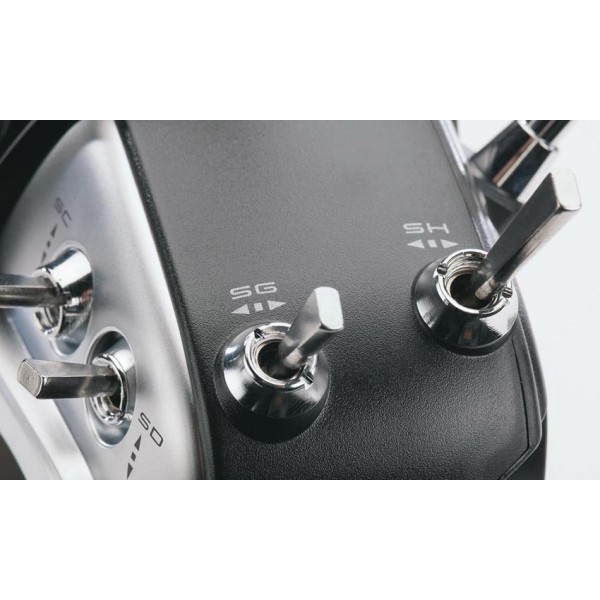

•         Six switches assignable to three positions
•         An assignable two-position temporary switch
•         An assignable two-position switch
•         Comfortable rubber grips on the sides and on the back
•         Wide spacing of the upper switch
•         Adjustable stick tension
•         Double ball bearing universal joints
•         4 types of vibration alert

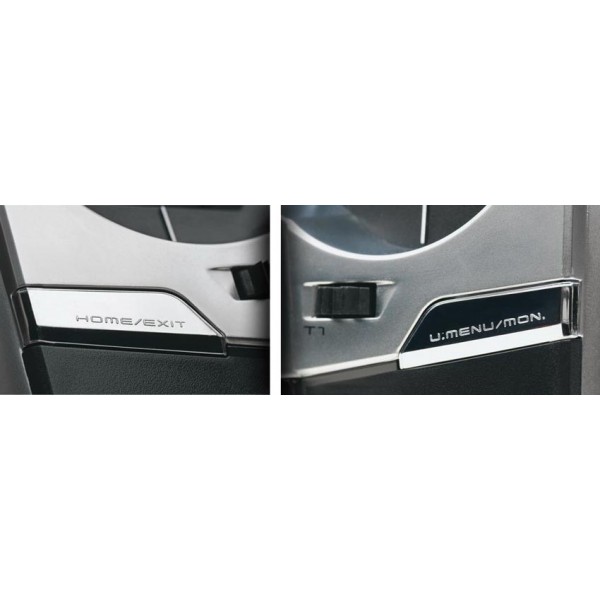

•         Home / exit; User Menu / Servo Monitor buttons
•         Audio earphone jack (for telemetry alarms)
•         NiMH 6V 1800mAh battery
•         User stick calibration
•         Training system
•         The speed of the servo adjusts
•         5 programmable mixes
•         V-tail, Ailvator, winglet, engine mixing
•         Trim mix
•         Logic switch (condition switch only)
•         Internal programmer for S.Bus servos
•         User menu
•         Servo monitor (neutral and moving tests)
•         2 countdown / countdown timers
•         Integral timer
•         Timer model
•         Quick model selection

Airplane programming:

•          7 different types of wing
•          3 different types of tail
•          2 different types of rudder
•          Flap setting menu
•          Differential ailerons
•          Mixing of the fins from aileron to camber
•          Mixing of the flap to brake the flap
•          Mixing of the ailerons at the helm
•          Rudder-aileron mixing
•          Rudder-elevator mixing
•          Mixing of Camber
•          Elevator-camber mixing
•          Mix of the camber flap at the elevator
•          Quick release mixing
•          Air brake mixing
•          V-Tail mixing
•          Ailvator
•          Winglet
•          Mixing the engine
•          Mixing the fuel mixture
•          Gyroscopic mixing
•          Throttle curve (5 points)
•          Pitch curve (5 points)
•          Idle

Heli programming

•      6 types of swinging plates
•      Step / accelerator curves (5 points)
•      Throttle hold
•      Swash mix
•      Throttle mix
•      Mixing from tone to rudder
•      Mixture of fuel
•      Gyro (Flybarless support)
•      Governor (700-3500 rpm)
•      I hover over
•      Start the engine
•      High / low tone
•      Swash AFR
•      Oscillation setting (mixing speed, connection compensation, speed compensation)
•      Swash ring (electronic)
•      Throttle cutting

Sailplane programming

•      11 different types of wing
•      3 different types of tail
•      2 different types of rudder
•      Flap setting menu
•      Differential ailerons
•      Mixing of the fins from aileron to camber
•      Mixing of the flap to brake the flap
•      Mixing of the ailerons at the helm
•      Rudder-aileron mixing
•      Rudder-elevator mixing
•      Mixing of Camber
•      Elevator-camber mixing
•      Mix of the camber flap at the elevator
•      Butterfly mixing
•      Butterfly-elevator mixing
