Align T-REX 300X Super Combo Helycopter RTF Europlug

ALIGN T-Rex 300X new concept, small but perfect. It adopts DFC rotor head, low CG and low wind resistance which provide direct flight responses. The main carbon fiber frame is made of composite material and with reinforcement plate and reinforcement assembly which effectively improves structural intensity and torsional strength. The narrow body design makes the mechanical structure much stronger. The battery slider and the top-mounted engine design with an anodized bright red color give this model a pleasant texture. The aluminum alloy tail pipe is thickened for better resistance to twisting and increase the duration of the tail support rod. The progressive light landing pad makes this model the leader in this class. The canopy painted in fiberglass is light and with low aerodynamic resistance.

The high standard torque and the high efficiency 300MX 3700KV / 2216 brushless motor not only contribute to a significant increase in power, but the high efficiency cooling system allows a colder operating temperature during and after flights compared to the engine of the previous generation. Allow to provide constant power and maintain a stable RPM in 3D non-stop flight with perfect performance. It also pairs with the DS450 and DS455 HV digital servos, supporting 8.4V output, fast response and high torque. The new 25A brushless speed controller supports an adjustable BEC voltage of 5 ~ 8.4 V.

T-Rex 300X is small but all in one so that it can work well not only in indoor shows but also in 3D outdoor flights. This model offers you at the best price the opportunity to have fun flying at any time.

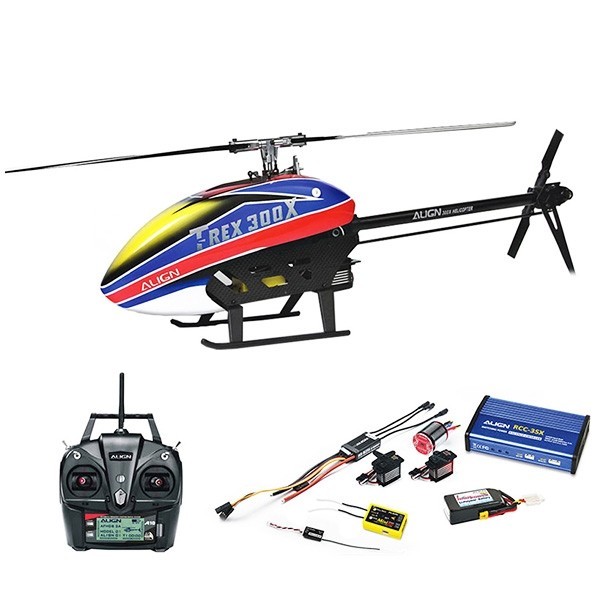

Standard equipment:

• DOMINATOR T-Rex 300X x 1 kit
• MiniGRS Flybarless System x 1 set
• Carbon fiber blades 230 mm x 1 set
• 50mm Tail Blade x 1 set
• RCE-BL25A 25 ESC brushless x 1
• 300MX brushless motor (3700KV / 2216) x 1
• DS450 Digital servo x 3
• DS455 Digital servo x 1
• A10 Combo Radio Control System x 1 set
• MiniA.BUS receiver x 1
• Balance charger RCC-3SX x 1 set
• Battery 3S1P 11.1V 1300mAh / 30C x 1

Specifications T-Rex 300X:

• Length: 476 mm
• Height: 158mm
• Width: 88 mm
• Main blade length: 230mm
• Main rotor diameter: 525 mm
• Tail rotor diameter: 143 mm
• Engine pinion: 14T
• Main gear: 115T
• Main driving pulley: 40T
• Tail gear: 13T
• Transmission ratio: 8.21: 1: 3.08
• Weight (without battery): 418 g

Equipment required for assembly:

• Digital Pitch Gauge
• Swashplate leveler

A10 Specifications:

• Channel: 10 channels
• Available models: helicopter / airplane / multicopter
• Frequency range: 2.408 ~ 2.475 GHz
• Power: no more than 20 dBm (for EU)
• System mode: 2.4G AFHDS 2A system
• Suitable voltage range: 4.0 ~ 6.0V DC
• Reception distance: open ground no interference <1000M
• Low voltage warning: less than 4.2 V.
• Weight: 485 g (battery excluded)
• Dimensions: 275x187x102mm

MiniA.BUS receiver specifications:

• Channel: 14 channels
• RX sensitivity: -105 dBm
• RF range: 2.4055 ~ 2.475 GHz
• System mode: 2.4G AFHDS 2A system
• Power: 4.0 ~ 8.4V DC
• Transmission distance: in open space without interference <150M

Specifications of the Flybarless MiniGRS system:

• Operating voltage range: DC 3.5 ~ 8.4V
• Current consumption: <100 mA at 4.8 V.
• Rotation detection speed: ± 300 ° / sec
• Rudder yaw detection speed: ± 600 ° / sec
• Sensor resolution: 12 BIT
• Swashplate support: CCPM swashplate 120 °
• Support mode: T-REX250, T-REX300, T-REX450, T-REX470, T-REX500
• Receiver support: ALIGN A10 (A.BUS), Futaba S-FHSS, DSM2 / DSMX
• Operating temperature: -20? ~ 65?
• Operating humidity: 0% ~ 95%
• Comply with the RoHS directive
• Dimensions: 37.6x22.4x13mm

RCC-3SX balance charger specifications:

• Input voltage: AC 100 V ~ 240 V (50 / 60Hz)
• Output voltage: 2 cells DC 7.4 V / 3 cells DC 11.1 V.
• Battery type supported: Li-polymer / Li-ion
• Charging method: CC / CV
• Charging current: 2A
• Dimensions: 123x74.3x32mm
• Weight: 260 g

Battery specification:

• Output: 11.1 V 1300 mAh 14.4 Wh (3S1P)
• Support 5C charging
• Dimensions: 74x36.5x21mm
• Weight: 115 g
• 14AWG heat resistant silicone rubber wire. Heat resistance: 200 ° C / Current resistance: 50A
