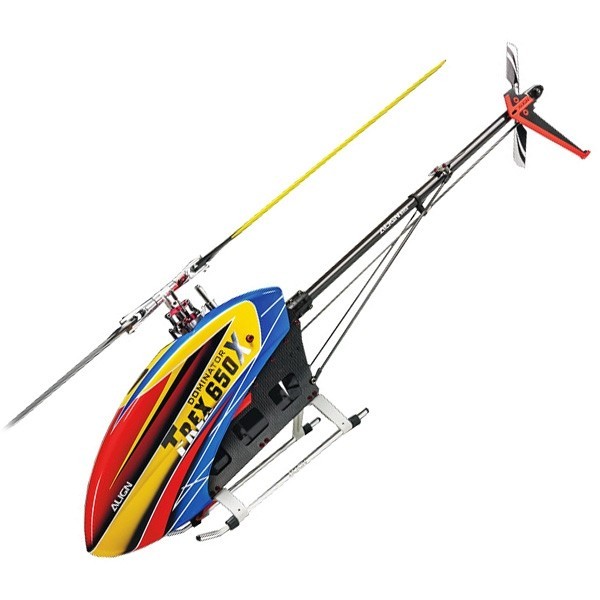

Align Helycopter T-REX 650X Dominator Super Combo

Align T-REX 650X Dominator Super Combo RH65E01X

The T-REX 650X Dominator Super Combo has a special design for both amateur and 3D competition use.
The dimensions of the T-REX 650X range from T-REX 600 to T-REX 700.
It adopts integrated composite material and technology which efficiently improve the intensity of the structure and make the repair convenient.
The upper narrow main frame allows you to strengthen the structure but also to prevent body deformation, vibration and abrasion of the gears in extreme flights.
The wider lower main frame is designed with a quick release battery latch that makes mounting and dismounting the battery more convenient and safe.
The flybarless rotor head has a low CG design best for 3D flight which reduces wind resistance and also improves superior flying feel and stability.
So ALIGN T-REX 650X shows excellent flight performance in both aggressive 3D flight, 3D slow flight and F3C!

T-REX 650X is equipped with ALIGN 800MX motor with excellent torque and high efficiency.
In addition, the reinforcement plate not only can strengthen the machine structure, but also can efficiently lower the engine heat up to 20 ° C on average on each flight.
RCE-BL130A brushless ESC supports 12S 3000 ~ 6000mAh battery input.
Pilots can choose 600 ~ 650mm main blades based on their preference for exceptional flight performance.

The T-REX 650X Dominator Super Combo is the helicopter for all pilots, both super power and excellent stable 3D flight like the 700 class helicopter and elegant 3D dynamic flight performance like the 600 class helicopter.


Standard equipment
● RCE-BL130A Brushless ESC x 1
● 800MX Brushless Motor (440KV / 4530) x 1
● DS820M High Voltage Brushless Servo x 3
● DS825M High Voltage Brushless Servo x 1
● Microbeast PLUS Flybarless System x 1


Specification
● Length: 1220mm
● Height: 356mm
● Width: 191mm
● Main Blade Length: 650mm
● Main Rotor Diameter: 1455mm
● Tail Rotor Diameter: 280mm
● Motor Pinion Gear: 16T
● Main Drive Gear: 112T
● Autorotation Tail Drive Gear: 131T
● Tail Drive Gear: 34T
● Drive Gear Ratio: 7: 1: 3.85
● Takeoff Weight (w / o battery): 3320g


800MX (440KV / 4530) Brushless Motor
● Input Voltage: 12S
● Max Continuous Current: 100A / 200A (2sec)
● Max Output Power: 4440W / 8800W (2sec)
● KV Value: 440KV
● Stator Dimension: 4530
● Stator Arms: 12
● Magnet Poles: 10
● Dimension: Spindle 6x56.7x94.5mm
● Weight: 508g


Accessories
● T-REX 650X DOMINATOR Set x 1set
● 650 Carbon Fiber Blades x 1set
● 105mm 3K Carbon Fiber Tail Blades x 1set
● 800MX Brushless Motor (440KV / 4530) x 1
● DS820M High Voltage Brushless Servo x 3
● DS825M High Voltage Brushless Servo x 1
● RCE-BL130A Brushless ESC x 1
● Microbeast PLUS Flybarless System x 1

Radio transmitters and electronic equipment required
● Transmitter (6-channel or more, helicopter system)
● Receiver (6-channel or more)
● 6S Li-Po 3000 ~ 6000mAh x 2
● Digital Pitch Gauge
