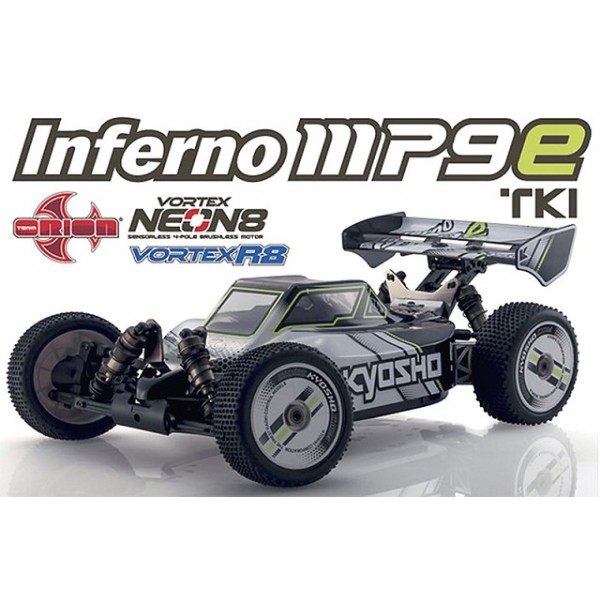

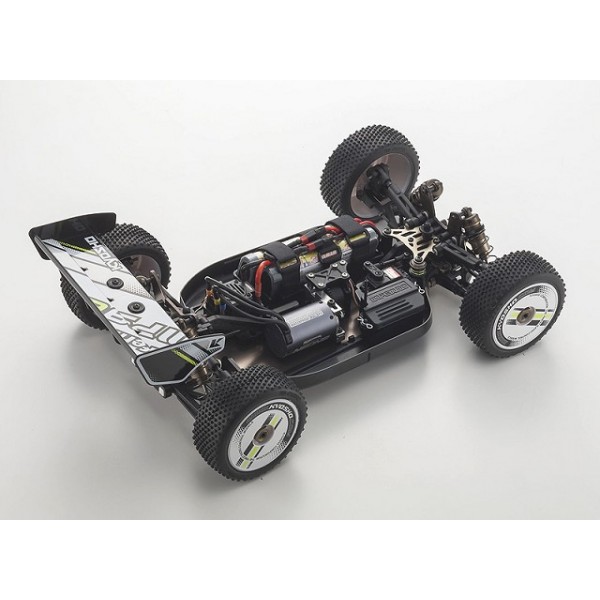

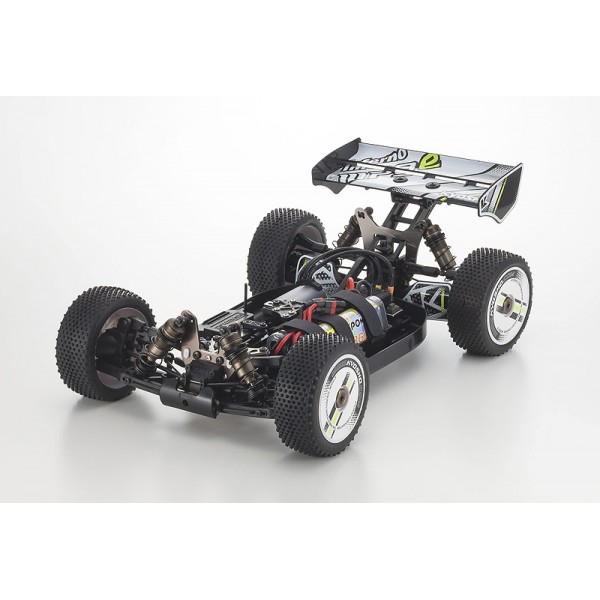

Kyosho INFERNO MP9e TKI T1 WHITE/BLAC Buggy Electric Readyset 1 /8

More details

You can purchase this product in installments with Consel. Click here for more information.

More info
Comments

30874T1B 1/8 EP 4WD r/s INFERNO MP9e TKI T1 WHITE/BLACK (w/KT-331P)

Experience 8-time World Championship winning performance in electric power!

Readyset makes it easy for everyone to enjoy world-class performance!

The world-beating performance of Inferno MP9 TKI is now available in electric power with the launch of the MP9e TKI Readyset. Simply switch ON and feel the power surge with instant acceleration to full speed. With precision control and handling, the MP9e marks a new era in electric buggy performance that is ready to take on any type of course. The TKI (Team Kyosho International) brand marks this MP9e as a fully equipped race spec version with the Inferno s superior racing performance and wide scope for setting options. Expert racers to beginners can enjoy breathtaking performance on any off-road circuit with this fully pre-assembled Readyset packaged with the 2.4GHz large LCD screen KT-331P transmitter and fast response/high torque KS-5031-09MW servo installed. Combined with the powerful Team Orion NEON8 brushless motor, anyone can experience and enjoy the very best electric off-road performance.

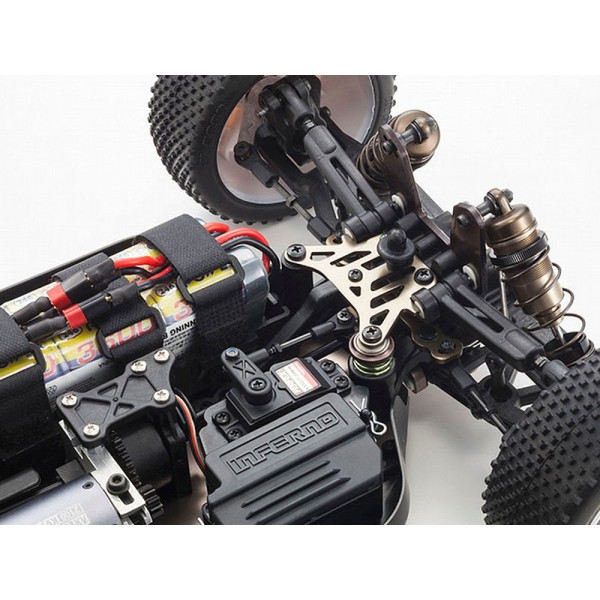

Already low C of G characteristics of the GP MP9 buggy are enhanced with an even greater centralization of heavy components to concentrate mass for superior controllability.

Unique structure of the motor mount allows adjustment of backlash or replacement of the motor by loosening two screws from above.

Shock stays with gun metallic finish promise tough performance.

Newly designed body delivers improved aerodynamics for greater controllability.

Rear suspension arms are fitted with mudguards that keep dirt out of drive shafts and wheels. Each section is designed to perform optimally under true race conditions.

2100Kv Team Orion NEON8 Brushless Motor

ESC for Team Orion R8 Brushless Motor

2.4GHz Syncro KT-331P transmitter automatically manages frequency bands. Features full setting functionality and is compatible with future technological development.

High Torque type waterproof servo

Readyset package can be ready for action the day you buy it.
Full-time 4WD with 3-diff shaft drive and 4-wheel independent double wishbone suspension contributes to low C of G.
Full ball bearing specifications.
Huge range of optional parts for Inferno can be used.
Wide scope for setting adjustments are possible including wheelbase, tread, roll center, caster angle, toe angle and camber.
Front hub carrier can be adjusted to produce 3 caster angles.
Roll center can be adjusted by changing suspension bushings in lower arm.
Bolted on wing holds firm even when subjected to big shocks.
Lightweight design features compact front and rear diff units.
Suspension with bushings eliminates the use of E-rings for more efficient maintenance and setting.

< ReadySet Contents >

Pre-assembled chassis with pre-set control linkages
Pre-cut and painted body
2.4GHz R/C system installed (3ch receiver)
1.0 module steel pinion gear
L-shape hex wrenches: 1.5, 2.0, 2.5, 3.0mm
Cross wrench (large)
17mm wheel wrench

< Required for operation >

7.4V LiPO battery x 2 (recommended:Peak Powermax 4200) both Super Plug specification
Battery charger (recommended / Team ORION ORI30126)
4 x AA alkaline batteries for transmitter

Chassis Technical Data

Length	490mm
Width	307mm
Height	180mm
Ground Clearance	28mm
Wheelbase	325mm (change rear hub collar positions - 4 settings)
Tread (F/R)	254mm (replace bushings - 3 rear, 2 front settings)
Tire(F/R)	116 x 44mm (F/R)
Gear Ratio	12.6:1
Weight	3,370g approx.
Motor	Team Orion NEON8 Brushless
Battery	7.2V NiMH x 2 (recommended : Sports Power 4500/with super plug)
Battery Note	Super (Deans) plug only
