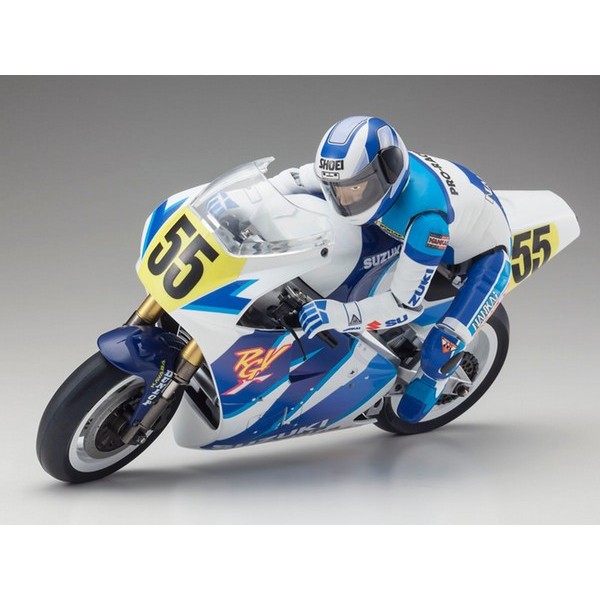

Kyosho Moto Hanging On Racer Suzuki RGV 1992 34931B

THE MOST REALISTIC SCALE MOTORBIKES ON THE TRACK!

The ultimate in scale realism! These two bikes not only lean realistically through the curves, but the rider moves from side to side at the same time! These two models are moulded for even greater scale accuracy and easier access to radio equipment and mechanical parts. The rider is made from an astounding twenty separate parts for natural movement! Fully functional suspension using sprung front forks and a sprung monoshock swing arm at the rear ensure efficient road holding. Oil filled sprung dampers can be fitted as optional uprate parts for even better handling on rougher tracks. The powerful Kyosho Le Mans DM20 motor (included) drives the rear wheel via a real chain system. (Optional ballraced motors can also be fitted for even better performance). Each kit includes two gear ratios, allowing you to match the power to the track. A comprehensive sponsor decal sheet is included for both the rider figure and the bike itself, allowing you to create a scale masterpiece that really works! Great looks and fun to drive too!

Steering post swings right and left to realise the amazing S.D.S.S. effect! The relative front and rear movement causes the centre of gravity to shift and generates the bike s turning force. The rider figure slides left and right over the bike, leaning into turns!

The twin-tube style main frame has ample room cooling air to flow down the motor and amp.

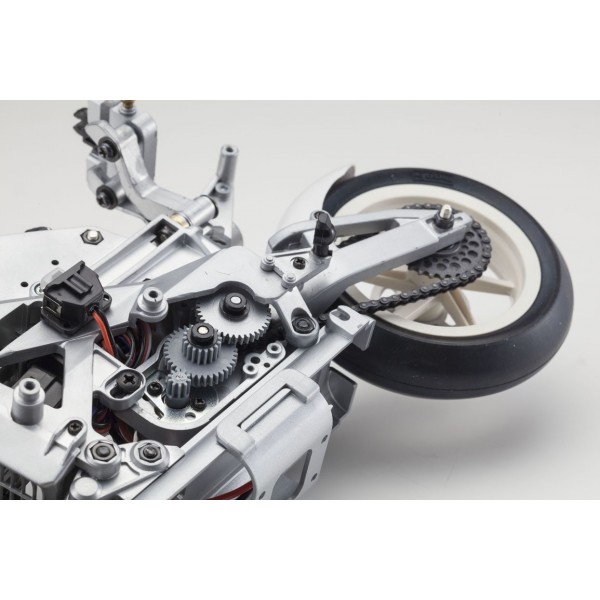

Equipped with monoshock swing arm for fully functional rear suspension. Power train uses drive chain and sprocket exactly like full scale racing bikes. Optional upgrades like oil shocks and strengthened sprocket are also available.



• An ingenious linkage system moves the rider from side to side as the bike banks through the corners.
• Manufactured from strong, reinforced parts, the open frame design allows quick battery changes and easy motor/radio access.

Chassis Technical Data
