Tamiya Citroen 2CV 2WD M-05RA Chassis Kit

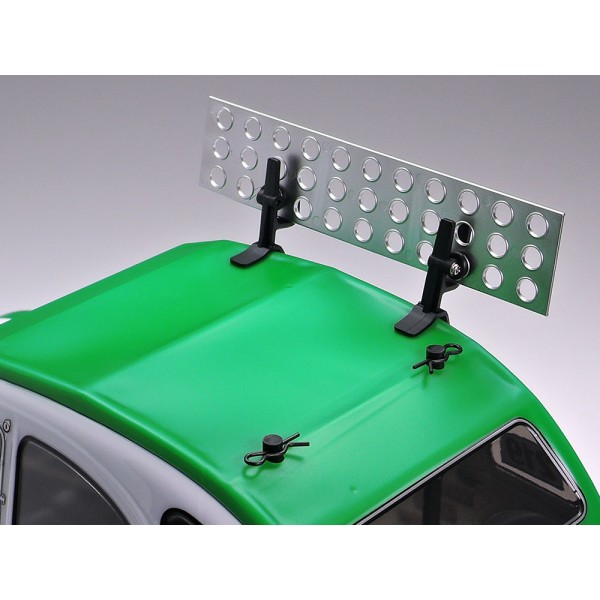

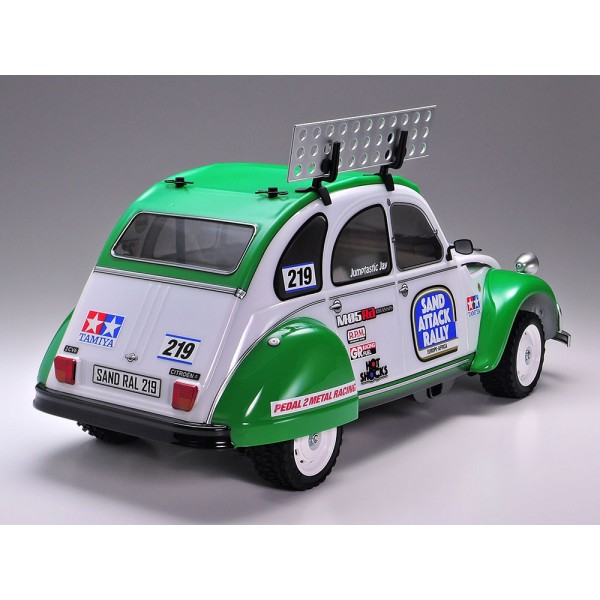

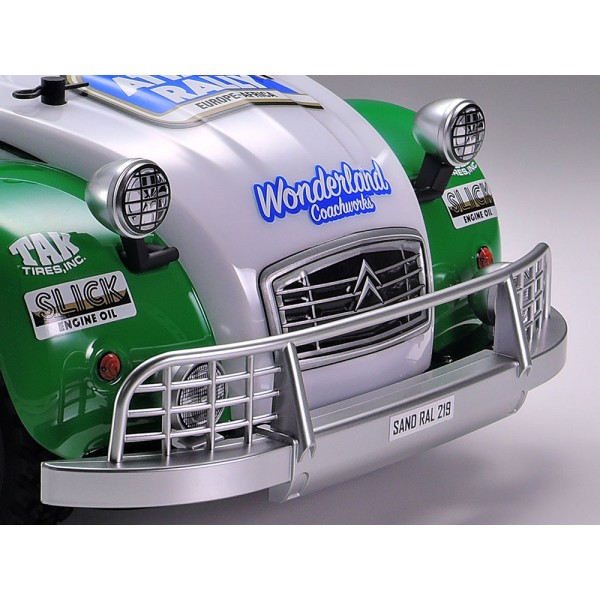

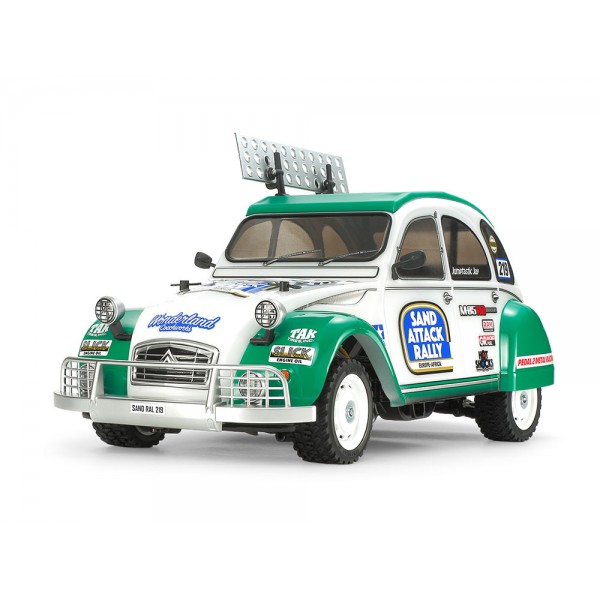

Famous French rally cars that are well suited to rally equipment] Since its introduction in 1948, it has been produced for over 40 years until 1990 and has become a popular, world famous Citroen 2CV. Not only did he drive the motorization of France, but he was also known for his participation in motor sports, especially at rallies. This is a Citro 2 ン n 2CV electric radio remote control car assembly kit created in the image of such a rally vehicle. Independent front fenders, spatula-shaped rear fenders that cover half of the rear wheels, round bonnets, cabins with three windows on one side and other realistic shapes are reproduced in polycarbonate. Fog lights, front bumpers with light protectors and escape plates on the roof are supplied as separate parts. Headlights, exterior mirrors and front bumpers are also separate parts. Many fictitious sponsor brands also come with stickers and the mood of the rally car ended with abundance.

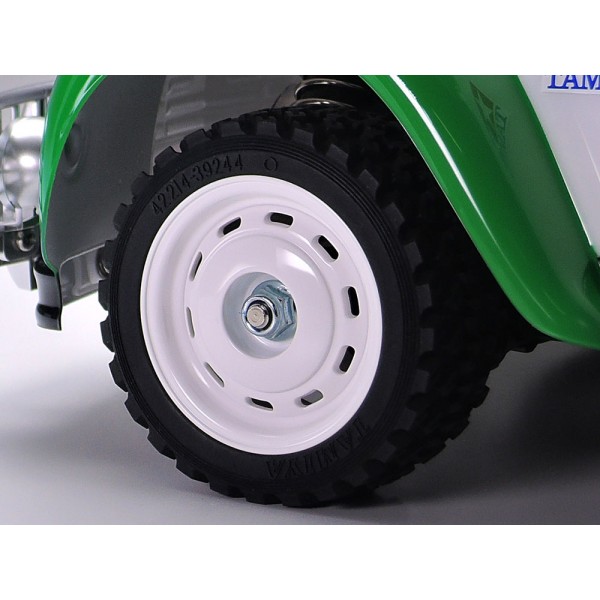

Adoption of front-wheel drive chassis M-05Ra capable of driving on flat clay] The chassis adopts M-05Ra which supports driving on flat ground according to the chassis M-05 which drives the front wheels by mounting a motor on the front. The frame that forms the frame of the frame is light, thin and resistant and is made with a resin monocoque that pursues ease of assembly, while the suspension is a double independent swing arm with four wheels with excellent grounding properties. The minimum ground clearance is increased by 5 mm with the light and the block tires are mounted on the classic design plate wheel. From paved roads to flat dirt roads, you can enjoy the light ride.

Basic specifications

•     Length 394 mm
•     Width 181 mm
•     Height 165 mm (excluding stack recovery ladder)
•     Wheel base 239 mm
•     Front and rear tread 138 mm
•     Tire width / diameter = front and rear 26/60 mm
•     Chassis = monocoque type
•     Transmission system = front Mid-ship engine, front wheel drive
•     Differential = 3 conical
•     Steering = 3 split tie rods
•     Suspension = 4 cross arms with 4 wheels
•     Shock absorber = front and rear
•     Transmission ratio = 7.25: 1
•     Engine = 540 type
•     Speed controller = ESC specification (Sold separately)

Items required separately

•     Set of 2.4G electric RC engines for specific purposes
•     Four AA batteries per transmitter
