Tamiya Audi Quattro A2 1 /10 4WD TT-02 Chassis Kit Maximize

Tamiya Audi Quattro A2 1 /10 4WD TT-02 Chassis Kit

Tamiya Audi Quattro A2 1 /10 4WD TT-02 Chassis Kit

More details

p TA58667

Add to cart

You can purchase this product in installments with Consel. Click here for more information.

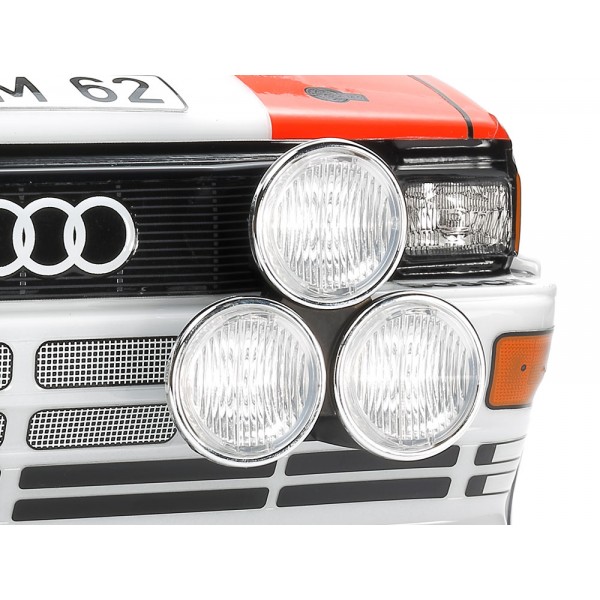

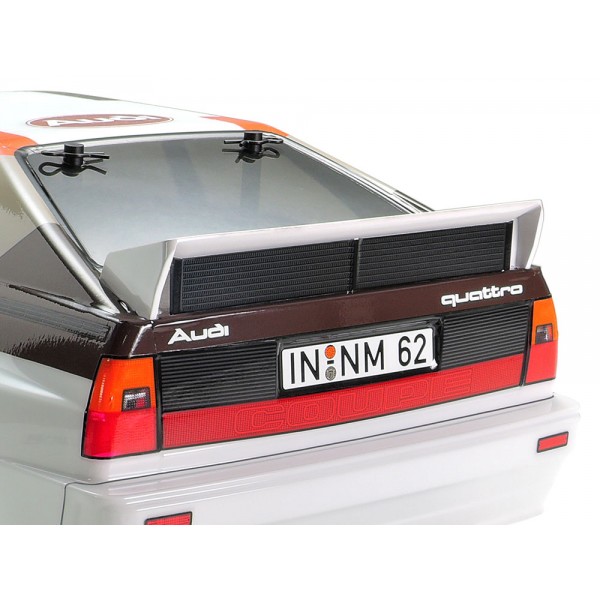

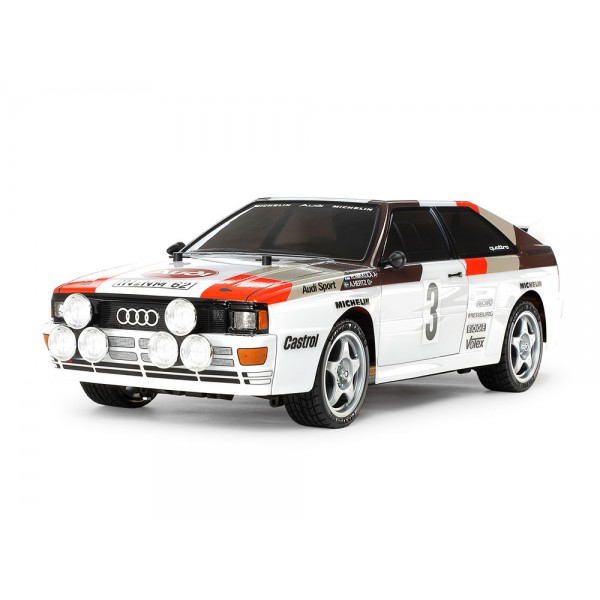

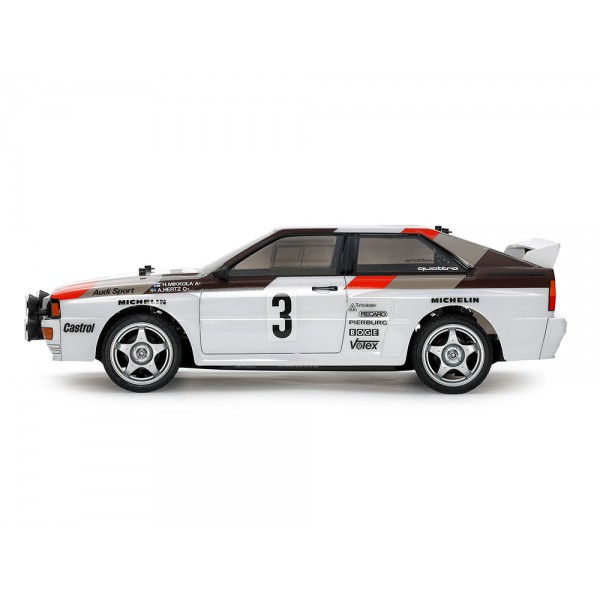

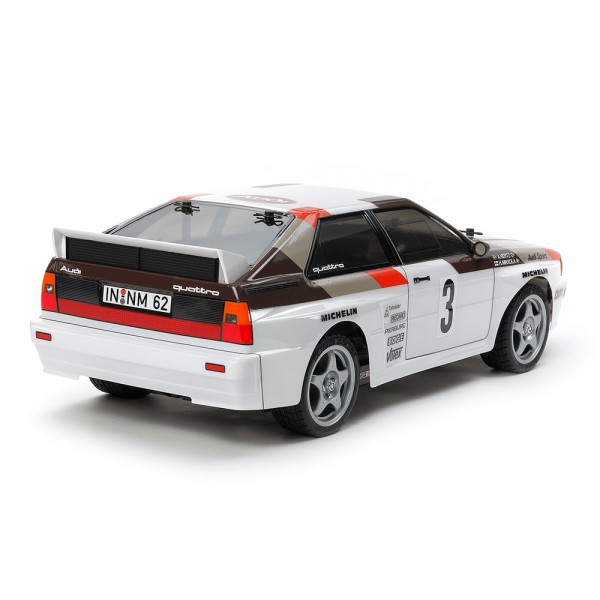

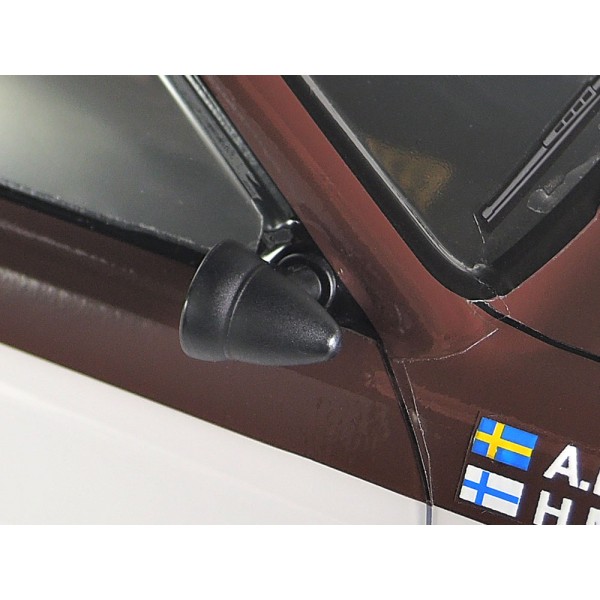

A pioneer of 4WD rally cars that changed history Audi Quattro has proven its effectiveness by introducing the 4WD system for the first time in the World Rally Championship (WRC) and has retained its pioneer name in 4WD rally cars. Above all, it is an assembly kit of electric radio-controlled cars that reproduces the Quattro A2 introduced since mid-1983 with a new engine. A boxy and elegant 2-door coupe body with blister-like mudguard is realistically reproduced with polycarbonate. The front and rear light housings can be prepared as separate parts to tighten the expression and an optional LED light can be installed. The rear wing and exterior rear view mirror with built-in oil cooler are also separate parts. In addition, six fog lights are reproduced to further enhance the mood of the rally car while viewing. The simple white-based coloring with red gray brown graphics, bibs and sponsor logos is prepared with stickers.

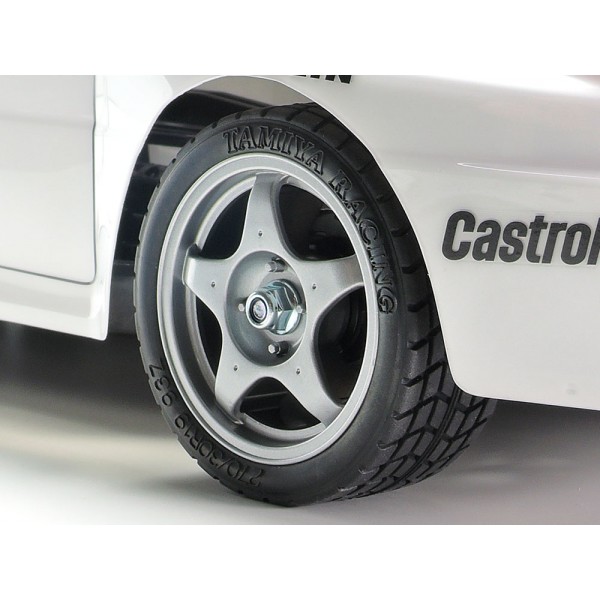

4WD, TT-02 mast frame with excellent maneuverability and nice settings. The chassis is a 4WD TT-02 shaft. With a well balanced design that exposes the battery running on the left and the engine on the right vertically, the steering stability is excellent, the suspension arm and the mast are shared on the left and right, easy to assemble and maintainability is high with the upper and lower divided gearbox etc. It has become. In addition, you can enjoy two types of wheelbase, vehicle height and tread by changing parts, etc. And enjoy settings like the engine mount which can select 10 wide gear ratios. The wheel hubs have a design similar to a brake disc and are equipped with a front bumper support that resembles the bumpers of a real racing trolley. The simple design of the 5-spoke wheel features a carved racing radial with a tread pattern.



Basic specifications

  •      Length 458 mm
  •      width 187 mm
  •      height 135 mm
  •      Wheel base 257 mm
  •      Tire width / diameter = 26/66 mm for both the front and the rear
  •      Frame = bottom-shaped bathtub shape
  •      Driving system = vertical transmission of the 4-wheel drive shaft
  •      Differential gearbox = front and rear 4 conical resin types
  •      Steering = 3 tie rods divided type
  •      Suspension = double cross arm with 4 wheels
  •      Shock absorber = front and rear clutch
  •      Transmission ratio = standard kit 8.27: 1 (from 11.38: 1 to 7.28: 1 in combination with optional pinion) Up to 10 transmission ratios can be selected.)
  •      Engine = type 540
  •      Speed controller = ESC specification (sold separately)


Items required separately

  •      Set of 2.4G electric RC engines for specific purposes
  •      Four AA batteries per transmitter
