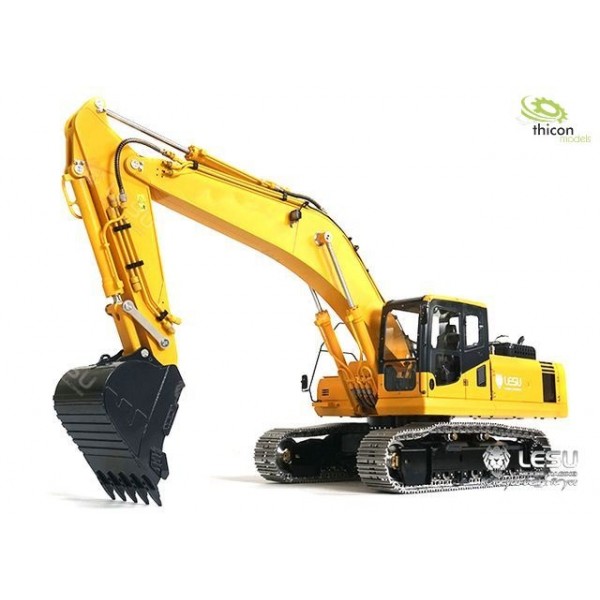

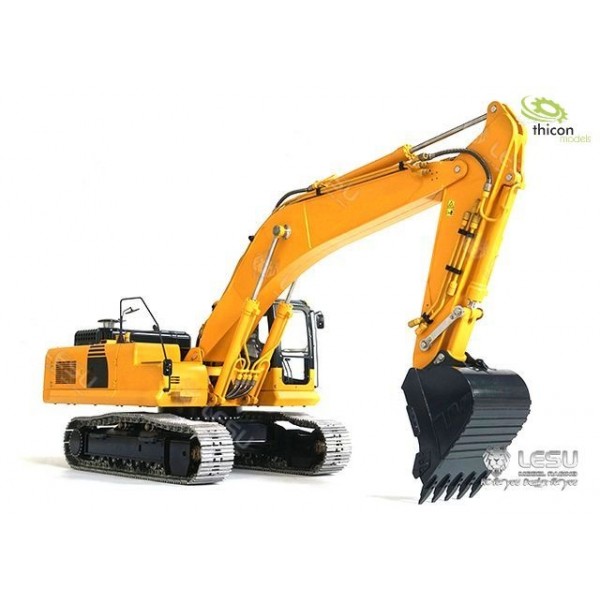

Lesu Complete 1 14 Crawler Excavator 36T Kit with Hydraulics no radio system

Precision-made metal excavator kit with hydraulics. The crawler excavator is mainly made of stainless steel. The chain drive is made by two powerful brushless motors, which are installed directly in the hubs. The electrical connections of the motors are made by a mechanical rotary drive, which allows endless turning of the upper carriage. The new high-performance hydraulic pump has a built-in pressure gauge for pressure monitoring. The hydraulic system even has an oil cooler with active fan. As standard, the excavator comes with thicon-models with a 6-fold hydraulic control block! The hydraulic cylinders are provided with brass pipes.

Needed for operation: Hydraulic oil, remote control with at least 8 channels, 11.1V lipo battery, charger.

Delivery: Excavator kit unpainted, hydraulic system with pump, oil cooler, 6-way control valve, motors, regulators, servos, 70 pages of construction manual.

Dimensions: Length: 784mm Width: 230mm Height: 232mm Max. Length from pivot: 800mm Chain width: 43mm Chain length: 328mm Operating pressure approx. 20bar Weight about 15kg.

As an option, we can also powder-coat the excavator for you and also deliver it ready assembled. Please feel free to contact us.
