Kit Hydraulic Excavator O and K RH 25.5 all metal scale 1-14

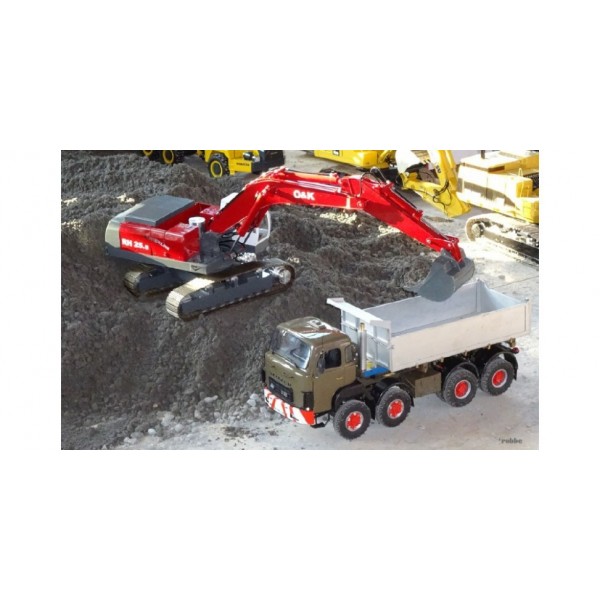

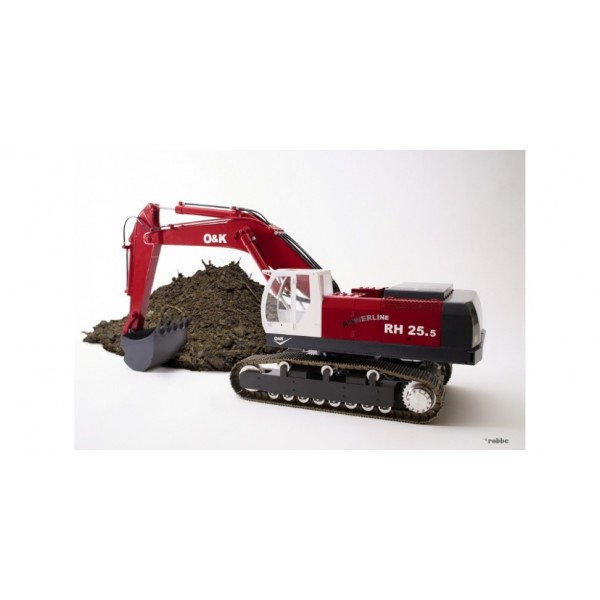

Radio-controlled model of an excavator O & K RH 25.5 to 60 tons in 1: 14.5. The model is finished completely in metal and all the steel components are tempered steel resistant to corrosion. The tracks are made of high-strength brass casting. The hydraulic pump is powered by an electric motor with large torque, suitable for continuous operation, the company Faulhaber®.

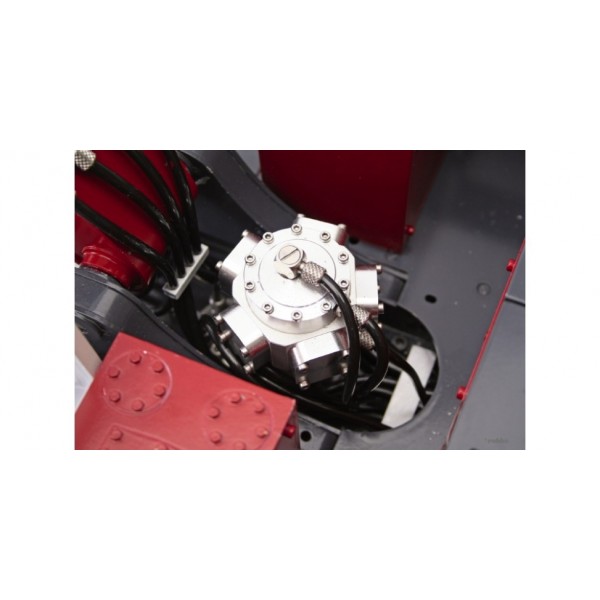

The model, however, is available as a kit. As an option, the rotation of the cab may also be implemented with the hydraulic motor. More parts will be sold separately.

Size:
Scale 1: 14.5
weight ca.14kg
Dimensions without arm
Length ca. 430 mm
Width ca. 250 mm
Height ca. 260 mm
Track width ca. 52 mm
Distance body machine ca. 107 mm
Distance chassis-ground ca. 47 mm
Frame length (tracks) ca. 390 mm

Package Contents:

•      Version Nr. 3320: complete set with all parts necessary for assembly of the model, including fixing materials such as screws
•      Version Nr. 3321: Fully assembled model without lacquering
•      Version Nr. 3322: Fully assembled model with two-component lacquer
•      Electric propulsion with electric motor Faulhaber® for the continuous rotation of the cab
•      Hydraulic propulsion of two hydraulic motors with planetary mechanism
•      Electric motor for hydraulic pump mounted on a damper rubber to minimize vibrations
•      Hydraulic oil tank metal
•      Two tracks each from 472 pieces and belt tensioner
•      To each side pulley 8 in the lower and upper pulleys 3
•      Thin section bearings for greater accuracy
•      several bearings
•      Four hydraulic cylinders with large diameter cilidro (internal I16 mm, outside 19 mm)
•      5 fans control, pressure regulator 1, 1 E / A Block
•      All pipes screwed (only version no. 3321 and 3322)
•      Interior equipment cockpit plastic resin
•      Transparent windows to the cab
•      Lighting System
•      Stickers
•      Complete instructions for the mounting of components RC

Package Contents extra version no. 3320

•      Assembly instructions with exploded
•      Parts list for each level of assembly
•      decals

RC functions

•      Track
•      Walk-rotating
•      support
•      Arm (part of front arm)
•      shovel
•      Motor for hydraulic pump
•      lighting
•      delivery
