Wedico Models Complete Modul Electronic MFL-2 Truck no Suond

The MFL is the complete 12 channel lighting system with cruise control and infrared transmitter for your truck!

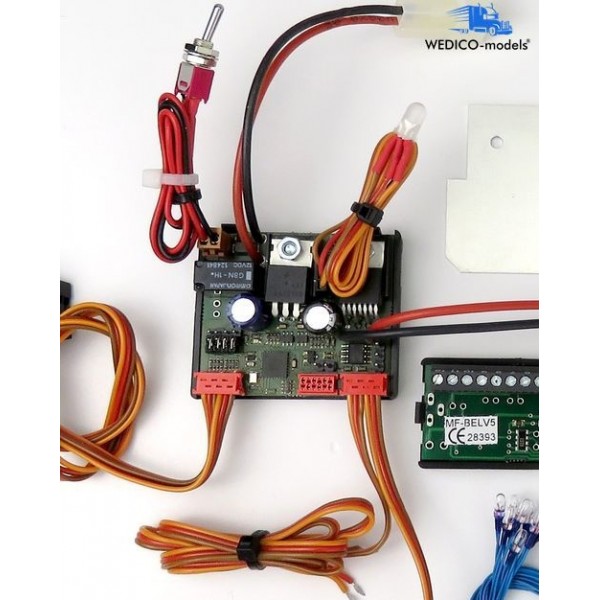

Thanks to the combination of integrated speed controller and lighting system in one module and additional BUS system, the new MFL is extremely space-saving! In the vehicle, they install the small central board with cruise control and place the small lighting boards at the front and rear. The connection of the three boards is made only by a narrow 3pol. Electric wire. More space is not needed.

The supplied bulbs are bolted to the shortest path with the appropriate lighting board at the bow or stern. The boards are also LED-capable. The rear lighting board contains a micro-piezo number for the reversing beeper and an infrared transmitting diode for wireless control of the 797-W secondary lighting system. The integrated light functions are triggered by three proportional channels from the receiver of the remote control.

The following functions are possible:

• turn signal
• hazard warning lights
• Dimmed headlights
• high beam
• Fog light
• Rear fog light
• Reversing light
• brake light
• Activate infrared transmitter diode
• Switching function 1 (500mA short-circuit proof) is also transmitted to the MFA.
• Switching function 2 (500mA short-circuit proof) is also transmitted to the MFA.
• engine sound (optional module *)
• horn (optional module *)

The 12 functions are triggered on the remote control via one free servo channel each. Each servo channel has 4 functions. Long and short up and down.

Technical specifications:

Operating voltage: 7.2-12V Speed ??Control: 7.2-12V, 30A continuous current, 16kHz clock frequency for sensitive starting. Optimized for our engine 115-W. Connection: AMP Dimensions of the central board: Width: 50mm, depth: 40mm, height: 22mm Dimensions of lighting board: Width: 48mm, Depth: 26mm, Height: 15mm

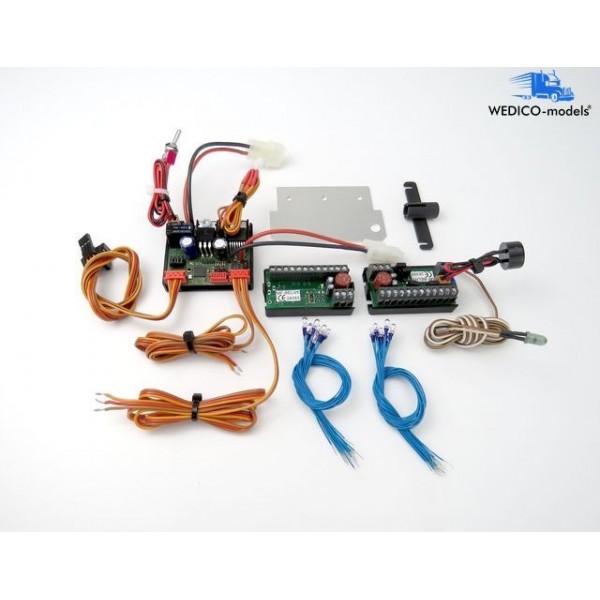

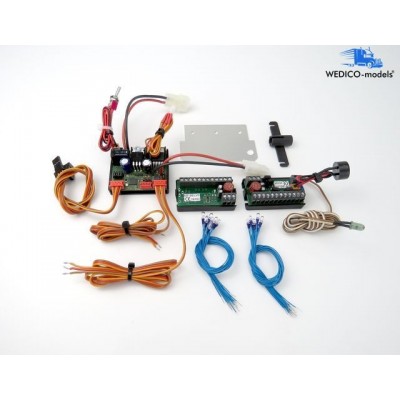

Delivery: Central board with speed controller, lighting board front and rear, 5V bulbs, mounting material and instructions.

• The new optional WEDICO-models sound module is simply placed on the MFL to save space.

Recommended LEDs: LED-Set Front Nr .: 2290-W, LED-Taillights Nr .: 2284-W
