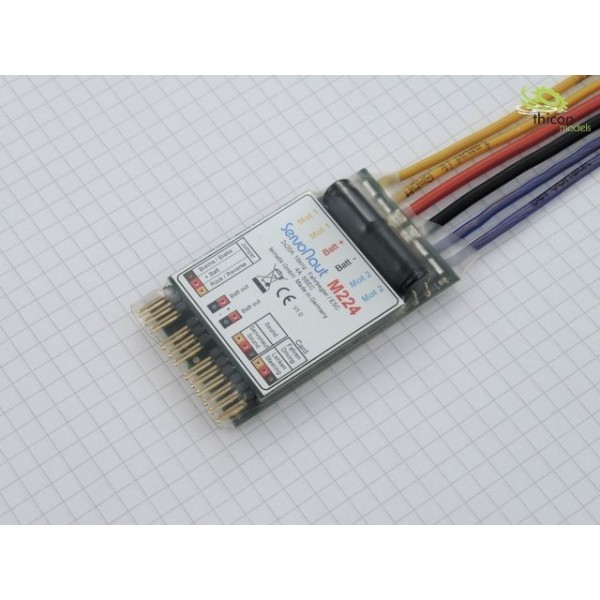

Servonaut M224 Dual Speed Controller For Tracked Vehicles And Ships

compact dual speed controller for tracked vehicles and ships
-2x20A for 7.2V to 14.4V
-now with the proven Servonaut 4A SBEC
-Again improved special mixer that optimizes the steering behavior
- thanks to the seamless Servonaut EMK brake, tracked vehicles can also be controlled perfectly downhill
-Outputs for brake light and reversing light with 700mA, short-circuit proof
-Control output for Servonaut sound modules
-second sound output for non-Servonaut sound modules
-16kHz clock frequency, very high resolution with >450 speed steps
-Temperature, current, voltage and reception monitoring with engine stop in the event of faults or an empty battery
-Plug & Play, automatic detection of the driving voltage for 7.2V or 12V, 2s and 3s Lipo
-Three modes of operation with internal mixer for tracked vehicles or twin screw propulsion vessels
-A universal operating mode with two independent controllers
-One operating mode for vehicles with main and auxiliary drive
-Additional setting options with the Servonaut CARD or a Servonaut transmitter:
-Acceleration and braking behavior
- Traction help, motor running direction
-Battery protection and battery type
-Two connection sockets for the power supply of accessories, e.g. for lighting systems and sound

Dimensions
approx. 75 x 40 x 15 mm
