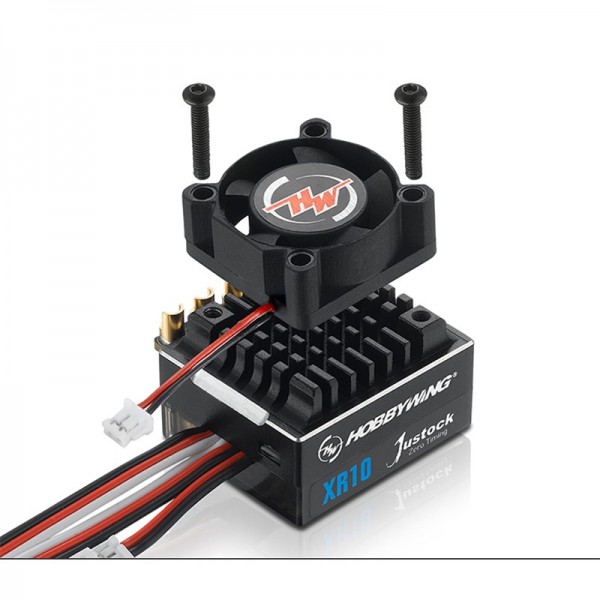

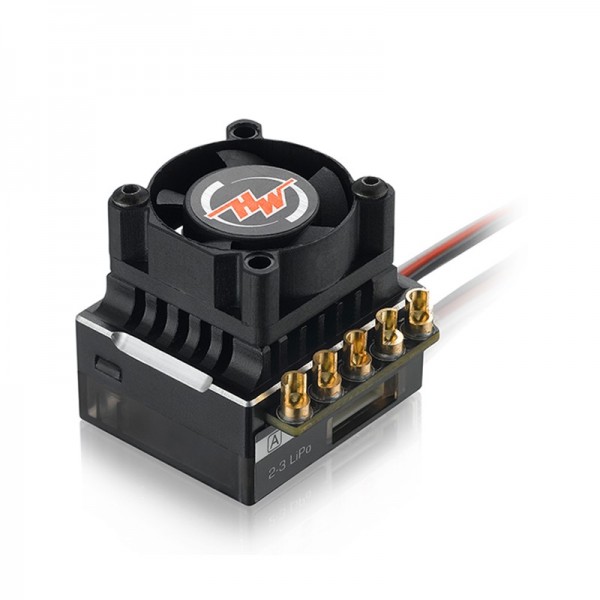

Justock Electronic Controller XR10

Zero-Timing Design
The XR10 JUSTOCK regulator has been specially designed for competitions in the Zero-Timing category, its Timing system has therefore been permanently set to Zero degrees. Using the engine and the wiring of the same series, all the riders will have the same system and above all the same potential for a more linear and competitive competition.

Great reliability and durability
The combination of very resistant materials and advanced software allow the XR10 JUSTOCK regulator not only to deliver high power but also to sustain damage caused by any overloads.

Highly reliable cooling system
The modified heatsink with a larger surface, combined with the copper-coated plates to which the connectors are connected, allow the internal heat to transfer quickly to the heatsink for optimal cooling.

Small size
With its compact design, the XR10 JUSTOCK regulator fits most models from 1/10 Touring to 1/12 Pan car, as well as F1 cars.

Wide use
This regulator has been designed for 1/10 & 1/12 Pan Car Touring models, as well as F1 and all zero timing models, ex ROAR Sportsman. When using this regulator with a 32T motor the combination obtained can also be used very well for rock crawlers.

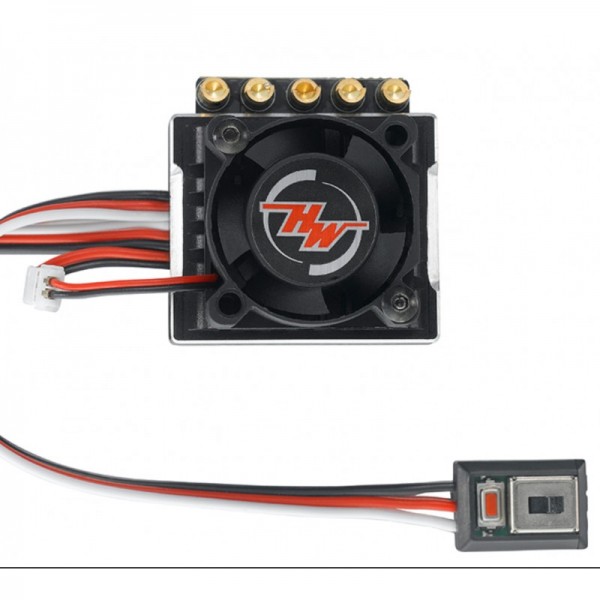

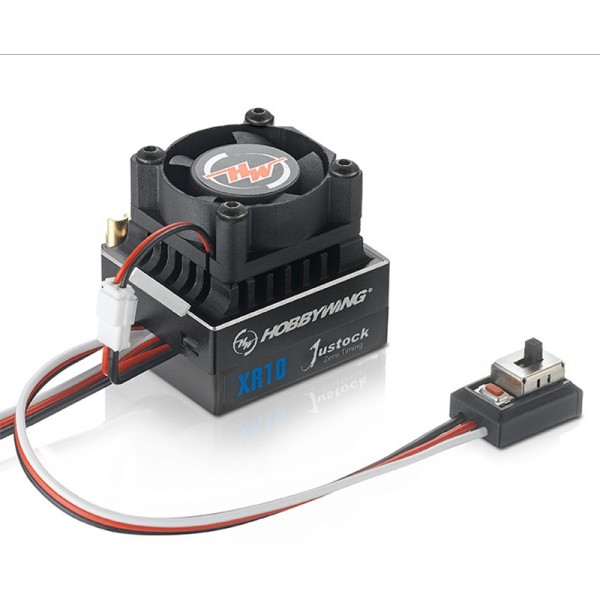

Single programming button
The SET button on the controller allows the user to easily program the controller or restore it to factory settings.

Updates available free
You can upgrade the XR10 JUSTOCK controller with the Hobbywing USB link, a multifunction program CARD and a laptop. Hobbywing regularly updates the software of the controllers, giving its users the possibility to personally and quickly update their controllers.

Technical data

•     Continuous and Peak Current: 60A / 380A
•     Motor Type: Sensorless and Sensored
•     Suitable for: 1/10 - 1/12 on road and off-road CLUB competition no timing
•     2S LiPo / 4-6S NiMH motor limits: ≥8.5T (1/10 on-road) ≥11.5T (1/10 off-road)
•     Motor limits 3S LiPo / 8-9S NiMH ： ≥13.5T (1/10 on-road), ≥17.5T (1/10 off-road)
•     Number of LiPo -NiMh cells: 2-3S LiPo / 4-9S NiMh
•     BEC output: 6V / 2A
•     Fan: included powered with BEC 6V output.
•     Measurements: 33.5mm (L) x 28.5mm (W) x 30.5mm (H)
•     Weight: 59.8g.

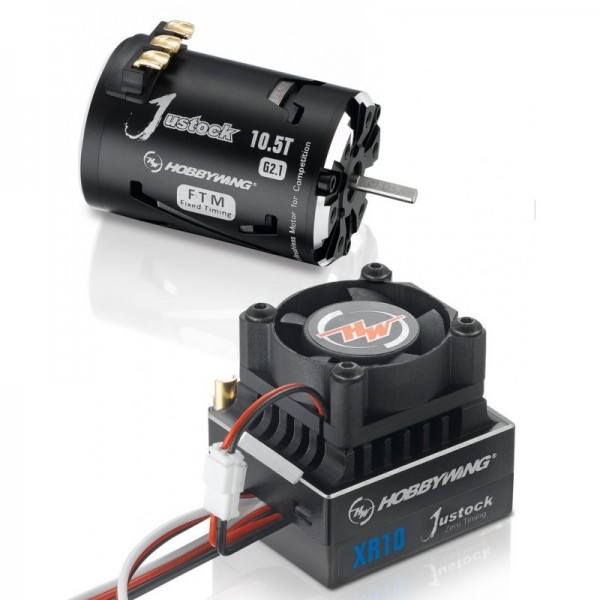

Justock Electric Motor G2.1 3650SD

Features:

•     Compliant with ROAR and IFMAR rules
•     The use of an aluminum case with a heat resistant magnet and double insulated windings, high precision bearings and a rotor with a sturdy structure guarantee exceptional performance and a long life.
•     The non-adjustable rear bell integrated into the Hall sensor, combined with a high precision balanced rotor, provides the user with linear power on demand.
•     The silicone O-ring fitted between the bell and the stator helps conduct heat inside the motor case and prevents dust from entering the HALL sensor.
•     The removable structure design for daily cleaning and maintenance can effectively extend the life of this Justock engine and improve its operating efficiency.
•     Perfectly matched with the XR10-Justock ESC for all zero racing timing specifications and also compatible with other Hobbywing electronic speed controllers, including other brands.

Specifications:

•     Battery: 2S-3S LiPo
•     2 POLES
•     1/10, 1/12 On-Road (Truggy / Drifting Car / F1 / Monster) and Off-Road (Buggy / 2WD SC Truck / Truck)
•     STOCK / SPORT mode (choose according to competition rules.)
•     Application: STOCK / SPORT Class (choose the engine as per the racing rules) 1 / 10th, 1 / 12th On-road (eg Touring Car or Drift, F1, Mini car, etc.). Off-road (i.e. buggy, 2WD SCT and truck) racing, normal training and rock crawler (21.5T and 25.5T only).
