Autel Robotics Drone EVO II Pro 6K Enterprise Bundle

PRICES ON REQUEST, PLEASE CONTACT US CLICK HERE!!

Work like never before

Optimize your workflow with our toughest EVO II ever, featuring new camera accessories and features to meet the needs of professionals in every industry, from fire to construction. With a foldable design that can be deployed in seconds and easy-to-use controls that can be operated with one hand, the EVO II Enterprise offers a safe way to increase efficiency without increasing stress.

The Autel EVO II 640T Enterprise Bundle is the new drone from Autel Robotics that joins the EVO II family.

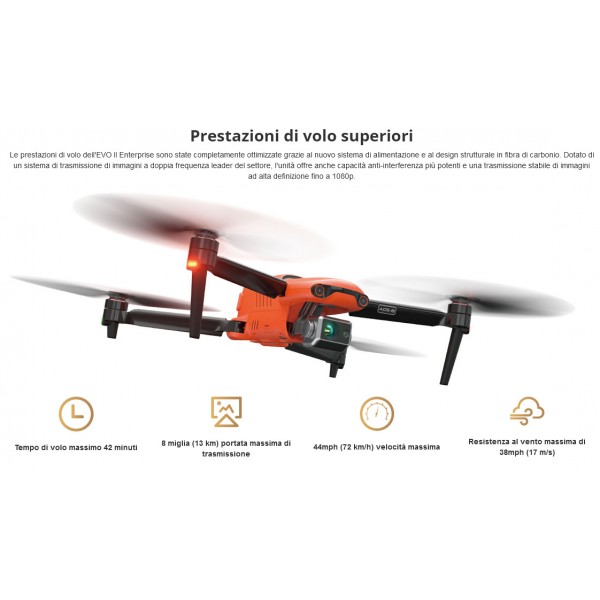

The EVO II Enterprise boasts a maximum flight time of 42 minutes and allows for the installation of additional modules on top of the aircraft.

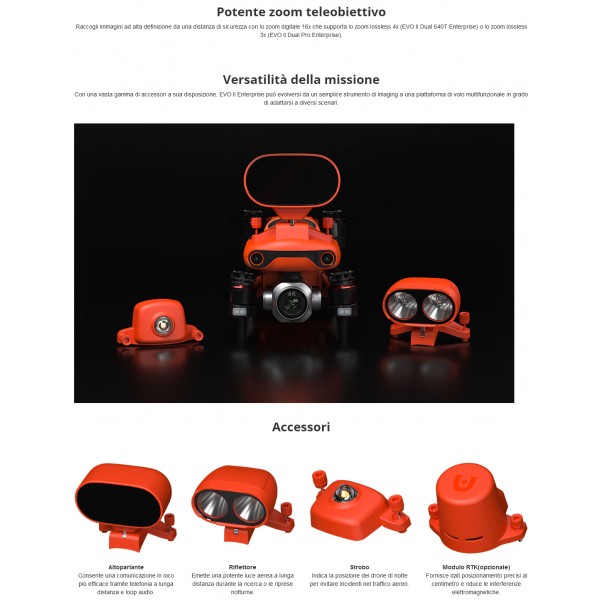

These add-on modules include the speaker, strobe and headlight, there is also an RTK add-on module for separate purchase.
The EVO II 640T Enterprise comes with Autel Smart Controller, three flight batteries, battery charging hub, car charger and wheeled case.

The EVO II Enterprise has a slightly different cell from the normal EVO II models.
The Enterprise model features carbon fiber booms, larger motors and larger propellers. These three features produce an additional 5-7 minutes of flight time for the Enterprise model.

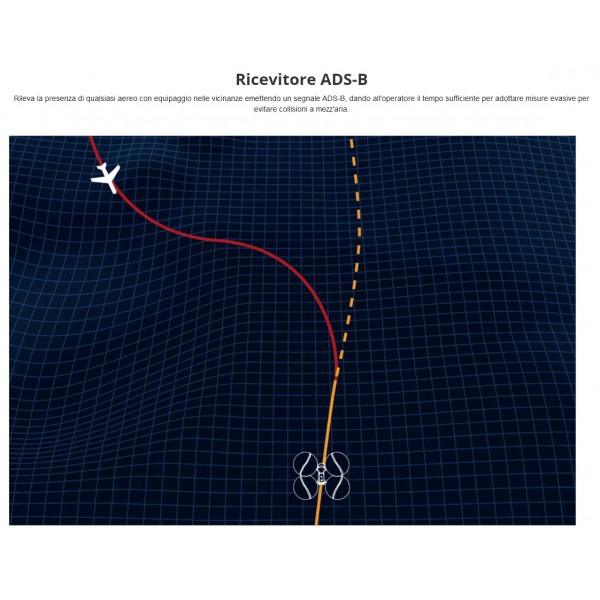

The EVO II Enterprise also has an integrated ADS-B receiver that detects the presence of any manned aircraft in your flight area.

In addition, EVO II Enterprise features AES-256 encryption, called "Autel DataSecure Encryption".

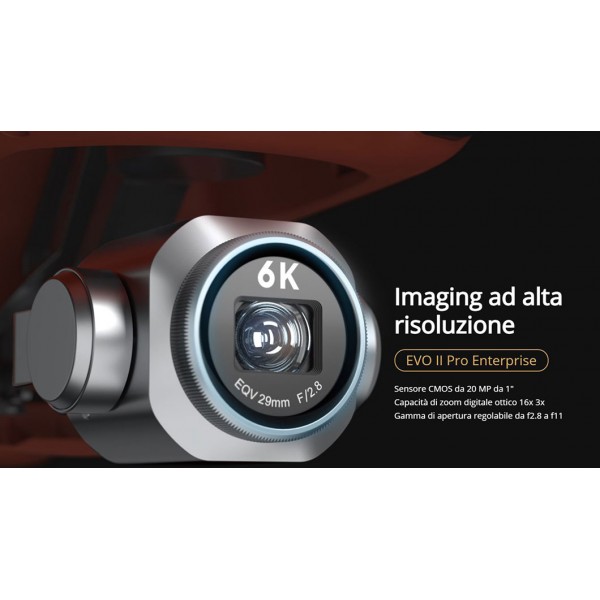

The 1 '' 6K 20MP CMOS sensor offers 3X lossless and 16X digital zoom capabilities along with an adjustable aperture range from f / 2.8 to f / 11.
The EVO II Pro camera sensor as a linear / rolling electronic shutter.

TECHNICAL SPECIFICATIONS

Aircraft

• Takeoff Weight (Without Accessories) 2x2
• EVO II Pro Enterprise ： 2.45 lbs (1110 g)
• EVO II Dual 640T Enterprise ： 2.51 lbs (1136.5 g)
• Diagonal Length
• 16.8 inches (427 mm)
• Max Flight Time (no wind)
• 42 min （without accessories）
• Max Hovering Time (no wind)
• 38 min （with strobe）
• 29 min （with spotlight）
• 34 min （with loudspeaker）
• 36 min （with RTK module）
• Max Level Flight Speed
• 45 mph (20 m / s) (Ludicrous)
• Max Ascent Speed
• 18 mph (8 m / s (Ludicrous)
• Max Service Ceiling Altitude
• 4.3 miles (7000 m) MSL
• Operating Temperature Range
• 14 ℉ to 104 ℉ (-10 ℃ to 40 ℃)
• Max Wind Speed Resistance
• 39 - 46 mph (17-20 m / s)
• Operating Frequency
• 2.400 GHz - 2.4835 GHz ； 5.725GHz - 5.850 GHz
• Hovering Accuracy Range
• Vertical:
• ± 0.1m (with RTK)
• ± 0.1 m (with Vision Positioning)
• ± 0.5m (with GPS Positioning)
• Horizontal:
• ± 0.1m (with RTK)
• ± 0.3 m (with Vision Positioning)
• ± 1.5m (with GPS Positioning)

Gimbal

• Operation Range 2x2 Pitch: -135 ° to + 45 °

• Yaw: -100 ° to + 100 °
• Operation Range
• Pitch: -90 ° to + 30 °
• Yaw: -90 ° to + 90 °
• Stability
• More Stable with 3 Axies
• Max Control Speed (Tilt)
• 300 ° / s
• Angular Vibration Range
• ± 0.005 °

Sensing System

• Sensing System Type 2x22x2 Omnidirectional Binocular Sensing System
• Forward
• Accurate Measuring Range: 0.5 - 20m
• Detection Range: 0.5 - 40m
• Effective Sensing Speed: <15m / s
• FOV: Horizontal: 60 °, Vertical: 80 °
• Backward
• Accurate Measuring Range: 0.5 - 16m
• Detection Range: 0.5 - 32m
• Effective Sensing Speed: <12m / s
• FOV: Horizontal: 60 °, Vertical: 80 °
• Upward
• Accurate Measuring Range: 0.5 - 12m
• Detection Range: 0.5 - 24m
• Effective Sensing Speed: <6m / s
• FOV: Horizontal: 65 °, Vertical: 50 °
• Downward
• Accurate Measuring Range: 0.5 - 11m
• Detection Range: 0.5 - 22m
• Effective Sensing Speed: <6m / s
• FOV: Horizontal: 100 °, Vertical: 80 °
• Sides
• Accurate Measuring Range: 0.5 - 12m
• Detection Range: 0.5 - 24m
• Effective Sensing Speed: <10m / s
• FOV: Horizontal: 65 °, Vertical: 50 °
• Service Environment
• Forward, Backward and Sides:
• Surface with clear pattern and adequate lighting (lux> 15)
• Upward:
• Detects diffuse reflective surfaces (> 20%) (walls, trees, people, etc.)
• Downward:
• Surface with clear pattern and adequate lighting (lux> 15)
• Detects diffuse reflective surfaces (> 20%) (walls, trees, people, etc.)

EVO II Pro Enterprise Camera

• Sensor 2x2 1 inch CMOS; 20 million effective pixels
• FOV
• 82 °
• Openings
• f / 2.8 - f / 11
• Focus range
• 1m to ∞
• Equivalent Focal Length
• 28.6mm
• ISO Range
• Video: 100-6400 (auto)
• Photo: 100-12800 (auto)
• Zoom
• 1-16x (up to 3x lossless zoom)
• Still Photography Modes
• Single Shot
• Burst shooing: 3/5 frames
• Automatic Exposure Bracketing (AEB) ：
• 3/5 bracketed frames at 0.7 EV Bias
• Timelapse ：
• JPG ： 2s / 5s / 7s / 10s / 20s / 30s / 60s
• DNG ： 5s / 7s / 10s / 20s / 30s / 60s
• HyperLight ： support (under 4K JPEG format）
• Long Exposure: Max 8s
• HDR imaging: (under 4K JPEG)
• Still Photography Resolution
• 5472 * 3648 (3: 2)
• 5472 * 3076 (16: 9)
• 3840 * 2160 (16: 9)
• Video Format
• MP4 / MOV (MPEG-4 AVC / H.264, HEVC / H.265)
• Video Resolution
• 6K 5472 * 3076 p30 / p25 / p24
• 4K 3840 * 2160 p60 / p50 / p48 / p30 / p25 / p24
• 2.7K 2720 * 1528 p120 / p60 / p50 / p48 / p30 / p25 / p24
• 1080p 1920 * 1080 p120 / p60 / p50 / p48 / p30 / p25 / p24
• Max Bitrate
• 120Mbps

EVO II Dual 640T Enterprise Thermal Camera

• Sensor 2x2 Vanadium oxide uncooled infrared focal plane detector
• Viewing Angle
• H33 ° V26 °
• Sensor Resolution
• 640x512
• Pixel Pitch
• 12μm
• Focal Length
• 13mm
• Wavelength range
• 8 ～ 14μm
• Accurate temperature measurement distance
• 2-20 meters
• Temperature measurement accuracy
• ± 3 ℃ or ± 3% of reading (whichever is greater) @ambient temperature -20 ℃ ~ 60 ℃
• Temperature range
• High gain mode: -20 ° to + 150 ° C
• Low gain mode: 0 ° to + 550 ° C
• Zoom
• 1-8x
• Photo shooting mode
• Single shooting, continuous shooting, time-lapse shooting
• Camera resolution
• Infrared mode: 640 * 512
• Picture in Picture: 1920 * 1080, 1280 * 720
• Video resolution
• 640 * 512 30fps
• Video format
• MOV / MP4 (support H.264 / H.265)

EVO II Dual 640T Enterprise Visual Camera

• Sensor 2x2 1/2 inch CMOS; 48M effective pixels
• FOV
• 79 °
• Openings
• f / 1.8
• Focus range
• 0.5m to ∞
• Equivalent Focal Length
• 25.6mm
• ISO Range
• Video: 100-6400 (auto)
• Photo: 100-3200 (auto)
• Zoom
• 1-16x (up to 4x lossless zoom)
• Still Photography Modes
• Single Shot
• Burst shooing: 3/5 frames
• Automatic Exposure Bracketing (AEB) ：
• 3/5 bracketed frames at 0.7 EV Bias
• Timelapse ：
• JPG ： 2s / 5s / 7s / 10s / 20s / 30s / 60s
• DNG ： 5s / 7s / 10s / 20s / 30s / 60s
• HyperLight ： support (under 4K JPEG format）
• Long Exposure: Max 8s
• HDR imaging: (under 4K JPEG)
• Still Photography Resolution
• 8000 * 6000 (4: 3)
• 7680 * 4320 (16: 9)
• 4000 * 3000 (4: 3)
• 3840 * 2160 (16: 9)
• Video Format
• MP4 / MOV (MPEG-4 AVC / H.264, HEVC / H.265)
• Video Resolution
• 8K 7680 * 4320 p25 / p24
• 6K 5760 * 3240 p30 / p25 / p24
• 4K 3840 * 2160 p60 / p50 / p48 / p30 / p25 / p24
• 2.7K 2720 * 1528 p120 / p60 / p50 / p48 / p30 / p25 / p24
• 1080P 1920 * 1080 p120 / p60 / p50 / p48 / p30 / p25 / p24
• Max Bitrate
• 120Mbps

Remote Controller

• * Operating Frequency 2x2 902-928 MHz; 2.400-2.4835 GHz; 5.725-5.850 GHz
• Max Transmission Distance (unobstructed, free of interference)
• FCC: 13km; CE: 7km
• Transmitter Power (EIRP)
• 902-928 MHz
• FCC: ≤30dBm
• 2.400-2.4835 GHz
• FCC: ≤30dBm
• CE ： ≤20dBm
• 5.725-5.850 GHz
• CE ： ≤14dBm
• Internal Storage
• 128GB
• Video Output Port
• HDMI
• Built-in Battery
• Name: Intelligent Li-ion battery
• Capacity ： 5800mAh
• Voltage ： 11.55V
• Battery Type ： Li-ion
• Battery Energy ： 67 Wh
• Charging time ： 120 min
• Battery Life
• ~ 3hr (Max. Intensity)
• ~ 4.5hr (50% intensity)
• Operating Temperature
• -20 ℃ to 40 ℃
• RC Size
• 303 x 190 x 87 mm (Front folded)
• 303 x 273 x 87 mm (Ant. Unfolded)
• Weight
• 1150g (Without protective case)
• 1250g (With protective case)
• Satellite Positioning Module
• GPS + GLONASS + Galileo
• Note:
• * The operating frequency band varies according to different countries and areas.

Accessories

• Strobe 2x2 Dimensions ： 39 * 72 * 34mm
• Weight ： 19.5 g
• Connections ： Floating Connectors
• Power ： Avg. 1.6W
• Controllable Range ： 5000 m
• Light intensity ： Min 50cd ； Max 486cd ； Avg. 290cd
• Loudspeaker
• Dimensions ： 46 * 80 * 77 mm
• Weight ： 98.5 g
• Connections ： Floating Connectors
• Power ： Max 18W
• Decibel ： 120dB @ 1m ； 88dB @ 60m ； 70dB @ 110m
• Max Bitrate ： 36kbps
• Adjustable Angle Range ： 0 ° ~ 45 °
• Spotlight
• Dimensions ： 48.5 * 72 * 63 mm
• Weight ： 77 g
• Connections ： Floating Connectors
• Power ： Max 35W
• Controllable Range ： 30 m
• Adjustable Angle Range ： 0 ° ~ 90 °
• Illuminance ： FOV14 °, Max ： 11lux @ 30m Straight
• RTK Module (Optional)
• Dimensions ： 55.5 * 72.5 * 57 mm
• Weight ： 59.5 g
• Connections ： Floating Connectors
• Power ： ~ 3W
• RTK Positioning Precision ： 1.5 cm + 1 ppm （(Vertical）; 1 cm + 1 ppm （Horizontal）

Battery

• Capacity 2x2 7100 mAh
• Voltage
• 11.55 V
• Battery Type
• LiPo 3S
• Energy
• 82Wh
• Net Weight
• 365g
• Charging Temperature
• 5 ~ 45 ℃
• Storage Temperature & Humidity
• -10 ~ 30 ℃ ， 65 ± 20% RH
• Recommended Storage Temperatur
• 22 ~ 28 ℃
• Max Charging Power
• 93 W
• Charging Time
• 90 mins

Charger

• Input 2x2 100-240V, 50/60 Hz, 1.5A
• Output
• 13.2 V ⎓ 5 A
• 5V⎓3A 9V⎓2A 12V⎓1.5A
• Voltage
• 13.2 ± 0.1 V
• Rated Power
• 66 W
• Charger
• Internal Storage 2x2 8 G
• SD Storage
• Standard: 32 GB
• Max.support 256GB （UHS-3 rating required）
