Kyosho Mad Van VE Brushless 4WD Monster Box RTR 1 /10 Green

Brushless motor technology adds thrust for even greater speed!

Enjoy the enhanced power and scale appearance of the new generation of MAD VAN


The improved scale characteristics of the American van-style FAZER Mk2 MAD VAN combine with a 50% increase in top speed with the shift to brushless motor power in this 1/10 scale VE model. Instead of the traditional G14L brush motor, the new model combines the powerful TORX 10E brushless motor with the BRAINZ 10 speed controller to increase the maximum speed from 40km / h to 60km / h. To handle the extra power and speed, the gears have been reinforced and the reduction ratio optimized based on the FZ02L-BT chassis, which now incorporates the previously optional HD aluminum L center shaft. In addition to the chassis improvements, the body style has also received a 3 -D improvement with molded resin grille and lights that replace the decals and a roof protector has been added to protect the body from rollovers With high performance and appearance, you can experience the euphoria of running wild at high speed with MAD VAN VE.

(Features)

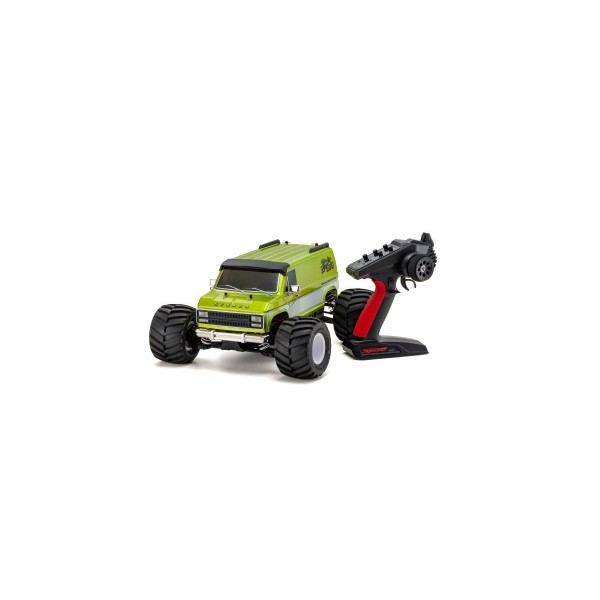

● The pre-assembled chassis is sold as a Readyset which includes the installed R / C system and the pistol grip transmitter. The battery for the chassis and the charger are sold separately
● Includes Syncro KT-231P + pistol grip transmitter with various custom setting adjustments
● The sturdy construction of the full-time 4WD FZ02L-BT chassis is tough enough to withstand the harsh punishment of bumps on rough roads
● A belt-type battery holder allows compatibility with batteries of various shapes and sizes
● Comprehensive ball bearing specifications improve transmission efficiency and durability
● Compatible with a wide range of optional parts for the existing FAZER Mk2 for further tuning and performance improvement
● Includes improved American-style bodywork with an even greater level of detail in scale.
● Detailed body with plastic parts.
● Equipped with front and rear light pods compatible with LED light unit n. Optional 97054-4CR sold separately. By installing the LED light unit, it improves the scale realism for the bodywork.

■ Length 460 mm
■ Width 323 mm
■ Height 197 mm
■ Wheelbase 274 mm
■ Tread (F / R) F ： 250 mm ／ R ： 250 mm
■ Tires (F / R) F ： φ110 × 70 mm ／ R ： φ110 × 70 mm
■ Transmission ratio 11.803: 1
■ Weight 2180g (approx.)
■ Syncro KT-231P + R / C system
■ TORX10E motor (3652 kv4000)

<Kit Contents>
● Full chassis with R / C radio installed
● Factory assembled body complete with color scheme
● Syncro KT-231P + transmitter
● 60A waterproof electronic speed controller installed
● Key
● Personalization decals

<Required for operation>
● 4 AA batteries for transmitter
● Battery for frame
● Battery charger for frame battery
● Tools

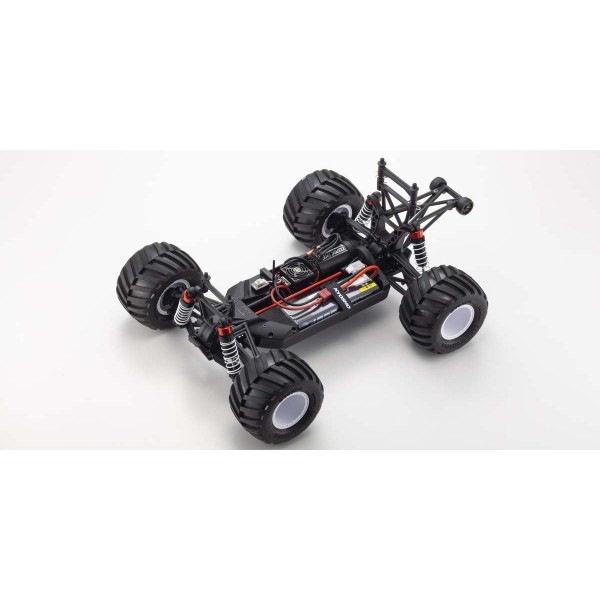

FAZER Mk2 sets the standard for Kyosho 1/10 EP car chassis. A bathtub type frame realizes an optimal combination of stiffness with moderate flex and incorporates the proven reliability of the 4WD shaft type along with sealed front and rear gears to handle the punishment of off-road driving.

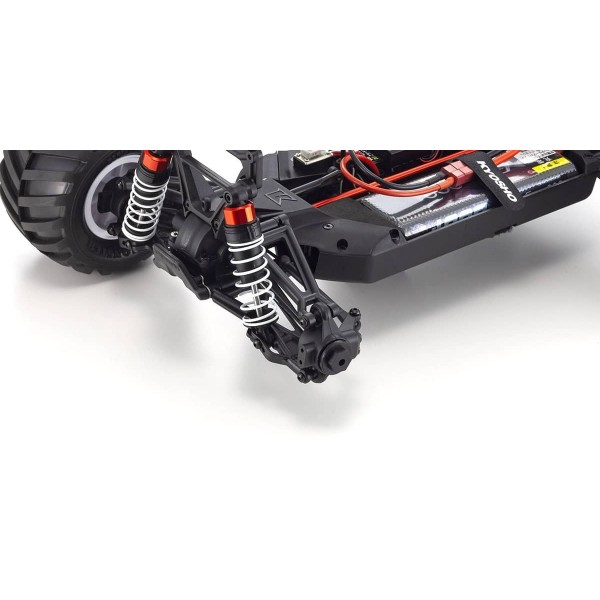

Long type upper and lower suspension arms equipped with oil filled shock absorbers for the front and rear provide sufficient travel and safe damping force. Ball-connected left-right interchangeable knuckles ensure smooth operation and impact resistance.

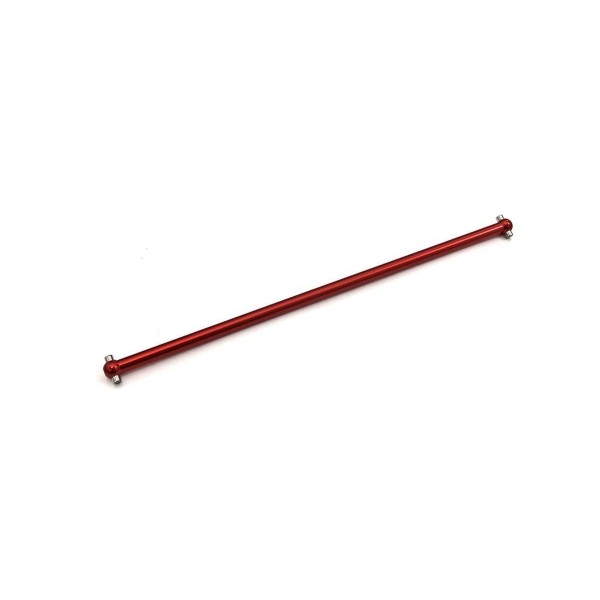

The optional aluminum HD center shaft (# FAW210) is the standard equipment to support the power of the brushless motor and achieve smooth rotation.

The TORX 10E brushless motor generates enough power for gentle wheelies with large body and tires. The sealed crankcase prevents dirt and dust from entering the engine and gearbox.

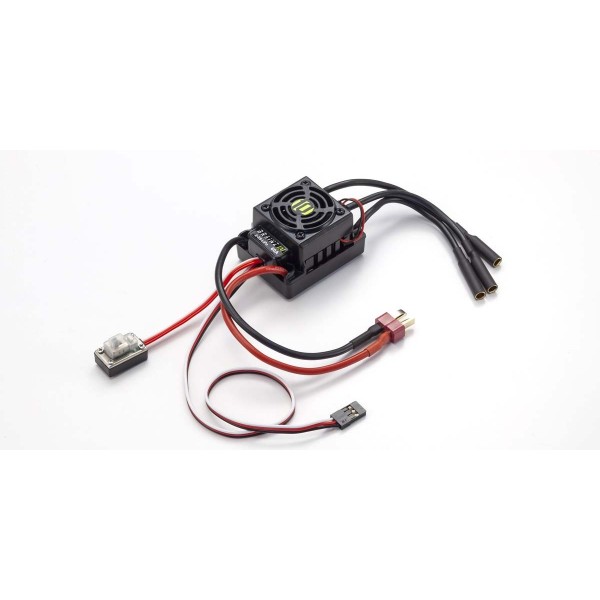

Includes BRAINZ 10 speed controller with cooling fan, for brushless motors. Able to be programmed for specific purposes. The waterproofing allows you to drive even in the rain or through small puddles.

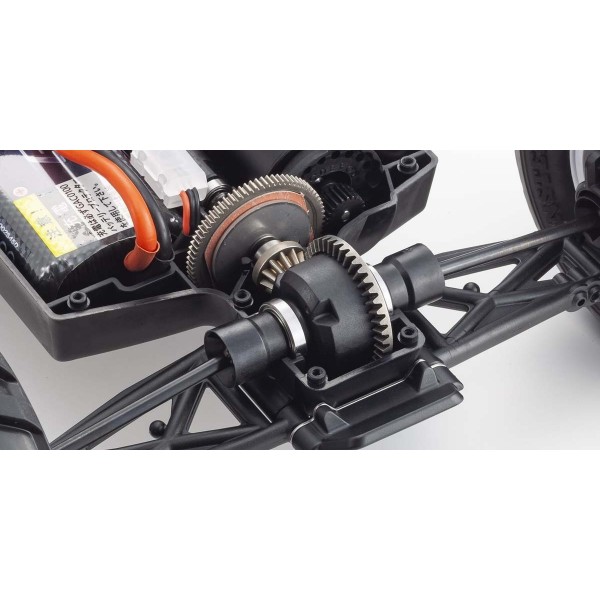

The gearbox incorporates high strength sintered metal gears. In addition to the new material, the final gear ratio has been changed to a low gear to take full advantage of the power of the brushless motor. The machined steel pinion has also been reinforced.

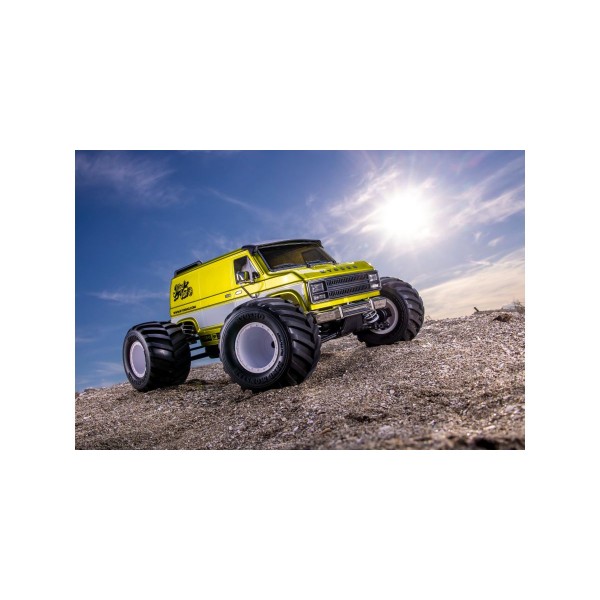

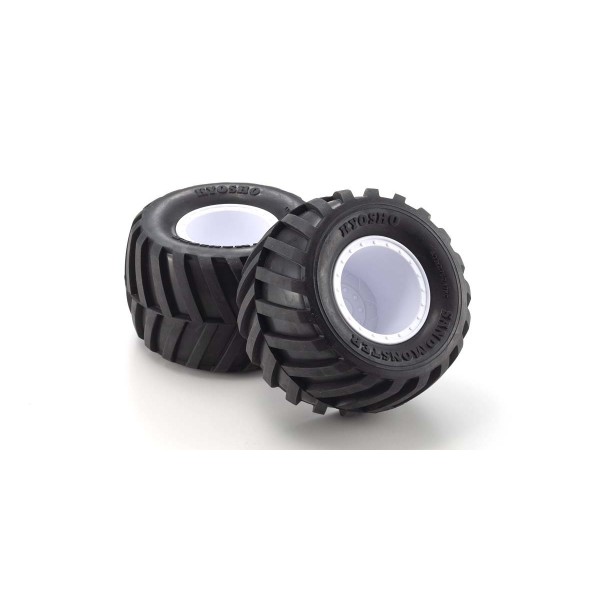

Large diameter tires produce high grip on any road surface. The kit comes with pre-glued wheels so you can hit the ground while running. To match the new chassis, the wheels have been changed to white and fit perfectly into the bodywork.

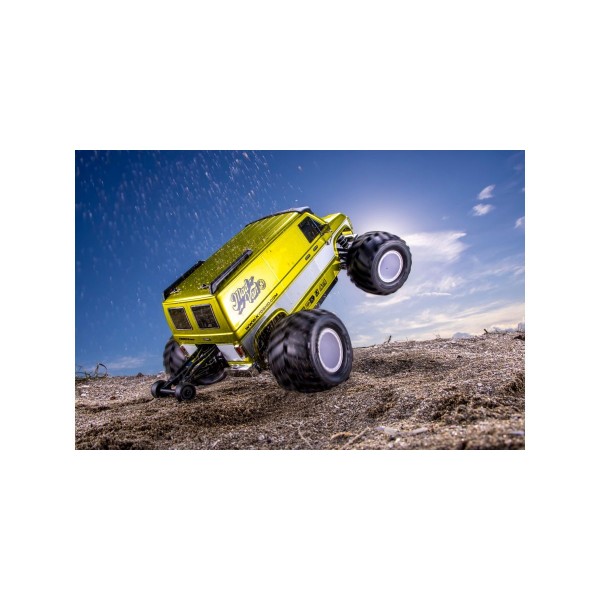

The VE model features a wheelie bar to prevent tipping during wheelies. With the power of the brushless motor, dynamic acceleration lifts the front wheels and the frame rolls over the rear wheels (wheelie).

The polycarbonate body is painted bright red and white. Separate molded parts such as the bumper, grille and side mirrors enhance the feel of scale of this 1970s and 1980s American van. A roof protector is also installed and an additional decal sheet included to customize the bodywork.
