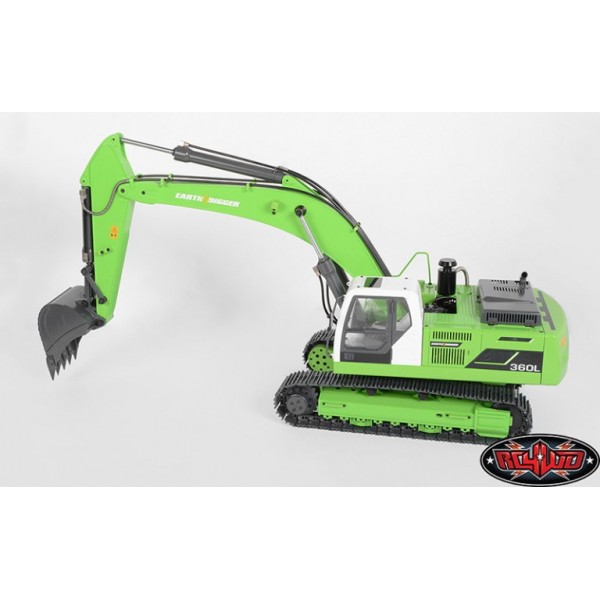

RC4WD Earth Digger 360L Hydraulic Excavator (RTR) Green Version!

http://www.rc4wd.co.uk/product/VV-JD00016%20Earth%20Digger.jpg

The 1/14 Scale Earth Digger 360L Hydraulic Excavator 360L is even more powerful than its predecessor! Built for those that want reliability, unmatched looks and brute strength for getting that project done. Created with CNC machined metal parts, it's fully assembled and ready to dig! Be ready for the massive power delivered through the high output brushless system. Let's get digging!

rc4wd earth digger 360l escavatore rc 1

Important Note: Due to the size and weight of this product, this product has to be shipped in its own container. It will be shipped only by Expedited Shipping Service (5-8 days), this requires an extra shipping surcharge of $450 to ship anywhere in the US and all international countries due to the size and weight.

Payment Information: Due to the value of this product, all orders must paid with bank transfer. When you check out, do not choose credit card or PayPal as we will refund you. Make sure to select Bank Wire Transfer as your payment method instead. Feel free to email us at support@rc4wd.com for any questions.

Notice: Please be advised that this product does not currently come with instructions. This product is not for first time RC hobbyists and should not be used by persons under the age of 16. This product is considered fairly difficult. Furthermore, we recommend that only experienced RC hobbyists purchase this product.

Specifications:

Alloy Zinc and Alloy Aluminum Casting (except Track and Hydraulic Pump)
Custom 8 Channel 2.4Ghz Radio
Preinstalled High Intensity Light Sockets (Wire and bulbs are not included)
Optimized Steel Hydraulic System
Scale Driving Figure Ready (Not included)
Steel Molded Tracks (50mm Width, 45 Grade Carbon Steel)
Efficient Undercarriage
Reliable Hydraulic Valve and Adjustable Pump
Heavy Duty Hoses (OD 4.5mm Nylon, ID 2.5mm)
Undercarriage May Rotate 360 Degrees (Endless)
Powder-coated in Yellow and Grey
Massive Brushless System (Including driving and turning)
Hydraulic System 60A Brushless ESC, Driving and Turning System 30A Brushless ESC
270Kv Brushless Monster Torque Motor, Shaft dia. 3.0mm
XT60 Power Plug Female
Run Time: 20 Minutes based on 4200mAh, 11.1V Battery
Steel Machined Oil Pump (60mm x 60mm x 93mm)
Digging Force: 15kg / 33lbs
Max Lifting Force: 70Kg / 154lbs
Driving Speed: 360 Meter per hour
Scale: 1:14
Length: 823mm / 32.4in
Width: 234mm / 9.21in
Height: 260mm / 10.2in
30 Days Limited Warranty
Operating Oil Pressure: 2.5Mpa
Inside Cab Length: 4.72in / 120mm
Inside Cab Width: 2.55in / 65mm
Inside Cab Height: 4.21in / 107mm
Deadweight: 26Kg / 57lbs

rc4wd earth digger 360l escavatore idraulico rc 2

rc4wd earth digger 360l escavatore idraulico rc 3

rc4wd earth digger 360l escavatore idraulico rc 4

rc4wd earth digger 360l escavatore radiocomandato 9

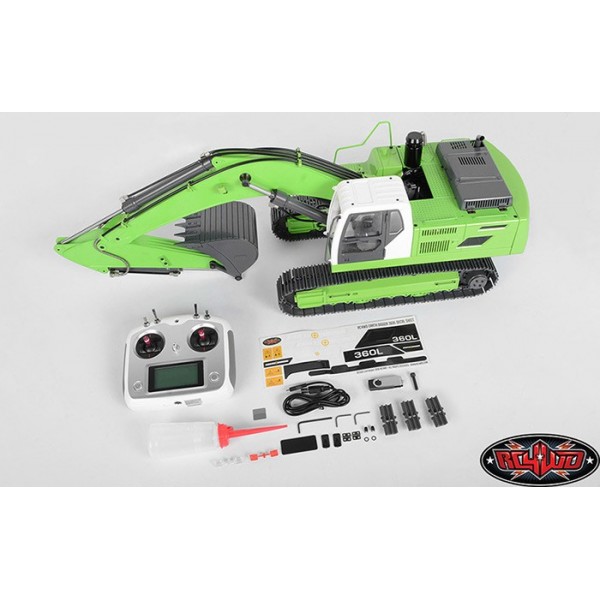

What's Included:

1x 1/14 Scale Earth Digger 360L Hydraulic Excavator (RTR)

Replacement Parts(ask to Us):

Earth Digger 4200XL High Voltage Brushless ESC (VVV-S0009)
Earth Digger 4200XL Excavator Brushless Motor (VVV-S0010)
Hydraulic Connector (Angled 90 Deg) (VVV-S0015)
Hydraulic Connector (Straight Version) (VVV-S0016)
4mm Heavy Duty Hydraulic Tubing (VVV-S0103)
Earth Digger 4200XL Excavator Aluminum Track (V2) (VVV-S0123)
Replacement Radio for Earth Digger (VVV-S0024)

Additional Parts Needed:

Lipo Charger (Z-E0047)
3S 6500mAh 11.1v 20c Lipo Battery (Max size: 73mm x 80mm x 132mm) (Z-E0038)
ESC Support XT60 Connector

Notes:

Must turn on the transmitter before starting the ESC.
The Instruction Manual will be available shortly, however no estimated time is available.
This unit doesn't have a low voltage cut off, so you will need the LiPo Battery Low Voltage Alarm (VVV-E0001) to protect your battery.
While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.
Fits Mobile DTE22 V22 Hydraulic Oil 16oz (VVV-S0111)

Warranty information

This product is made for heavy duty usage. Since there is no plastic parts, its designed to last. But hydraulic pump, hoses and electronics system can break over time. Do not let the system overheat during usage. We have all spare parts available for sale. Pump, hoses and electronics system is not covered under warranty, but we do guarantee fully functional at arrival. Each unit is full tested twice before we ship.
Each unit is professionally assembled, adjusted and tested. Do not adjust the oil pressure switch. Oil pressure will drop as you operate over time.
This Excavator is shipped without oil. You will have to fill the tank yourself (half tank), by using a funnel or tube (not included).
