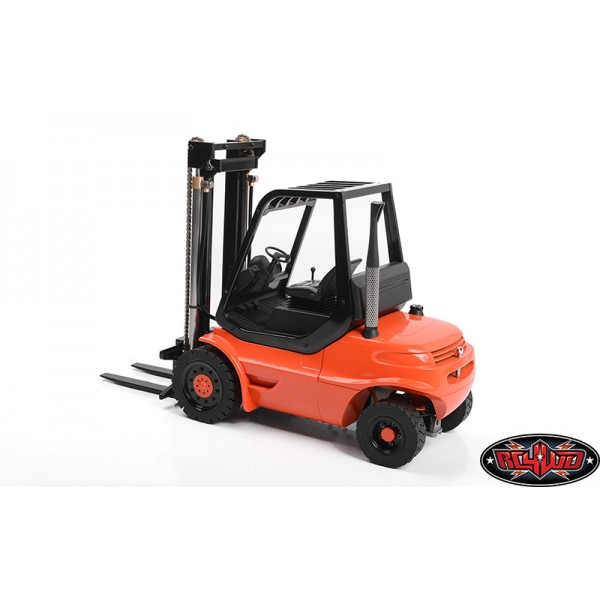

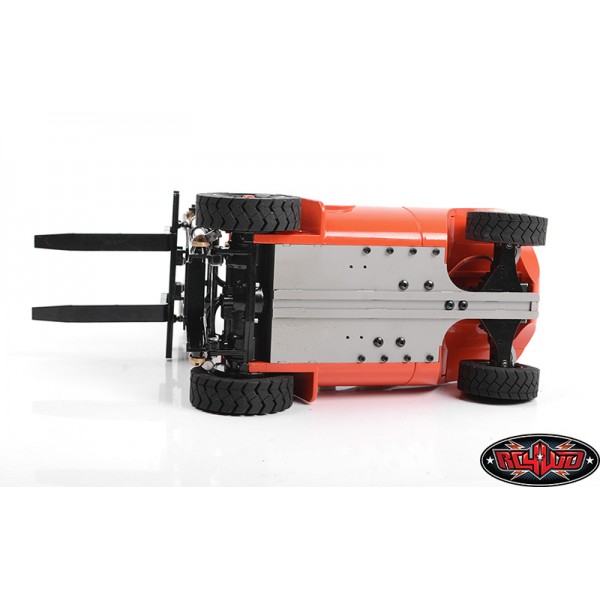

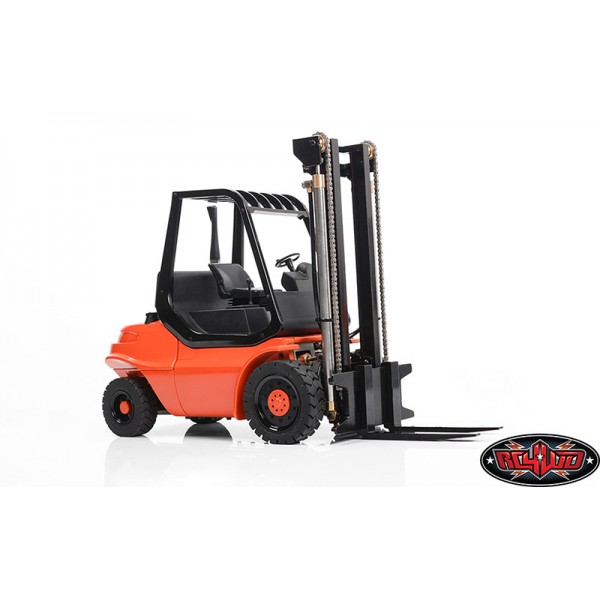

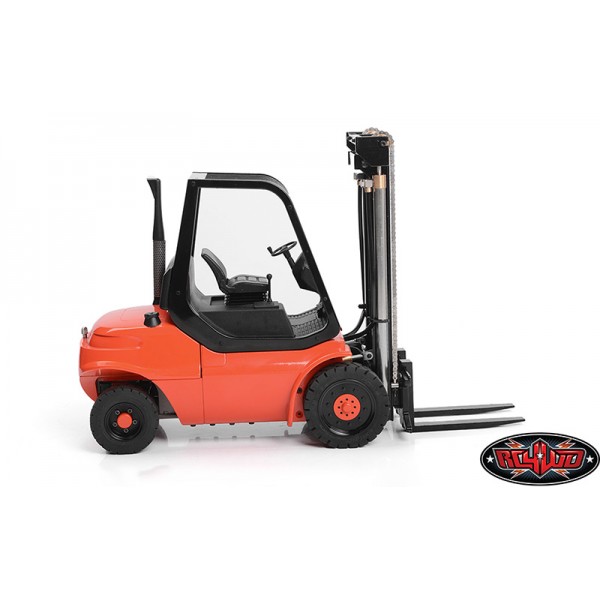

RC4WD Norsu Hydraulic RC Forklift RTR 1 :14 Red

More details

You can purchase this product in installments with Consel. Click here for more information.

More info
Comments

Important Note: Due to the size and weight of this product, this product has to be shipped in its own container. It will be shipped only by Expedited Shipping Service (5-8 days), this requires an extra shipping surcharge of $80 to ship anywhere in the US and all international countries due to the size and weight.

Specifications:

Over 90% of the construction is heavy duty metal
Fully Painted
Scale Wheel/Tire
Length: 12.2in / 311mm
Width: 4.52in / 115mm
Height: 8.26in / 210mm
Weight: 3.6kg / 7.9lbs
Maximum Load: 1.5kg / 3.3lbs
Basic 6 Channel 2.4Ghz Radio
Manufactured by JDCustoms
30 Days Limited Warranty

Shown with 1/14 Forklift Trailer with Steering Axle (VV-JD00037) for example (Not included)

What's Included:

1x 1/14 Norsu Hydraulic RC Forklift RTR (Red)

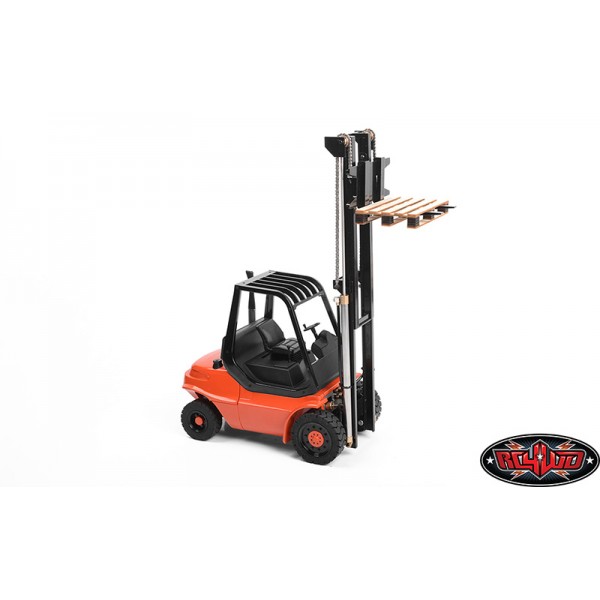

2x Wooden Pallets
1x Stainless Steel Bin

Required Parts:

7.4V 2S LiPo Battery Pack with XT60 Plug (Battery Size: 3.26 x 1.57 x 0.62in / 83 x 40 x 16mm )
4x AA Batteries for Radio (Z-S1718)
Chevron AW ISo 32 Hydraulic Oil 14oz (Z-X0042)

Instruction Manual:

Click here to download.

Notes:

Always turn on the transmitter before switching on the ESC.
ESC Supports XT60 Connector.
While some components may come assembled, it may be in your best interests to check the products to ensure all hardwares are tight. In some cases you may want to apply threadlock to some of the hardwares that were already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Use threadlock sparingly.
Do not over tighten screws, otherwise, you may strip the thread.
Do not use more than 2S battery. (7.4 volts)
This product is for experienced R/C users. Not recommended for children under 14.
For added fun, the 1/14 Forklift Trailer with Steering Axle (VV-JD00037) can be attached to the back of the forklift for heavy lifting and maneuvering with a variety of other construction vehicles.
