Rc4wd Gelande II RTR Metal Scaler 1/ 10 Land Cruiser Body

More details

You can purchase this product in installments with Consel. Click here for more information.

More info
Comments

http://www.rc4wd.co.uk/product/Z-RTR0029-20.jpg

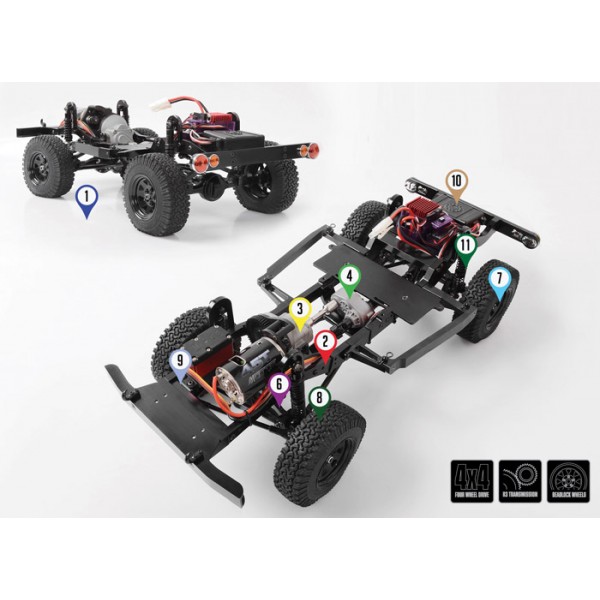

Experience the versatility and advanced design of the G2 for yourself. Packed full of capability, the G2 is ready for any challenging condition. Put your off-road driving to test and see why the G2 can easily maneuver extreme descents and climb with ease.

The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the all new Yota II axles.

The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.

The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!

Are you ready for your off-road experience?

Custom Designed for True to Scale Looks
Realistic Aluminum Ladder Frame Chassis
R3 Single Speed Transmission
Center Mounted Realistic 4X4 Transfer Case
Cast Metal Axles With Locked Differentials
3 Link Front and 4 Link Rear Suspension
1.9" Stamped Steel Beadlocks w/Lug Nuts
Super Grip Dirt Grabber Tires
Chassis Mounted Steering Servo
Plastic Fuel Cell Receiver Box
Dual Spring Oil Filled Shock Absorbers

Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide 32P Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio: 1.78:1
Gears - Wide Steel 32P, Delrin Spur, Slipper Clutch

Cast Yota II Axles
Ratio: 15/40 = 2.67:1
Width at Hex 180.5mm

G2 Suspension
3 Link Suspension with Panhard Bar
Double Triangulated 4 Link Rear Suspension

Shock Absorbers
Dual Spring 80mm Shocks - Can be Oil Filled

Wheels
Type: 1.9'' 5 Lug Wagon Wheels
Hub: Pin Type Width: 25mm
Back Spacing: 11mm

Bumpers
Machined Billet Aluminum, Lightweight

G2 Truck Dimensions
Wheels Base: 10.83in / 275mm
Length: 18.35in / 466mm
Width: 8.5in / 215mm
Height: 10.6in / 270mm
Ground Clearance: 2.3in / 420mm
Final Drive Ratio: 31.9:1
Weight: 8.02 Lbs / 3.64Kg

DRIVETRAIN

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The G2 includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and the same heavy duty 32P Widened Gears for durability.

Drawing on the success of the RC4WD MOA Gear Sets, the G2 Drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The Driveshafts for the G2 are a design featuring bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.

http://www.rc4wd.co.uk/product/Z-RTR0029-21.jpg

SUSPENSION

The G2 Chassis features a molded fuel cell that doubles as an electronics storage box and an aluminum, frame mounted under cab electronics tray for multiple mounting options for your electronics. Also includes a sturdy battery tray with strap mounts.

The G2 includes a set of RC4WD Dual Spring Shocks. These ultimate scale shocks offer realistic looks and the ultimate in performance. They’re machined from billet aluminum with dual springs and are completely rebuildable.

The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design with scale shock hoops, chassis servo mounts and hard body mounting points for maximum strength

The G2 includes a set of RC4WD Black Stamped Steel 1.9’’ Internal Beadlock Wheels. These wheels provide a super tough black finish, aluminum internal locking ring and popular 5 Lug design with separate hub.

Every G2 needs a tough set of rock grabbing tires and the included Dirt Grabbers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

http://www.rc4wd.co.uk/product/Z-RTR0029-9.jpg

DETAILS

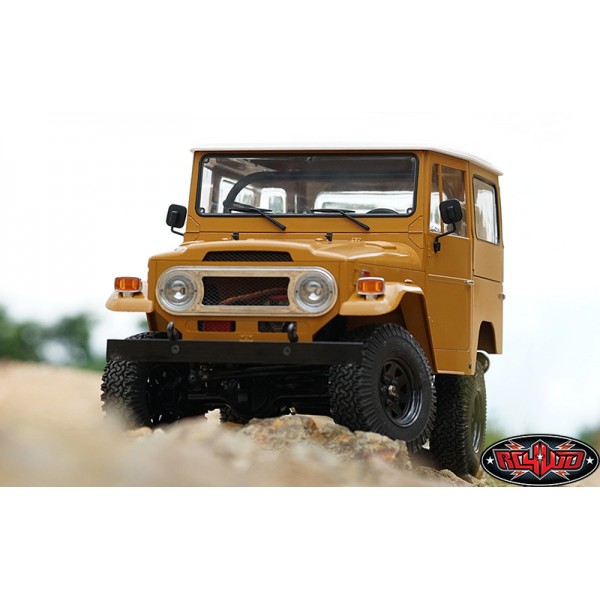

The G2 features the Cruiser Scale Body Set. The Cruiser Body has an awesome assortment of scale details including mirrors, door handles, vents and a grill to match the 1:1 real vehicle.

The Cruiser Body Set feature the unmistakable lines of a classic. It is an exact replica of the full scale vehicle, right down to the removable top! No other scale body comes this close to realism.

The Cruiser Body Set comes in durable, molded hard plastic that is professionally painted in Mustard Yellow. All the trim parts are separate pieces to get a great look with minimal fuss.

Comprised of over 70 parts, the Cruiser Body Set features a full detailed interior, seats, gear shifter, handbrake and a detailed dashboard. It's all here to bring your build to next level.

The crisp lines and subtle details are captured.

Metal grill insert is included along with detailed lenses for all signal lights. All lamps can be illuminated with an optional RC4WD LED light kit.

ELECTRONICS

The G2 includes a high quality XR3 3 Channel 2.4Ghz Radio System. Use the third channel to control the winch and add even more fun to your scale adventure!

The G2 is powered by the nearly indestructible RC4WD 45 Turn Crawler Motor. With its sealed endbell for increased durability and long lasting performance, you’re sure to get where you’re going!

The G2 features the popular RC4WD Outcry Brushed Speed Controller with built-in drag brake and a separate 6V 5amp Turbo BEC for reliable, constant power on demand. Anytime.

A great truck needs a great servo to get you out of those tough spots and the G2 features the Twister. A high torque metal gear digital servo to handle all your steering duties.

Featuring a massive 153oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance you need when the turning gets tough.

http://www.rc4wd.co.uk/product/Z-RTR0029-22.jpg

What's Included:

1x RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set

Required:

Battery (Consult your "ESC" manual) 6 cell NIMH, or Lipo Battery
Charger (Consult your battery guide) Chargers

Replacements Parts:

Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
Gelande 2 Rear 4 Link Mount (Z-S0795)
Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
65.3mm (2.57") Aluminum Link for Gelande 2 (Z-S0817)
70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
Drag Link for Gelande 2 (Z-S0810)
73mm (2.87") Aluminum Link for Gelande 2 (Z-S0805)
M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
M3 Short Bent Plastic Rod End (20x) (Z-S0402)
M3 Mini Plastic Rod End (20x) (Z-S0398)
M3 Offset Short Plastic Rod End (20x) (Z-S0401)
R3 Single Speed Transmission Mounts (Z-S0802)
R3 Scale Single Speed Transmission (Z-U0028)
14t 32p Hardened Steel Pinion Gear (Z-S0430)
Gelande 2 Chassis Set (Z-C0040)
Battery Plate for Gelande 2 (Z-S0792)
Servo Mounts for Gelande 2 Chassis (Z-S0791)
Silver Steel Body Clips 1.21mm (Z-B0016)
Fuel Cell Radio Box (Z-S0592)
Hammer Transfer Case (1.47/1) (Z-U0024)
Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
Metal Drive Coupling for Gelande 2 (Z-S0803)
Scale Nylon Short Punisher Shaft (89mm-120mm) 5mm Hole (Z-S0583)
Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black) (Z-W0129)
Dirt Grabber 1.9" All Terrain Tires (Z-T0005)
Heavy Duty Nylon Strap Lock (5) (Z-S0552)
1mm Black Spacer with M3 Hole (10) (Z-S0809)
2mm Black Spacer with M3 Hole (10) (Z-S0600)
3mm Black Spacer with M3 Hole (10) (Z-S0806)
5mm Black Spacer with M3 Hole (10) (Z-S0821)
RC4WD Cruiser Main Interior (Z-B0063)
RC4WD Cruiser Dashboard Parts Tree (Z-B0067)
RC4WD Cruiser Seat Parts Tree (Z-B0069)
RC4WD Cruiser Accessories Parts Tree (Z-B0071)
RC4WD Cruiser Accessories 2 Parts Tree (Z-B0073)
RC4WD Cruiser Chrome Accessories Parts Tree (Z-B0075)
RC4WD Cruiser Clear Parts Tree (Z-B0077)
RC4WD Cruiser Main Window (Z-B0079)
RC4WD Cruiser Front Grill Insert (Z-B0081)
RC4WD Cruiser Front LED Holder (Z-B0083)
RC4WD Complete Cruiser Body Set For Gelande II (Z-B0109)
RC4WD Cruiser Main Body (Z-B0061)
RC4WD Cruiser Roof (Z-B0065)
Cruiser Body Conversion Kit for D90 (Z-S1706)
RC4WD 12mm Axle Wheel Hexes (2 way) (Z-S0238)
540 Crawler Brushed Motor 45T (Z-E0004)
Outcry Crawler Speed Controller ESC with TurboBEC (Z-E0007)
Twister High Torque Metal Gear Digital Servo (Z-E0035)
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)

Optional Parts:

Ultra Scale Hardened Steel Driveshaft "Ver 2" (80mm - 110mm / 3.15" - 4.33") (VVV-S0120)
Rebuildable Super Punisher Shaft (100mm - 118mm / 3.94" - 4.65") 5mm Hole (Z-S1261)
RC4WD Fender Flare for Rear Cruiser Body (Z-S1539)
RC4WD Snorkel for Cruiser Body (Z-S1554)
Tube Roll Bar for RC4WD Gelande II Cruiser (VVV-C0216)
Tube Roll Bar with Fabric Shade for RC4WD Gelande II Cruiser (VVV-C0221)

Upgraded Front / Rear Shock:

RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
RC4WD 80mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0036)
King Off-Road Scale Dual Spring Shocks (80mm) (Z-D0035)
King Off-Road Dual Spring Shocks (80mm Medium OD) (Z-D0055)
King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)

Hopups:

Driver (Z-S0190)
Winch (Winch Options)
XVD For Yota II Front Axle (Z-S0823)
Scale Aisin/Yota Style Hubs (Z-S0196)
Trition Transfer Case (1:1 ratio) (Z-U0029)
Survivor Rear Bumper for Gelande (Z-S0698)
Yota II Scale Diff Cover (Z-S0907)
Shock Hoops for Trail Finder 2 Chassis (Z-S0597)
Gelande II Steering Guard (Z-S0824)
Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole (Z-S0826)
Ultra Scale Hardened Steel Driveshaft (46mm - 50mm / 1.81" - 1.96") 5mm (VVV-S0006)
K44 Scale Front Axle (Z-A0048)
K44 Scale Rear Axle (Z-A0049)
Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
Heavy Duty Metal Servo Arm 24t Hitec (Z-S0820)
Mud Flap For Gelande II (Z-S0890)
Challenger 1.9 Scale Tires (Z-T0108)
1.9" 5 Lug Steel Wheel Hex Hub (Z-S0734)
1.9" 5 Lug Steel Wheel Hex Hub with Brake Rotor (Z-S0532)
Land Rover Disco Freestyle 1.9" Wheels (Gun Metal) (Z-W0037)
RC4WD Gelande Spare Tire Cover (Z-S0931)
Predator Track Front Axle Fitting Kit for Yota II (Z-S0918)
Tow Bar Mount for TF2 / G2 (Z-S1125)
RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)
RC4WD 1/10 Warn 9.5cti Winch (Z-S1079)
R3 Scale Single Speed Transmission (Z-U0028)
R3 Single Speed Transmission Mounts (Z-S0802)
Mud Flap for Land Rover Defender D90 (VVV-C0072)
RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (75mm/3") (Z-E0055)
RC4WD Aero Roof Rack with Light Mounting (Type 2) (Z-J0003)
RC4WD Adjustable Jack Stand Truck Display (Z-X0013)
Gelande 2 Mounting kit for Jack Stand (Z-S1324)
RC4WD 1/10 Super Charged Emblem Set (Z-S1138)
RC4WD 1/10 Turbo Diesel Emblem Set (Z-S1132)
LED Basic Lighting System For Cruiser Body Set (Z-E0071)
Rear Fender Flares for RC4WD Cruiser Body (VVV-C0136)
Metal Side Diamond (B) Plates for RC4WD Cruiser Body (Silver) (VVV-C0135)
Metal Side Diamond (A) Plates for RC4WD Cruiser Body (Silver) (VVV-C0134)
Side Metal Emblems for RC4WD Cruiser Body (Side B) (VVV-C0133)
Rear Metal Emblems for RC4WD Cruiser Body (VVV-C0132)
Snorkel for RC4WD Cruiser Body (VVV-C0131)
Metal Side Diamond (B) Plates for RC4WD Cruiser Body (Black) (VVV-C0130)
Side Metal Emblems for RC4WD Cruiser Body (Side A) (VVV-C0127)
RC4WD Tough Armor Metal Tube Cage for G2 Cruiser (Z-X0021)
Tough Armor Tube Roll Bar for G2 Cruiser (Z-X0023)
Tough Armor Front Bumper for G2 Cruiser (Z-S1606)
Hitch Mount with Bumper for RC4WD G2 Cruiser (Z-S1626)
RC4WD ARB 1/10 Roof Rack (Z-X0024)
Metal Tire Holder RC4WD G2 Cruiser/FJ40 (VVV-C0173)
Rear Bumper Assembly w/Pad for RC4WD G2 Cruiser/FJ40 (VVV-C0171)
Rear Bumper Step for RC4WD G2 Cruiser/FJ40 (VVV-C0178)
Rear Bumper for RC4WD G2 Cruiser/FJ40 (VVV-C0170)
Rear Bumper Assembly w/Pad and Step for RC4WD G2 Cruiser/FJ40 (VVV-C0172)
Rear Bumper Pads for RC4WD G2 Cruiser/FJ40 (VVV-C0167)
1.9 Landies Internal Beadlock Wheels (Z-W0075)
RC4WD Tough Armor Side Slider for G2 Cruiser (Z-S1543)
Scale Steel Punisher Shaft (77mm - 100mm / 3.03" - 3.94") (Z-S1054)
RC4WD Tough Armor Swing Away Tire Carrier w/Fuel holder for the G2 Cruiser (Z-X0025)
RC4WD ARB Bull Bar Front Bumper for G2 Cruiser (Z-X0028)
RC4WD Tough Armor Tube Sliders for G2 Cruiser (Z-S1625)
RC4WD Tough Armor Front Tube Bumper for G2 Cruiser (Z-X0026)
Cruiser Body Emblem Set (Z-S1714)
RC4WD Teraflex Diff Cover for Yota II Axle (Z-S1681)
M3 Offset Short Aluminum Rod Ends (Silver) (10) (Z-S1629)
M3 Offset Short Aluminum Rod Ends (Red) (10) (Z-S1631)
M3 Offset Short Aluminum Rod Ends (Blue) (10) (Z-S1633)
M3 Offset Short Aluminum Rod Ends (Black) (10) (Z-S1635)
Front Winch Bumper for G2 Cruiser (VVV-C0251)
RC4WD Tough Armor Side Sliders for G2 Cruiser (Z-S1726)

Metal Rod End Upgrades:

M3 Bent Short Aluminum Rod Ends (Silver) (10) (Z-S1653)
M3 Bent Short Aluminum Rod Ends (Red) (10) (Z-S1655)
M3 Bent Short Aluminum Rod Ends (Blue) (10) (Z-S1657)
M3 Bent Short Aluminum Rod Ends (Black) (10) (Z-S1659)
M3 Medium Straight Aluminum Rod Ends (Silver) (10) (Z-S1638)
M3 Medium Straight Aluminum Rod Ends (Red) (10) (Z-S1640)
M3 Medium Straight Aluminum Rod Ends (Blue) (10) (Z-S1642)
M3 Medium Straight Aluminum Rod Ends (Black) (10) (Z-S1644)

Items of Interest (not required for completion):

Grease and Lubrication (Z-S1199) (Z-S1197)
Double Sided Tape for ESC (Z-S0935) (Z-S0934)

Instruction Manual:

Click here to download.

Press Information:

Click here to download.

Additional Notes for Assembly:

Note for Axle Assembly (Download Here)
Note for Drive Shaft Pin Installation (Download Here)

Notes:

While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.

No customer comments for the moment.
