Experience the versatility and advanced design of the Gelande 2 for yourself. Packed full of capability, the Gelande 2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 is unmatched in its class!
G2 is built with quality materials and craftsmanship. It can maneuver extreme descents and climbs with ease. The new R3 single speed transmission provides power down to the transfer case and out to the all new Yota II axles.
The core of the G2 is built for the true off-road enthusiast. From customized options to tried and true performance. From emergency and expedition vehicles, to daily drivers and down and dirty off-road rigs. It can pull off many looks and with the endless add-ons offered, you will be able customize your G2 and have it fit any identity.

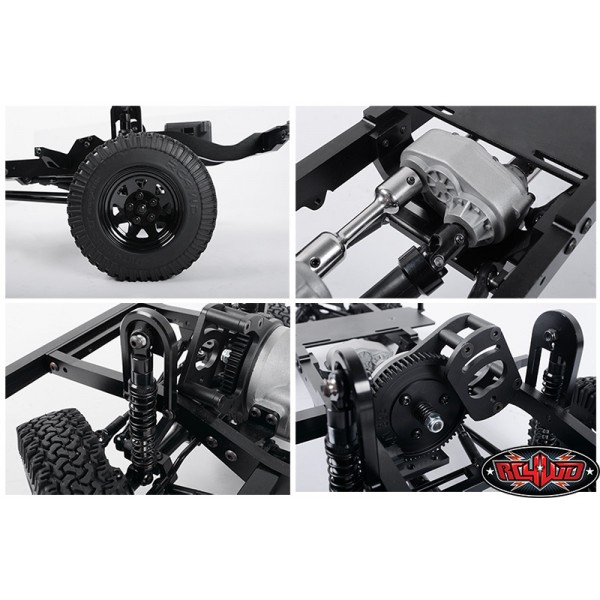

The G2 comes with 4 link rear and 3 link front with panhard bar as standard. The servo is mounted on the chassis out of view for a more scale appearance.
All New Hammer Transfer Case Ratio - 1.47:1 Gears - Wide 32P hardened steel gears, 8 bearings, cast casing
All New R3 Single Speed Transmission Ratios: Pinion/spur 14/64 = 4.57:1 Internal 1.78:1 Gears - Wide steel 32P, Delrin spur, slipper clutch
All New Cast Scale Axles Ratio: 15/40 = 2.67:1 Width at hex 180.5mm G2 Suspension Double triangulated 4 Link rear suspension. 3 Link front suspension with panhard bar Shock Absorbers Dual Spring 80mm Shocks - Can be oil filled
Full Ball Bearing Set Included
Wheels Type: 1.9 5 lug Wagon Wheels Hub: Pin type Width: 25mm Back spacing: 11mm
The R3 Single Speed Transmission comes with a cast aluminum case and new wider gears to allow for more abuse along with a Delrin spur with slipper clutch.
The D110 includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the same new 32P widened gears for durability.
Drawing on the success of the RC4WD MOA gear sets, the D110 drivetrain has the most durable gears RC4WD has to offer so the D110 will stay on the trail, day after day.
The most scale accurate axles on the market, the RC4WD Cast Metal Axles feature innovative round knuckles, new lower mounting points and compact offset pumpkins.
The Driveshafts for the D110 are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.
Suspensions
The D110 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted electronics tray for multiple electronics mounting options.
The D110 includes a set of RC4WD Dual Spring Shocks. Designed for ultimate scale looks and ultimate performance. These dual spring shocks are machined from billet aluminum.

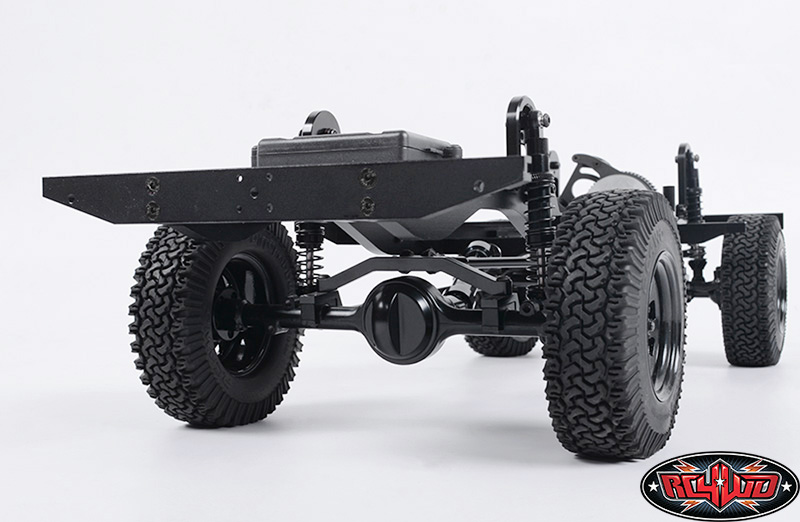

The D110 Chassis is a machined billet aluminum ladder frame design with 4 link and 3 link with panhard bar, scale shock hoops, chassis servo mounts and hard body mounts.
The D110 includes a set of RC4WD Black Stamped Steel 1.9 internal beadlock wheels. Super tough and durable black finish, aluminum internal ring and popular 6 lug design.
Every D110 needs a tough set or rock grabbing tires and the included RC4WD Dirt Grabbers deliver the traction as well as perfect scale looks in just the right size.
Details

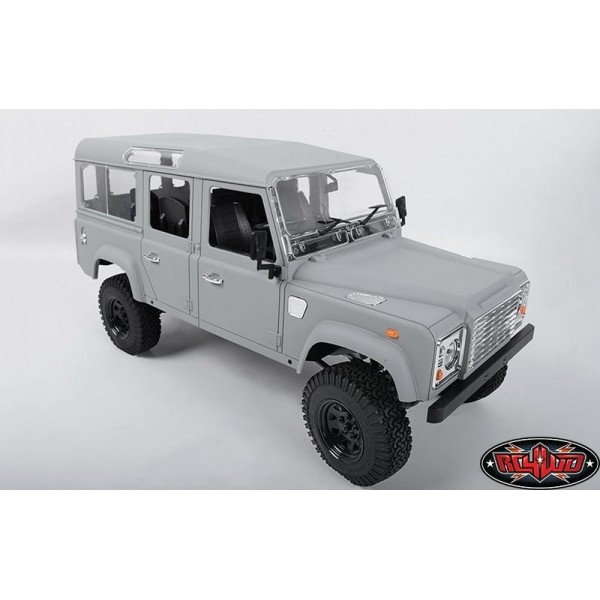

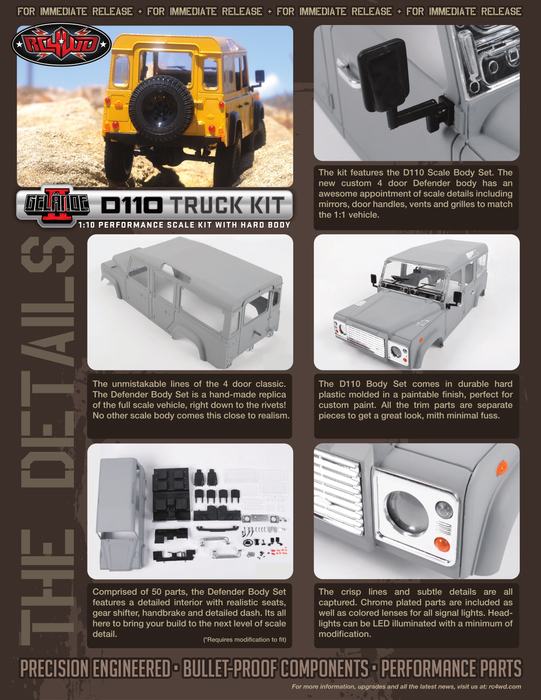

The kit features the D110 Scale Body Set. The new custom 4 door Defender body has an awesome appointment of scale details including mirrors, door handles, vents and grilles to match the 1:1 vehicle.
The unmistakable lines of the 4 door classic. The Defender Body Set is a hand-made replica of the full scale vehicle, right down to the rivets! No other scale body comes this close to realism.
The D110 Body Set comes in durable hard plastic molded in a paintable finish, perfect for custom paint. All the trim parts are separate pieces to get a great look, mith minimal fuss.

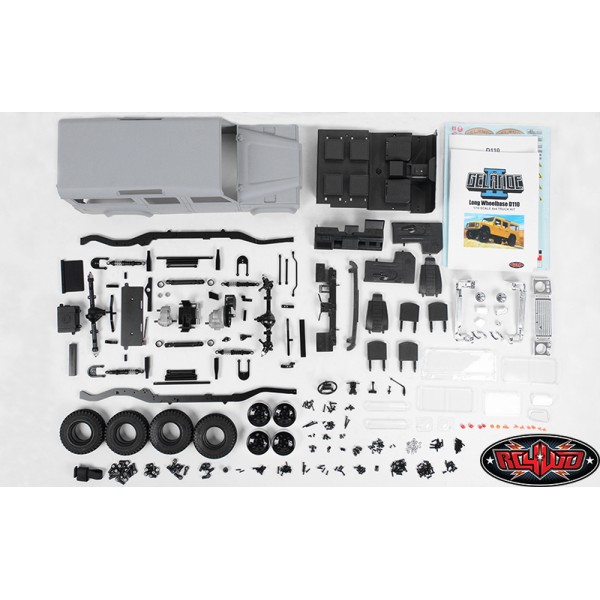

(*Requires modification to fit)Comprised of 50 parts, the Defender Body Set features a detailed interior with realistic seats, gear shifter, handbrake and detailed dash. Its all here to bring your build to the next level of scale detail.
The crisp lines and subtle details are all captured. Chrome plated parts are included as well as colored lenses for all signal lights. Headlights can be LED illuminated with a minimum of modification.
Industrial Grade Aluminum Chassis with Authentic Ladder Type Design
4-link Suspension Design Front and Rear
Shown installed with Adventure Land Rover Defender D110 Roof Rack (Z-C0032) for example (Not Included)
What Included:
1x Gelande II D110 Truck Kit With Hard Body
Notes:
While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.
Spare Wheel and Tire not included
Fits RC4WD Spare Tire Case For Defender Body (Z-X0012)
RC4WD Spare Tires Case for Defender Body (Stamped w/RC4WD) (Z-X0010)
Fits ARB Land Rover Defender 90 Winch Bar Front Bumper for Gelande 2 (Z-S0853) and RC4WD 1/10 Warn 9.5cti Winch (Z-S1079), but should work with RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)
This is a hand modified body from a D90 2 door body. We have adapted two bodies to make the stretched D110 4 door version. This is not a one piece unit, it's made up of many parts mostly hand cut. So there will be some imperfections in the body due to the hand modification. There will be some minor cosmetic work that may need to be completed to the body before painting
Interior fits D90. Its not long enough for the D110.Custom install required by customer for D110
Required to Complete:
Truck Kit
Hex Drivers (1.5mm, 2mm, 2.5mm)
Long Nose Pliers
Associated Thread Locking Adhesive
Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Body Kit
Modeling / Craft Knife
Side Cutters
Instant glue / Plastic Cement (prefer non whitening)
Hex Drivers (1.5mm, 2mm)
Cross Phillips Screwdrivers (small)
Electronics
Motor (35t, 45t, or 55t)
Electronic Speed Controller "ESC" (Z-E0007)
Radio and Receiver (2 channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
1x Standard Size Servo (Z-E0035)
Battery (Consult your "ESC" manual) 6 cell NIMH, or 2 cell Lipo battery
Charger (Consult your battery guide) Chargers
Replacement Parts(CONTACT US):
Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
Gelande 2 Aluminum Body Mounts (Z-S0790)
Servo Mounts for Gelande 2 Chassis (Z-S0791)
Battery Plate for Gelande 2 (Z-S0792)
Gelande II Electronics Deck (Z-S0793)
Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
Gelande 2 Rear 4 Link Mount (Z-S0795)
Gelande II D110 Chassis Set (Z-C0043)
Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
Gelande 2 Front Replacement Bumper (Z-S0800)
Gelande 2 Rear Replacement Bumper (Z-S0801)
R3 Single Speed Transmission Mounts (Z-S0802)
R3 Scale Single Speed Transmission (Z-U0028)
Metal Drive Coupling for Gelande 2 (Z-S0803)
M3 Driveshaft Screw Pin (5) (Z-S0804)
1mm Black Spacer with M3 Hole (10) (Z-S0809)
3mm Black Spacer with M3 Hole (10) (Z-S0806)
5mm Black Spacer with M3 Hole (10) (Z-S0821)
Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
65.3mm (2.57") Aluminum Link for Gelande 2 (Z-S0817)
73mm (2.87") Aluminum Link for Gelande 2 (Z-S0805)
70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
