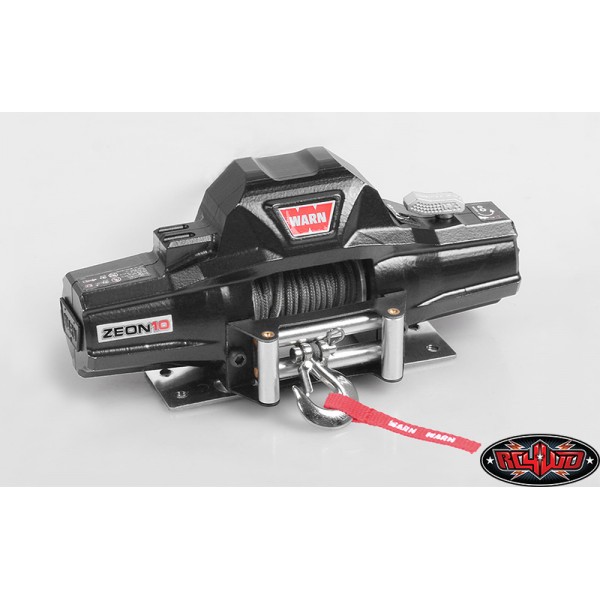

Rc4wd 1/ 10 Warn Zeon Winch 10 Z-S1069

One of the most iconic names in off-road. This is an all new RC4WD 1/8 Warn Zeon 10 winch. This winch offers ultra scale looks, and superior quality and craftsmanship. Officially Licensed by Warn.



Specifications:

• CNC Machined
• Billet Aluminum
• Working Spring Loaded Warn Hook
• Synthetic Winch Rope
• Highly Detailed
• Full Warn Decals Installed
• Voltage: 6v to 11.1v
• Can operate on 3 Cell Lipo
• Easily Rebuildable
• 4.2ft / 1.3M Rope Pre-Installed
• Same Mounting Locations as Bulldog Winch
• Load Limits: Dead Lift 12lbs / 5.4kgs
• Load Limits: Rolling Drag 18lbs / 8.1kgs
• 30 Day Warranty
• Length: 3.39in / 86.1mm
• Width: 1.35in / 34.2mm
• Height: 1.5in / 38.4mm
• Weight: 3.38oz / 96g

What's Included:

• 1x RC4WD 1/8 Warn Zeon 10 Winch
• 1x RC4WD Warn Winch Pull Tag

• 4x M2.5x4mm SHCS (Black) (Z-S0760)
• 4x M2.5x6mm SHCS (Black) (Z-S0855)
• 1x RC4WD Warn Winch Pull Tags (Z-S1660)

• 1x Warn Decal Sheet

Required Parts:

• RC4WD Warn 1/10 Wireless Remote/Receiver Winch Controller Set (Z-S1092)
• RC4WD Wired Winch Control Unit (Z-S1089)

Optional Parts:

• RC4WD ARB Winch Snatch Block (Z-S0341)
• RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)
• RC4WD 1/10 Warn Hawse Polished Aluminum Fairlead (Z-S1310)
• RC4WD 1/10 Warn Warn Hawse Fairlead (Black) (Z-S1315)
• Winch Mount for Axial Wraith (Z-S1307)
• RC4WD Portable Winch Point Tool (Z-S1342)
• Tough Armor Wide Winch Bumper with Winch Bar (Z-S1162)
• Tough Armor Competition Stinger Bumper to fit Axial SCX10 (Z-S0640)
• RC4WD Warn 1/10 Premium Winch Hook (Z-S1551)
• RC4WD Foldable Winch Anchor (Black) (Z-S1623)
• RC4WD Warn Rock Crawler Front Winch Bumper for Trail Finder 2 (Z-S1590) (With Mount Plate Reversed)


Replacement Parts:

• Replacement Motor/Gearbox for Warn 9.5cti 1/10 Winch (Z-E0051)
• 1/10 Warn Hook (Z-S1011)
• Synthetic Winch Rope (Z-S0038)

Replacement Hardware:

• 2x M1.6x4mm SHCS (Black) (Z-S1232)
• 6x M2x4mm SHCS (Silver) (Z-S0927)
• 2x M3x3mm Set Screws (Black) (Z-S0124)
• 4x M2 x 5mm FHCS (Silver)
• 2x M2x4mm SHCS (Black) (Z-S0922)

Notes:

• Fits RC4WD Jeep JK Rampage Recovery Bumper to fit Axial SCX10 Chassis (Z-S0434)
• Fits Tough Armor Competition Stinger Bumper to fit Axial SCX10 (Z-S0640)
• Fits Tough Armor Wide Winch Bumper with Winch Bar (Z-S1162)
• Fits Tough Armor Winch Bumper with Grill Guard for Axial Jeep Rubicon (Z-S1193)
• Fits RC4WD ARB Stubby JK Front Bumper for Axial SCX10 (Z-S1332)
• Fits Gelande Front Winch Bumper (with mount plate reversed)
• Fits Tough Armor Stubby Front Bumper to fit Axial SCX10 (Z-S0641) (with mount plate reversed)
• Fits RC4WD Rampage Front Recovery Bumper (Z-S0997) (with mount plate reversed)
• Fits RC4WD Marlin Crawlers Front Winch Bumper for Trail Finder 2 (Z-S1496) (with mount plate reversed)
• Fits Hitch Mount Portable Winch Mounting System (Z-S1284)

Warn and the Warn name are registered trademarks of Warn Industries. The Warn logo is property of Warn Industries.
