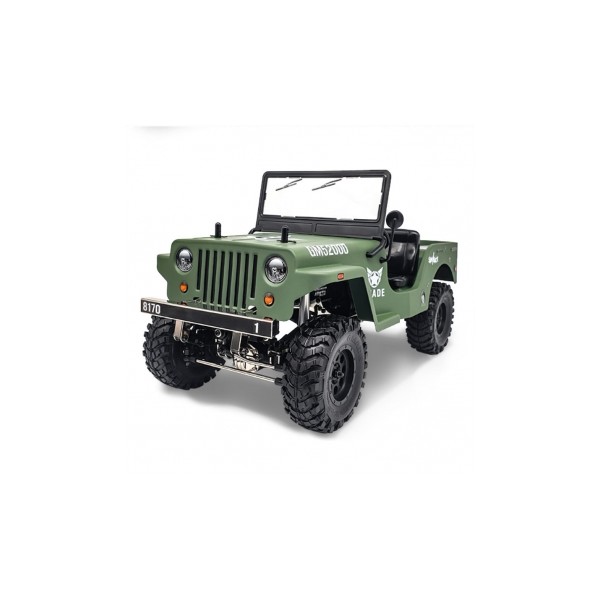

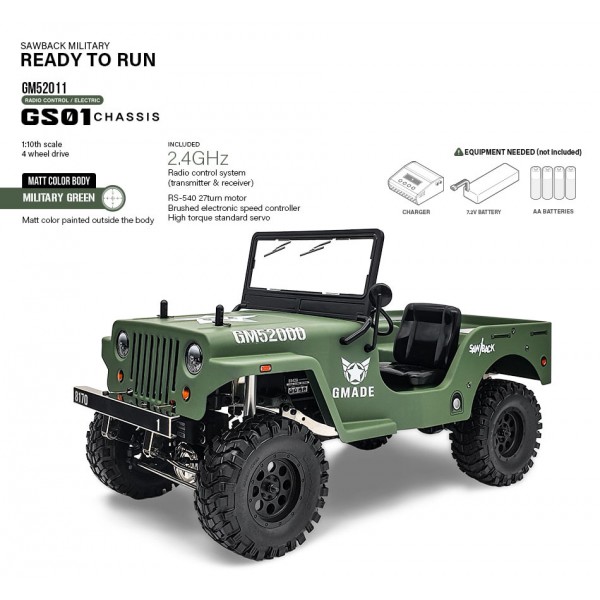

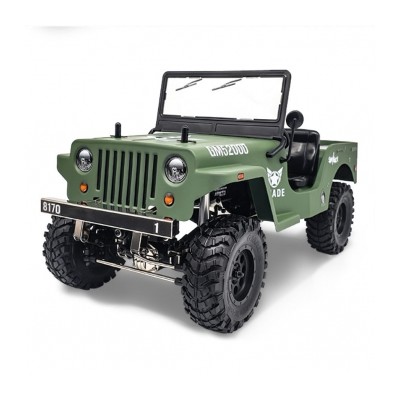

Gmade 1/ 10 Scale GS01 Sawback 4x4 R/ C Scaler RTR Military

Please Note: Body parts like driver seats, steering wheel, shifter, mirror, windshield are supplied unassembled.

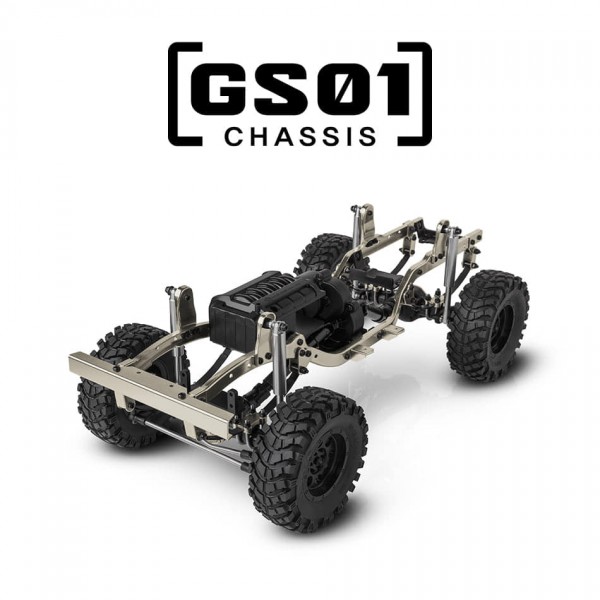

GSO1 Chassis Frame Features Steel Ladder Frame

GS01 Sawback rc 4x4 Crawler 10/10 scale frame is designed to look as close to the chassis of a real car frame with materials of the frame made from high strength steel, C-channel side rail and is bolted with cross members, which make the frame resistant to twisting or warping. Also, steel parts are nickel plated to look glossy and resistant to corrossion.

Dust Proof Reciver Box

Reciver box is designed to look like a real cover and protects the reciver from dust and also to be used as ESC mounting space.

Adjustable Battery Plate

The battery plate is designed to offer the lowest center of gravity for the chassis for stable driving motion, it also makes variable mounts to adapt to diiferent battery sizes.

Skid Plate

The skid plates are designed to run smoothly over any surface of roads without getting stuck.

TS-03 Aluminium Shock Absorber

Internal Spring shocks with CNC machined aluminium was added to absorb excessive shocks beyond leaf spring can handle provide smoother suspension.

Leaf Spring

Using U-bolt enables to hold the axle & leaf spring securely and provides many types of set-up for various conditions of driving surfaces that will result in good driving performance.

One Piece Graphite Axle Housing

Axel housing is made of high strength plastic material and designed as one-piece for maximum durability and easy maintenance.

Metal Differential Cover

The axle has been designed to feel as realistic as possible with additional glossy metal differentyial cover which highlights more detail.

Solid Differntial Gear

Both front and rear axles have solid differential gears to provide stronger driving force in any driving conditions.

Dust Proof Transmission

Various gear ratio in all situations increases the vehicle's driving ability and to protect the internal gears with superb dustproof functionality. Easy to adjust the gear ratio and the backlash by using removable dust cover.

Ball bearing

Included ball bearings in every rolling components minimize the load on drive train as well as conveying the driving force smoothly.

Realistic Interior Parts

Accessories of realistic look include decal, driver seats, steering wheel, shifter, mirror, windshield plastic parts to this body set that highlight the quality of the body shape.
The windshield can be folded down on the hood just like the real car folding motion that are also made of high strength plastic material for high durability from phyical impacts.
