Absima Sherpa 4x4 Crawler RTR Gray Maximize

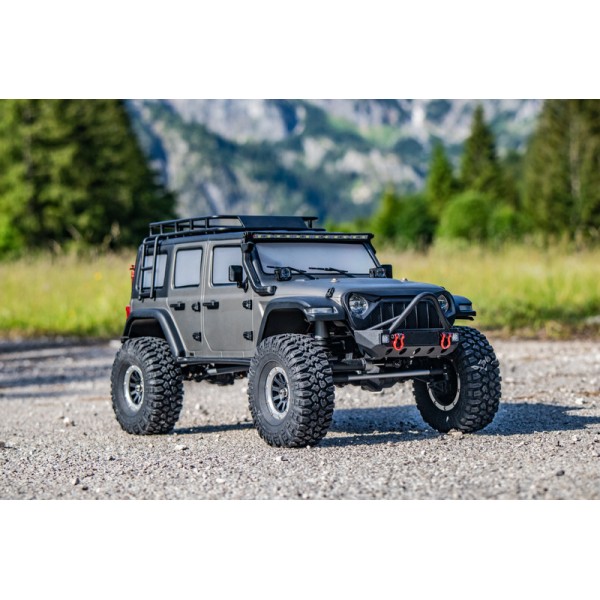

Absima Sherpa 4x4 Crawler RTR Gray

New Crawler from Absima Portal Axles Gearbox Lock Diffs all in a RTR Package!

More details

468,00€

p 12011

Availability: Available

You can purchase this product in installments with Consel. Click here for more information.

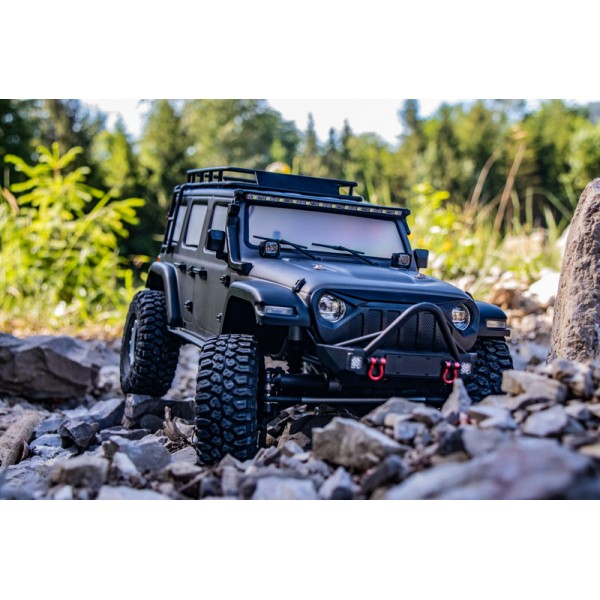

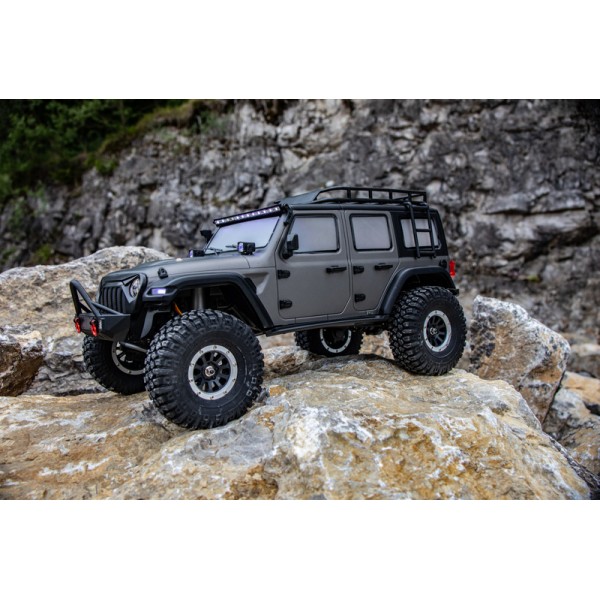

Absima Sherpa Scaler 4x4 rtr portale Gray 01



The CR3.4 SHERPA Scale Crawler is a high-end car loaded with technical features which are unusual for a “ready-to-run” vehicle. The Absima Sherpa is a highly competitive professional car that includes many insane performance features.



  • A realistic designed 5mm CNC machined aluminum frame with a heavy duty aluminum 4-link suspension system


  • A realistic designed 5mm CNC machined aluminum frame with a heavy duty aluminum 4-link suspension system


  • Portal axles not only offer a greater distance from the differential housing to the ground than conventional axles, they also have another positive feature. With conventional crawlers, the torque applies so much force that the vehicle jumps over the obstacle. The design of the portal axles reduces the gear ratio at the wheels and virtually eliminates the torque surges of the drive. The overall reduction ratio of the axle drive is more than twice that of non-portal designs to insure a smooth run.



  • The CR3.4 SHERPA features a 2-speed transmission to conquer tough terrain and bring you also fast to the next obstacle. Just push a button on the radio and change from transmission ratio 1/37.1 (low speed) to 1/15.1 (high speed)

  • Lock and unlock the front and rear differential independently to get the maximum performance on the track - all controlled remotly from your tranmitter and 2x 0,9kg mini servos. Leave the differential unlocked for a smooth hadling at high speed. On tecnical trails you can lock the front differential, the rear differential or even both to handle extreme terrain.



  • The drive concept - powered by HOBBYWING contains a 60A waterproof brushed speed controller and a 550 motor. Set the jumper to setup your battery type (NiMH / LiPo) and drive mode ( forward / reverse / brake)



9kg digital steering servo and 3x 17g mini servos for gear transmission and differential lock/unlock - all servos are waterproof



The 2.4 GHz 6-channel radio system gives you total control over your vehicle - wether lighting system, 2-speed gear, diff. locks or top speed adjustment



  1. Evil eye hadlights
  2. Rear lights
  3. Turn lights (while steering)
  4. Search lights
  5. Marker lights
  6. Hazard warning lights (front & rear)
  7. Brake lights
  8. Roof lightbar

  • All these functions are combined in the 6-channel receiver. You want to use another 6-channel radio without loosing the lighting function? No problem!
  • A description how to do you will find in the manual.
  • Stylish 1.9" beadlock wheels with aluminum rings and 10 bolt design
  • Super soft tires with a realistic sidewall flex for maximum traction on the rocks
  • Wheel size: 43x120 mm
  •  Rock sliders and molded inner fender help to protect the chassis from dirt and damage

VEHICLE SPECS:
  • Length: 542mm
  • Width: 250mm
  • Height: 240mm
  • Ground Clearance: 53mm
  • Wheelbase: 313mm
  • Weight: 2970g
  • Approach Angle: 60°
  • Departure Angle: 45°
  • Steering Angle: 45.8°
  • Wheels: 12mm Hex Beadlock 1.9" 32x69mm
  • Tires: 43x120mm
  • Shock Length: 90mm
  • Transmission: 2-speed (Hi 1/15.1 / Lo 1/37.1), Remote shifting
  • Gear Pitch: Module 0.8/32dp - Pinion 16T / Spur Gear 44T
  • Drive System: 4WD Shaft Drive

ELECTRONIC SPECS:
  • ESC: 60A Brushed/Waterproof with T-plug connector (BEC 6V@3A, NiMh/LiPo suitable)
  • Motor: 550 high-torque brushed motor 21T
  • Steering Servo: 9kg MG, digital and waterproof
  • Mini Servos: 0,9kg, waterproof
  • Radio System: 6-channel 2.4GHz radio system (4.8 - 12.0V LiPo suitable)

INCLUDES:
  • Absima CR3.4 SHERPA RTR Model
  • 6-channel 2.4GHz Radio System
  • Sticker Sheet
  • Manual (DE/ENG/FR)

RECOMMENDED ACCESSORIES:
The CR3.4 Sherpa accepts a wide variety ofLiPo batteries and NiMH batteries

charger is required which is dependent on the type of car battery
4x AA mignon cells are required for the radio.

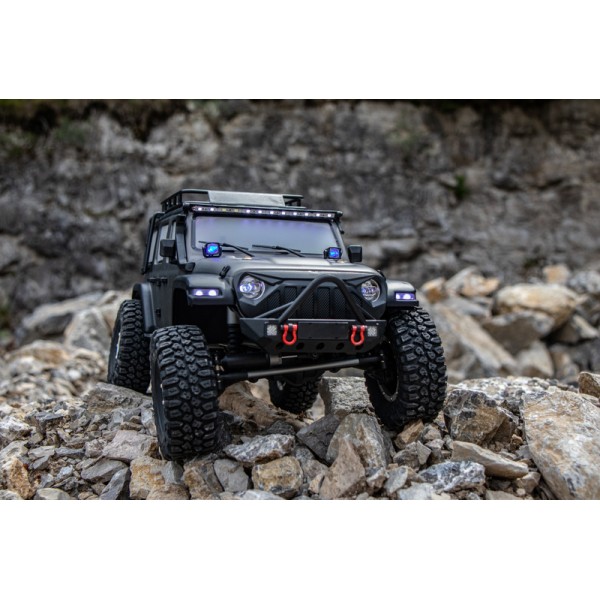

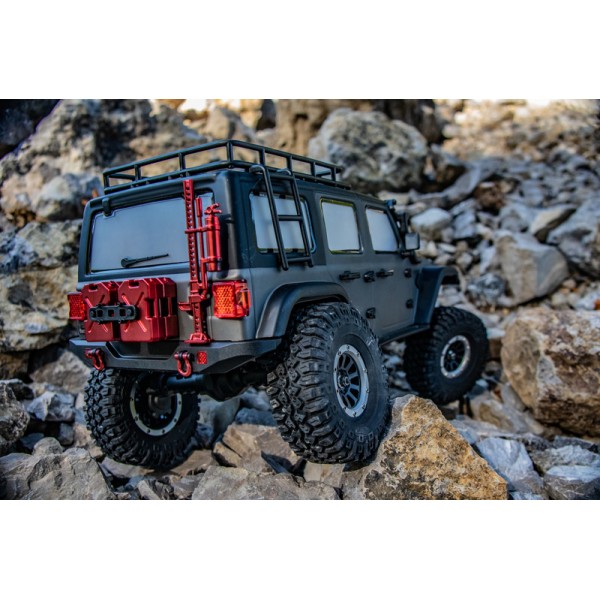

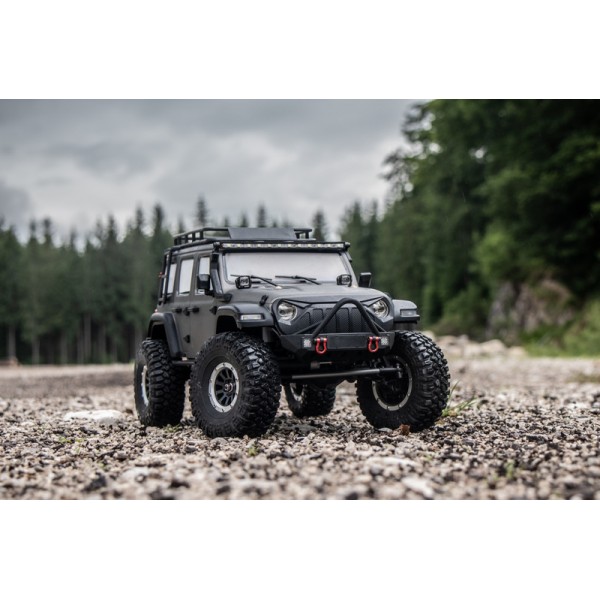

Absima Sherpa Scaler 4x4 rtr portale 02

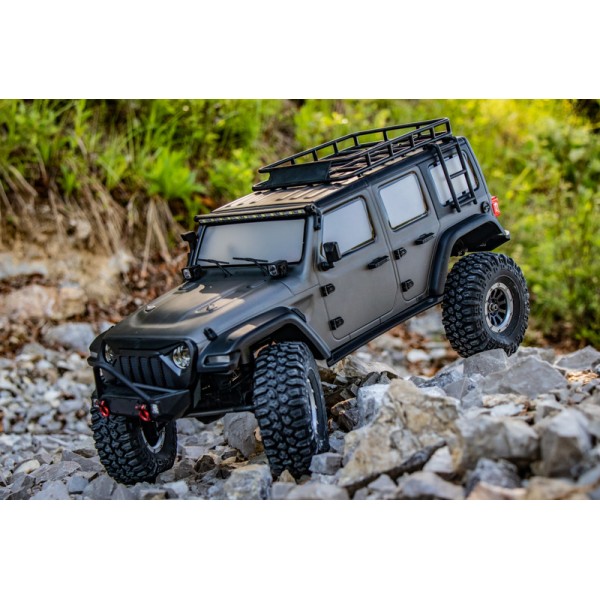

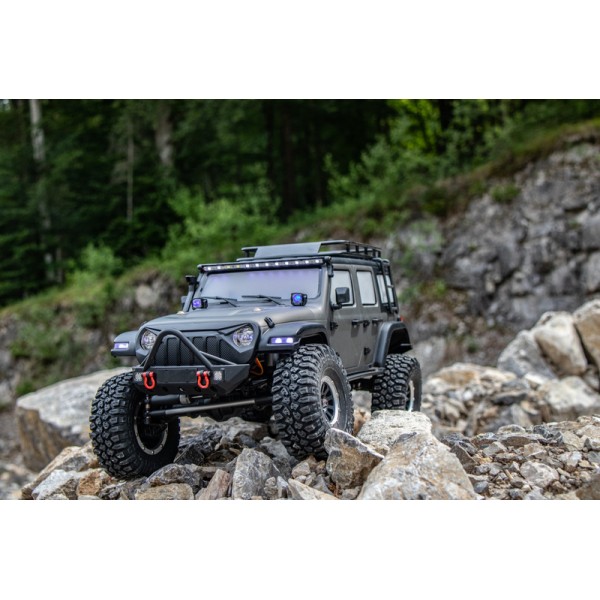

Absima Sherpa Scaler 4x4 rtr portale 03

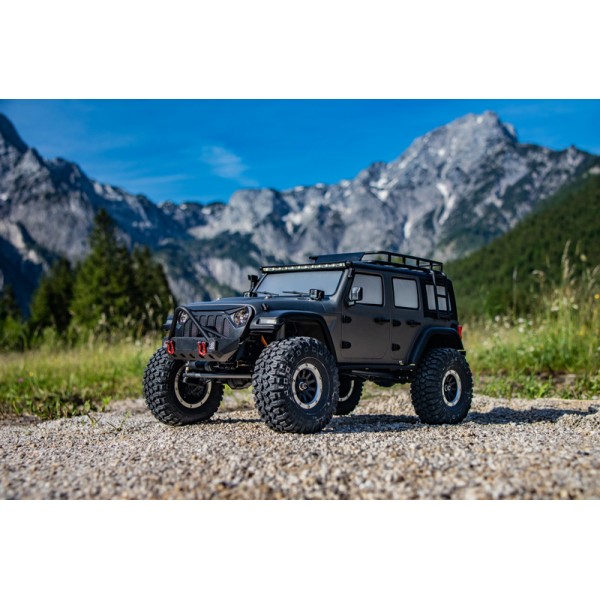

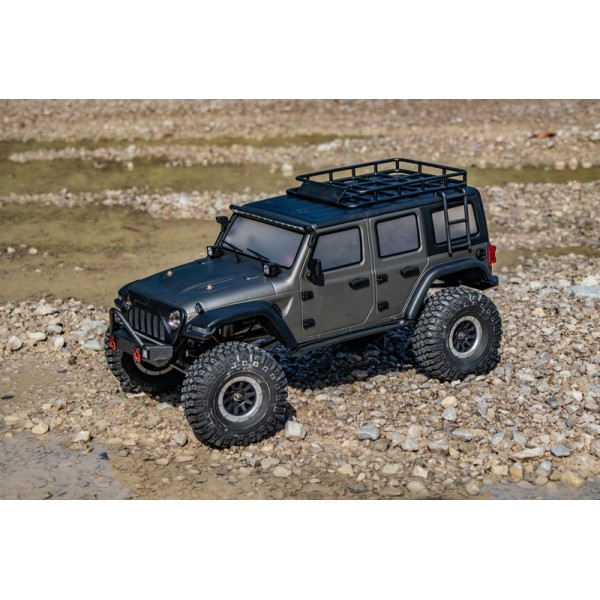

Absima Sherpa Scaler 4x4 rtr portale 04

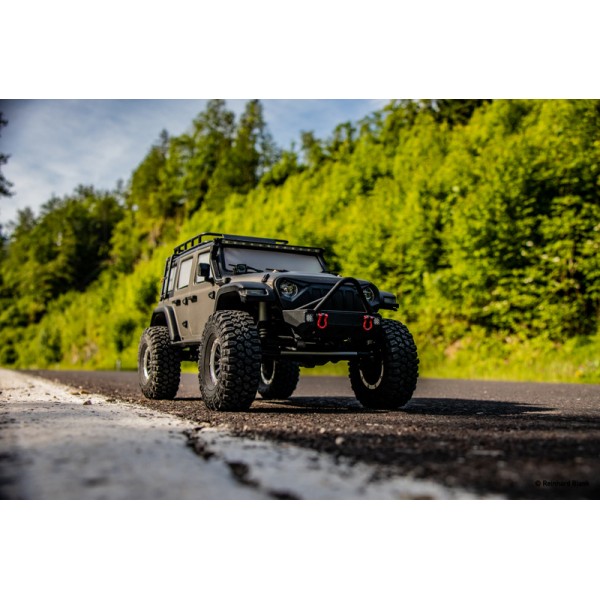

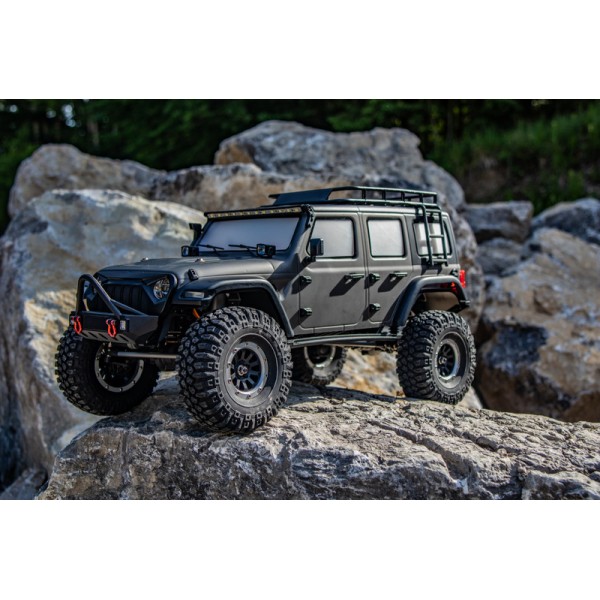

Absima Sherpa Scaler 4x4 rtr portale 05

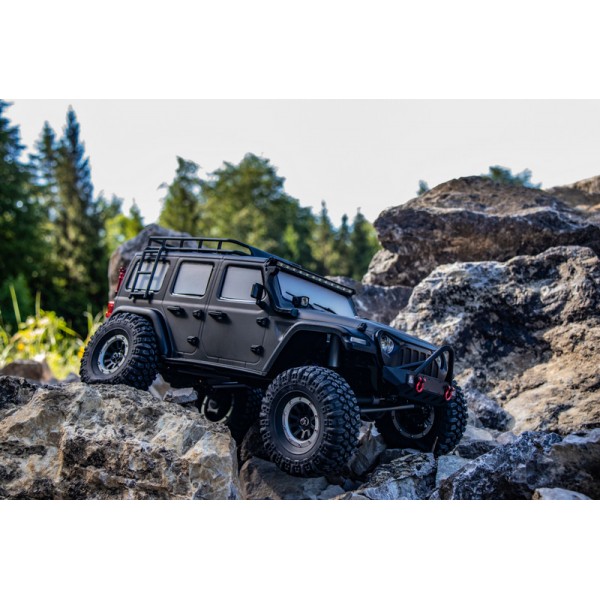

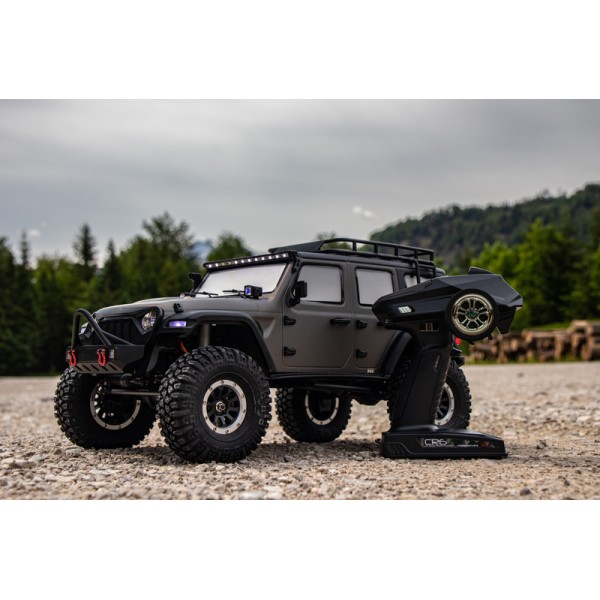

Absima Sherpa Scaler 4x4 rtr portale 06

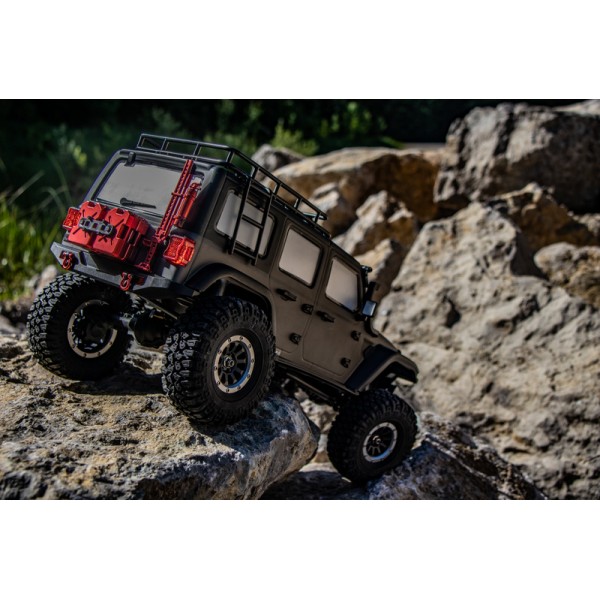

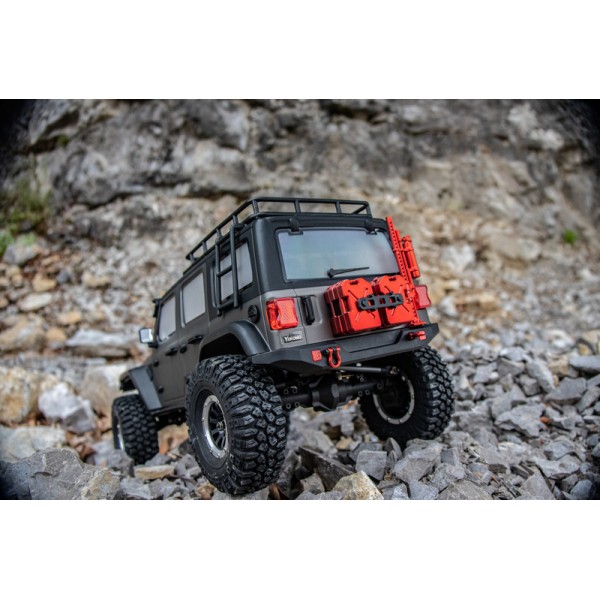

Absima Sherpa Scaler 4x4 rtr portale 07
