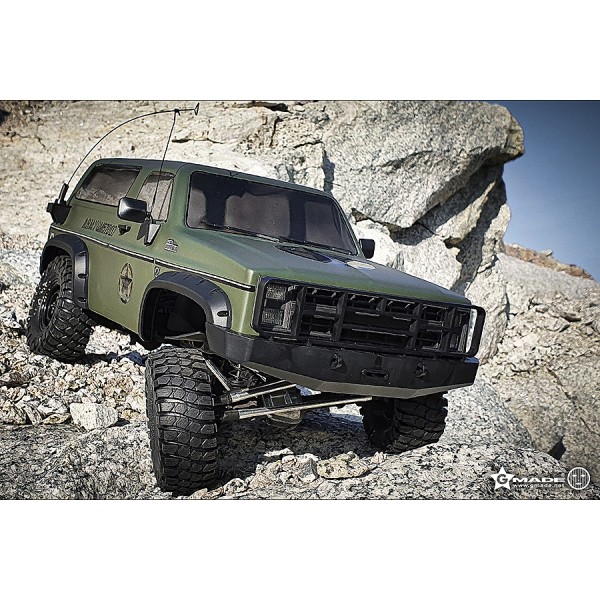

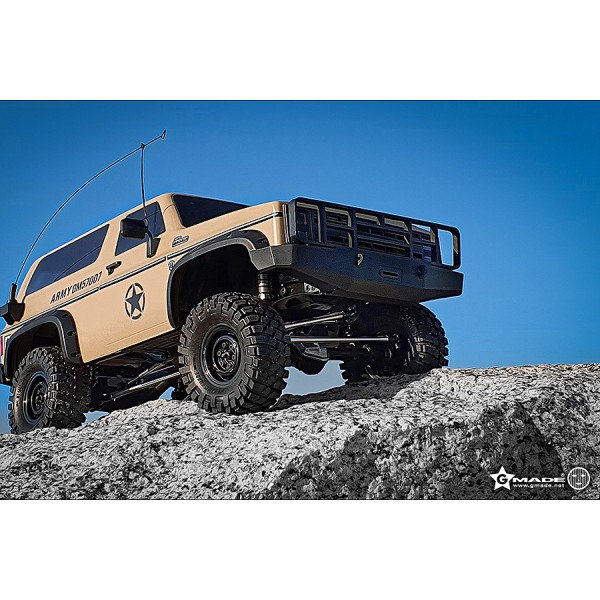

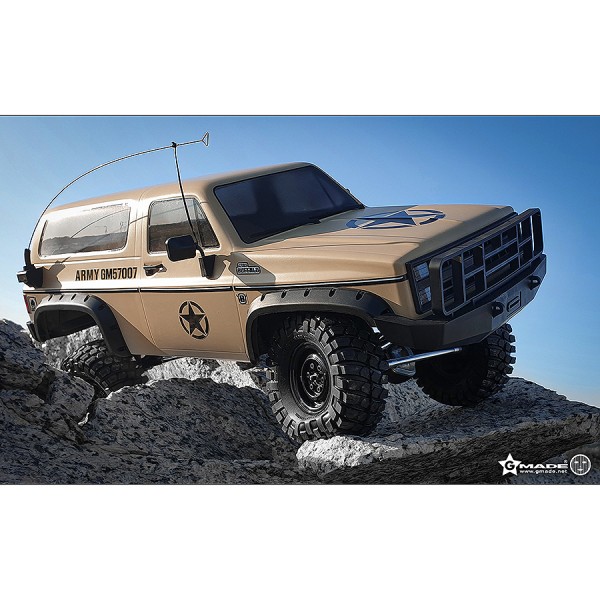

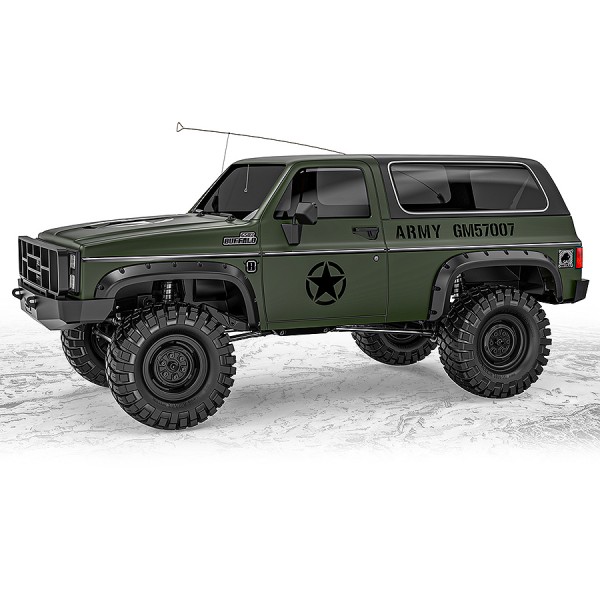

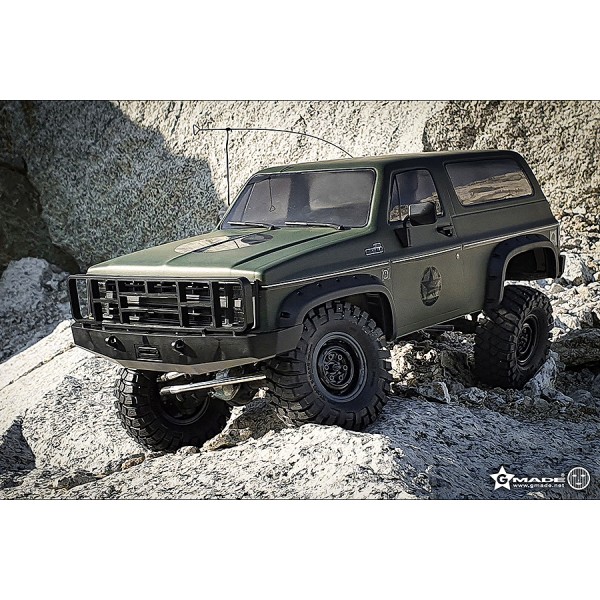

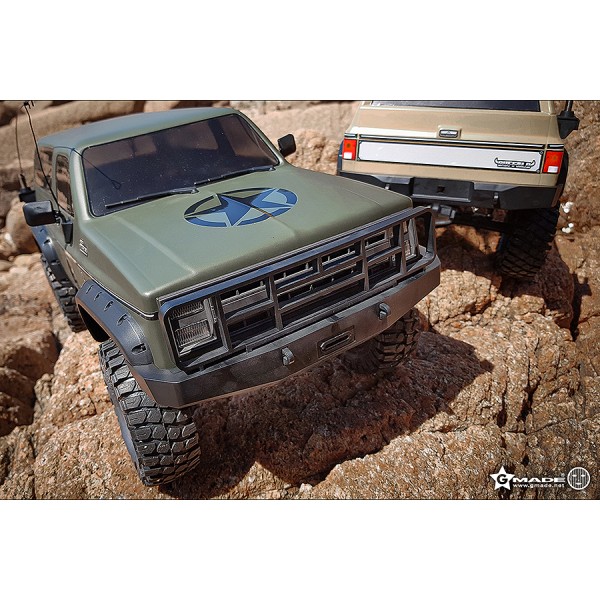

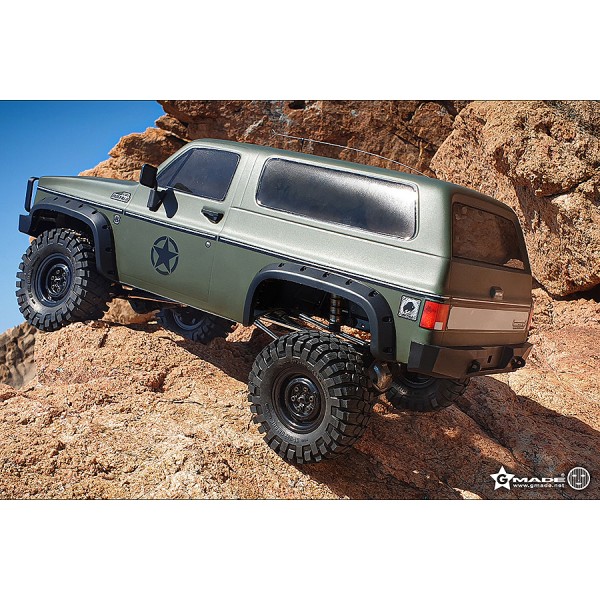

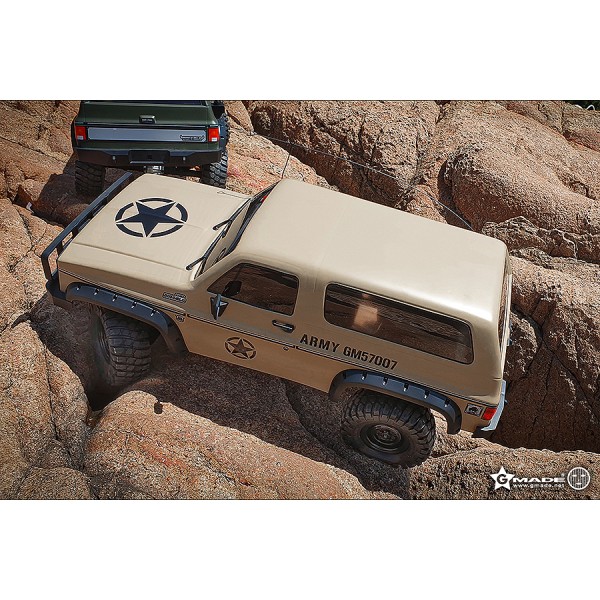

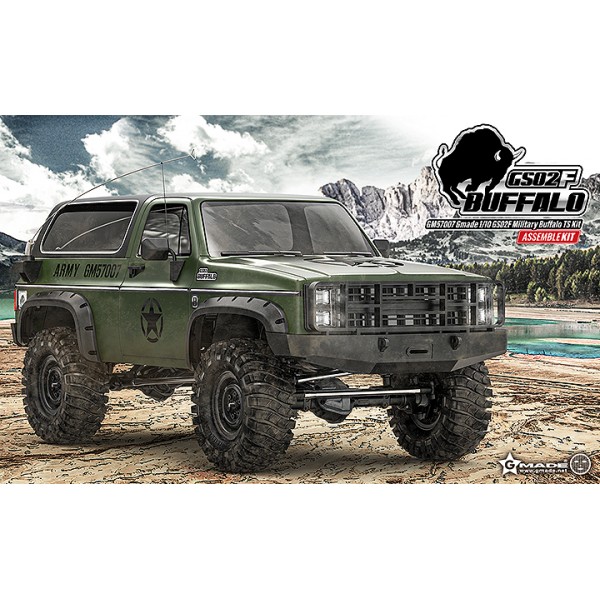

Gmade Scaler GS02F Buffalo TS 1/ 10 Kit Military

Frame
Steel ladder frame
The GS02F chassis is designed to resemble the chassis of a real car chassis and the frame material is high strength steel, side guide with C channel and is equipped with bolt-on hex key with cross members, making it resistant to twisting or winding. In addition, the steel parts are black powder coated to prevent rust.

Internal fenders

The inner fender is fixed directly to the frame to reduce the flexibility and bending of the frame and parts, it also reduces the entry of external objects into the frame while driving.
Adjustable wheelbase

The GS02F chassis allows three types of easy wheelbase conversion kit adjustment to use any custom 313 and 324mm body type. (Optional connection kits are sold separately)
Front weight balance

GS02F weight balance designed to be placed on the front of the frame.
This will increase tire tracking on the front wheel to provide better scanning on high-angle rocks and better uphill driving performance and this will help minimize vehicle rollover when climbing.
Front mounted engine

Possibility to use 540 or 550 size motors with optional cooling fan.
The motor is designed to be mounted in front of the frame, so it can increase tire traction on the front side.
Multiple battery locations

GS02F can use all sizes of lipo batteries and Ni-MH batteries, and can freely locate the purpose of the battery location of uses.

Chassis mounted servo system with Panhard bar

The GS02F steering system has a steering servo on the chassis just like a real 1: 1 car.
It's designed to make it as close to zero bump steer as possible so that bump steer movement isn't displayed by the front wheel suspension movements, so we ended up maximizing the vehicle's steering performance.
In addition, the Panhard-bar is designed to avoid interference with neighboring parts, so that the front suspension and shock absorbers can move freely without any loss.
Drivelines

The transmission lines of the front and rear axles are arranged in a straight line to reduce the fatigue stress of the PTO shaft and reduce the loss of engine power by providing efficient driving lines.
Transmission

The GS02F transmission is designed to look like a real 1: 1 scale vehicle and provides the best performance according to the driving situation.
Overdrive

Overdrive means that the front and rear wheels rotate at different speeds.
The GS02F transmission is designed to rotate the front wheel faster than the rear wheel.
2-speed HI / LO transmission

1st gear is for crawling rock and 2nd gear is for climbing uphill or driving at high speed.

Torsion of torque reduces transmission

The GS02F transmission is designed to drive in a stable position without pulling the balance of power transmitted to the axle.
The transmitter based front and rear universal shafts each rotate clockwise and counterclockwise, this compensates for the forces acting on the opposite rotational forces due to action (torque) and reaction (reverse torque) for this reason this vehicle can operate in super stable condition way
Easy to adjust motor mount

You can easily replace and install the engine pinion to change the gear ratio.
GA44 axle

The GA44 axle is designed with the hardcore rock crawler in mind.
The axles are made of high strength meterials and will look and perform best off-road like a true 1: 1 vehicle when 4-Link suspension is added.
The GA44 axle housing is a durable one-piece type.
The inclination of the differential cover is designed to reduce the risk of damage from a frontal impact and is therefore very suitable for off-road driving.
Kingpin Angle

Keep the turning radius to a minimum to allow the steering servo to operate at its full potential and increase steering efficiency.

Zero Ackerman steering

The GA44 axle uses the Zero-ackerman steering system with CVA to ensure maximum performance with a small turning radius and smooth motion even on rough off-road terrain.
SD Scaler shock absorber

SD Scaler Shock is a Coil-over style oil filled shock absorber optimized for forklifts.
The oil filled inside the shock absorber minimizes splashing when the vehicle is driven and provides a high durability aluminum shock body with added 3.5mm heavy duty shock shafts, which will help you driving roughly on rough surfaces.
Even beginners can easily assemble this shock absorber and change the settings, and the adjustable nut makes it easy to adjust the ride height so you can quickly change your car's setup even when driving conditions change.
