This is the new RC4WD Gelande II licensed kit w / 2015 Land Rover Defender D90 Hard Body Set. These have been officially authorized by Land Rover and are only available from RC4WD and our dealers.
Experience the versatility and advanced design of the G2 for yourself. Packed with capabilities, the G2 is ready for any demanding conditions. Test your off-road driving and find out why the G2 can easily maneuver extreme descents and climb with ease.
The G2 is built with quality materials and craftsmanship such as the R3 single speed transmission that provides power to the transfer box and Yota II axles.
The G2 comes with a 4-link rear suspension and 3 panhard bars as a standard feature. The chassis mounted servo is out of sight for a more scaled look.
The G2 is completely versatile and can sport many looks and styles. With countless options available, RC4WD allows you to customize your G2 exactly the way you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing facilities, the core of the G2 is built for the true off-road enthusiast!
Are you ready for your off-road experience?
- Custom designed for a true to scale look
- Realistic aluminum ladder frame
- Single speed R3 transmission
- Realistic 4x4 transfer case mounted in the center
- Yota II Ultimate Scale cast iron axles
- Front 3-link and 4-link rear suspension
- 1.9 "stamped steel beadlock with wing nuts
- Super Grip Dirt Grabber tires
- Chassis mounted steering servo
- Plastic receiver box for fuel cells
- Double spring shock absorbers filled with oil
Transmission box
- Ratio: 1.47: 1
- Gears: 0.8 wide Mod hardened steel gears
- Features: 8 bearings, cast iron housing, hardened gears
R3 Single Speed Transmission
- Ratios: Pinion/Spur 14/64 = 4.57:1 Internal Ratio: 1.78:1
- Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Cast Yota II Axles
- Ratio: 15/40 = 2.67:1
- Width at Hex: 178.2mm
G2 Suspension
- Double Triangulated 4 Link Rear Suspension
- 3 Link Suspension with Panhard Bar
Shock Absorbers
- Dual Spring 80mm Shocks: Can be Oil Filled
Wheels
- Type: 1.9'' 5 Lug Wagon Wheels
- Hub: Pin Type
- Width: 25mm
- Back Spacing: 11mm
Bumpers
- Machined Billet Aluminum, Lightweight
G2 Truck Dimensions
- Wheelbase: 275mm (10.8")
- Width: 213mm (8.3")
- Height: 252mm (9.9")
- Ground Clearance: 58mm (2.2")
- Final Drive Ratio: 31.9:1
- Weight: 5.58Lbs / 2.533Kg
DRIVETRAIN
The R3 single speed transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin spur with slipper clutch. Also features a sturdy billet aluminum motor mount for durability.
The G2 includes the Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and the same heavy duty 0.8 Mod widened gears for durability.
Drawing on the success of the RC4WD MOA gear sets, the G2 drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.
The most scale accurate axles on the market, the RC4WD Cast Yota II axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.
The Driveshafts for the G2 are a design featuring bulletproof steel universals and a high quality plastic shaft for great driveline angles and durability on the trail.
SUSPENSION
The G2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options. Also includes a sturdy battery tray with strap mounts.
The G2 includes a set of RC4WD Dual Spring Shocks. Designed for ultimate scale looks and ultimate performance. These dual spring shocks are machined from billet aluminum.
The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.
The G2 includes a set of RC4WD Black Stamped Steel 1.9” internal beadlock wheels. Featuring a super tough black finish, aluminum internal lock- ing ring and popular 5 lug design with separate hub.
Every G2 needs a tough set of rock grabbing tires and the included RC4WD Dirt Grabbers deliver traction as well as the perfect scale looks in just the right size.
DETAILS

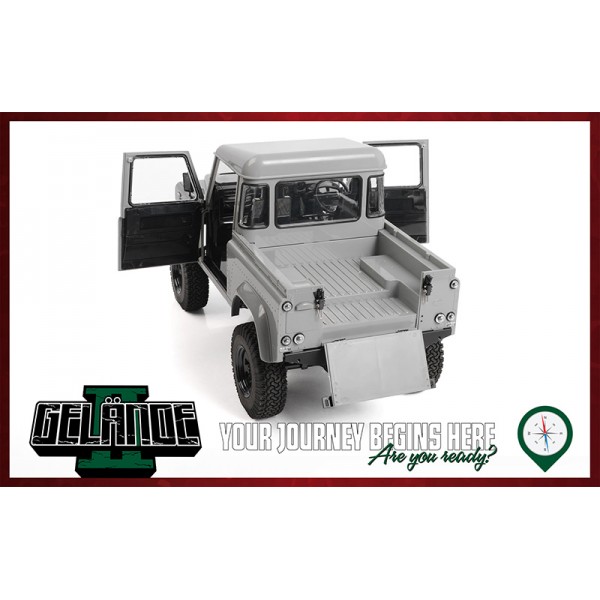

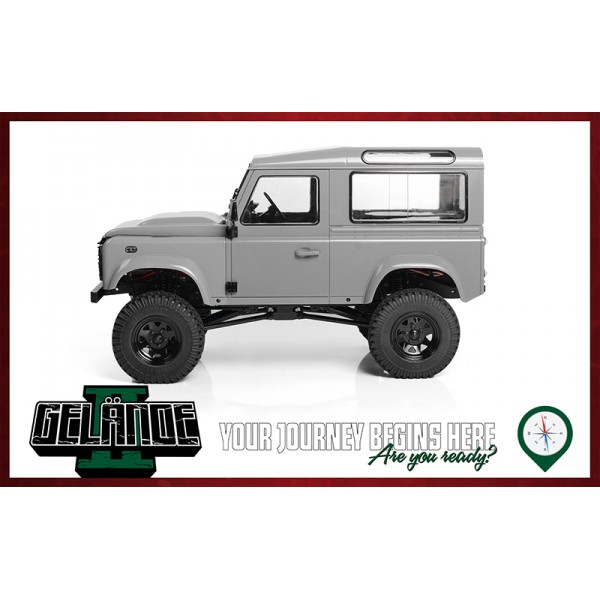

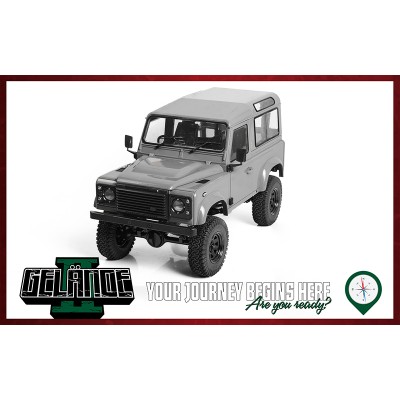

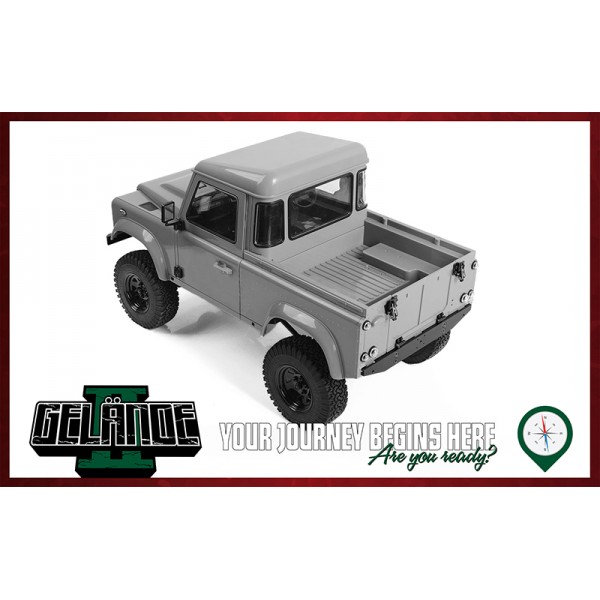

The G2 features the 2015 Land Rover Defender D90 Body Set. The custom 4 door Defender body has an awesome assortment of scale details including mirrors, door handles, vents and grilles to match the 1:1 vehicle.
It’s officially licensed with Land Rover with opening side and rear doors and hood, the 2015 Land Rover Defender D90 Body Set is the most scale replica in the market.
The body features a full detailed interior, seats, opening center console, plastic and rubber mirrors and a detailed dashboard. It's all here to bring your scale experience to a level.
Comprised of over 100 parts, the 2015 Land Rover Defender D90 Body Set features a full detailed interior. Fold-down rear seats, gear shifter, handbrake and detailed dash. It’s all here to bring your build to next level
The crisp lines and subtle details are all captured. Functional light parts are included as well as colored lenses for all signal lights. All lamps can be illuminated with an optional RC4WD LED light kit.
What's Included:
- 1x RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set
This is a kit that requires building time (appro. 2-3 hours) and electronics
Required to Complete:
Truck Kit
- Hex Drivers (1.5mm, 2mm, 2.5mm)
- Long Nose Pliers
- Blue Thread Lock
- Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Body Kit
- Modeling / Craft Knife
- Long Nose Pliers
- Side Cutters
- Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy
- Hex Drivers (1.5mm, 2mm)
- Cross Phillips Screwdriver (Small)
Electronics
