Rc4wd Scaler Trail Finder 2 1/10 Scale Kit

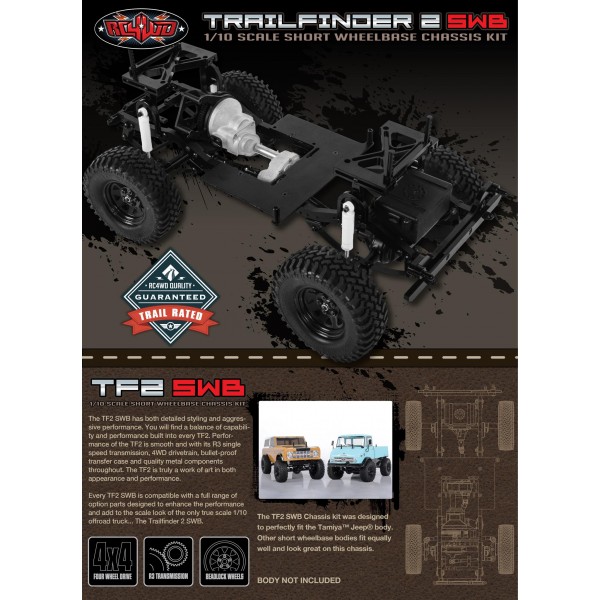

The TF2 SWB has both detailed styling and aggressive performance.
You will find a balance of capability and performance built into every TF2.
Performance of the TF2 is smooth and with its R3 single speed transmission, 4WD drivetrain, bullet-proof transfer case and quality metal components throughout.
The TF2 is truly a work of art in both appearance and performance.
Every TF2 SWB is compatible with a full range of option parts designed to enhance the performance
and add to the scale look of the only true scale 1/10 offroad truck... The Trailfinder 2 SWB.

Realistic Billet Aluminum Ladder Frame Chassis "SWB"

• R3 Single Speed Transmission
• Center Mounted Realistic 4x4 Transfer Case
• Yota II Ultimate Scale Cast Axle
• True to Scale Leaf Spring Suspension
• 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black)
• Mud Thrashers 1.9" Scale Tires
• Realistic Bumpers and Skid Plate
• Chassis Mounted Steering Servo
• RC4WD Scale Shock Absorbers
• Plastic Rod Ends
• Full Ball Bearings

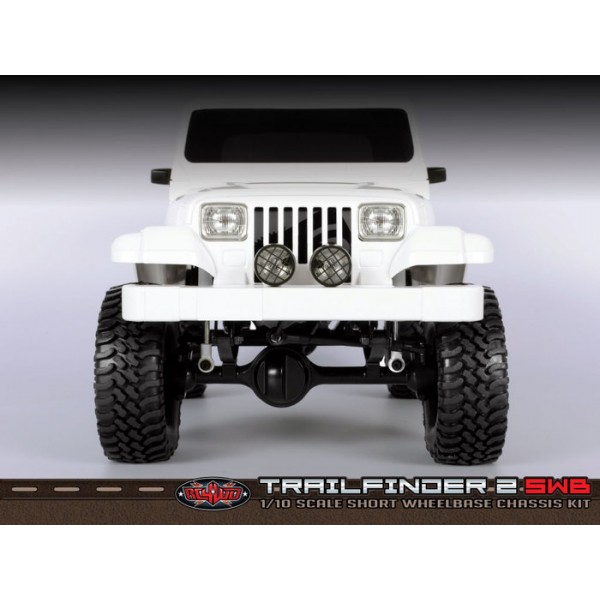

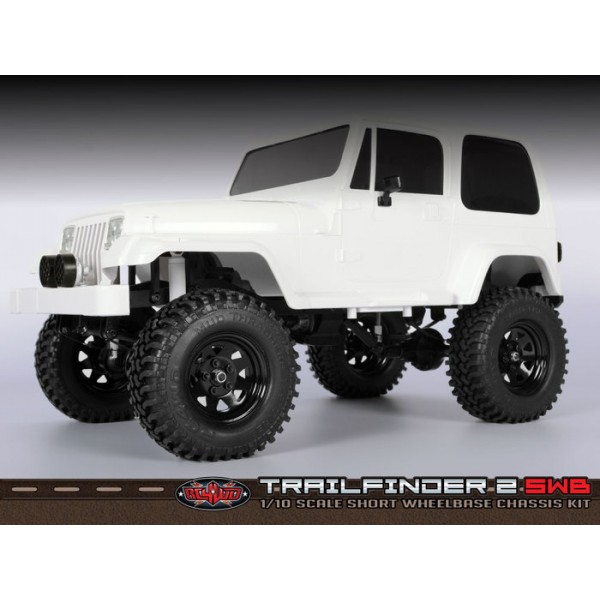

Shown with Tamiya Jeep Body for example (not included) TAM9335171

All New Hammer Transfer Case

• Ratio - 1.47:1
• Gears - Wide .8 Mod steel gears

All New R3 Single Speed Transmission

• Ratio: 1.78:1
• Pinion/spur 14/64 = 4.57:1

Cast Yota 2 Axles

• Ratio: 15/40 = 2.67:1
• Width at hex: 176.5mm

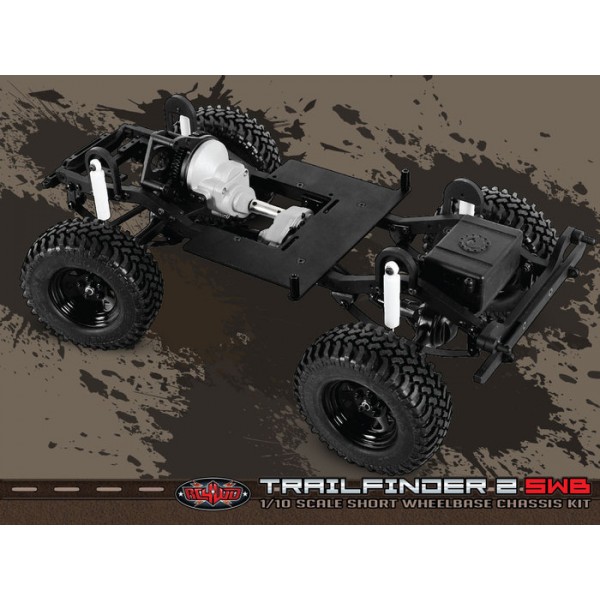

Trailfinder 2 SWB Chassis
Features - Billet aluminum construction Adjustable shock hoops

Driveshafts

• RC4WD Punisher Metal Driveshafts
• Heavy duty steel construction

Wheels

• Type: 1.9 Steel Beadlock Wheels with Lug Nuts
• Hub: Pin type
• Width: 25mm
• Back spacing: 11mm

TF2 SWB Dimensions

• Wheelbase: 9.5in / 242mm
• Width: 8.3in / 211mm
• Height: 5.55in / 141mm
• Ground Clearance: 2.3in / 58.5mm
• Overall Length: 15.31in / 389mm
• Weight: 62.1oz / 1.76kg

DRIVETRAIN

The TF2 includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the .8 Mod widened gears for durability.

The most scale accurate axles on the market, the RC4WD Cast Yota II axles feature innovative round knuckles, new lower mounting points and compact offset pumpkins.

The R3 Single Speed Transmission comes with a cast aluminum case and new wider gears to allow for more abuse along with a Delrin spur with slipper clutch.

Drawing on the success of the RC4WD MOA gear sets, the TF2 drivetrain has the most durable gears RC4WD has to offer so the TF2 will stay on the trail, day after day.

The Metal Driveshafts for the TF2 are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.

Suspensions

The TF2 includes a set of RC4WD Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.

The TF2 includes a set of RC4WD Black Stamped Steel 1.9 Internal Beadlock Wagon Wheels. Super tough black painted finish, aluminum internal ring and popular 5 lug design.

The TF2 Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts. 4-link conversion available

Every TF2 needs a tough set or rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

The 4 Link Conversion kit can be used to replace the stock rear leaf spring setup with a more advanced 4 link style setup. Z-S1053 (Not Included)

What's Included:

• 1x RC4WD Trail Finder 2 SWB
• Universal Body Mounting Kit for TF2 SWB (Z-S1753)

Notes:

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

Required to Complete:

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2,5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Electronics:

• Motor (35t, 45t, or 55t)
• Electronic Speed Controller "ESC" (Z-E0007)
• Radio and Receiver (3 channel or more) (3 Channel Z-R0009)
• 1x Standard Size Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or comparable Lipo battery
• Charger (Consult your battery Guide) Chargers

Replacement Parts:

• Fuel Cell Radio Box (Z-S0592)
• R3 Scale Single Speed Transmission (Z-U0028)
• Electronics Top Plate w/Servo Mounts (Z-S0678)
• Hammer Transfer Case (1.47/1) (Z-U0024)
• Leaf Spring Shackles & Mounts Kit (Z-S0047)
• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black) (Z-W0129)
• Mud Thrashers 1.9" Scale Tires (Z-T0051)
• M3 Mini Plastic Rod End (20x) (Z-S0398)
• M3 Offset Short Plastic Rod End (20x) (Z-S0401)
• Scale Steel Punisher Shaft (77mm - 100mm / 3.03" - 3.94") (Z-S1054)
• 14t 32p Hardened Steel Pinion Gear (Z-S0430)


Tamiya Body Part Numbers:

• Tamiya Jeep Wrangler Body (V-TAM9335171)
• Tamiya Wrangler M Parts (V-TAM9115239)
• Tamiya Jeep Wrangler L Parts (TAM9115238)
• Tamiya Jeep Wrangler K Parts (TAM9115062)
• Tamiya Jeep Wrangler H/J Parts (TAM9005439)
• Tamiya Jeep Wrangler Metal Parts Bag (TAM9400864)
• Clear Lexan Windshield for Tamiya Jeep Wrangler Body (Z-B0012)

Optional Parts:

• 4 Link Kit For Trail Finder 2 Short WB Rear Axle (Z-S1053)
• 1.9" 5 Lug Steel Wheel Hex Hub (Z-S0734)
• 1.9 5 Lug Steel Wheel Hex Hub with Brake Rotor (Z-S0532)
• Scale Aisin/Yota Style Hubs (Z-S0196)
• XVD Axle for Ultimate Scale Yota II G2 Axle (Z-S0823)
• RC4WD King Off-Road Scale Dual Spring Shocks (80mm) (Z-D0035)
• Triton Transfer Case (1:1) (Z-U0029)
• Metal Hinge Set for Tamiya CC01 Wrangler (VVV-C0031)
• Hood Grill for Tamiya CC01 Wrangler (VVV-C0025)
• 1/10 Metal Grill for Tamiya CC01 Jeep Wrangler (VVV-C0018)
• Rear Diamond Plates Corner Set for Tamiya CC01 Wrangler (Black) (VVV-C0063)
• Front Lens for Tamiya CC01 Wrangler (VVV-C0061)
• 1/10 Metal Logo for Tamiya CC01 Wrangler (VVV-C0060)
• Rear Taillight Grill for Tamiya CC01 Wrangler (VVV-C0064)
• Mounting Adapter for TF2 SWB and Rampage Recovery Rear Bumper (Z-S1480)
• Internal Springs for ARB 70mm Shocks (Z-S1177)
• Punisher Shaft II (80mm - 100mm / 3.15" - 3.93") 5mm Hole (Z-S1591)
• RC4WD Teraflex Revolver Shackle (Z-S1594)
• RC4WD Teraflex Revolver Z-Box for Trail Finder, F-350, Hilux, Tundra (Z-S1587)
• RC4WD Rampage Rear Double Tube Bumper for Trail Finder 2 SWB (Z-S1365)
• RC4WD Ballistic Fabrications Diff Cover for Yota II Axle (Z-S1605)
• RC4WD Rampage Front Double Tube Bumper with Hoop for Trail Finder 2 SWB (Z-S1558)
• RC4WD Rock Hard 4x4 Rear Multi Carrier for TF2 SWB (Z-X0022)
• Replacement Leaf Springs for TF2 SWB (Z-S1717)
• M3 Offset Short Aluminum Rod Ends (Red) (10) (Z-S1631)
• M3 Offset Short Aluminum Rod Ends (Blue) (10) (Z-S1633)
• K44 Ultimate Scale Cast Rear Axle (Z-A0096)
• Low Profile Delrin Skid Plate for Std. TC (TF2 SWB) (Z-S1823)
• Over/Under Drive T-Case Low Profile Delrin Skid Plate for TF2 SWB (Z-S1819)
• RC4WD BFGoodrich Mud-Terrain T/A KM2 1.9" Scale Tires (Z-T0187)
• RC4WD BFGoodrich All-Terrain K02 1.9" Scale Tires (Z-T0188)
• RC4WD BFGoodrich Krawler T/A KX 1.7" Scale Tires (Z-T0189)
• RC4WD BFGoodrich Mud Terrain T/A KM2 1.55" Scale Tires (Z-T0190)
• RC4WD BFGoodrich Mud Terrain T/A KM3 1.9" Tires (Z-T0192)
• RC4WD BFGoodrich Mud Terrain T/A KM3 1.7" Tires (Z-T0191)
• RC4WD Michelin Agilis C-Metric 1.9" Tires (Z-T0193)
• RC4WD Michelin LTX A-T2 1.7" Tires (Z-T0194)
• RC4WD Falken Wildpeak A/T Trail 1.9" Scale Tires (Z-T0195)
• Ground Hawg II 1.55" 4.19" Scale Tires (Z-T0029)
• RC4WD Mickey Thompson Baja Pro X 4.19 1.7 Scale Tires (Z-T0196)
• Rocky Country 1.55" Truck Tires (Z-T0022)
• Stamped Steel 1.7" 10-Oval Hole Wheels (White) (Z-W0311)
• Stamped Steel 1.7" 10-Oval Hole Wheels (Plain) (Z-W0312)
• Stamped Steel 1.7" 10-Oval Hole Wheels (Black) (Z-W0313)
• RC4WD Rogue 2.2 Beadlock Wheels (Z-W0316)
• Stamped Steel 1.7" Beadlock Wagon Wheels (Black) (Z-W0270)
• Breaker 1.9" Beadlock Wheels (Gold) (Z-W0325)
• 1.9" 5 Lug Steel Wheels w/Beauty Ring (Silver) (Z-W0327)
• TNK 2.2" Beadlock Wheels (4x) (VVV-C0986)
• TNK 2.2" Beadlock Wheels w/ Brake Discs (4x) (VVV-C0987)
• TNK 2.2" Beadlock Wheels (2x) (VVV-C0988)
• TNK 2.2" Beadlock Wheels w/ Brake Discs (2x) (VVV-C0989)
• Seren 2.2" Beadlock Wheels w/ Center Caps (Silver) (VVV-C1013)
• Seren 2.2" Single Wheel (Silver) (VVV-C1014)
• Seren 2.2" Beadlock Wheels w/ Center Caps (Black) (VVV-C1015)
• Seren 2.2" Single Wheel (Black) (VVV-C1016)
• Burato 2.2" Beadlock Wheels w/ Center Caps (Silver) (VVV-C1017)
• Burato 2.2" Single Wheel (Silver) (VVV-C1018)
• Burato 2.2" Beadlock Wheels w/ Center Caps (Black) (VVV-C1019)
• Burato 2.2" Single Wheel (Black) (VVV-C1020)

Metal Rod End Upgrades:

• M3 Short Straight Aluminum Rod Ends (Blue) (10) (Z-S1634)
• M3 Short Straight Aluminum Rod Ends (Black) (10) (Z-S1636)
