Rc4wd Scaler Gelande 2 1 /10 Scale Kit

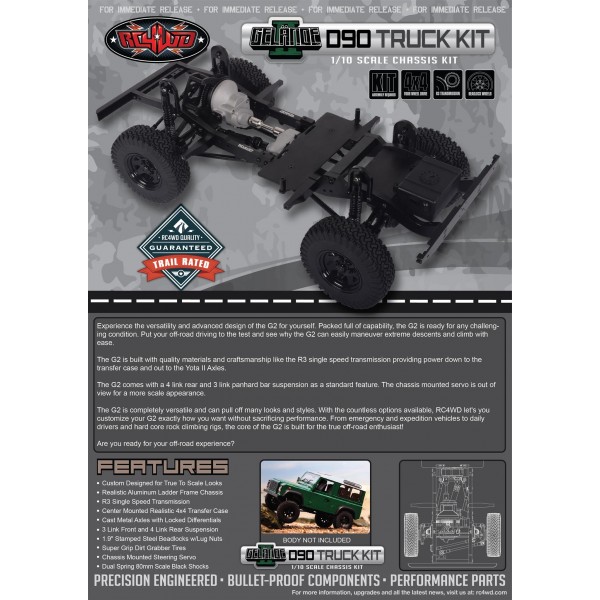

Experience the versatility and advanced design of the G2 for yourself. Packed full of capability, the G2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.

The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the Yota II Axles.

The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.

The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!

Are you ready for your off-road experience?

• Custom Designed for True To Scale Looks
• Realistic Aluminum Ladder Frame Chassis
• R3 Single Speed Transmission
• Center Mounted Realistic 4x4 Transfer Case
• Cast Metal Axles with Locked Differentials
• 3 Link Front and 4 Link Rear Suspension
• 1.9" Stamped Steel Beadlocks w/Lug Nuts
• Super Grip Dirt Grabber Tires
• Chassis Mounted Steering Servo
• Dual Spring 80mm Scale Black Shocks

Hammer Transfer Case

• Ratio: 1.47:1
• Gears: Wide .8 Mod Hardened Steel Gears
• Features: 8 Bearings, Cast Casing,
• Hardened Gears

R3 Single Speed Transmission

• Ratios: Pinion/Spur 14/64 = 4.57:1
• Internal Ratios: 1.78:1
• Gears - Wide Steel .8 Mod, Delrin Spur,
• Slipper Clutch

Cast Yota II Axles

• Ratio: 15/40 = 2.67:1
• Width at Hex 180.5mm

G2 Suspension

• Double Triangulated 4 Link Rear Suspension.
• 3 Link Front Suspension with Panhard Bar

Shock Absorbers

• Dual Spring 80mm Shocks - Can be Oil Filled

Wheels

• Type: 1.9'' 5 Lug Wagon Wheels
• Hub: Pin Type
• Width: 25mm
• Back Spacing: 11mm

Bumpers

• Machined Billet Aluminum, Lightweight

G2 Truck Dimensions

• Wheelbase: 275mm (10.8")
• Length: 440mm (17.3")
• Width: 220mm (8.7")
• Height: 140mm (5.5")
• Ground Clearance: 50mm (1.97")
• Final Drive Ratio: 31.9:1
• Weight: 1.79Kg / 3.95Lbs

DRIVETRAIN

The R3 Single Speed Transmission comes with a tough cast metal case and wider gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. It also features a sturdy billet aluminum motor mount for durability.

The G2 includes the Hammer Transfer Case. Packed with scale detail, the case features a cast metal exterior and heavy duty .8Mod Widened Gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the G2 drivetrain has the most durable gears RC4WD has to offer so the G2 will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, lower mounting points and a compact offset pumpkin in the front.

The Driveshafts for the G2 are designed with heavy duty metal uni-joints with tough plastic shafts for great driveline angles and durability on the trails.

SUSPENSION

The G2 Chassis features a molded fuel cell that doubles as an electronics storage box. There is also an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options!

The G2 includes a set of new RC4WD Dual Spring Shocks. An all new design, these ultimate scale shocks offer realistic looks and the ultimate in performance. Machined from billet aluminum with dual springs and totally rebuildable.

The G2 Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for the ultimate in strength.

The G2 includes a set of RC4WD Black Stamped Steel 1.9" internal Beadlock Wheels. Featuring a super tough black finish, aluminum internal locking ring and popular 5 lug design with separate hub.

Every G2 needs a tough set or rock grabbing tires and the included Dirt Grabbers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

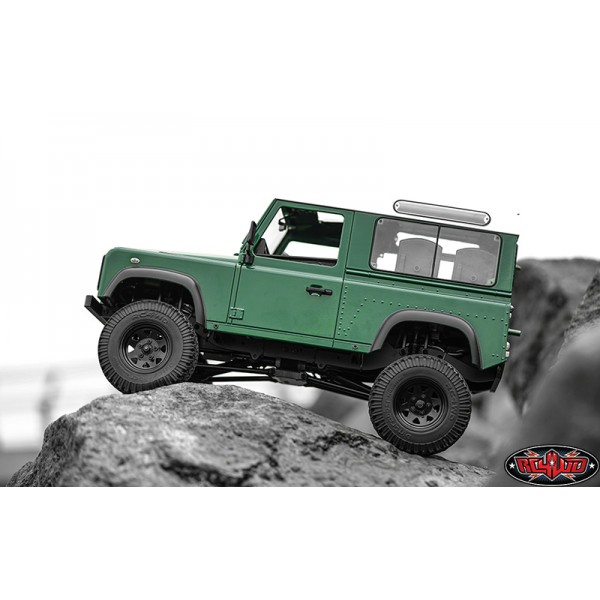

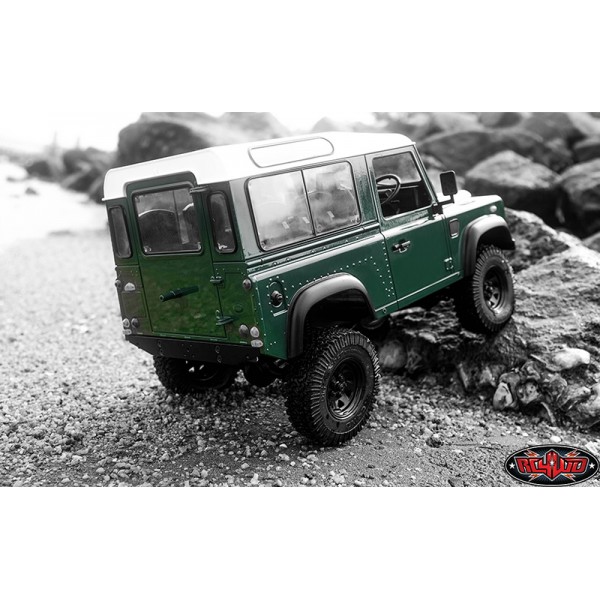

Shown installed with Gelande II D90 Hard Plastic Body Kit (after being painted green) for example (Not Included)

This chassis kit requires building time of approximately 2-3 hours depending on your experience level

Notes:

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.
• Spare Wheel and Tire not included
• Fits RC4WD ARB Front Winch Bar Bumper for Gelande II D90/D110 (Z-S0853) and RC4WD 1/10 Warn 9.5cti Winch (Z-S1079), but should work with RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168).

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

• Motor (35t, 45t, or 55t)
• Electronic Speed Controller "ESC" (Z-E0007)
• Radio and Receiver (2 channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 1x Standard Size Servo (Z-E0035)
• Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery
• Charger (Consult your battery guide) Chargers


• Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)

• Ultra Scale Hardened Steel Driveshaft "Ver 2" (80mm - 110mm / 3.15" - 4.33") (VVV-S0120)
• 1/10-1/14 D90 Small Clear Light (VVV-C0101)
• 1/10-1/14 D90 Large Clear Light (VVV-C0095)
• 1/10-1/14 D90 Small Yellow Light (Detailed) (VVV-C0099)
• 1/10-1/14 D90 Small Red Light (Detailed) (VVV-C0097)
• 1/10-1/14 D90 Large Red Light (Detailed) (VVV-C0091)
• RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
• RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
• Blade Snow Plow Mounting kit for Gelande 2 (Z-S1504)
• RC4WD Bivouac 1/10 M.O.A.B Camping Trailer w/Tent (Z-H0007)
• BigDog 1/10 Dual Axle Scale Boat Trailer (Z-H0006)
• Rear Ladder for Gelande II (D90/D110) (VVV-C0246)
• Rear Winch Bumper for Gelande II (D90/D110) (VVV-C0244)
• 1/10 Tire Holder (D90/D110) (VVV-C0249)
• Roof Rack w/Lights for Gelande II D90 (VVV-C0241)
• Roof Rack for Gelande II D90 (VVV-C0240)
• K44 Ultimate Scale Cast Front Axle (Z-A0101)
• T-Runner Classic 1.9'' Beadlock Wheels (Z-W0250)
• Winch (Winch options)
• XVD For Yota II Front Axle (Z-S0823)
• Spare 5 Lug Wagon Wheel (Z-Q0023)
• Spare Dirt Grabber Tire (Z-P0004)
• Pintle hook and Lunette Ring (Z-S0233)
• Scale Aisin/Yota Style Hubs (Z-S0196)
• Trition Transfer Case (1:1 ratio) (Z-U0029)
• Survivor Rear Bumper for Gelande (Z-S0698)
• Gelande Side Rock Sliders (Z-S0137)
• RC4WD Marlin Crawler Side Plastic Sliders for Trail Finder 2 (Z-S0596)
• Yota II Scale Diff Cover (Z-S0907)
• Tough Armor Rear Tire Carrier for Gelande 2 (Z-S1200)
• Tough Armor Rear Tire Holder for Gelande II (Z-S1357)
• Shock Hoops for Trail Finder 2 Chassis (Z-S0597)
• Gelande II Steering Guard (Z-S0824)
• Adventure Gelande II D90 Roof Rack (Z-C0024)
• Gelande II D90/D110 Window Protection Roll Cage (Z-S0958)
• Diamond Plate Accessory Pack for Gelande II D90 Body (Z-S0985)
• Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole (Z-S0826)
• Ultra Scale Hardened Steel Driveshaft (46mm - 50mm / 1.81" - 1.96") 5mm (VVV-S0006)
• K44 Scale Rear Axle (Z-A0049)
• Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
• Heavy Duty Metal Servo Arm 24t Hitec (Z-S0820)
