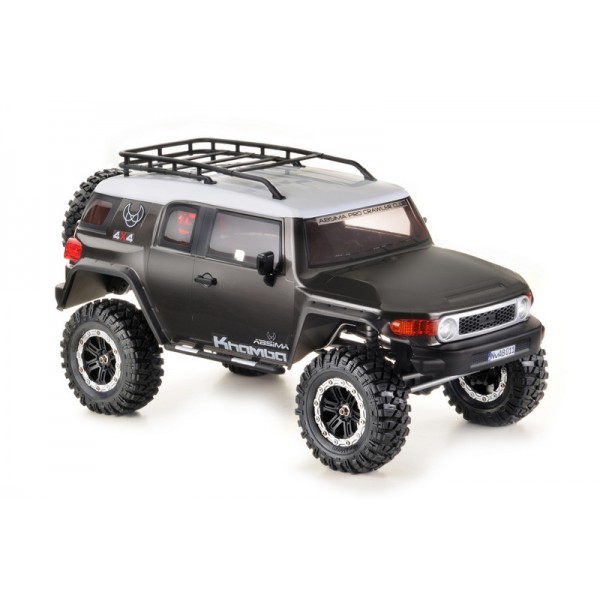

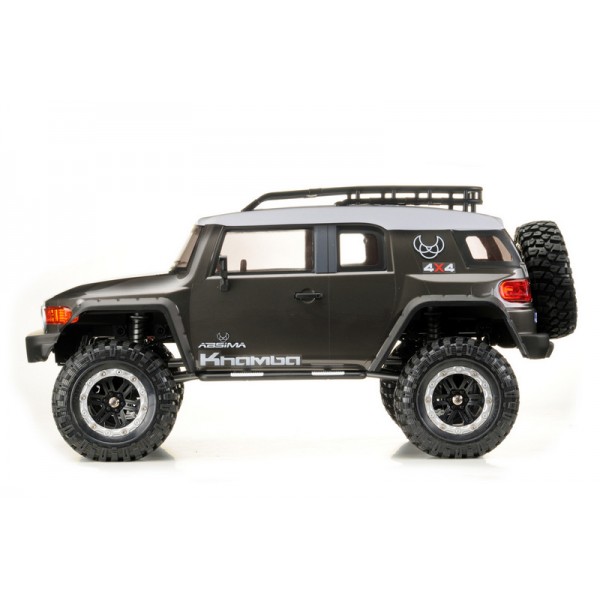

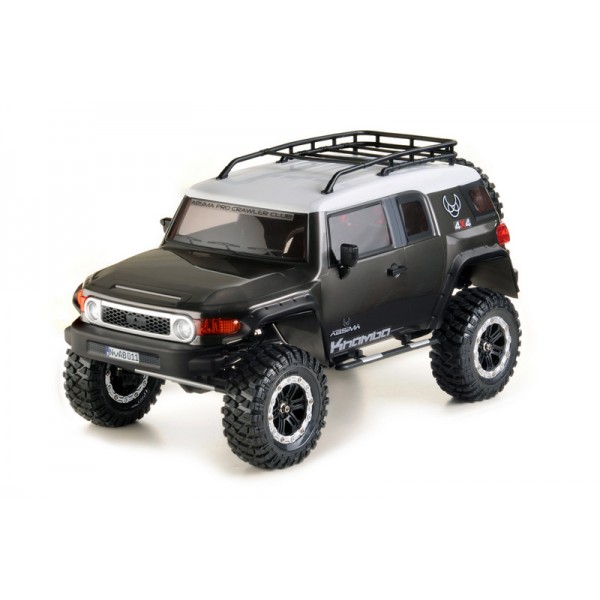

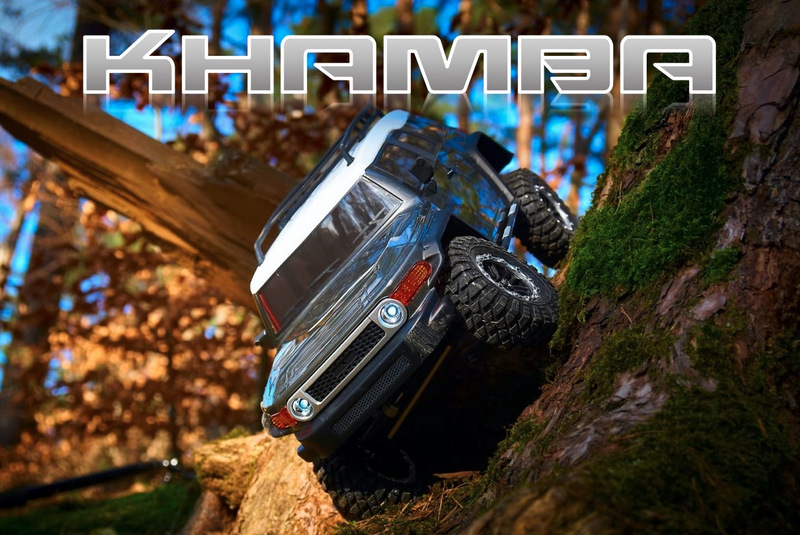

Absima Khamba Scaler 4x4 1 /10 RTR Gray

The CR3.4 KHAMBA Scale Crawler is a high-end car packed with unusual technical features for an "out of the box" vehicle.

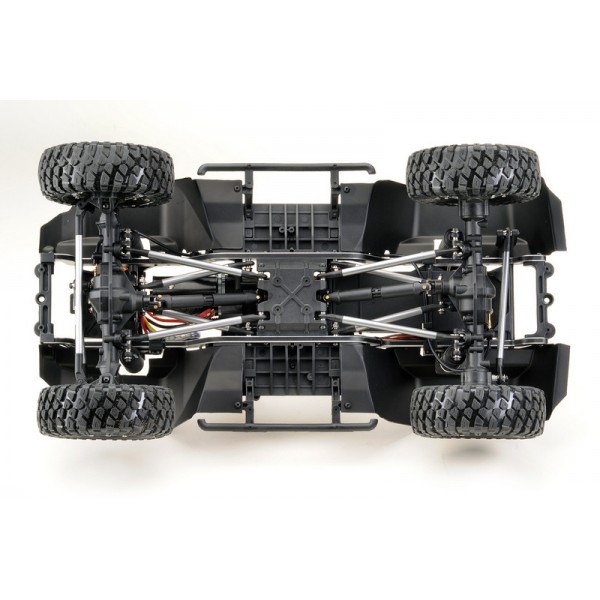

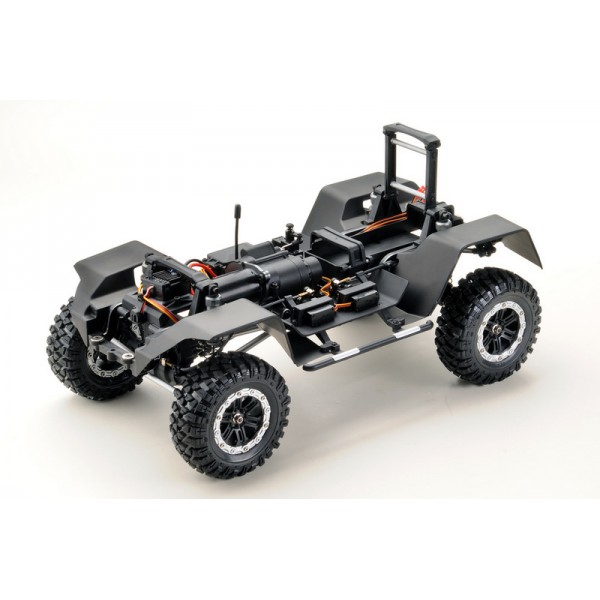

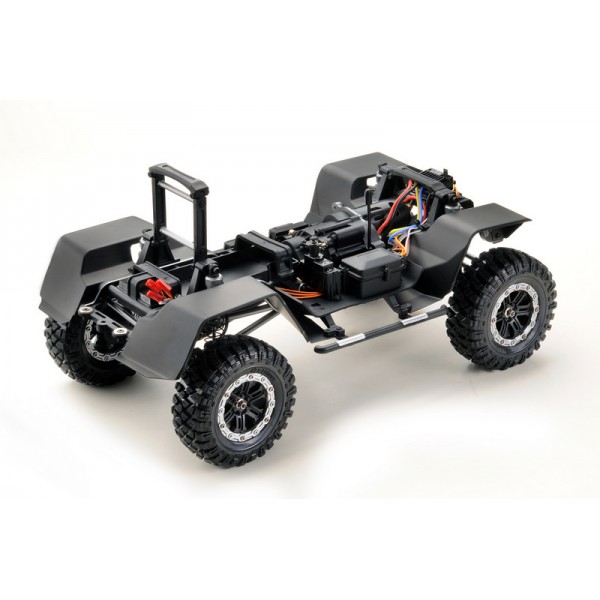

 A realistic design 5mm CNC machined aluminum frame with a heavy duty aluminum 4-link suspension system
 Oil-filled shocks with 3mm piston rods provide silky smooth and realistic response
 Portal axles not only offer a greater distance from the differential housing to the ground than conventional axles, they also have another positive feature. With conventional tracks, the torque applies so much force that the vehicle jumps over the obstacle. The portal axle design reduces the gear ratio to the wheels and virtually eliminates torque peaks from the transmission. The overall reduction ratio of the axle drive is more than double that of non-gantry models to ensure smooth operation.
 A unique hydraulic steering damper design combined with a waterproof digital steering servo with 9kg steering force and metal gears. An optional rigid aluminum steering bar is included.
 Drive shafts made of hardened steel and a 45.8 ° steering angle offer the best possibilities to tackle any terrain.
 The CR3.4 KHAMBA is equipped with a 2-speed transmission to conquer difficult terrain and also quickly take you to the next obstacle. Just press a button on the radio and switch from 1 / 37.1 (low speed) to 1 / 15.1 (high speed) gear ratio
 Lock and unlock the front and rear differential independently for maximum performance on the track, all remotely controlled by your transmitter and 2 x 0.9kg mini servos. Leave the differential unlocked for a smooth ride at high speed. On technical routes you can lock the front differential, rear differential or even both to tackle extreme terrain.
 The aluminum engine mount and an adjustable slipper clutch provide additional protection in extreme conditions.
   Differentials and transmission parts in hardened steel
 Drive concept - powered by HOBBYWING contains 60A waterproof brushed speed controller and 550 motor. Set jumper to set battery type (NiMH / LiPo) and drive mode (forward / reverse / brake)
 9kg digital steering servo and 3x 17g mini servos for gear drive and differential lock / unlock - all servos are waterproof
 The 2.4 GHz 6-channel radio system gives you total control of your vehicle: lighting system, 2-speed gearbox, diff. locks or maximum speed adjustment

 Headlights

•     Rear lights
•     Turn the lights (while steering)
•     Emergency warning lights (front and rear)
•     Brake lights

•     All these functions are combined in the 6-channel receiver. Do you want to use another 6-channel radio without losing the lighting function? No problem!
•     You will find a description of how to do it in the manual.
•      Elegant 2.2 "wheels with beadlock rings and 12-bolt design
•     Super soft tires with realistic sidewall flex for maximum traction on rocks
•     Wheel dimensions: 40x115 mm
•      Rock skates and molded internal fender help protect the frame from dirt and damage
•      Body with screw fixing and magnet and "easy to open" battery holder

1.2mm PC shell with many attachments such as

•     Rearview mirrors
•     Roof rack
•     Handles

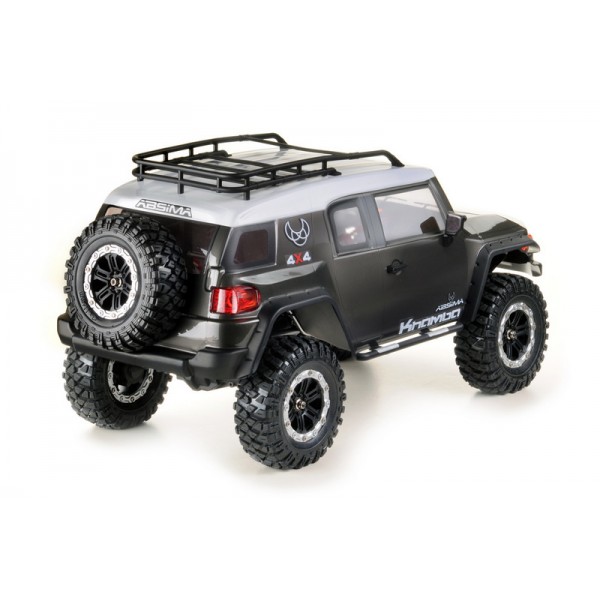

•     Full-size spare wheel with support at the rear

VEHICLE SPECS:

• Length: 530mm
• Width: 246mm
• Height: 255mm
• Ground Clearance: 53mm
• Wheelbase: 313mm
• Weight: 2890g
• Approach Angle: 60 °
• Departure Angle: 45 °
• Steering Angle: 45.8 °
• Wheels: 12mm Hex Beadlock 2.2 "
• Tires: 40x115mm
• Shock Length: 90mm
• Shock Oil Viscosity: 500cps
• Transmission: 2-speed (Hi 1 / 15.1 / Lo 1 / 37.1), Remote shifting
• Gear Pitch: Module 0.8 / 32dp - Pinion 16T / Spur Gear 44T
• Drive System: 4WD Shaft Drive


ELECTRONIC SPECS:

• ESC: 60A Brushed / Waterproof with T-plug connector (BEC 6V @ 3A, NiMh / LiPo suitable)
• Motor: 550 high-torque brushed motor 21T
• Steering Servo: 9kg MG, digital and waterproof
• Mini Servos: 0.9kg, waterproof
• Radio System: 6-channel 2.4GHz radio system (4.8 - 12.0V LiPo suitable)


INCLUDES:

• Absima CR3.4 KHAMBA RTR Model
• 6-channel 2.4GHz Radio System
• Sticker Sheet
• Little tool set with a small cross wrench and 3 hex tools
• Manual (DE / ENG / FR)


RECOMMENDED ACCESSORIES:

• The CR3.4 KHAMBA accepts a wide variety of LiPo batteries and NiMH batteries
• A charger is required which is dependent on the type of car battery
• 4x AA mignon cells are required for the radio.
