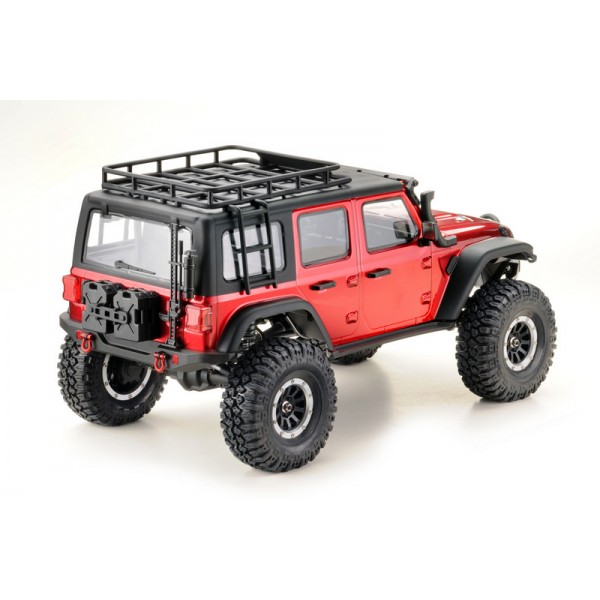

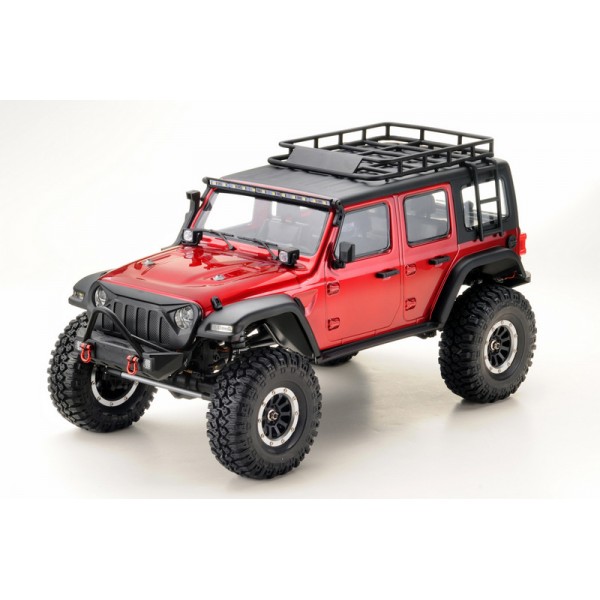

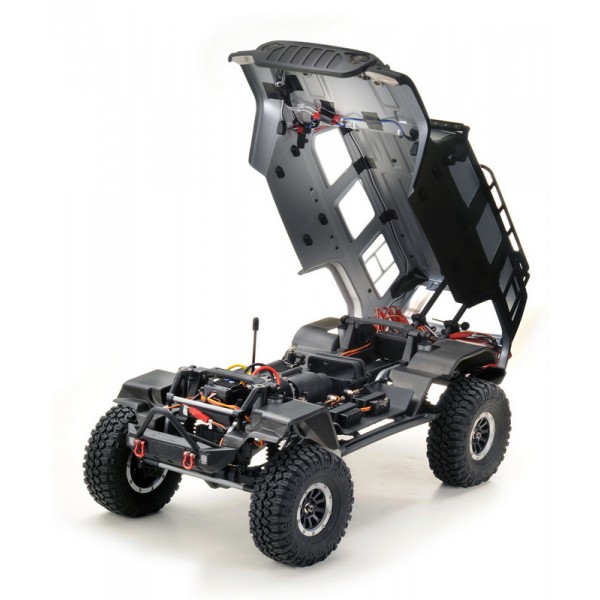

Absima Sherpa PRO 1 :10 Scale 4x4 RTR RC Crawler

The CR3.4 SHERPA PRO Scale Crawler is a high-end car loaded with technical features which are unusual for a “ready-to-run” vehicle. The Absima Sherpa is a highly competitive professional car that includes many insane performance features.

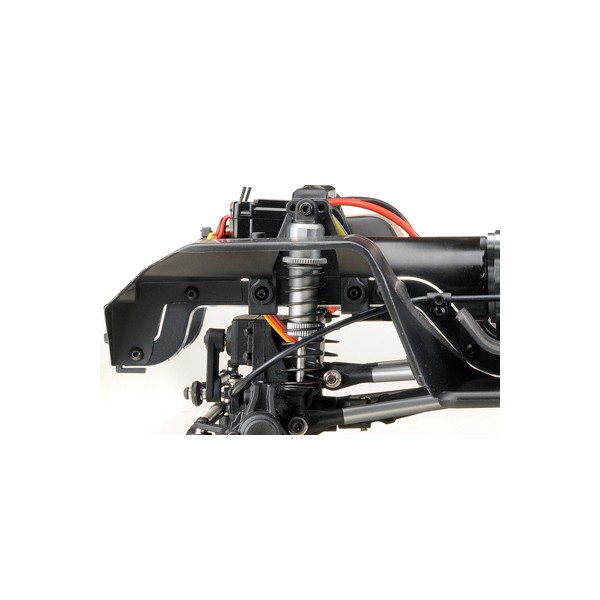

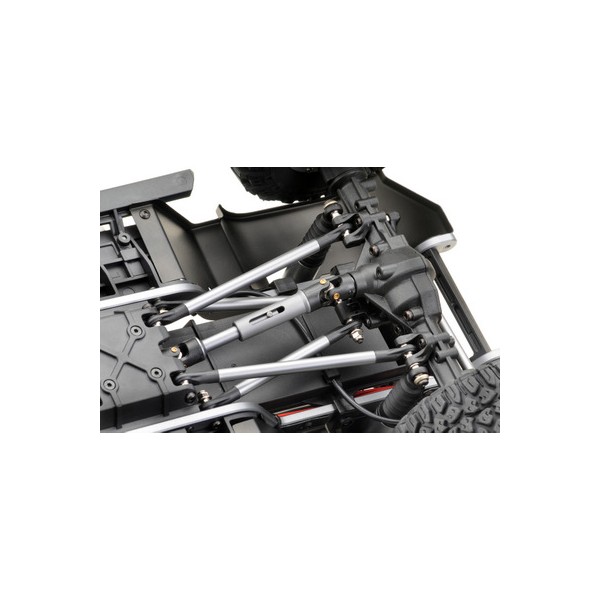

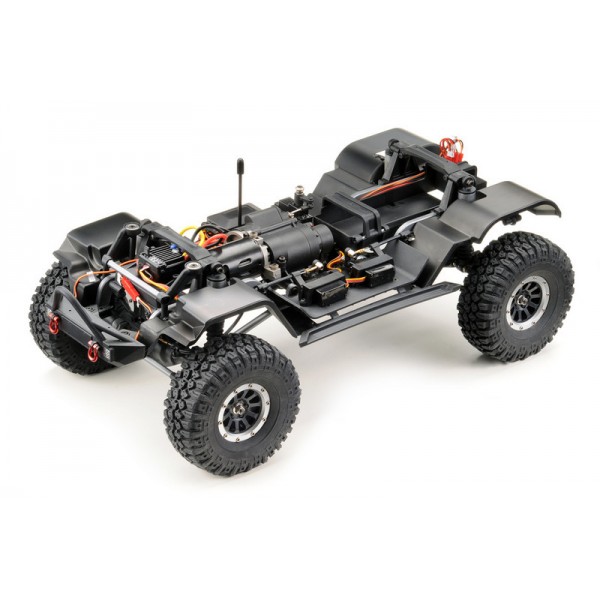

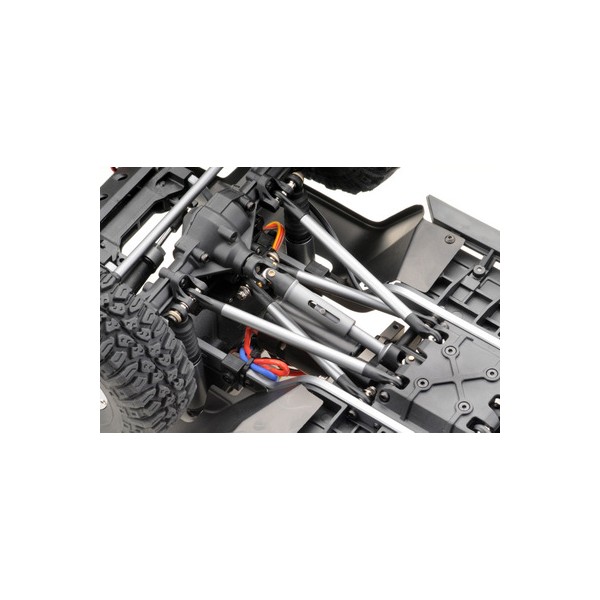

• A realistic designed 5mm CNC machined aluminum frame with a heavy duty aluminum 4-link suspension system

• A realistic designed 5mm CNC machined aluminum frame with a heavy duty aluminum 4-link suspension system

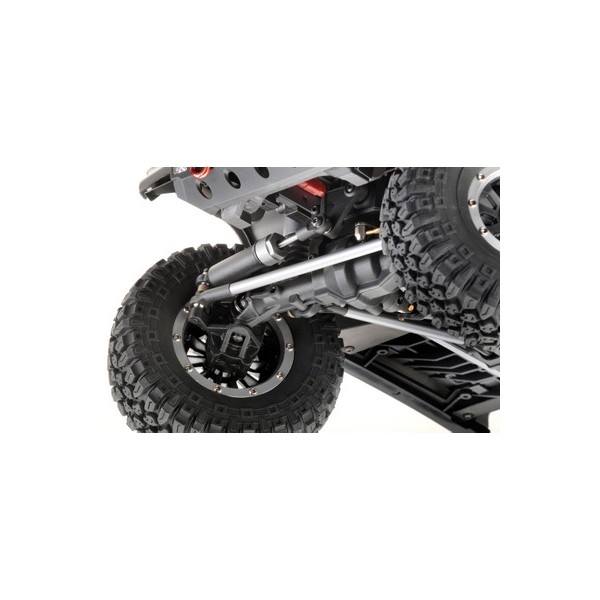

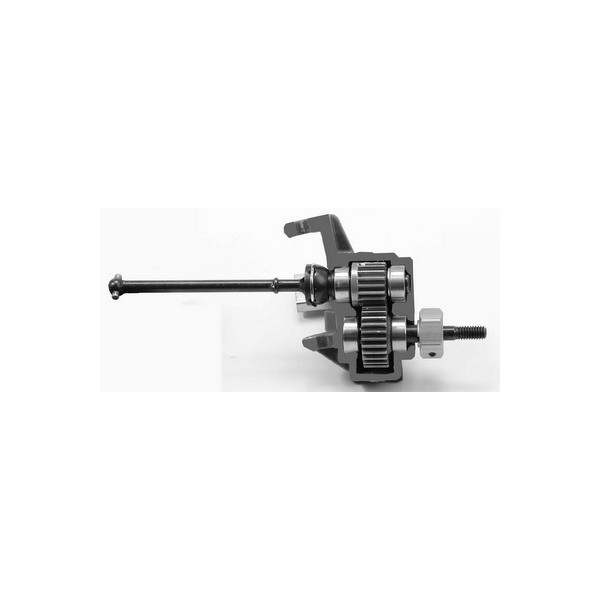

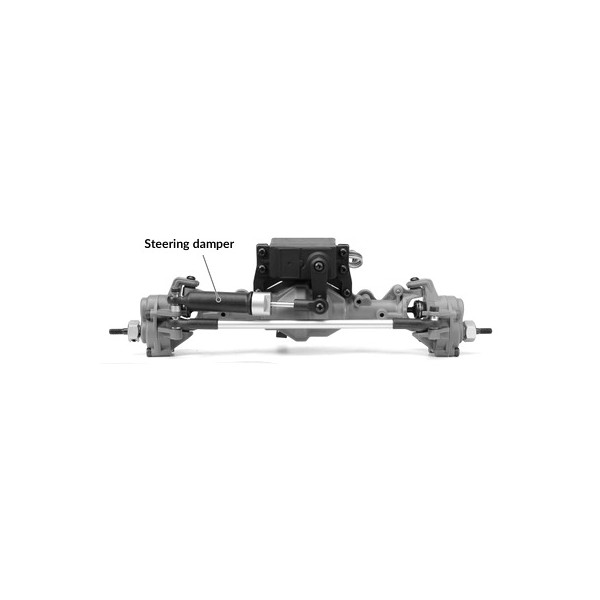

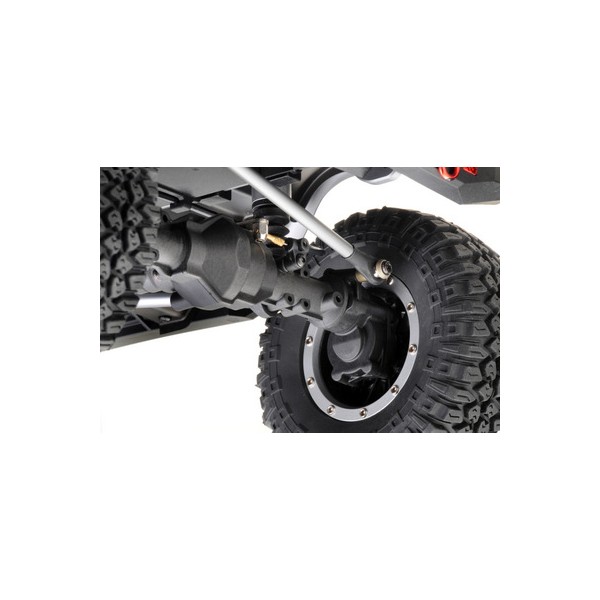

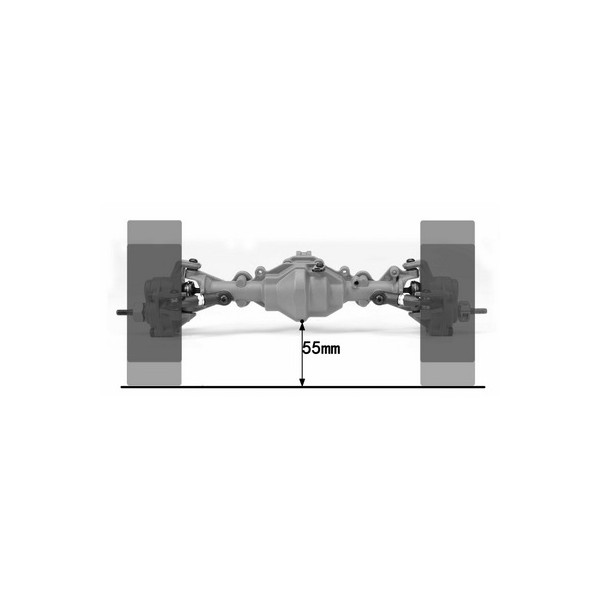

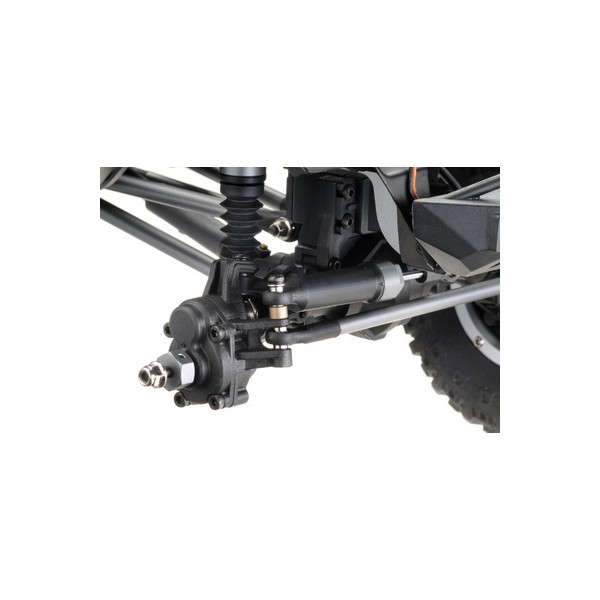

• Portal axles not only offer a greater distance from the differential housing to the ground than conventional axles, they also have another positive feature. With conventional crawlers, the torque applies so much force that the vehicle jumps over the obstacle. The design of the portal axles reduces the gear ratio at the wheels and virtually eliminates the torque surges of the drive. The overall reduction ratio of the axle drive is more than twice that of non-portal designs to insure a smooth run.

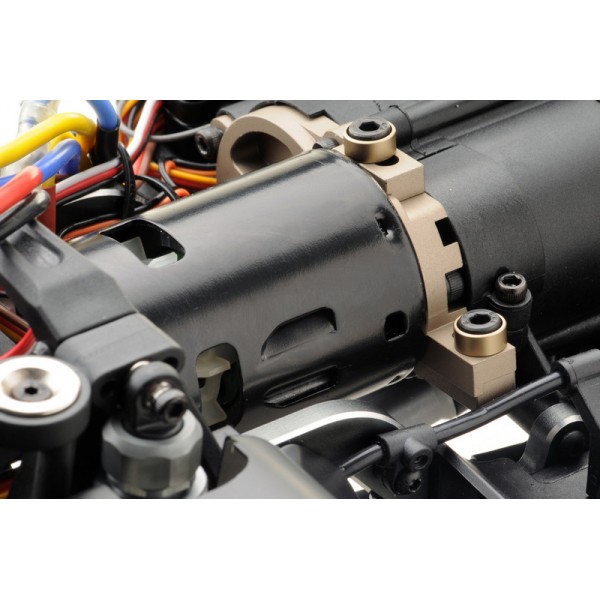

• The CR3.4 SHERPA features a 2-speed transmission to conquer tough terrain and bring you also fast to the next obstacle. Just push a button on the radio and change from transmission ratio 1/37.1 (low speed) to 1/15.1 (high speed)

• Lock and unlock the front and rear differential independently to get the maximum performance on the track - all controlled remotly from your tranmitter and 2x 0,9kg mini servos. Leave the differential unlocked for a smooth hadling at high speed. On tecnical trails you can lock the front differential, the rear differential or even both to handle extreme terrain.

• The drive concept - powered by HOBBYWING contains a 60A waterproof brushed speed controller and a 550 motor. Set the jumper to setup your battery type (NiMH / LiPo) and drive mode ( forward / reverse / brake)

9kg digital steering servo and 3x 17g mini servos for gear transmission and differential lock/unlock - all servos are waterproof

The 2.4 GHz 6-channel radio system gives you total control over your vehicle - wether lighting system, 2-speed gear, diff. locks or top speed adjustment

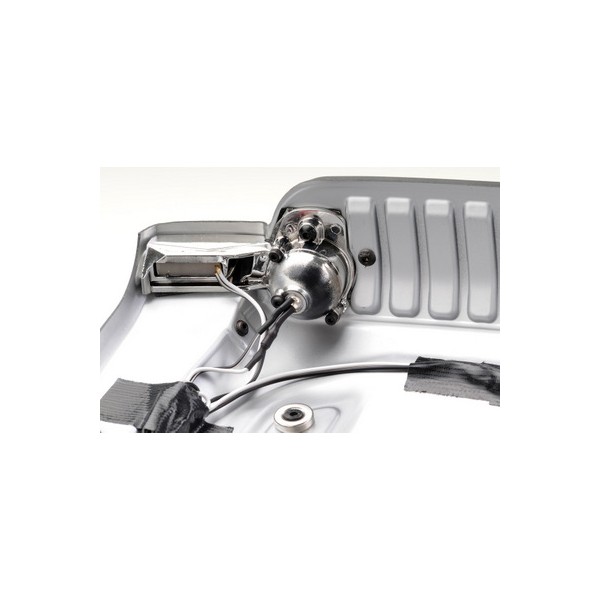

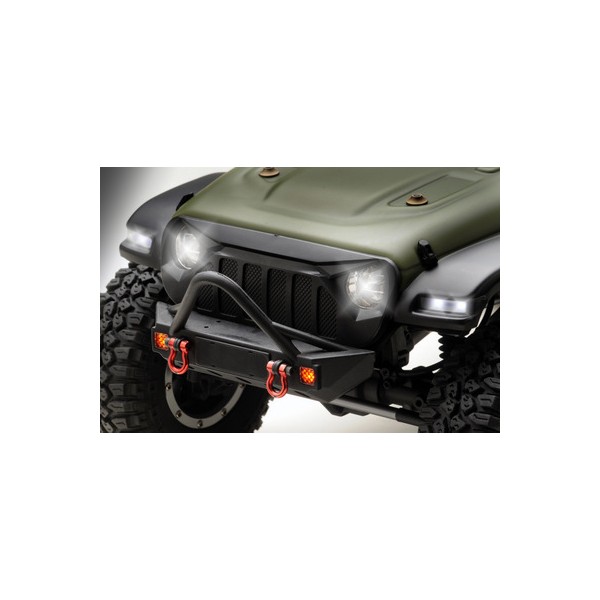

1. Evil eye hadlights
2. Rear lights
3. Turn lights (while steering)
4. Search lights
5. Marker lights
6. Hazard warning lights (front & rear)
7. Brake lights

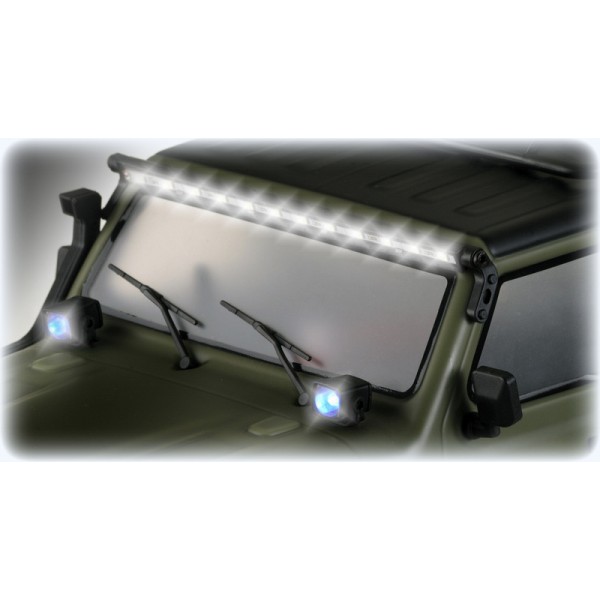

8. Roof lightbar

• All these functions are combined in the 6-channel receiver. You want to use another 6-channel radio without loosing the lighting function? No problem!
• A description how to do you will find in the manual.

 CAR SPECS:

• Length: 542mm
• Width: 250mm
• Height: 240mm
• Ground clearance: 53mm
• Wheelbase: 313mm
• Weight: 2970g
• Approach angle: 60°
• Descent angle: 45°
• Steering angle max: 45.8°
• Rims: 12mm Hex Beadlock 1.9" 32x69mm
• Wheels: 43x120mm
• Shock absorber length: 90mm
• Viscosity shock absorber oil: 500cps
• Gear ratio: 2-speed (Hi 1/15.1 / Lo 1/37.1), remote controlled
• Transmission: module 0.8/32dp - pinion 16Z / main gear 44T
• Drive system: 4WD


ELECTRONICS SPECS:

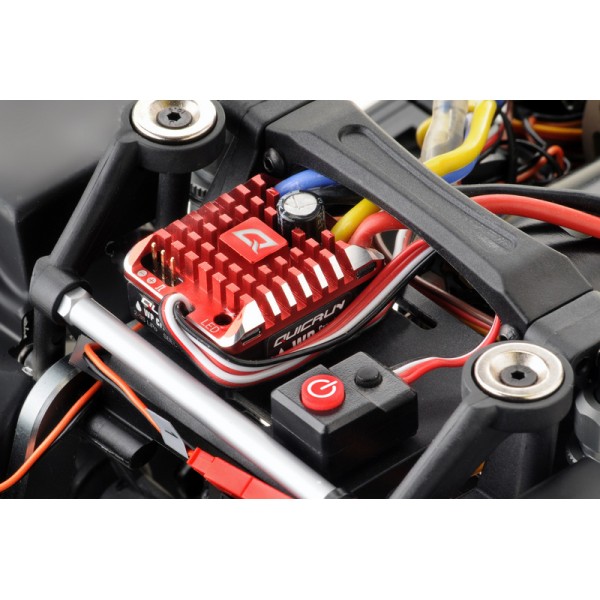

• ESC: Hobbywing QuicRun 80A brushed/waterproof with XT60-connector (BEC 6V@3A, 7.2V NiMh & 2S LiPo batteries can be used).
• Motor: 755 high-torque brushed motor 15x5T / 8,800 rpm
• Steering servo: 25kg metal gear, digital and waterproof
• Mini servos: 0.9kg, waterproof
• Radio system: 6-channel 2.4GHz remote control (4.8 - 12.0V LiPo capable)

INCLUDED IN DELIVERY:

• Absima CR3.4 SHERPA PRO RTR Model
• 6-channel 2.4GHz remote control system
• Decal sheet
• Instruction manual (DE/EN/FR)


REQUIRED ACCESSORIES:

• The CR3.4 Sherpa allows you to use a variety of LiPo batteries and NiMH batteries
• Different chargers - depending on the selected battery type are available
• 4x AA AA cells are needed for the remote control
• For wheel mounting a 7.0mm wheel nut wrench (wheels are not mounted when shipped)
