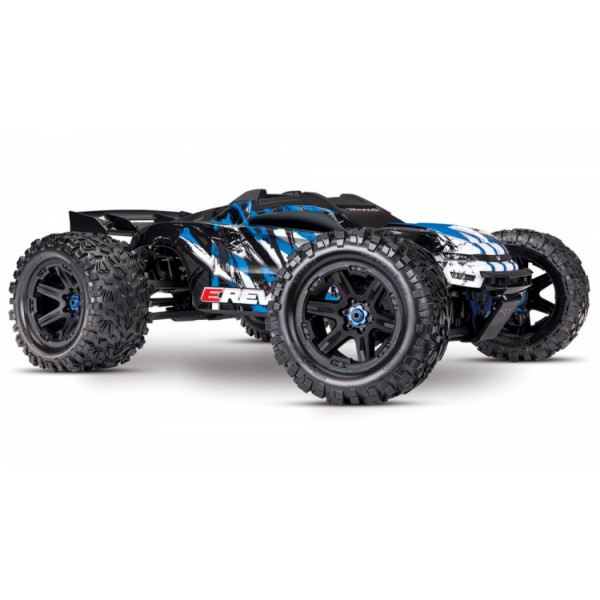

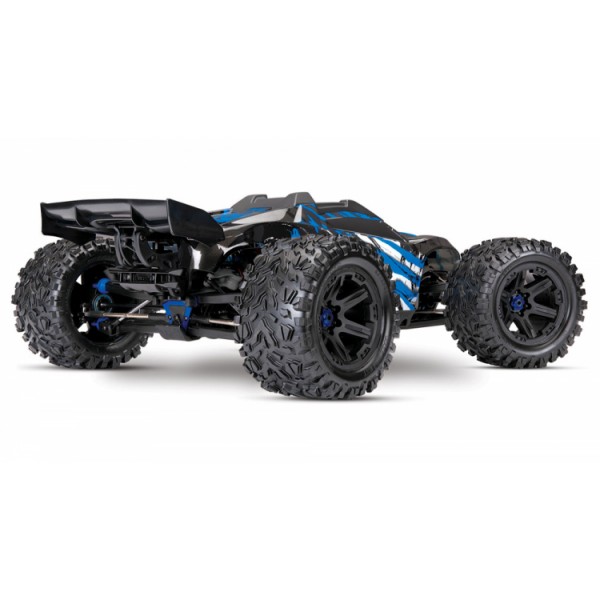

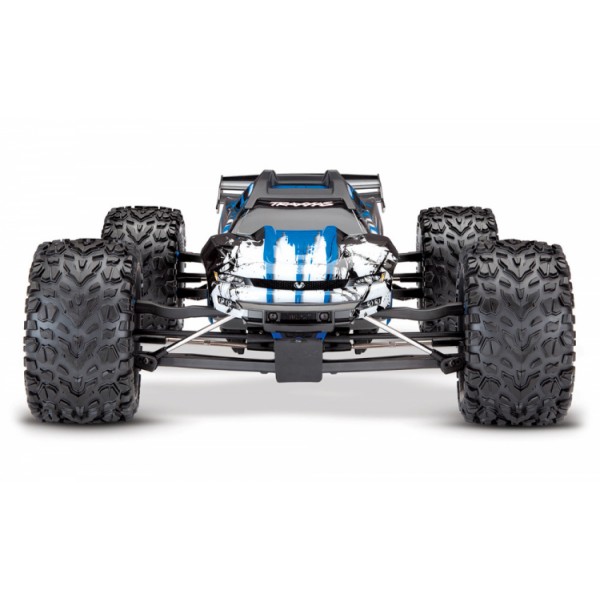

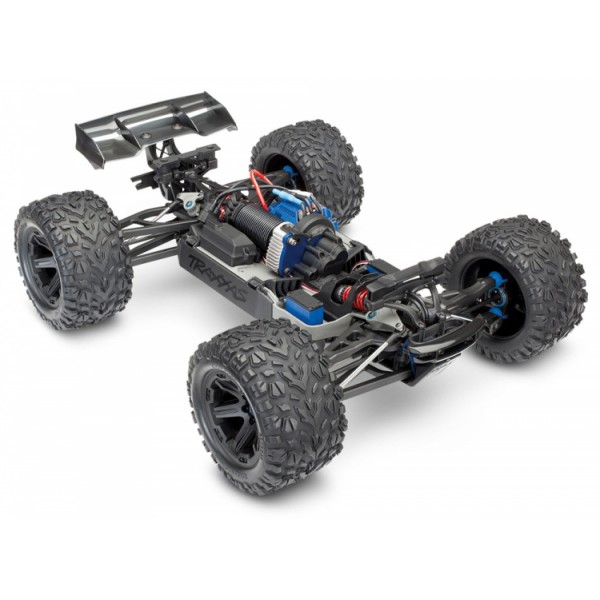

Traxxas E-REVO Brushless 4WD TQi TSM w/o Batt /Charger Blue

Traxxas New E-REVO - BLUE

The new E-Revo retains all the original ground-breaking, award-winning design, but fortifies them with brutal strength and an intense attitude to deliver what is simply is the ultimate 6s brushless monster. Get yourself ready for a new level of speed, strength and power.

E-Revo Truck Specs:

• Length: 585 mm
• Width: 465 mm
• Ground Clearance: 73 mm
• Weight: 5.08 kg
• Height: 221 mm
• Wheelbase: 380 mm
• Front Shock Length: 87 mm
• Rear Shock Length: 87 mm
• Tires (pre-glued): 162 x 88 mm
• Wheels: 3.8 inches (97 mm)
• Speed Control: Velineon® VXL-6s
• Motor (electric): 2200kV
• Transmission: Single speed
• Gear Pitch: 1.0 Metric pitch (Mod-1)
• Final Drive Ratio: 20.49:1
• Differential Type: Sealed, 4-gear
• Center Differential Type: Sealed, 4-gear (20M weight oil)
• Chassis Structure / Material: Composite tub
• Brake Type: Electronic
• Drive System: Shaft driven 4WD
• Steering: Bellcrank
• Radio System: TQi™ 2-channel transmitter with 6533 TSM receiver
• Servo: Dual 2075
• Top Speed (optional gearing): 112+ kph
• Skill Level: 3
• Battery Compartment: 156 x 50 x 29 mm

Motor Specs:

• Type: 2200kV Sensorless brushless
• Weight: 406 g
• Length: 75.5 mm
• Diameter: 41.8 mm
• Connector Type: Traxxas 6.5 mm bullet connectors

ESC Specs:

• Input Voltage (cells): 4s–6s LiPo (max: 25.2 volts)
• Case Size: 58 x 72 x 46 mm
• Weight: 207 g
• On-Resistance (@Trans) - Fwd/Rev: 0.0003 Ohms per phase
• Reverse Delay: Yes, with lockout
• Low Voltage Detection (LVD): Yes, programmable

What’s in the box:

• E-Revo with VXL-6s ESC and 2200kV motor
• Quick Start Guide
• TQi™ 2.4GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries: E-Revo requires dual 2s LiPo batteries or dual 3s LiPo batteries. See full list of batteries
• Charger: Traxxas EZ-Peak Live charger (2971) is recommended for easy and fast charging performance
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
