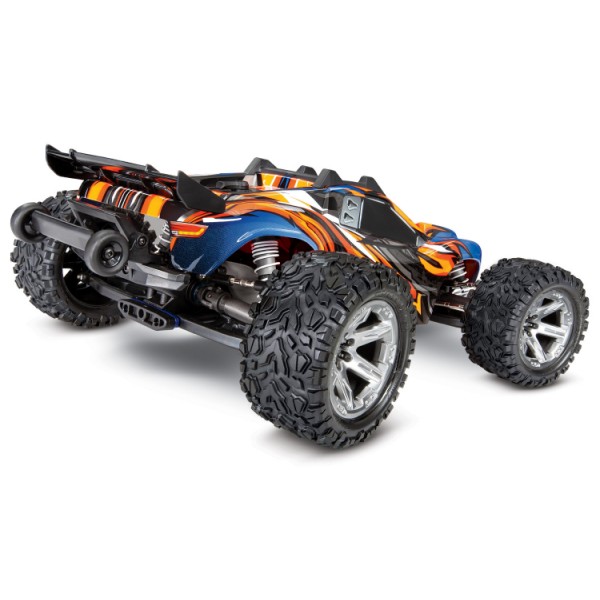

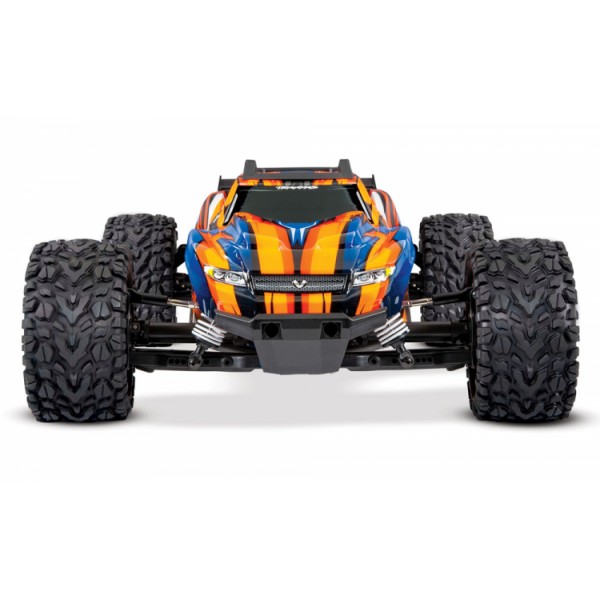

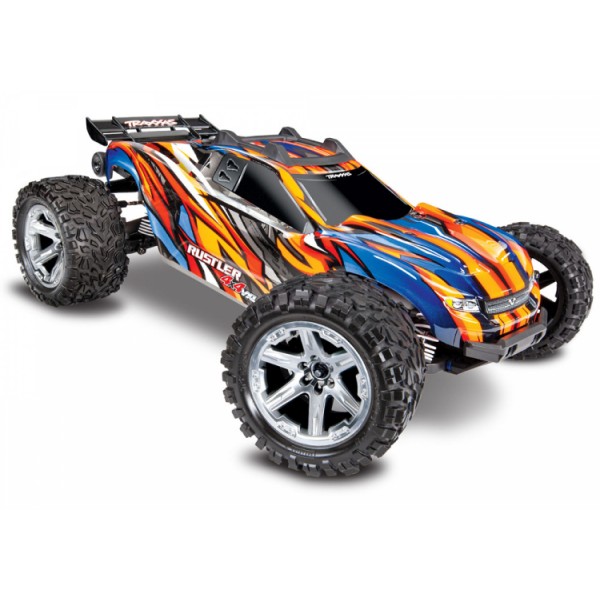

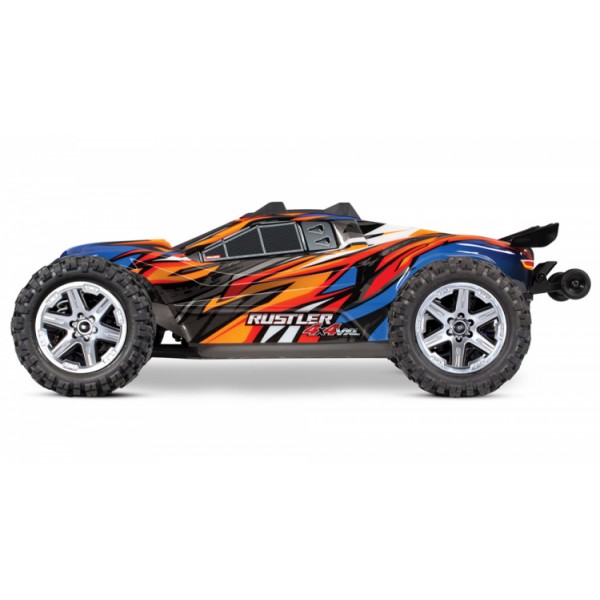

Traxxas Rustler 4x4 VXL Brushless RTR Orange

The all-new Rustler® 4X4 VXL is a hard-charging wheelie machine that captures the speed and classic style of the number-one-selling Rustler and injects it with brutal 4-wheel drive performance, increased durability, and even more fun! Bury the throttle and the Rustler 4X4 VXL launches its front wheels skyward as it shreds the ground underneath. Beneath the sleek clipless body, the heavy-duty driveline delivers extreme Velineon® brushless horsepower. The larger Talon™ EXT wheels and tires provide versatility and grip for any terrain, from backyard trails to concrete skate parks. Rustler 4X4 VXL destroys convention to become the new performance and fun standard for 4X4 stadium trucks!

RUSTLER 4X4 VXL DATA

• Length: 477mm
• Width: 329mm
• Ground Clearance: 27mm
• Weight: 2.32 kg
• Height: 161mm
• Wheelbase: 295mm
• Front Shock Length: Long
• Rear Shock Length: XX-Long
• Tires (pre-glued): 4.5” x 2.3” (114mm x 58mm) Talon™ EXT
• Wheels: 2.8” (71mm) Black Chrome  (1/2-offset)
• Speed Control: VXL-3s™
• Motor (electric): Velineon® 3500 Brushless
• Transmission: Single speed
• Overall Drive Ratio: 13.97:1
• Differentials: Sealed, 2-gear
• Chassis Structure / Material: Composite tub
• Brake Type: Electronic
• Drive System: Shaft driven 4WD
• Steering: Bellcrank with integrated servo saver
• Radio System: TQi™ 2.4GHz 2-ch transmitter with #6533 TSM receiver
• Servo: Waterproof #2075
• Top Speed (optional gearing): 104+ kph with 3-cell LiPo and 20/54 gearing
• Skill Level: 1
• Battery Compartment: 143 x 50 x 25mm (42mm with optional battery strap (included)

Motor Specs:

• Type: Velineon 3500kV sensorless brushless
• Weight: 262g
• Length: 56mm
• Diameter: 36mm
• Connector Type: 3.5mm bullet

ESC Specs:

• Type: Velineon VXL-3s WP
• Input Voltage (cells): 4.8 – 11.1V (4–9 cells NiMH), 2S–3S LiPo
• Case Size: 56 x 39 x 33mm
• Weight: 109g
• BEC Voltage: 6V
• Reverse Delay: Yes, with lockout
• Thermal Protection: Two-stage thermal shutdown
• Ports: Auxiliary fan

What’s In The Box:

• Rustler 4X4 VXL with Velineon® VXL-3s and 3500kV motor
• Quick Start Guide
• TQi™ 2.4GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries: Rustler 4X4 VXL requires a single NiMH or LiPo battery. See full list of batteries
• Charger: Traxxas EZ-Peak Live charger (#2971) is recommended for easy and fast charging performance
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter
