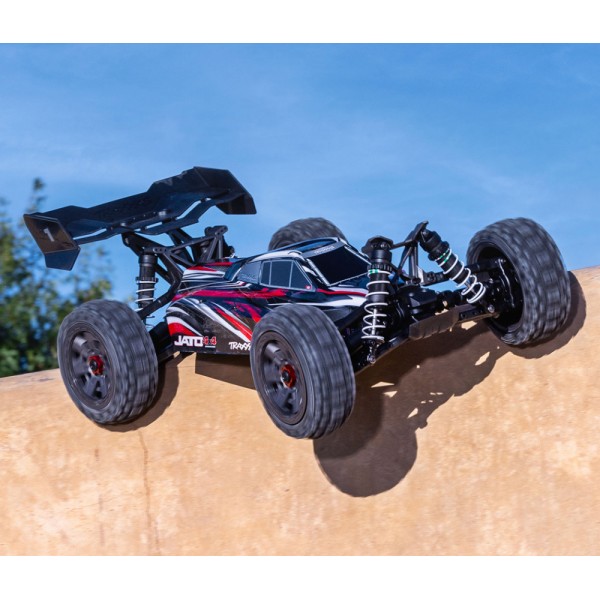

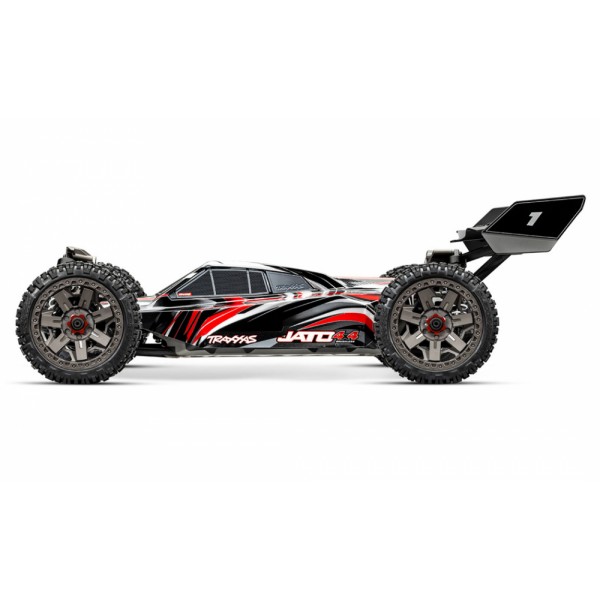

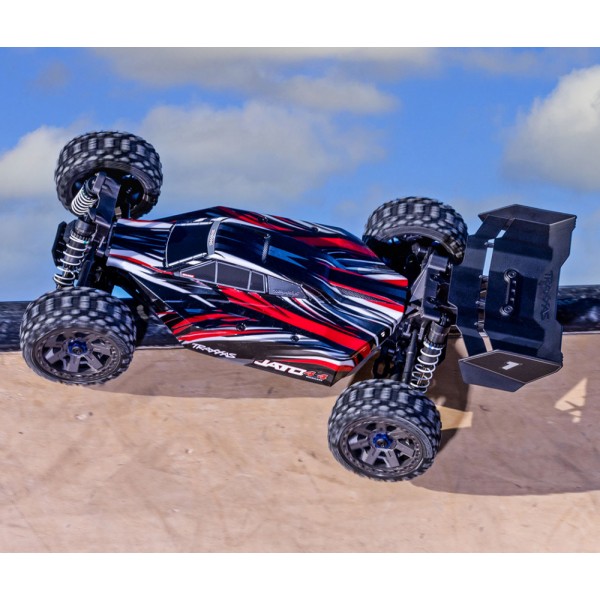

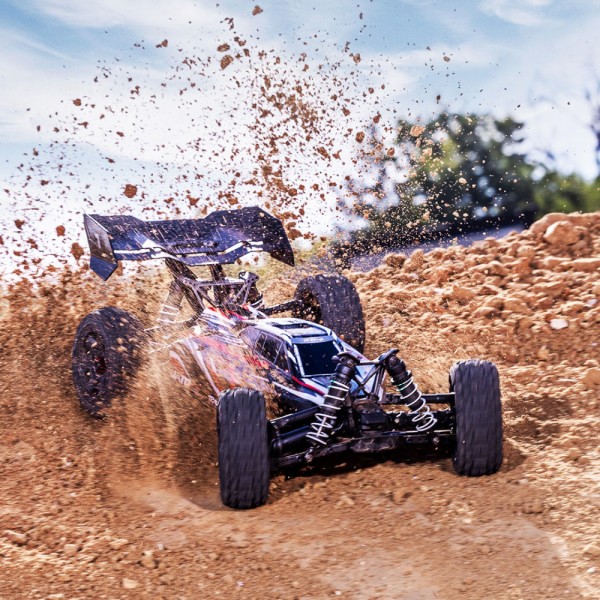

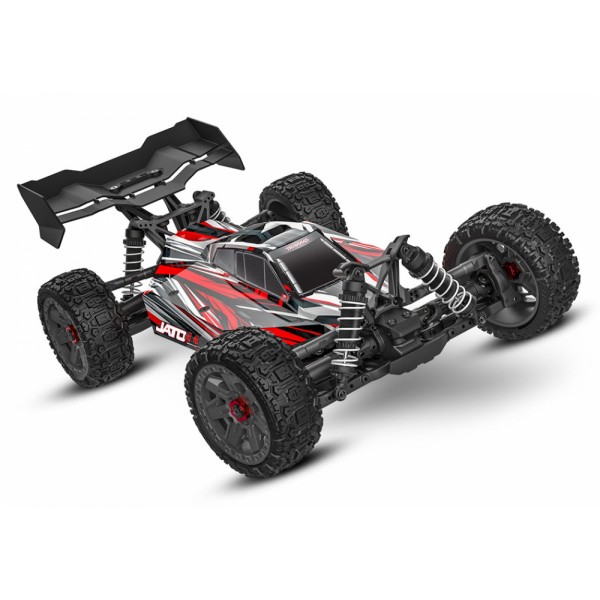

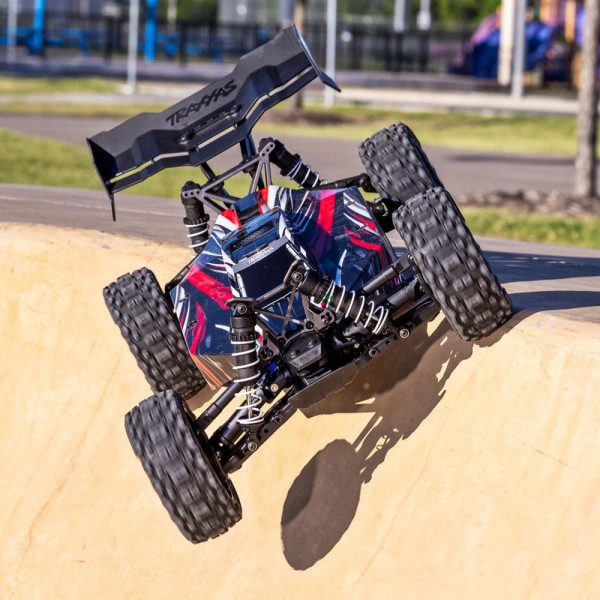

Traxxas Jato 4x4 BL-2S 1 /8 brushless Buggy RTR Red

Race-Inspired Handling. Built Traxxas Tough.
Jato® 4X4 delivers agility and toughness in a platform that is both fun and rewarding to drive. The low-CG chassis uses performance-optimized suspension geometry and optimal weight distribution to deliver quick turn-in and precise handling dynamics. As a result, Jato 4X4 handles with the precision of a race buggy and the durability of the Traxxas' toughest off-road trucks.

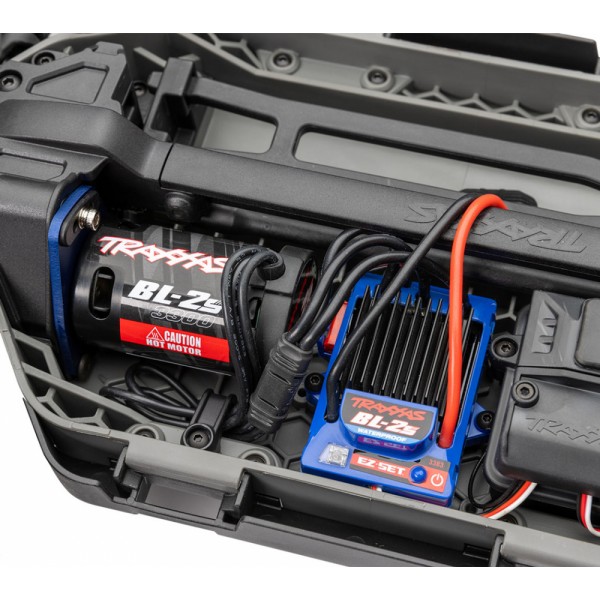

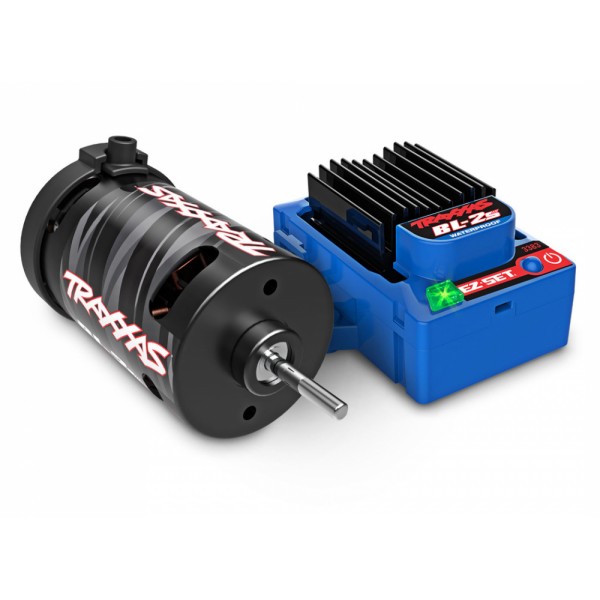

BL-2s Brushless System
The BL-2s™ brushless power system ramps up the fun with up to 60% more speed and faster acceleration than comparable brushed power systems. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Jato 4X4 to run battery after battery for all-day fun. With no brushes to wear out, the BL-2s 3300 Kv is long-lasting and requires virtually no maintenance.

Next-Level Toughness

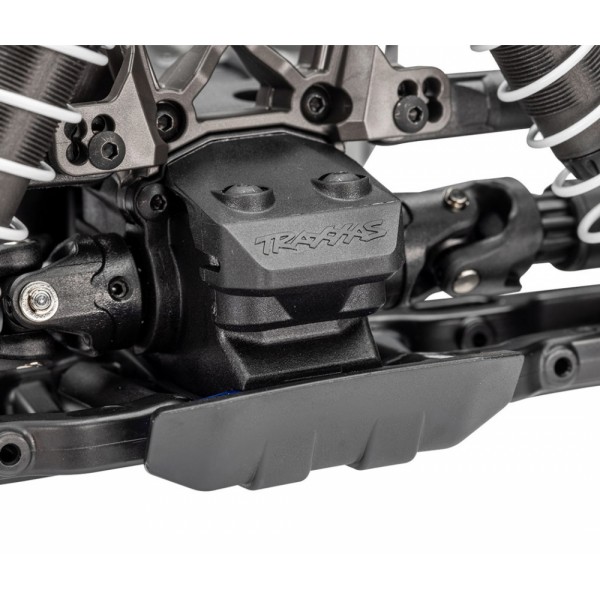

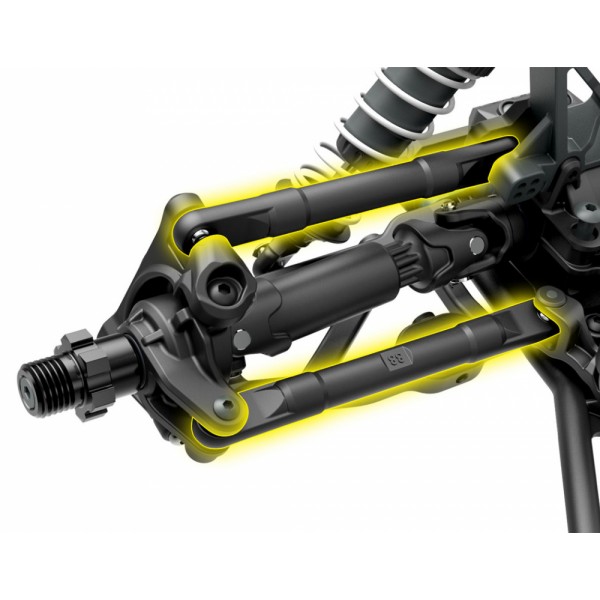

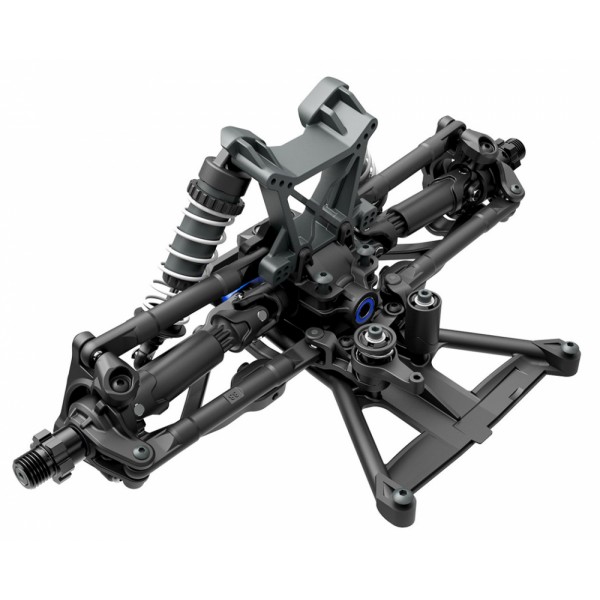

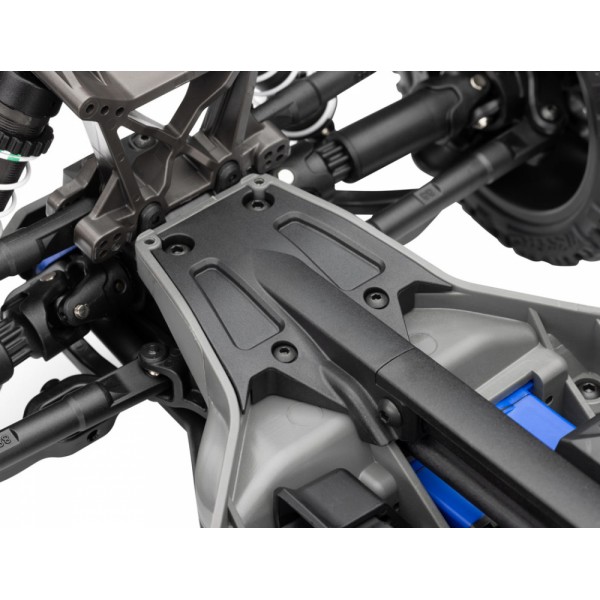

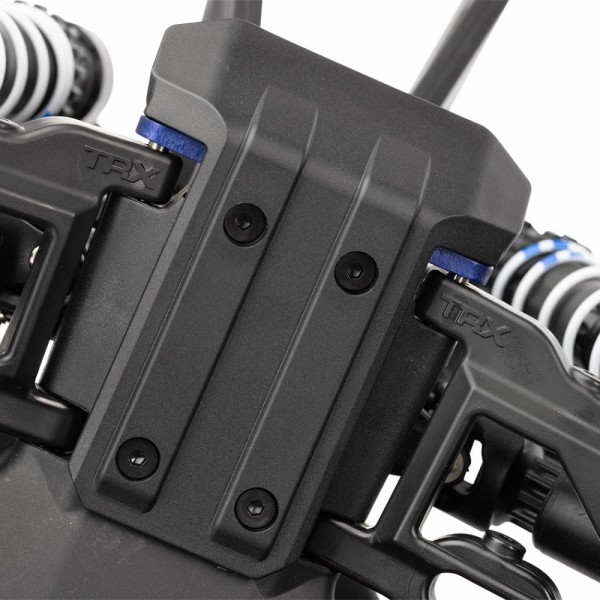

Factory-installed Extreme Heavy Duty Upgrade components give Jato 4X4 the superior strength and durability normally associated with Traxxas’ toughest off-road trucks. An ultra-rigid T-Bar reinforces the chassis with Extreme HD shock towers to support the suspension. Huge Maxx-Duty® driveshafts transfer every ounce of the motor’s torque to the wheels with unsurpassed strength.

Track-Ready Handling

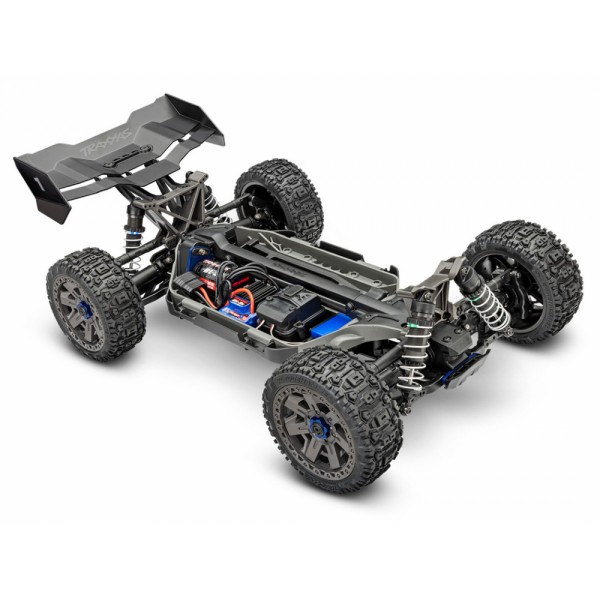

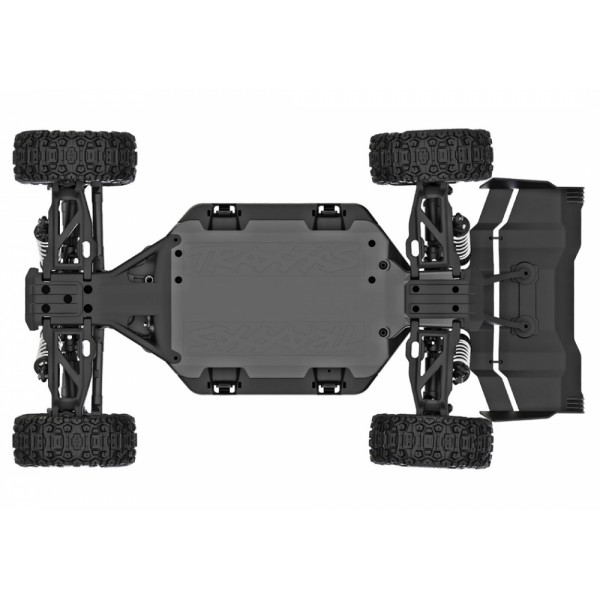

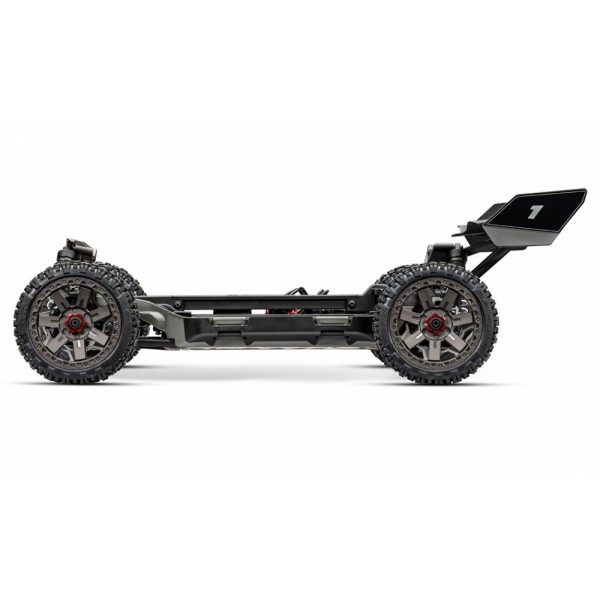

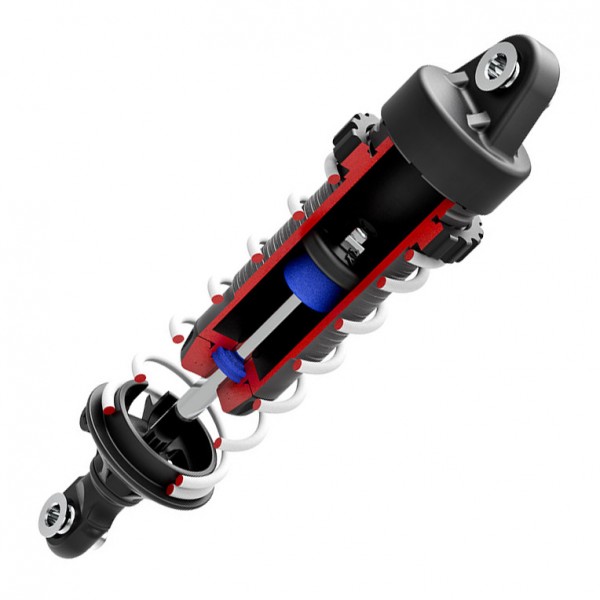

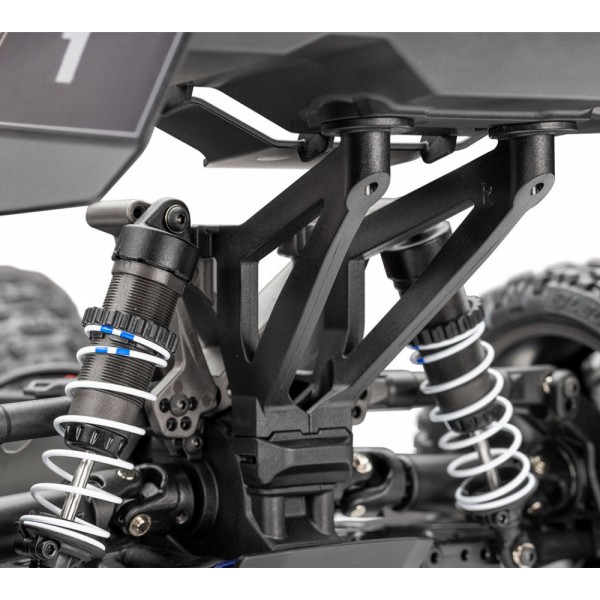

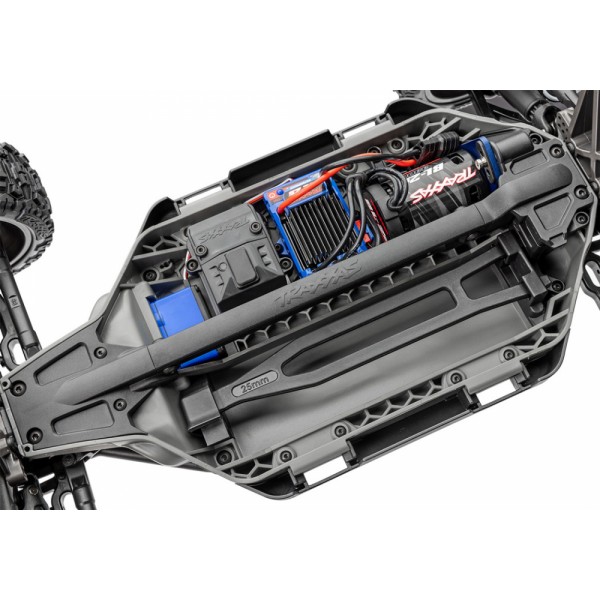

Jato 4X4 sits low and wide, concentrating its weight below the driveshafts for exceptional handling and perfect weight distribution. Extra-long GTR shocks in the front and rear maximize traction by keeping Jato 4X4’s new Sledgehammer® buggy tires in constant contact with the ground. Add the optional sway bar kit (sold separately) for ultra-flat cornering and game-changing on-track performance.

Clipless Buggy Body

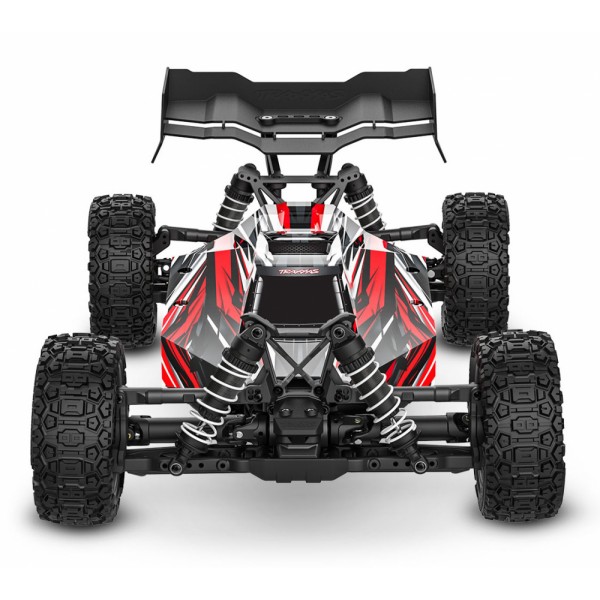

Jato 4X4’s form-fitted clipless body cuts through the wind and eliminates the parachuting effect for stable performance at speed. Tough clipless side latches hold the body securely in place but release in just seconds for fast battery swaps. Jato 4X4 incorporates the high-downforce wing from Sledge® to keep its chassis planted with rugged rollover protection as an added benefit.

Specs:

• Length: 517 mm
• Width: 305 mm
• Ground Clearance: 26 mm (center)
• Weight (no battery): 2.36 kg
• Height (overall): 179 mm
• Wheelbase: 320 mm
• Shock Length (front): 101 mm - XX-long
• Shock Length (rear): 101 mm - XX-long
• Speed Control: BL-2s™ electronic speed control
• Motor (electric): BL-2s™ 3300 Kv sensorless brushless
• Overall Drive Ratio: 12.80:1
• Differential Type: Hardened steel bevel, sealed, limited slip
• Gear Pitch: 32
• Chassis Structure/Material: Composite tub
• Drive System: Shaft-driven 4WD
• Steering: Dual-bellcrank with integrated servo saver

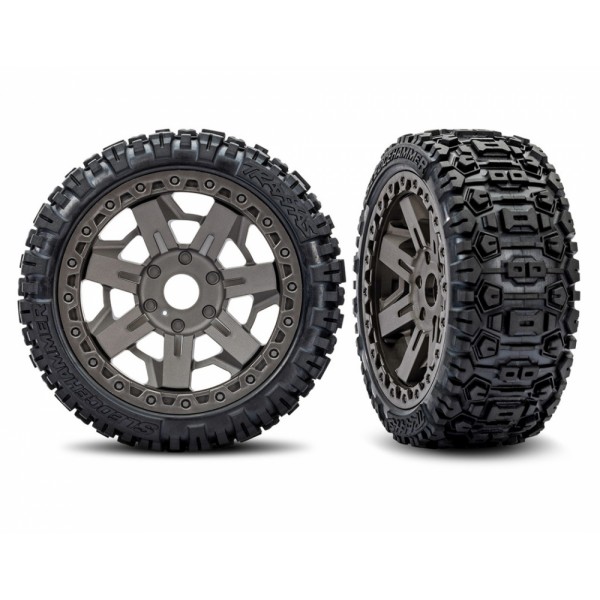

• Tires: Sledgehammer® with foam inserts
• Tire Diameter: 114 mm
• Wheels: 78mm (3") Gray buggy wheels
• Radio System: TQ™ 2.4 GHz (2-channel)
• Servo: Waterproof digital 2075 servo (125 oz-in torque)
• Skill Level: 1
• Battery Compartment (L/W/H): 165 x 50 x 23/26 mm

Motor Specs:

• Type: BL-2s 3300 Kv sensorless brushless motor
• Weight: 213 g
• Length: 80 mm
• Diameter: 36 mm
• Connector Type: Traxxas Quick Connect Motor Plug

ESC Specs:

• Input Voltage (cells): 6-7 Cells NiMH / 2s LiPo
• Case Size: 139 x 59 x 31 mm
• Weight: 3.07 ounces (87 g)
• BEC Voltage: 6.0 volts
• Reverse Delay: Yes, with lockout
• Thermal Protection: Two-stage thermal shutdown
• Ports: Auxiliary fan

What’s In The Box:

• Jato 4X4 with BL-2s ESC and 3300 Kv motor
• Quick Start Guide
• TQ 2.4 GHz radio system
• High quality maintenance tools

What You’ll Need:

• Batteries: Jato 4X4 requires a 7.4-volt LiPo battery or 8.4-volt NiMH battery. See full list of batteries.
• Charger: The Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance.
• AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.
