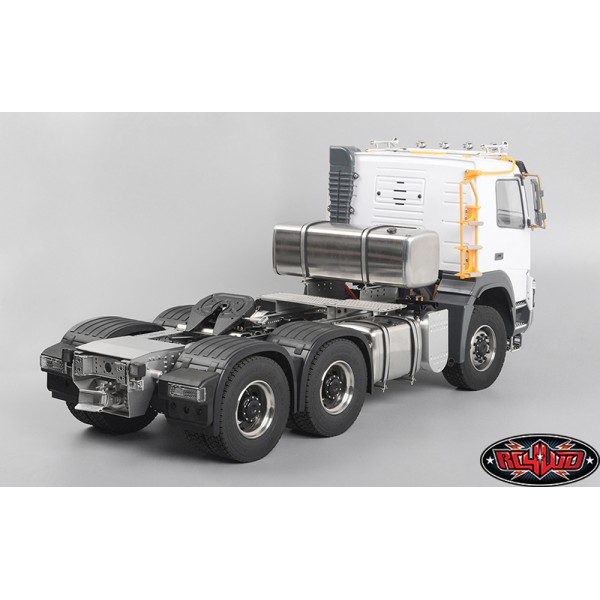

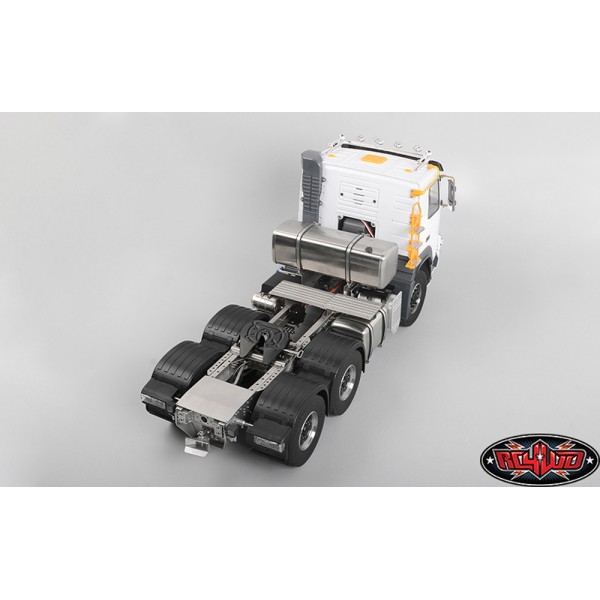

Rc4wd Nashorn Semi Truck RC 6X6 1 :14 FMX

Important note: due to the size and weight of this product, this product must be shipped in its container. It will only be shipped via the express shipping service (5-8 days), this requires an additional shipping fee of $ 180 for shipping to any part of the United States and all international countries due to the size and weight.
Technical specifications:

•         European style hard plastic front cabin

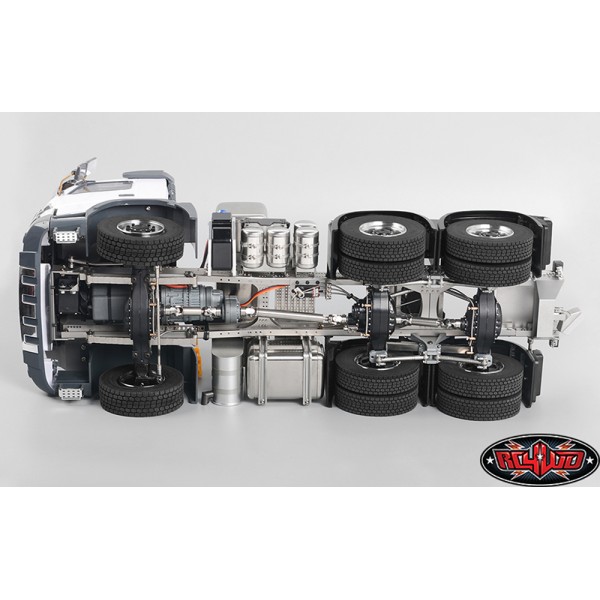

•         3-speed full metal transmission (planetary gears)
•         Fuel tank scale (billet aluminum)

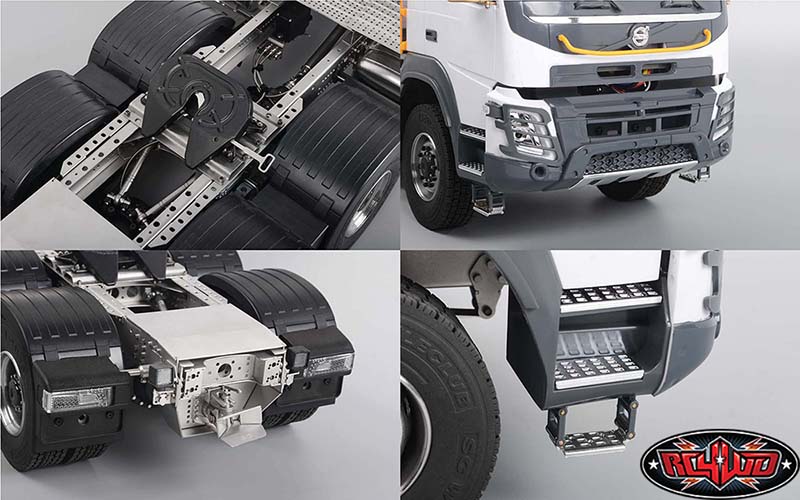

•         Installation of the Super Scale leaf suspension
•         Scale wheels (billet aluminum)
•         Rear axle lockable remotely (differential lock)
•         Front and rear axle housing in solid metal
•         Steel scale transmission shaft
•         Realistic front bolt

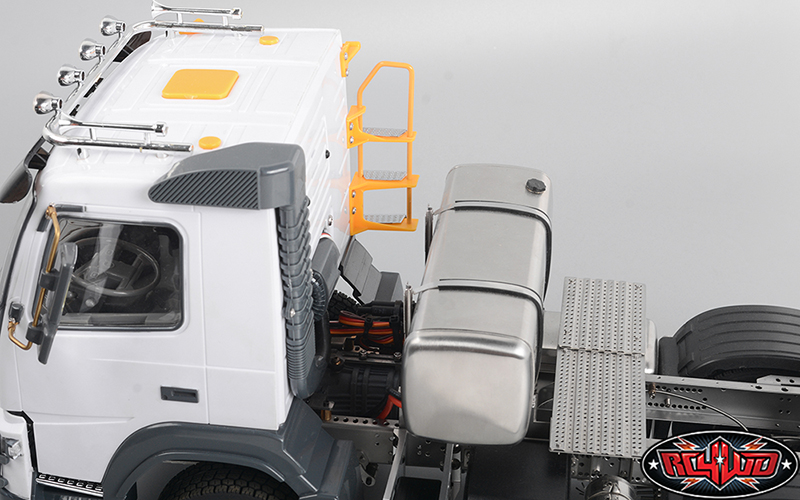

•         Retractable steel ladder

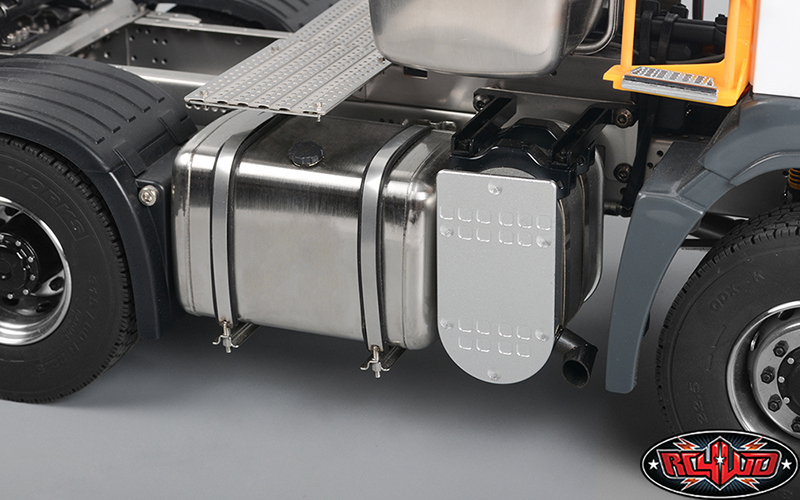

•         Functional molded fuel tank
•         Buckets for scales (suitable for 3-5 mm LEDs)
•         Maximum mass load: 60 kg
•         Brushed electric motor
•         Length: 21.6 inches / 550 mm
•         Width: 7.87 inches / 200mm
•         Height: 9.44 inches / 240 mm
•         Weight: 6.5 kg
•         Axis transmission ratio: 9: 1
•         First gear 6.7: 1, Second gear 5: 1, Third gear 3.7: 1 (Transmission)
•         Basic 2.4Ghz 6-channel radio
•         Some assemblies required, see the manual for more details
•         Manufactured by JDCustoms
•         30 day limited warranty

What's Included:

•     1/14 6x6 Nashorn semi-truck (FMX)

Replacement parts:

•         Gas tank for 1/14 Earth Mover (VVV-S0043)
•         Earth swept excavator excavator 4200XL brushed ESC (VVV-S0011)
•         Armageddon Complete Painted Cab (FMX) (VVV-S0178)
•         1/14 Exhaust and assembly system for Euro Style (VVV-S0174)
•         1/14 Urea tank and mounting system for Euro Style trucks (VVV-S0176)

Parts required:

•         LiPo 3S Earth Digger / Earth Mover Battery (6500mAh, 11.1v, 25c) (Z-E0038)
•         4x AA batteries for radio (Z-S1718)

Optional parts:

•         Twister Ultimate High Performance Waterproof Servo (Z-E0063)
•         Twister High Torque Metal Gear Digital Servo (Z-E0035)
•         1.7 "Hauler Super Wide tires for 1/14 commercial truck (Z-T0071)
•         Long-haul truck tires 1.7 "1/14 (Z-T0026)
•         1/14 LoRider 1.7 "Semi Commercial Truck Tires (Z-T0066)
•         1/14 Commercial Roady 1.7 "Semitrailer Truck Tires (Z-T0032)
•         1/14 Commercial Roady Super Wide Truck Tires 1/14 (Z-T0072)
•         Armageddon Complete Cab (FMX) (VVV-S0177)
•         Double Axle 1/14 BigDog Heavy Equipment Trailer (Z-H0015)

Instruction manual:
download from the RC4WD website


Clipboard:

•         The transmitter must be turned on before starting the ESC
•         ESC supports the XT60 connector
•         The ESC has no cut lipo
•         While some components may be assembled, it may be in your best interest to check the products to make sure all hardware is tight. In some cases you may want to apply thread lock to some hardware.
•         Use good quality hexagonal screwdrivers to avoid unscrewing the screw heads
•         Use the wire lock when inserting metal screws into metal parts
•         Use thread lock sparingly
•         Do not overtighten the screws, otherwise the thread can be stripped
•         Do not use batteries larger than 3S. (11.1 volt (s))
•         This product is intended for experienced R / C users. Not recommended for beginners
•         Speaker included, but audio unit sold separately. (VVV-S0074)
