Graupner HoTT mc-28, 16-channel with 6000mah LiPo

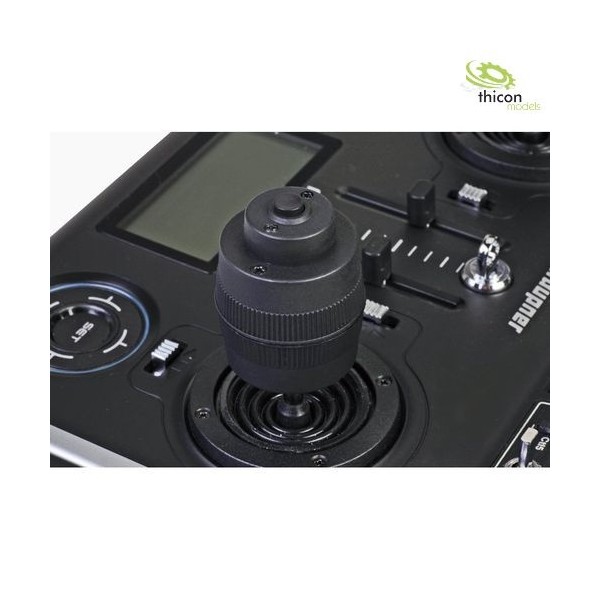

The all-rounder for trucks and construction machinery. Hydraulic functions can be perfectly controlled with the 4D sticks.

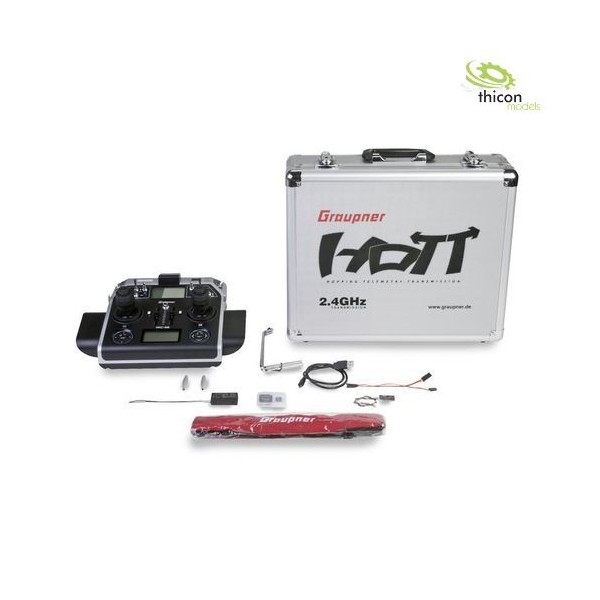

Included in the set

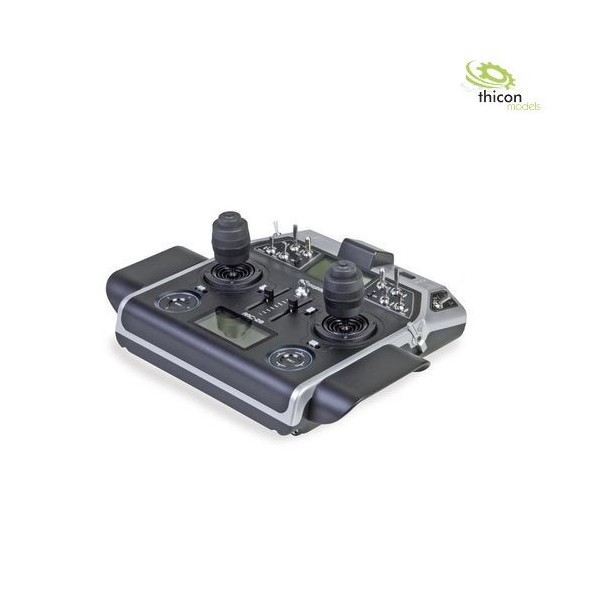

Console transmitter Graupner HoTT mc-28, 16-channel with built-in LiPo transmitter battery 6000 mAh
-Update cable
-micro-SD card
-Aluminium suitcase
-Hand rests
-Neck holder
Transmitter strap
-Bluetooth® v2.1 + EDR module

Features:

• -Linearization of swashplate servos: Electronic compensation of the non-linear path of swashplate rotary servos.
• - Tail unit type normal, V tail unit, delta / flying wing, 2 HR Sv 3 + 8 (this means that 2 linked elevator servos are immediately available without using free mixers / cross mixers)
• - Number of flaps up to 4 QR / 4 WK: Full support of 8 wing servos, now also without the use of free mixers.
• -Deactivable flight phase switchover delay: The delay time can be switched off for individual channels for each flight phase (e.g. to switch off the engine for electric models or activate / deactivate helicopter head lock).
• -16 phase names
• Wing mixer: Newly designed multi-flap menu for the simplest settings of up to 8 wing servos for specific flight phases in a clear manner, even without the use of free mixers.
• -Number of flight phases: (area: 8, helicopter: 7 + AR)
• -Phase trim
• -Switchable snap-flap mixer HR-> WK with new offset function for easy course corrections and quick turns
• -3 ring limiters for Voith-Schneider drives and the like
• -Channel sequencer for 3 channels for retractable engines and landing gear flaps
• -Logical switches
• -Trim memory
• -Multi-channel function for channel expansion for up to 14 additional channels
• -Music player and internal speaker for speech output and music
• - Swap the servo assignment at the receiver output on the transmitter side and on the receiver side
• -PPM signal adjustable at the data output

Technical information

• Antenna: patch
• Batteries or rechargeable batteries included / recommended: Y
• Battery cell type: lithium-ion
• Operating voltage [V]: 3.4 ... 4.35
• Width [mm]: 228
• Display ?: Yes
• Flight phases: Yes
• Frequency: 2400 ... 2484.5
• Total weight [g]: 1250
• Height [mm]: 66
• HoTT technology: Yes
• Channels: 16
• Length [mm]: 235
• Micro SD: yes
• Range approx [m]: ~ 3000
• Transmitter series: mc
• Transmitter type: desk
• Speech output: Yes
• Language variant: DE
• Control function: 16
• Current consumption [mA]: 400
• Temperature range [° C]: -15 ... 55
• Touch display: No.
• USB connection: yes

Delivery WITHOUT receiver
