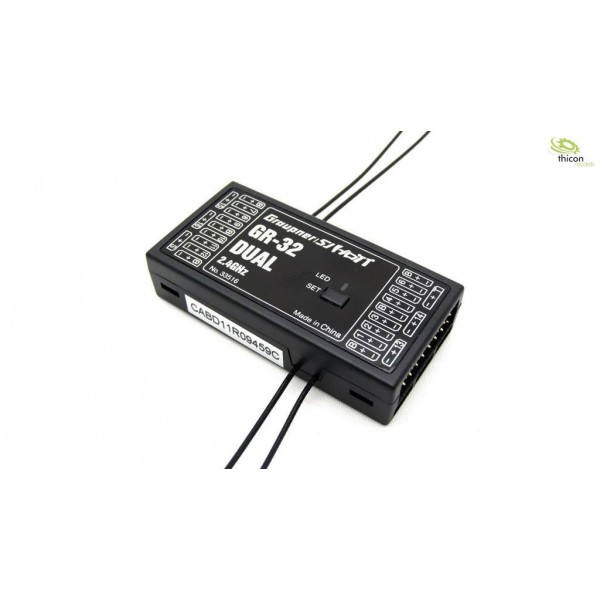

Graupner GR- 32 Dual Hott 16-channel Receiver

Graupner GR-32 HoTT dual receiver (16-channel) 33516
The Graupner GR-32 HoTT receiver has a range of approx. 5000m and can be assigned up to 16 channels.
With the GRAUPNER HoTT 2.4GHz technology, the dual receiver has a safe hopping telemetry transmission high-frequency part with high-quality components and state-of-the-art software. The dual receiver has two complete receiver parts and additional hardware antenna diversity. For reception, therefore, the better antenna signal is always used and the antenna that was last used for reception is always used for transmission. This ensures that the return channel data is sent via the better positioned antenna.
The receiver transmits the parameters "receiver voltage", "receiver temperature" and "signal strength" to the transmitter without additional sensors.

Channel output
• Channels 1-7 are output in the 1st group
• Channels 8-14 are output in the 2nd group
• In the 3rd group, channels 15 + 16 are output
• The sum signal is present at connection S.

Features
• The use of up to 75 channels ensures extreme operational reliability and is insensitive to external interference
• The wide receiver voltage range of 3.6 V - 8.4 V (functional up to 2.5 V) ensures full functionality even with voltage fluctuations
• Connection for telemetry sensors and one for sum signal input or output
• 6 battery inputs and thus an excellent power supply for powerful servos
• Two LEDs indicate the operating status
• Compact size and minimal possible weight
• Very high receiver input sensitivity, therefore very long range
• The servo connections on the front make installation easier and always guarantee firm connections
• Failsafe, Hold, OFF and Standard (Channel 1 = Failsafe, all other Hold) programmable
• Compatible with all HoTT remote controls

Functions with optional SMART box
• 5 programmable mixers
• Linear, degressive and exponential servo curves programmable
• Sum signal input or output at connection "S" programmable (e.g. for V-Stabi, Microbeast, Quadrocopter, wireless student function with mc-19/22 HoTT, flight simulators, satellite function)
• Limitation and reversal of the servo travels also possible in the receiver
• Failsafe, Hold and OFF for the servo channels individually programmable
• Programmable warning thresholds for undervoltage, overtemperature and undertemperature
• Servo test function
• The SMART-Box is available as an option and is not included in the scope of delivery of the receiver

Technical specifications
• Channels: 16
• Sum signal output: Yes
• Dimensions approx .: 63 x 30 x 14 mm
• Weight approx .: 24 g
• Frequency: 2400 ... 2483.5 MHz
• Modulation: 2.4 GHz FHSS
• Range: approx. 5000 m
• Current consumption: 140 mA
• Operating voltage: (2.5V) 3.6V to 8.4V
• Number of antennas: 4 (2x diversity)
• Antenna length: 4x wire 145 (antenna 30) mm
• Temperature range: -15 to + 70 ° C
