Rc4wd Armageddon Hydraulic 8x8 Dump Truck 1:12 Scale RTR

Are you ready for the end of days?  The opportunities are limitless with the Beast II Truck Kit! Sunday driver to world domination. It's up to the imagination to complete your Beast II.

The Beast II has unmatched scale detail, allowing for a realistic model or a true performance oriented 6x6 trail truck.

The Beast II is built with engineering and design first. Packed with great products like the R3 2 speed transmission, Yota II axles, Triton transfer case, Mil-Spec ZXL tires and 1.9" Humvee beadlock wheels. There are no better options!

Beast II... What's in store for you?

Custom Designed for True to Scale Looks
Realistic Aluminum Ladder Frame Chassis
R3 Scale 2 Speed Transmission
Center Mounted Realistic 4x4 Transfer Case
Cast Metal Axles with Locked Differentials
3 Link Front and 8 Link Rear Suspension
Humvee 1.9" Internal Beadlock Wheels
Mil-Spec ZXL 1.9" Tires
Chassis Mounted Steering Servo
Dual Spring 80mm Scale Black Shocks

Triton Transfer Case
Ratio - 1:1 Gearing 32P Hardened Steel Gears, 8 Bearing Design, Cast Casing

All New R3 Scale 2 Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1 Internal 1.78:1
Gears - Widen Steel 32P, Delrin Spur, Slipper Clutch

All New Cast Yota II Axles
Ratio: 15/40 = 2.67:1 Width at Hex 180.5mm

Beast II Suspension
Double Triangulated 8 Link Rear Suspension
3 Link Front Suspension with Panhard Bar

Shock Absorbers
Dual Spring 80mm Shocks - Can be oil filled

Wheels
Humvee 1.9" Internal Beadlock Wheel
Hub: Hex Type
Width: 25mm
Back Spacing: 16mm

Bumpers
Machined Billet Aluminum, Lightweight

Beast II Dimensions
Wheels Base F-R: 408mm (16.1")
Wheels Base F-M: 292mm (11.496")
Width: 211mm (8.3")
Height: 226mm (8.9")
Ground Clearance: 60mm (2.4")
Final Drive Ratio: 1st - 62.1:1, 2nd - 22.75:1

Suspension
The Beast II Chassis features multiple options to allow you complete customization and personal setup for your electronics. We also provide battery slots and velcro straps for easy battery placement.

The Beast II includes a set of our RC4WD Dual Spring Shocks. An all new design, these ultimate scale shocks provide realistic looks and ultimate performance. They're machined from billet aluminum with dual springs.

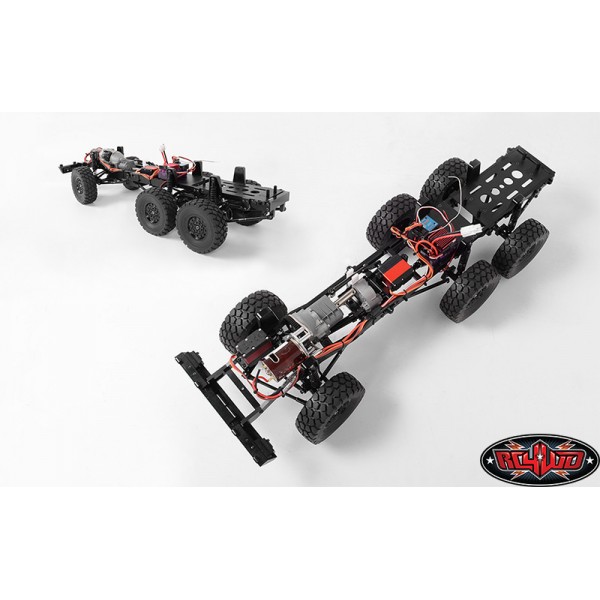

The All New Beast II Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops, chassis servo mounts and hard body mounting points for maximum strength.

The Beast II includes a set of RC4WD Black Humvee 1.9" Internal Beadlock Wheels featuring a super tough black finish and aluminum internal locking rings.

The Beast II is a military specification truck. It must have a tough set or rock grabbing tires and the included Mil-Spec ZXL in Advanced X4 Medium Compound deliver traction as well as perfect scale appearance in just the right size.

Drivetrain
The All New R3 Scale 2 Speed Transmission comes with a tough cast metal case and new widened gears to allow for more abuse along with a Delrin Spur with Slipper Clutch. Also features a sturdy billet aluminum motor mount for durability.

The Beast II includes the new Hammer Transfer Case. Packed with scale detail, the Hammer features a cast metal exterior and heavy duty 32P Widened Steel Gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the Beast II Drivetrain has the most resistant gears RC4WD has to offer so the Beast II can stay on the trail day after day.

The most scale accurate axles on the market, the RC4WD Cast Yota II Axles feature innovative 8 degree round knuckles, unique removable diff covers, new mounting points and a compact offset pumpkin in front.

The Driveshafts for the Beast II are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.

The Details
The Beast II 6x6 Chassis with Mil-Spec Hard Body. The Beast II Body has an amazing assortment of scale details including mirrors, spare tire holder and handles to replicate a 1:1 vehicle.

Military looks and details. The Beast II Body Set is a detailed replica of the full scale vehicle! The Mil-Spec Body allows everyone to know it means business.

The Beast II Body Set comes in durable hard plastic with molded green color for that perfect military look. Every detail from the molded body set is painstakingly installed for an amazing finish.

The Mil-Spec Body Set is made up of 100 parts and pieces. It's all here to bring your build to next level. Metal detail parts are included to bring the realism to life including lenses for signal lights. Easy to add lighting kit (sold separately).

All details were captured with the Mil-Spec Body Set to make this a great scale body and an awesome scale build!

What's Included:

• 1x RC4WD Beast II 6x6 Truck RTR

Replacements Parts(ASK INSIDE):

• Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
• Triton Transfer Case (1:1) (Z-U0029)
• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• Scale Nylon Short Punisher Shaft (89mm-120mm) 5mm Hole (Z-S0583)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• Yota II Ultimate Scale Cast Axle (Center Rear) (Z-A0010)
• Metal Drive Coupling for Trail Finder 2 (Z-S0599)
• Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
• Gelande 2 Rear 4 Link Mount (Z-S0795)
• Drag Link for Gelande 2 (Z-S0810)
• 70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
• 59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
• 52mm (2.04") Internally Threaded Aluminum Link (Black) (Z-S1084)
• M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
• M3 Short Bent Plastic Rod End (20x) (Z-S0402)
• M3 Mini Plastic Rod End (20x) (Z-S0398)
• M3 Offset Short Plastic Rod End (20x) (Z-S0401)
• MIL-SPEC ZXL 1.9" Tires (Z-T0075)
• Humvee 1.9" Internal Beadlock Wheel (Z-W0119)
• RC4WD Mil-Spec Hard Body Parts Tree (L) (Z-B0107)
• RC4WD Mil-Spec Hard Body Parts Tree (I) (Z-B0091)
• RC4WD Mil-Spec Hard Body Parts Tree (F) (Z-B0095)
• RC4WD Mil-Spec Hard Body Parts Tree (C) (Z-B0105)
• RC4WD Mil-Spec Hard Body Parts Tree (G) (Z-B0093)
• RC4WD Mil-Spec Hard Body Parts Tree (H) (Z-B0089)
• RC4WD Mil-Spec Hard Body Parts Tree (D) (Z-B0103)
• RC4WD Mil-Spec Hard Body Parts Tree (E) (Z-B0097)
• RC4WD Mil-Spec Hard Body Parts Tree (A) (Z-B0099)
• RC4WD Mil-Spec Hard Body Parts Tree (B) (Z-B0101)
• RC4WD Mil-Spec Hard Body Parts Tree (J) (Z-B0087)
• RC4WD Mil-Spec Hard Body Parts Tree (K) (Z-B0085)
• RC4WD Mil-Spec Hard Body Window Set (Z-S1531)
• RC4WD Mil-Spec Hard Body Spare Tire Carrier Assembly (Z-S1527)
• RC4WD Mil Spec Hard Body Set (Z-B0086)
• 3mm Black Spacer with M3.1 Hole (10) (Z-S1524)
• Heavy Duty Nylon Strap Lock (5) (Z-S0552)
• XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0009)
• Outcry Crawler Speed Controller ESC with TurboBEC (Z-E0007)
• 540 Crawler Brushed Motor 55T (Z-E0003)
• Twister High Torque Metal Gear Digital Servo (Z-E0035)

Replacement Hardware:

• RC4WD Mil-Spec Hard Body Mirror Hardware (Z-S1525)
• RC4WD Mil-Spec Hard Body Hardware Bag (1) (Z-S1519)
• RC4WD Mil-Spec Hard Body Hardware Bag (3) (Z-S1523)
• RC4WD Mil-Spec Hard Body Hardware Bag (2) (Z-S1521)
• RC4WD Mil-Spec Hard Body Hardware Bag (4) (Z-S1529)

Upgraded Front / Rear Shock:

• RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
• RC4WD 80mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0036)
• King Off-Road Scale Dual Spring Shocks (80mm) (Z-D0035)
• Ballistic Fabrication Dual Spring w/Faux Piggyback 80mm (Z-D0054)
• King Off-Road Dual Spring Shocks (80mm Medium OD) (Z-D0055)

Hopups:

• Hammer Transfer Case (1.47/1) (Z-U0024)
• Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole (Z-S0826)
• King Kong Mini Tow Shackle (Z-S0075)
• LED Basic Lighting System For Mil-Spec 6x6 Body Set (Z-E0082)
• RC4WD Michelin X® Force_ XZL_+ 14.00 R20 1.9" Scale Tires (Z-T0141)
• RC4WD Michelin X® Force_ XZL_+ 14.00 R20 Single 1.9" Scale Tires (Z-P0066)
• Scale Steel Punisher Shaft V3 (61mm - 71mm / 2.40" - 2.79") 5mm Hole (Z-S1687)
• 540 Crawler Brushed Motor 65T (Z-E0002)
• Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
• RC4WD Outcry Crawler Water-Resistant Brushed Speed Control ESC Unit (Z-E0068)
• K44 Scale Front Axle (Z-A0048)
• K44 Scale Rear Axle (Z-A0049)
• Heavy Duty Metal Servo Arm 24t Hitec (Z-S0820)
• Twister High Torque Metal Gear Digital Servo (Z-E0035)
• LED Basic Lighting System For Mil-Spec 6x6 Body Set (Z-E0082)
• RC4WD Michelin X® Force_ XZL_+ 14.00 R20 1.9" Scale Tires (Z-T0141)
• RC4WD Michelin X® Force_ XZL_+ 14.00 R20 Single 1.9" Scale Tires (Z-P0066)
• Scale Steel Punisher Shaft V3 (61mm - 71mm / 2.40" - 2.79") 5mm Hole (Z-S1687)
• Ultra Scale Hardened Steel Driveshaft (95mm - 130mm / 3.74" - 5.1") 5mm (VVV-S0019)
• Rebuildable Super Punisher Shaft (100mm - 118mm /  3.94" - 4.65") 5mm Hole (Z-S1261)
• Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole (Z-S0826)
• Mega Truck Universal Shaft "Ver 2" (92mm - 130mm / 3.62" - 5.12") (VVV-S0054)
• Scale Steel Punisher Shaft (100mm - 130mm / 3.94" - 5.12") 5mm (Z-S0209)

Metal Rod End Upgrades:

• M3 Bent Short Aluminum Rod Ends (Silver) (10) (Z-S1653)
• M3 Bent Short Aluminum Rod Ends (Red) (10) (Z-S1655)
• M3 Bent Short Aluminum Rod Ends (Blue) (10) (Z-S1657)
• M3 Bent Short Aluminum Rod Ends (Black) (10) (Z-S1659)
• M3 Medium Straight Aluminum Rod Ends (Silver) (10) (Z-S1638)
• M3 Medium Straight Aluminum Rod Ends (Red) (10) (Z-S1640)
• M3 Medium Straight Aluminum Rod Ends (Blue) (10) (Z-S1642)
• M3 Medium Straight Aluminum Rod Ends (Black) (10) (Z-S1644)
• M3 Short Straight Aluminum Rod Ends (Silver) (10) (Z-S1630)
• M3 Short Straight Aluminum Rod Ends (Red) (10) (Z-S1632)
• M3 Short Straight Aluminum Rod Ends (Blue) (10) (Z-S1634)
• M3 Short Straight Aluminum Rod Ends (Black) (10) (Z-S1636)
• M3 Offset Short Aluminum Rod Ends (Silver) (10) (Z-S1629)
• M3 Offset Short Aluminum Rod Ends (Red) (10) (Z-S1631)
• M3 Offset Short Aluminum Rod Ends (Blue) (10) (Z-S1633)
• M3 Offset Short Aluminum Rod Ends (Black) (10) (Z-S1635)

Items of Interest: (not required for completion)

• Paint for body
• Modeling/Craft Knife
• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Hex Driver (1.25mm)
• Cross Wrench or Nut Driver
• Cross Head Screwdriver (Small)
• Grease and Lubrication (Z-S1199) (Z-S1197)
• Double Sided Tape for ESC (Z-S0935) (Z-S0934)

Instruction Manuals:

• Click here to download.

Press Information:

• Click here to download.

Notes:

This Kit includes an assembled wheel, tire and spare tire holder that may be added on the Beast II Body Set.
