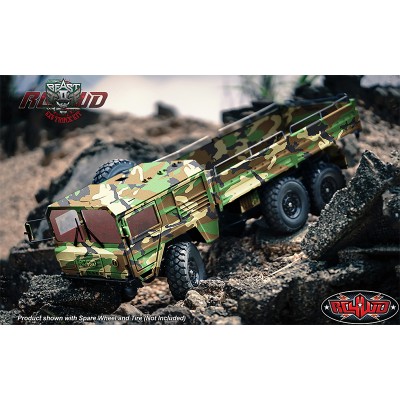

Rc4wd Beast II 6x6 Truck Kit 1/14 Scale

Are you ready for the end of days? The opportunities are limitless with the Beast II truck kit. Sunday driver to world domination. Its up to the imagination to complete your Beast II.
The Beast II has unmatched scale detail, allowing for a realistic model, or a true performance oriented 6x6 trail truck.
The Beast II is built with engineering and design first. Packed with great products like the R3 2 speed transmission, Yota II axles, Triton transfer case, Mil-Spec ZXL tires, and 1.9" Humvee beadlock wheels. There are no better options!

Beast II... What's in store for you?

Custom Designed for True to Scale Looks
Realistic Aluminum Ladder Frame Chassis
R3 Scale 2 Speed  transmission
Center Mounted Realistic 4x4 Transfer Case
Cast Metal Axles with Locked Differentials
3 Link front and 8 Link rear suspension
Humvee 1.9" Internal Beadlock Wheel
MIL-SPEC ZXL 1.9" Tires
Chassis mounted Steering servo
Dual Spring 80mm Scale Black Shocks

Hammer Transfer Case
Ratio - 1:1 Gearing 32P hardened steel gears, 8 bearing Design, cast casing

All New R3 Scale 2 Speed Transmission
Ratios: Pinion/spur 14/64 =4.57:1 Internal 1.78:1 Gears - Wide steel 32P, Delrin spur, slipper clutch

All New Cast Yota II Axles
Ratio: 15/40 = 2.67:1 Width at hex 180.5mm

Beast II  Suspension
Double triangulated 8 Link rear suspension.
3 Link front suspension with panhard bar

Shock Absorbers
Dual Spring 80mm Shocks - Can be oil filled

Wheels
Type: 1.9 Scale Beadlock Wheel
Hub: 12mm Hex  Width: 25mm
Back spacing: 16mm

Bumpers
Machined billet aluminum, lightweight

Beast II Dimensions
Wheels base F-R: 408mm(16.1'')
Wheels base F-M: 292mm (11.496''_)
Width: 211mm (8.3''_)
Height: 226mm (8.9''_)
Ground clearance: 60mm (2.4''_)
Final Drive Ratio: 1st - 62.1:1, 2st - 22.75:1

Drivetrain

The All New R3 scale 2 speed  transmission comes with a tough cast metal case and new wider gears to allow for more abuse along with a Delrin spur
with slipper clutch. Also features a sturdy billet aluminum motor mount for durability.

The Beast II includes the new Hammer Transfer Case. Packed with scale detail,  the Hammer features a cast metal exterior and the same heavy duty 32P widened gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the Beast II drivetrain has the most durable gears RC4WD has to offer so the Beast II can stay on the trail day after day.

The most scale accurate axles on the market, the RC4WD Cast Yota2 axles feature innovative 8 degree round knuckles, unique removable diff covers, new mounting points and a compact offset pumpkin in front.

The Driveshafts for the Beast II are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles  and durability on the trail.

Suspensions
The Beast II chassis features multiple options to allow you personal setup for your electronics. We provide battery slots and velcro straps for easy battery placement.

The Beast II includes a set of our RC4WD Dual Spring Shocks. An all new design, this  ultimate  scale shocks has realistic looks and the ultimate in performance. Machined from billet aluminum with dual springs and totally rebuildable.

The All New Beast II Chassis is a machined billet aluminum ladder frame with an all link suspension design, scale shock hoops , chassis servo mounts  and hard body mounting points for the ultimate in strength.

The Beast II includes a set of RC4WD Black Humvee 1.9" internal beadlock wheel. Featuring a super tough black finish and aluminum internal locking ring.

This is military specification truck, It must have a tough set or rock grabbing tires and the included MIL-SPEC ZXL  in Advanced X4 Medium Compound deliver traction as well as perfect scale appearance in just the right size.

Details
The Beast II 6 x 6 chassis with Mil-Spec Hard Body. The Beast II Body has an awesome appointment of scale details including mirrors, spare tire holder, and handles to replicate a 1:1 vehicle.

Military looks and details. The Beast II Body Set is a detailed replica of the full scale vehicles.! The Mil Spec body allows everyone to know it means business.

The Beast II Body Set comes in durable hard plastic molded in a paintable white finish, perfect for custom paint. All the trim parts are separate pieces to get a great look with minimal fuss.

The Mil Spec Body Set is made up of 100 parts and pieces. Its all here to bring your build to next level. Metal detail parts included to bring the realism to life including lenses for signal lights. All lamps can be illuminated with modification.

What's Included:

• 1x RC4WD Beast II 6x6 Truck Kit

Notes:

• While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.

Required to Complete:
FOR ORIGINAL PARTS ASK HERE
Truck Kit

• Hex Drivers (1.25mm, 1.5mm, 2mm, 2.5mm)

• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Body Kit

• Modeling / Craft Knife
• Side Cutters
• Instant glue / Plastic Cement (prefer non whitening)
• Hex Drivers (1.5mm, 2mm)
• Cross Phillips Screwdrivers (Small)

Electronics

• Motor (35t, 45t, or 55t)
• Electronic Speed Controller "ESC" (Z-E0007)
• Radio and Receiver (2 Channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 1x Standard Size Servo (Z-E0035)
• Battery (Consult your "ESC" manual) 6 cell NIMH, or 2 cell Lipo Battery
• Charger (Consult your Battery guide) Chargers

Replacements Parts:

• Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
• Triton Transfer Case (1:1) (Z-U0029)
• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• Scale Nylon Short Punisher Shaft (89mm-120mm) 5mm Hole (Z-S0583)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• Yota II Ultimate Scale Cast Axle (Center Rear) (Z-A0010)
• R3 Scale 2 Speed Transmission (Z-U0025)
• Metal Drive Coupling for Trail Finder 2 (Z-S0599)
• Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
• Gelande 2 Rear 4 Link Mount (Z-S0795)
• Drag Link for Gelande 2 (Z-S0810)
• 70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
• 59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
• 52mm (2.04") Internally Threaded Aluminum Link (Black) (Z-S1084)
• M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
• M3 Short Bent Plastic Rod End (20x) (Z-S0402)
• M3 Mini Plastic Rod End (20x) (Z-S0398)
• M3 Offset Short Plastic Rod End (20x) (Z-S0401)
• MIL-SPEC ZXL 1.9" Tires (Z-T0075)
• Humvee 1.9" Internal Beadlock Wheel (Z-W0119)
• RC4WD Mil-Spec Hard Body Parts Tree (L) (Z-B0107)
• RC4WD Mil-Spec Hard Body Parts Tree (I) (Z-B0091)
• RC4WD Mil-Spec Hard Body Parts Tree (F) (Z-B0095)
• RC4WD Mil-Spec Hard Body Parts Tree (C) (Z-B0105)
• RC4WD Mil-Spec Hard Body Parts Tree (G) (Z-B0093)
• RC4WD Mil-Spec Hard Body Parts Tree (H) (Z-B0089)
• RC4WD Mil-Spec Hard Body Parts Tree (D) (Z-B0103)
• RC4WD Mil-Spec Hard Body Parts Tree (E) (Z-B0097)
• RC4WD Mil-Spec Hard Body Parts Tree (A) (Z-B0099)
• RC4WD Mil-Spec Hard Body Parts Tree (B) (Z-B0101)
• RC4WD Mil-Spec Hard Body Parts Tree (J) (Z-B0087)
• RC4WD Mil-Spec Hard Body Parts Tree (K) (Z-B0085)
• RC4WD Mil-Spec Hard Body Window Set (Z-S1531)
• RC4WD Mil-Spec Hard Body Spare Tire Carrier Assembly (Z-S1527)
• RC4WD Mil Spec Hard Body Set (Z-B0086)
• 3mm Black Spacer with M3.1 Hole (10) (Z-S1524)


Replacement Hardware:

• RC4WD Mil-Spec Hard Body Mirror Hardware (Z-S1525)
• RC4WD Mil-Spec Hard Body Hardware Bag(1) (Z-S1519)
• RC4WD Mil-Spec Hard Body Hardware Bag (3) (Z-S1523)
• RC4WD Mil-Spec Hard Body Hardware Bag (2) (Z-S1521)
• RC4WD Mil-Spec Hard Body Hardware Bag (4) (Z-S1529)

Optional Parts:

• Hammer Transfer Case (1.47/1) (Z-U0024)
• Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole (Z-S0826)
• King Kong Mini Tow Shackle (Z-S0075)
• FlashPoint 1.9" Military Offroad Tires (Z-T0082)
• Humvee Single 1.9" Internal Beadlock Wheel (Z-Q0018)
• MIL-SPEC ZXL 1.9" Tires (Z-T0075)

Upgraded Front / Rear Shock:

• RC4WD Superlift Superide 80mm Scale Shock Absorbers (Z-D0012)
• RC4WD 80mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0036)
• King Off-Road Scale Dual Spring Shocks (80mm) (Z-D0035)
• Ballistic Fabrication Dual Spring w/Faux Piggyback 80mm (Z-D0054)
• King Off-Road Dual Spring Shocks (80mm Medium OD) (Z-D0055)

Hopups:

• 540 Crawler Brushed Motor 65T (Z-E0002)
• Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
• RC4WD Outcry Crawler Water-Resistant Brushed Speed Control ESC Unit (Z-E0068)
• K44 Scale Front Axle (Z-A0048)
• K44 Scale Rear Axle (Z-A0049)
• Heavy Duty Metal Servo Arm 24t Hitec (Z-S0820)
• Twister High Torque Metal Gear Digital Servo (Z-E0035)
• LED Basic Lighting System For Mil-Spec 6x6 Body Set (Z-E0082)
• RC4WD Michelin X® Force_ XZL_+ 14.00 R20 1.9" Scale Tires (Z-T0141)
• RC4WD Michelin X® Force_ XZL_+ 14.00 R20 Single 1.9" Scale Tires (Z-P0066)
• Scale Steel Punisher Shaft V3 (61mm - 71mm / 2.40" - 2.79") 5mm Hole (Z-S1687)
• Ultra Scale Hardened Steel Driveshaft (95mm - 130mm / 3.74" - 5.1") 5mm (VVV-S0019)
• Rebuildable Super Punisher Shaft (100mm - 118mm /  3.94" - 4.65") 5mm Hole (Z-S1261)
• Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole (Z-S0826)
• Mega Truck Universal Shaft "Ver 2" (92mm - 130mm / 3.62" - 5.12") (VVV-S0054)
• Scale Steel Punisher Shaft (100mm - 130mm / 3.94" - 5.12") 5mm (Z-S0209)

Metal Rod End Upgrades:

• M3 Bent Short Aluminum Rod Ends (Silver) (10) (Z-S1653)
• M3 Bent Short Aluminum Rod Ends (Red) (10) (Z-S1655)
• M3 Bent Short Aluminum Rod Ends (Blue) (10) (Z-S1657)
• M3 Bent Short Aluminum Rod Ends (Black) (10) (Z-S1659)
• M3 Medium Straight Aluminum Rod Ends (Silver) (10) (Z-S1638)
• M3 Medium Straight Aluminum Rod Ends (Red) (10) (Z-S1640)
• M3 Medium Straight Aluminum Rod Ends (Blue) (10) (Z-S1642)
• M3 Medium Straight Aluminum Rod Ends (Black) (10) (Z-S1644)
• M3 Short Straight Aluminum Rod Ends (Silver) (10) (Z-S1630)
• M3 Short Straight Aluminum Rod Ends (Red) (10) (Z-S1632)
• M3 Short Straight Aluminum Rod Ends (Blue) (10) (Z-S1634)
• M3 Short Straight Aluminum Rod Ends (Black) (10) (Z-S1636)
• M3 Offset Short Aluminum Rod Ends (Silver) (10) (Z-S1629)
• M3 Offset Short Aluminum Rod Ends (Red) (10) (Z-S1631)
• M3 Offset Short Aluminum Rod Ends (Blue) (10) (Z-S1633)
• M3 Offset Short Aluminum Rod Ends (Black) (10) (Z-S1635)

Items of Interest: (not required for completion)

• Paint for body
• Grease and Lubrication (Z-S1199) (Z-S1197)
• Double Sided Tape for ESC (Z-S0935) (Z-S0934)

Instruction Manuals:

• Click here to download.

Axle Shimming Video: Click Here
