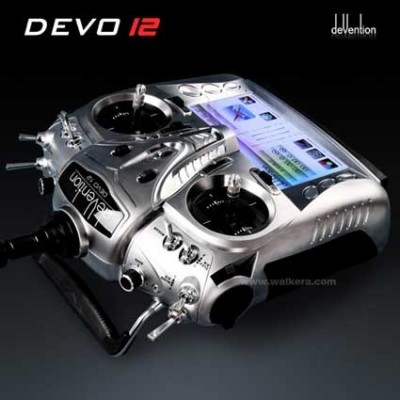

Devo 12S Radio FPV Video Control System with Telemetry

KIT DEVO 12S

Specification:

1). Encoder: ARM micro computer system

2). Frequency: 2.4Ghz

3). Output power:-5dBm~20dBm

4). Battery:3.7V 3000mAh LiPo

5). Stand-by time: 10h

6). Output impuse:1000?2000mS(netural:1500mS)

7). Transmitter measure(L*W*H)?200*201*79mm

8). Weight?922g(w/o TX battery) DEVO-RX120

Technical data:

1). Type: 2.4Ghz 12 channels

2). Sensitivity:-105dbm

3). Weight: 13g

4). Size:39*28.5*14.5mm

5). Power supply: 5V

Fearures

1). it provides rainbow,gem blue,skyblue,three backgrouds.

2). it covers helicoptor,airplane, gliders.3 models field.

3). there are 6 kinds helicoptor swashplate modes,one servo,2 servos,3 servos and so on.

4). it can meet different demands,and can be stored 60pcs models data base.

5). you can freely select the normal flight and stunt flight 1,stunt flight 2,stunt flight 3,stunt flight 4,five flight modes.

6). According to different models and signal requirements,you can select the output power freely,and it is more economic and safe.

7). it supports -MODE1 -MODE2 -MODE3 -MODE4 four stick modes,each controllable derection can be changable.

8). the data base can be copied between any two models.the database is transfered to avoid losing .

9). you can set different ID code,according to your favorate,safty performance is realiable.

10).Through internet, USB connector ,which makes it simple and convinent,you can enjoy upgrade online service free.

11).Support telemetry function,to have a real time data response to monitor the flight.
