Rc4wd Gelande 2 Land Rover Defender D110 Scaler 1/ 10 Kit 0047

All New Hammer Transfer Case
Ratio - 1.47:1 Gears - Wide 32P hardened steel gears, 8 bearings, cast casing

All New R3 Single Speed Transmission
Ratios: Pinion/spur 14/64 = 4.57:1 Internal  1.78:1
Gears - Wide steel 32P, Delrin spur, slipper clutch

All New Cast Scale Axles
Ratio: 15/40 = 2.67:1
Width at hex 180.5mm

G2 Suspension
Double triangulated 4 Link rear suspension.
3 Link front suspension with panhard bar

Shock Absorbers
Dual Spring 80mm Shocks - Can be oil filled

Full Ball Bearing Set Included

Wheels
Type: 1.9 5 lug Wagon Wheels
Hub: Pin type Width: 25mm
Back spacing: 11mm

Bumpers
Machined billet aluminum, lightweight

D110 Truck Dimensions
Wheels base: 331mm (13")
Width: 200mm (7.87")
Height: 247mm (9.72")
Length: 510mm (20.07")
Weight: 3.05kg (105.6oz)

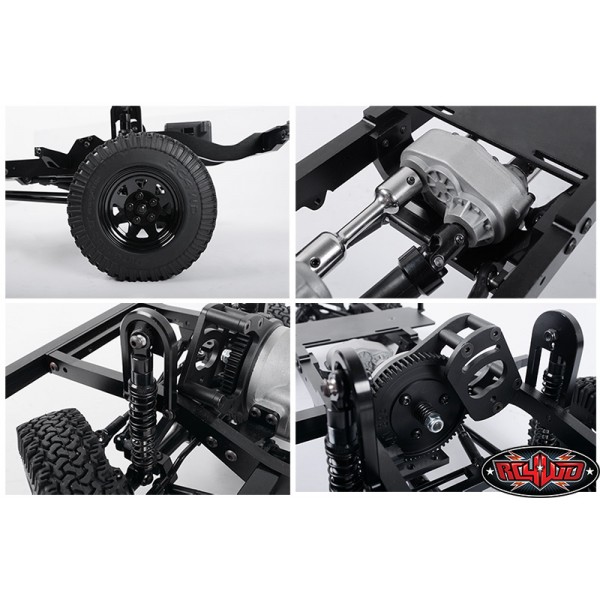

Drivetrain

The R3 Single Speed Transmission comes with a cast aluminum case and new wider gears to allow for more abuse along with a Delrin spur with slipper clutch.

The D110 includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the same new 32P widened gears for durability.

Drawing on the success of the RC4WD MOA gear sets, the D110 drivetrain has the most durable gears RC4WD has to offer so the D110 will stay on the trail, day after day.

The most scale accurate axles on the market, the RC4WD Cast Metal Axles feature innovative round knuckles, new lower mounting points and compact offset pumpkins.

The Driveshafts for the D110 are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.

Suspensions

The D110 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted electronics tray for multiple electronics mounting options.

The D110 includes a set of RC4WD Dual Spring Shocks. Designed for ultimate scale looks and ultimate performance. These dual spring shocks are machined from billet aluminum.

The D110 Chassis is a machined billet aluminum ladder frame design with 4 link and 3 link with panhard bar, scale shock hoops, chassis servo mounts and hard body mounts.

The D110 includes a set of RC4WD Black Stamped Steel 1.9 internal beadlock wheels. Super tough and durable black finish, aluminum internal ring and popular 6 lug design.

Every D110 needs a tough set or rock grabbing tires and the included RC4WD Dirt Grabbers deliver the traction as well as perfect scale looks in just the right size.

Details

The kit features the D110 Scale Body Set. The new custom 4 door Defender body has an awesome appointment of scale details including mirrors, door handles, vents and grilles to match the 1:1 vehicle.

The unmistakable lines of the 4 door classic. The Defender Body Set is a hand-made replica of the full scale vehicle, right down to the rivets! No other scale body comes this close to realism.

The D110 Body Set comes in durable hard plastic molded in a paintable finish, perfect for custom paint. All the trim parts are separate pieces to get a great look, mith minimal fuss.

(*Requires modification to fit)Comprised of 50 parts, the Defender Body Set features a detailed interior with realistic seats, gear shifter, handbrake and detailed dash. Its all here to bring your build to the next level of scale detail.

The crisp lines and subtle details are all captured. Chrome plated parts are included as well as colored lenses for all signal lights. Headlights can be LED illuminated with a minimum of modification.

Industrial Grade Aluminum Chassis with Authentic Ladder Type Design

4-link Suspension Design Front and Rear

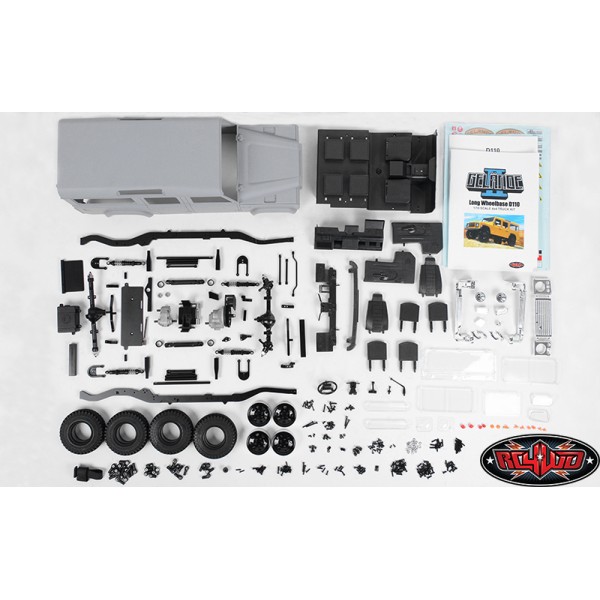

What Included:

• 1x Gelande II D110 Truck Kit With Hard Body

Notes:

• While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.
• Spare Wheel and Tire not included
• Fits RC4WD Spare Tire Case For Defender Body (Z-X0012)
• RC4WD Spare Tires Case for Defender Body (Stamped w/RC4WD) (Z-X0010)
• Fits ARB Land Rover Defender 90 Winch Bar Front Bumper for Gelande 2 (Z-S0853) and RC4WD 1/10 Warn 9.5cti Winch (Z-S1079), but should work with RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)
• This is a hand modified body from a D90 2 door body. We have adapted two bodies to make the stretched D110 4 door version. This is not a one piece unit, it's made up of many parts mostly hand cut. So there will be some imperfections in the body due to the hand modification. There will be some minor cosmetic work that may need to be completed to the body before painting
• Interior fits D90. Its not long enough for the D110.Custom install required by customer for D110

Required to Complete:

Truck Kit

Body Kit

Electronics

• Motor (35t, 45t, or 55t)
• Electronic Speed Controller "ESC" (Z-E0007)
• Radio and Receiver (2 channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)
• 1x Standard Size Servo (Z-E0035)
• Battery (Consult your "ESC" manual) 6 cell NIMH, or 2 cell Lipo battery
• Charger (Consult your battery guide) Chargers

Replacement Parts:

• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• Gelande 2 Aluminum Body Mounts (Z-S0790)
• Servo Mounts for Gelande 2 Chassis (Z-S0791)
• Battery Plate for Gelande 2 (Z-S0792)
• Gelande II Electronics Deck (Z-S0793)
• Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
• Gelande 2 Rear 4 Link Mount (Z-S0795)
• Gelande II D110 Chassis Set (Z-C0043)
• Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
• Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
• Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
• Gelande 2 Front Replacement Bumper (Z-S0800)
• Gelande 2 Rear Replacement Bumper (Z-S0801)
• R3 Single Speed Transmission Mounts (Z-S0802)
• R3 Scale Single Speed Transmission (Z-U0028)
• Metal Drive Coupling for Gelande 2 (Z-S0803)
• M3 Driveshaft Screw Pin (5) (Z-S0804)
• 1mm Black Spacer with M3 Hole (10) (Z-S0809)
• 3mm Black Spacer with M3 Hole (10) (Z-S0806)
• 5mm Black Spacer with M3 Hole (10) (Z-S0821)
• Dual Spring 80mm Scale Black Shocks (Ver 2) (Z-D0039)
• 59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
• 65.3mm (2.57") Aluminum Link for Gelande 2 (Z-S0817)
• 73mm (2.87") Aluminum Link for Gelande 2 (Z-S0805)
• 70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
• Drag Link for Gelande 2 (Z-S0810)
• 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black) (Z-W0129)
• Dirt Grabber 1.9" All Terrain Tires (Z-T0005)
• Fuel Cell Radio Box (Z-S0592)
• Scale Nylon Short Punisher Shaft (89mm-120mm) 5mm Hole (Z-S0583)
• M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
• M3 Short Bent Plastic Rod End (20x) (Z-S0402)
• M3 Mini Plastic Rod End (20x) (Z-S0398)
• M3 Offset Short Plastic Rod End (20x) (Z-S0401)
• Land Rover Defender D90 Hard Body Spare Parts Assortment (Z-B0034)
• Land Rover Defender D90 Door Handles (2) (Z-S0687)
• Gelande 2 Decal Sheet for Land Rover Defender D90 Hard Plastic Body Kit (Z-B0038)
• Hammer Transfer Case (1.47/1) (Z-U0024)
• 129mm Aluminum Link (Black) (Z-S1146)
• Metal Drive Extended Coupling (Z-S1148)
• 14t 32p Hardened Steel Pinion Gear (Z-S0430)
• 64t Delrin Spur Gear for R3 2 Speed Transmission (Z-G0055)
• RC4WD 1/10 Defender D110 Hard Plastic Body Kit (Z-B0064)

Optional Parts:

• 1.9" 5 Lug Steel Wheel Hex Hub (Z-S0734)
• 1.9 5 Lug Steel Wheel Hex Hub with Brake Rotor (Z-S0532)
• Land Rover Disco Freestyle 1.9" Wheels (Gun Metal) (Z-W0037)
• Scale Aisin/Yota Style Hubs (Z-S0196)
• XVD Axle for Ultimate Scale Yota II G2 Axle (Z-S0823)
• Gelande 2 Steering Guard (Z-S0824)
• Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole (Z-S0826)
• Ultra Scale Hardened Steel Driveshaft (46mm - 50mm / 1.81" - 1.96") 5mm (VVV-S0006)
• Gelande Side Rock Sliders (Z-S0137)
• RC4WD Marlin Crawlers Side Plastic Sliders for Trail Finder 2 (Z-S0596)
• RC4WD Marlin Crawlers Side Metal Sliders for Trail Finder 2 (Z-S0753)
• King Off-Road Scale Dual Spring Shocks (80mm) (Z-D0035)
• #1 Aluminum Bumper Mount For Trail Finder 2 (Z-S0006)
• Shock Hoops for Trail Finder 2 Chassis (Z-S0597)
• Triton Transfer Case (1:1) (Z-U0029)
• Optional Rear Bumper Mount for Gelande 2 (Z-S0993)
• Yota II Scale Diff Cover (Z-S0907)
• Blade Snow Plow Mounting kit for Gelande 2 (Z-S1504)
• RC4WD Bivouac 1/10 M.O.A.B Camping Trailer w/Tent (Z-H0007)
• BigDog 1/10 Dual Axle Scale Boat Trailer (Z-H0006)
• Roof Rack for Defender D110 (VVV-C0242)
• Front Lamp Guard for Defender (D90/D110) (VVV-C0245)
• Rear Ladder for Defender (D90/D110) (VVV-C0246)
• Rear Winch Bumper for Gelande II (D90/D110) (VVV-C0244)
• Defender Design Steering Guard for Land Rover Defender (Gelande II D90/D110) (VVV-C0238)
• 1/10 Tire Holder (D90/D110) (VVV-C0249)
• Side Sliders for Defender D110 (VVV-C0247)


Hopups:

• RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)
• RC4WD 1/10 Warn 9.5cti Winch (Z-S1079)
• Functional Metal Light & Winch Bumper for Land Rover Defender D90 (VVV-C0125)
• Rear Center Window Guard for Land Rover Defender D90 (VVV-C0124)
• Metal Light & Winch Bumper for Land Rover Defender D90 (VVV-C0123)
• Rear Small Window Guards for Land Rover Defender D90 (VVV-C0122)
• Side Windows Guard Pair for Land Rover Defender D90 (VVV-C0121)
• Complete Windows Guard Set for Land Rover Defender D90 (VVV-C0115)
• RC4WD Ballistic Fabrications Diff Cover for Yota II Axle (Z-S1605)
• Tough Armor front Bumper for G2 Cruiser (Z-S1606)
• Land Rover D90 - Heritage Grill (VVV-C0164)
• D90/110 Aluminum Front Grill and Headlight Surrounds (Z-S1654)
• D90/110 Aluminum Hood and Side Vents (Z-S1656)
• RC4WD ARB Bull Bar Front Bumper for G2 Cruiser (Z-X0028)
• RC4WD Tough Armor Front Tube Bumper for G2 Cruiser (Z-X0026)
• RC4WD Teraflex Diff Cover for Yota II Axle (Z-S1681)
• Tough Armor Rear Tire Carrier for Gelande 2 (Z-S1200)
• Tough Armor Rear Tire Holder for Gelande II (Z-S1357)
• Gelande 2 Mounting kit for Jack Stand Truck Display (Z-S1324)
• M3 Offset Short Aluminum Rod Ends (Silver) (10) (Z-S1629)
• M3 Offset Short Aluminum Rod Ends (Red) (10) (Z-S1631)
• M3 Offset Short Aluminum Rod Ends (Blue) (10) (Z-S1633)
• M3 Offset Short Aluminum Rod Ends (Black) (10) (Z-S1635)
• M3 Short Straight Aluminum Rod Ends (Silver) (10) (Z-S1630)
• M3 Short Straight Aluminum Rod Ends (Red) (10) (Z-S1632)
• M3 Short Straight Aluminum Rod Ends (Blue) (10) (Z-S1634)
• M3 Short Straight Aluminum Rod Ends (Black) (10) (Z-S1636)
• LED Basic Lighting System For Land Rover Defender D90 Body Set (Z-E0062)
• RC4WD Aero Roof Rack with Light Mounting (Type 2) (Z-J0003)
• Grid Design Steering Guard for Land Rover Defender (Gelande II D90/D110) (VVV-C0239)
• Roof Rack w/Lights for Defender D110 (VVV-C0243)
• Big Boss Fender Flare Set for D90/D110 (Z-S1741)

Metal Rod End Upgrades:

• M3 Bent Short Aluminum Rod Ends (Silver) (10) (Z-S1653)
• M3 Bent Short Aluminum Rod Ends (Red) (10) (Z-S1655)
• M3 Bent Short Aluminum Rod Ends (Blue) (10) (Z-S1657)
• M3 Bent Short Aluminum Rod Ends (Black) (10) (Z-S1659)
• M3 Medium Straight Aluminum Rod Ends (Silver) (10) (Z-S1638)
• M3 Medium Straight Aluminum Rod Ends (Red) (10) (Z-S1640)
• M3 Medium Straight Aluminum Rod Ends (Blue) (10) (Z-S1642)
• M3 Medium Straight Aluminum Rod Ends (Black) (10) (Z-S1644)

Recommended Equipment:

• Heavy Duty Metal Servo Arm 24t Hitec (Z-S0820)
• Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
• XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)

Items of Interest: (not required for completion)

• Paint for body
• Grease and Lubrication (Z-S1199)(Z-S1197)
• Double Sided Tape for ESC (Z-S0935)(Z-S0934)
