Rc4wd Kit Trail Finder 2 Scaler 1: 10 LWB Toyota Land Cruiser LC70
Trail Finder 2 LWB con carrozzeria Land Cruiser LC70
Questo pacchetto include:
TF2 Kit telaio "LWB" (Z-K0059):
Il kit Rc4wd Trail Finder 2 LWB ha sia stile dettagliato e prestazioni aggressive. Troverete un perfetto equilibrio tra capacità e prestazioni integrato in ogni Kit TF2 LWB. Le prestazioni del kit di TF2 LWB sono sorprendenti, con la sua trasmissione 2 velocità selezionabile a comando, 4WD, componenti in metallo di qualità in tutto. Il kit di TF2 LWB è veramente un'opera d'arte sia nell'aspetto che nelle prestazioni.
Ogni Kit TF2 LWB è compatibile con una gamma completa di parti opzionali e prestazionali, parti progettate per migliorare le prestazioni e aggiungere bellissimi e importanti dettagli.
Set carrozzeria (VVV-48601):

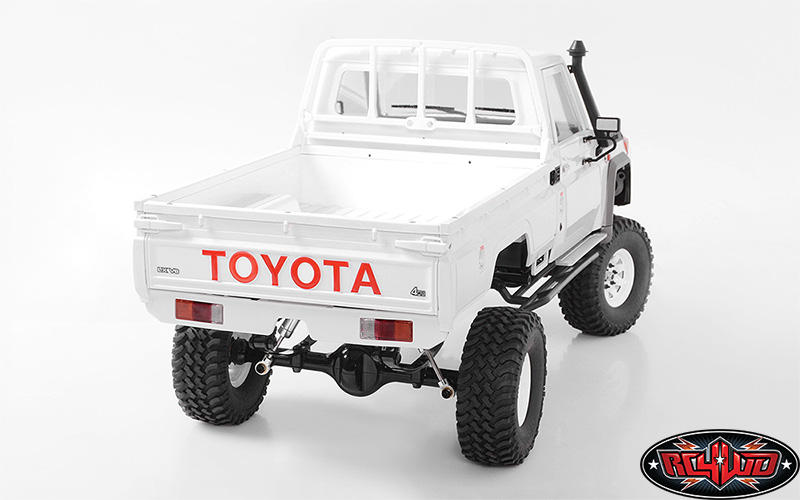

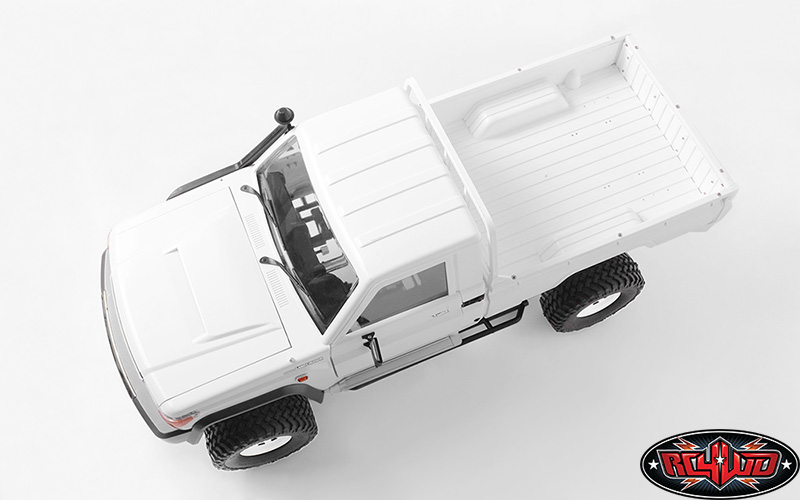

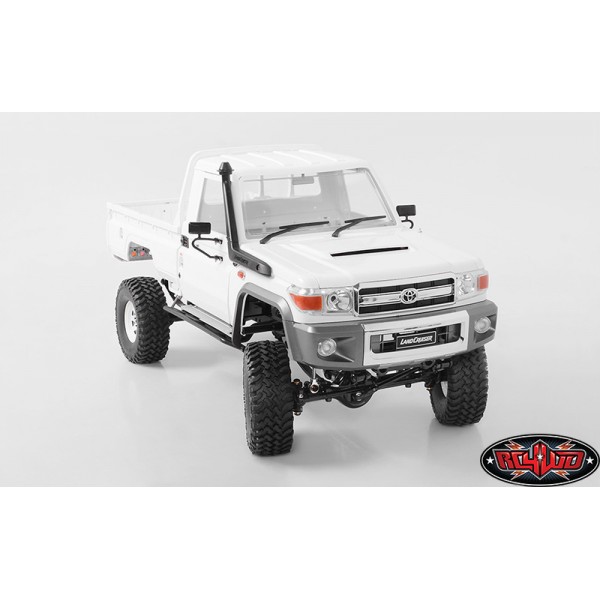

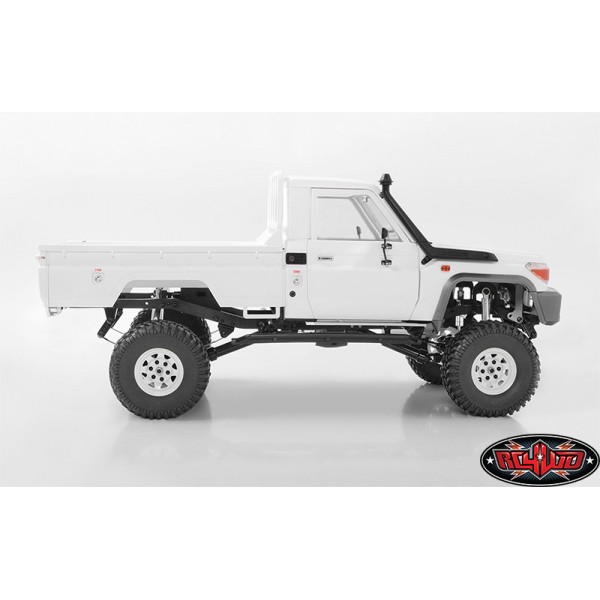

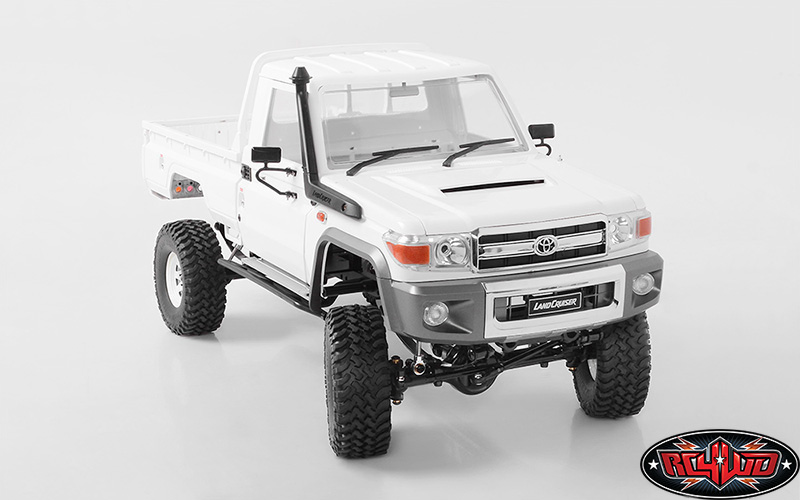

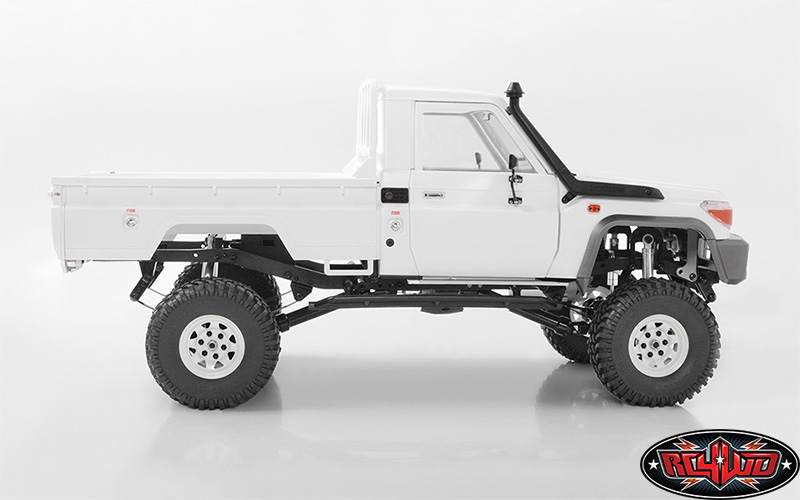

Questa carrozzeria Toyota Land Cruiser LC70 offre dettagli sorprendenti e si inserisce perfettamente sul nostro kit Trail Finder 2 LWB! Licenza ufficiale di Toyota.
Il kit di montaggio (Z-S1782):
Questo kit permette di montare il corpo Toyota Land Cruiser LC70 al popolare Trail Finder 2 LWB.
Specifiche(EN):
TF2 "LWB" Chassis Kit
All New Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide 32P Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears
All New R3 2 Speed Transmission
Ratios Pinion/Spur 14/64 = 4.57:1
1st Gear 3.47:1
2nd Gear 1.27:1
Gears: Wide Steel 32P, Delrin Spur, Slipper Clutch
Features: Machined Billet Aluminum Casing, Scale Looking, Motor Mount can be adjusted with up to 10 different positions, Compatible with other brand spurs (Axial, Traxxas, Robinson)
Cast Yota Axles
Ratio: 15/40 = 2.67:1
Width at Hex (Using 4mm TF2 Hexes): 176.5mm
All New Trail Finder "LWB" 2 Chassis
Features: Billet Aluminum Constriction, Adjustable Shock Hoops
Drive Shafts
High Quality Plastic Material, Very Durable High Quality Steel Yokes
Wheels
Name: 1.55’’ OEM Beadlock Wheels
Hub: 12mm Hex
Width: 22mm
Back Spacing: 9mm
Features: Stamped Steel, Aluminum Hub, Internal Beadlock, Very Scale Looking, 6 Lug Design
TF2 Truck Dimensions
Wheels Base: 12.36in/314mm
Width: 8.46in/215mm
Height: 8.27in/210mm
Ground Clearance: 2.09in/53mm
Final Drive Ratios: 1st - 62.1:1, 2nd - 22.75:1
All New Hammer Transfer Case
Ratio - 1.47:1 Gears - Wide 32P steel gears Features - 8 bearings, cast casing, hardened gears
All New R3 2 Speed Transmission
Ratios Pinion/spur 14/64 = 4.57:1 1st gear
3.47:1 2nd gear 1.27:1
Gears - Wide steel 32P, Delrin spur, slipper clutch,
Features - Machined billet aluminum casing, scale looking, Motor mount can be rotated to 10 different positions,
compatible with other brand spurs (Axial, Traxxas, Robinson)
Cast Yota Axles
Ratio: 15/40 = 2.67:1 Width at hex (using 4mm TF2 hexes): 176.5mm
All New Trailfinder 2 Chassis
Features - Billet aluminum constriction Adjustable shock hoops
Driveshafts
High quality plastic material, very durable High quality steel Yokes
Wheels
Name: 1.55 OEM beadlock wheels Hub: 12mm hex Width: 22mm Back spacing: 9mm
Features: Stamped steel, aluminum hub, internal beadlock, very scale looking, 6 bolt pattern,
Bumpers
Tough Armor TF2 Winch front bumper Tough Armor TF2 Rear Bumper Tough Armor TF2 Side Sliders Authentic
looking crawler style tube bumper. Very high quality flexible plastic, very durable, very scale.
TF2 Truck Dimensions
Wheels base: 287mm (11.3")
Width: 215mm (8.5")
Height: 210mm (8.25")
Ground clearance: 57mm (2.5")
Final Drive Ratios: 1st - 62.1:1, 2nd - 22.75:1
DRIVETRAIN
The TF2 includes the new Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the same new 32P widened gears for durability.
The most scale accurate axles on the market, the RC4WD Cast Yota axles feature innovative round knuckles, new lower mounting points and compact offset pumpkins.
The All New R3 2 speed transmission comes with a fully machined billet aluminum case and new wider gears to allow for more abuse along with a Delrin spur with slipper clutch. The new designed motor mount is adjustable in 10 positions.
Drawing on the success of the RC4WD MOA gear sets, the TF2 drivetrain has the most durable gears RC4WD has to offer so the TF2 will stay on the trail, day after day.
The Driveshafts for the TF2 are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.
SUSPENSION
The TF2 includes a set of RC4WD Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance.
Machined from billet aluminum, rebuildable and internally sprung.
The TF2 includes a set of RC4WD White Stamped Steel 1.55 internal beadlock wheels. Super tough paintable white finish,
aluminum internal ring and popular 6 lug design.
The TF2 Chassis features a molded fuel cell that doubles as an electronics storage box plus an aluminum, frame-mounted under cab electronics tray for multiple electronics mounting options.

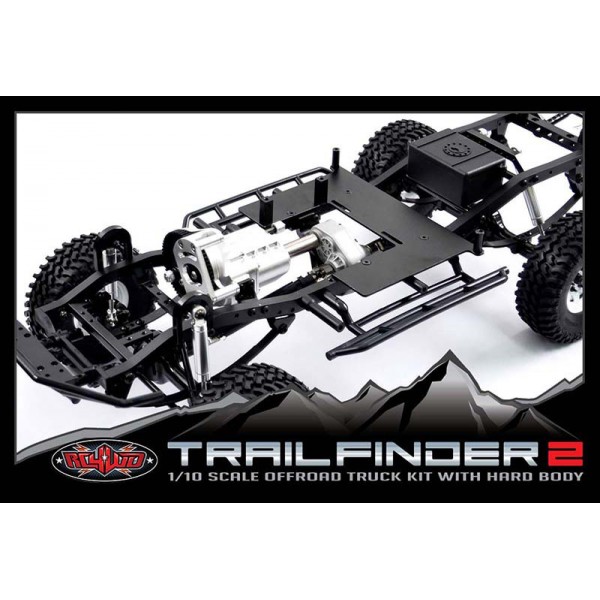

The All New TF2 Chassis is a machined billet alumi- num ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts. 4-link conversion available soon!
Every TF2 needs a tough set or rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.
